Home > Lathes (CNC and Manual) > Centre Lathes Go Back

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Hardinge
  • Model:
  • Hardinge Conquest T42 LSC
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • United Kingdom United Kingdom

DESCRIPTION

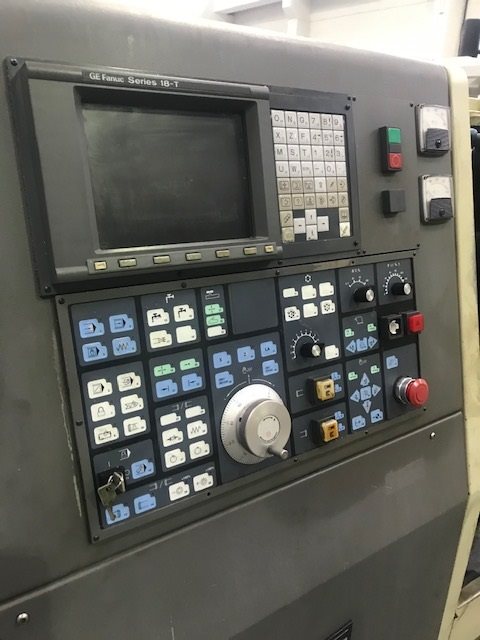

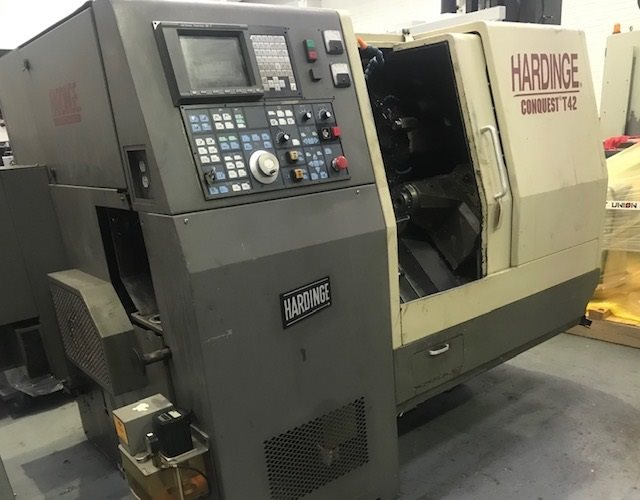

Hardinge Conquest T42 LSC<br><br>Name of Machine: Hardinge Conuest T42 LSC<br>YOM: 1998<br>Stock Number: clj/0138<br>Briefly, this Fanuc controlled 1998 built Hardinge Conquest T42 LSC (Driven tools, C Axis & Sub Spindle) CNC lathe is supplied with driven tools & C-Axis, sub spindle, tailstock, parts catcher and Iemca barfeed.<br><br>Specification:<br><br>16C Collet Spindle<br>Spindle Configuration ANSI A2-5<br>Hole Through Spindle 48mm, Round 16C Collet 42mm cap<br>AC Digital Spindle Drive System (30 Minute Rating) 10 hp / 7.5 kW<br>Speed Range50 - 5,000 rpm<br>CARRIAGE & CROSS SLIDE<br>Max. Swing Over Upper Way Cover 495mm<br>Max. X-Axis Travel 140mm<br>Max. Z-Axis Travel 350mm<br>Max. X-Axis Traverse Rate 12 m/min<br>Max. Z-Axis Traverse Rate 16 m/min<br>Max. Distance from Spindle Face to Turret Face 355mm<br>Live Tooling Holders (Speed Range) 4,000 rpm<br>SUB-SPINDLE<br>Spindle Configuration ANSI A2-5"<br>Hole Through Spindle 48mm<br>Max. Travel 292mm<br>Rapid Traverse and Return Rate 7.6 m/min<br>Max. Square Shank Tool Size on Vertical Turret 20mm<br>Max. Round Shank Tool Size on Vertical Turret 20mm<br>AC Analog Drive System (Power Rating) 1.23 kW<br>MACHINE MEASUREMENTS<br>Length 2362mm<br>Length with End Chip Removal System 3141mm<br>Depth 1778mm<br>Height 1727mm<br>Weight 4445 kg<br>Supplied with: Driven & static tool holders, parts catcher, Iemca Servo barfeed & swarf conveyor.<br>Condition: Used<br>Location Fishponds, Bristol<br>Price: POA<br>Shipping Details: A VAT invoice will be supplied within 48 hours of the sale end date. Delivery off loading and siting are all available with this machine at extra cost.
