MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • CERUTI
  • Model:
  • CERUTI BM 80 CNC TABLE TYPE BORER
  • Condition:
  • Used
  • YOM:
  • 1982
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Italy Italy

DESCRIPTION

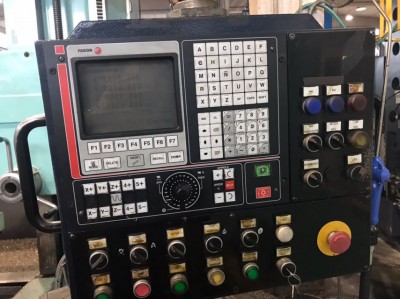

Spindle: 80mm.<br>Transversal travel: 1.400mm.<br>Vertical travel: 1.000mm.<br>Longitudinal travel: 1.250mm.<br>Spindle travel: 600mm.<br>Spindle taper: 40ISO<br>Table: 1.100 x 850mm.<br>Spindle power: 12Kw.<br>Spindle speeds: 15 - 1.500Rpm.<br>Max. weight on table: 2.500kg.<br>Total weight: 8Tons.<br>Cnc: CNC FAGOR 8025<br>Year: 1982<br>Notes: RETROFITTED IN 1992.COMPLETE WITH:- BORING SUPPORT.
