SAN ROCCO
07749
CNC ECS 4801
Axis X 3100 mm
Axis Y 2000 mm
Axis Z 1600 + 600 mm at the table center
Axis W (spindle stroke) 600 mm
Axis B (Rotary table) continuous
Table 1300 x 1100 mm
T slots n.7 distance mm 160 22 H7
Load on table 5.000 kg
Horizont...

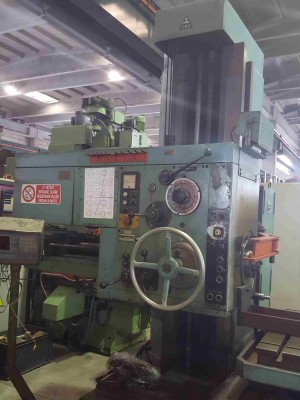

• General renovation 1998
• man. year 1974
• The diameter of the working spindle 90mm
• ISO spindle taper
• Travel in X axis: 1250 mm
• Travel in Y axis: 900 mm
• Travel in the Z axis: 1000 mm
• Spindle stroke (W): 680 mm
• ...
