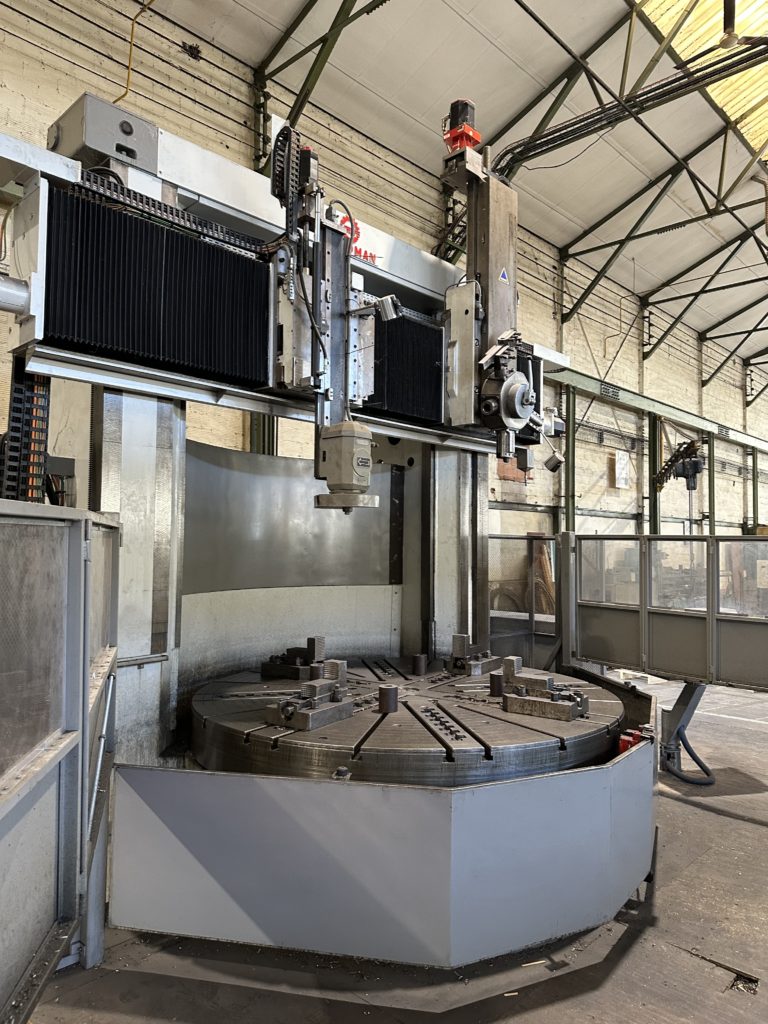

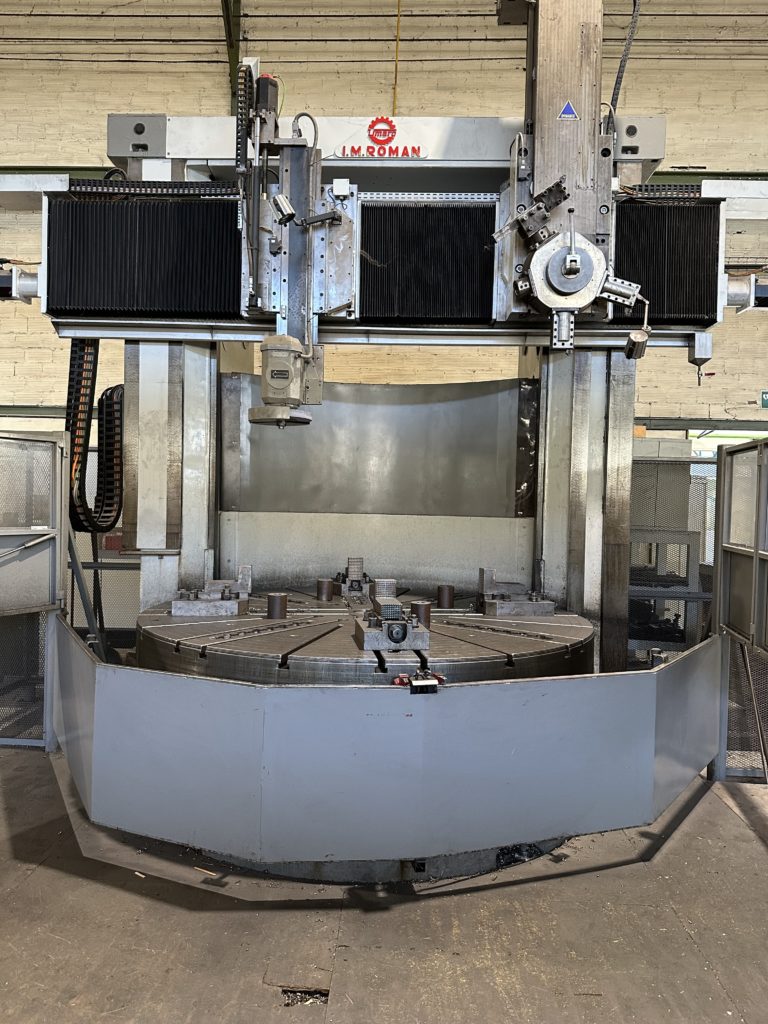

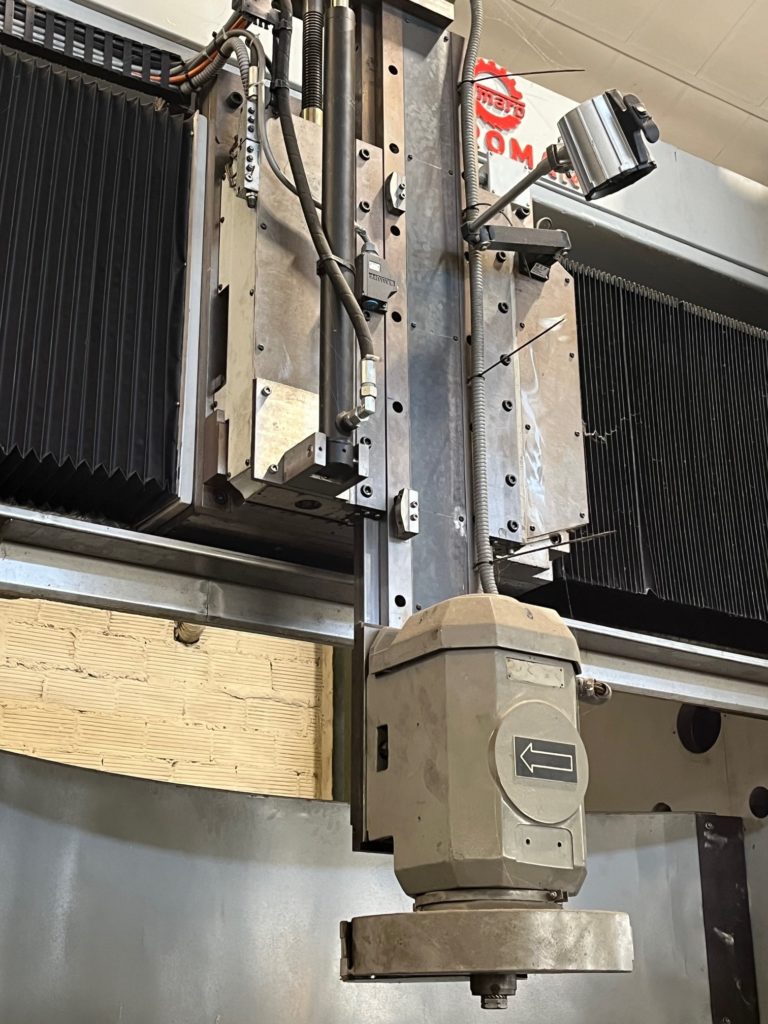

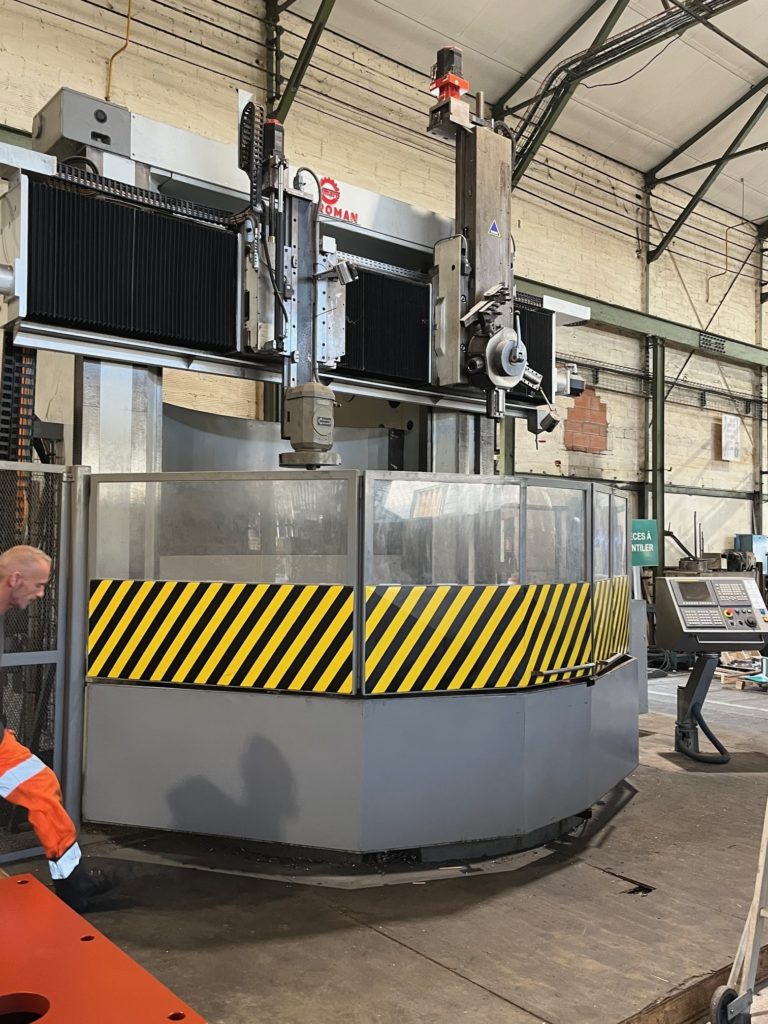

Specifications: CNC : FANUC 0i Max swing diameter : 2650 mm Max turn diameter : 2600 mm Max Turn height. 1900 mm Diameter 2500 mm Max Load. 15 T Chuck Speed (2 ranges) 1 – 112 RPM Main motor power 75 / 60 kW Rams on cross-rail : Vertical stroke RH saddle 760 mm Vertical stroke LH saddle 1200 mm Cross-rail : Vertical stroke 1600 mm Foot-print + height 5 x 4.8 x 4.8 m Equipped with : CNC Grinding head to RH saddle Set of 4 chuck jaws.
