MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SCHAUBLIN
  • Model:

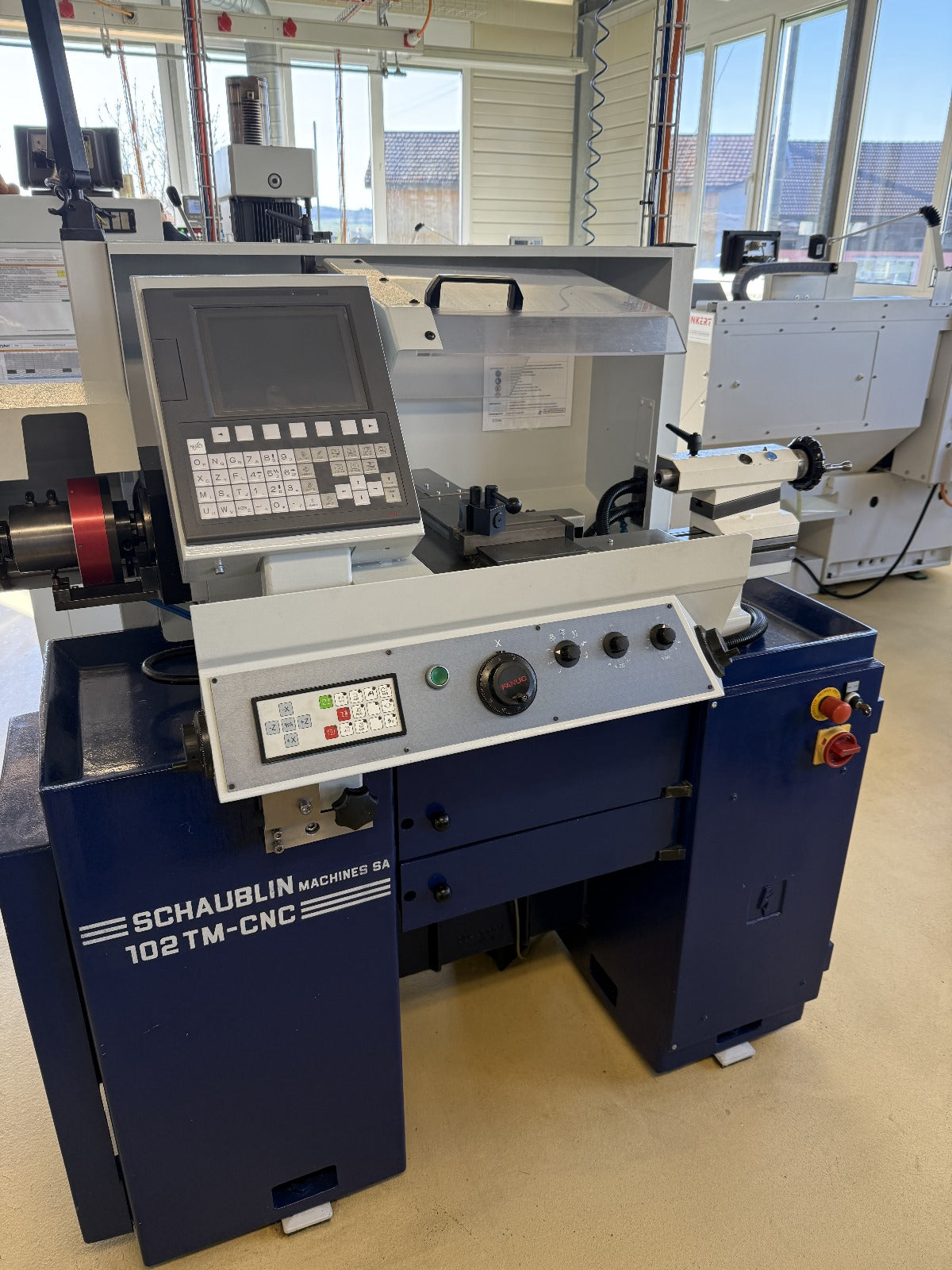

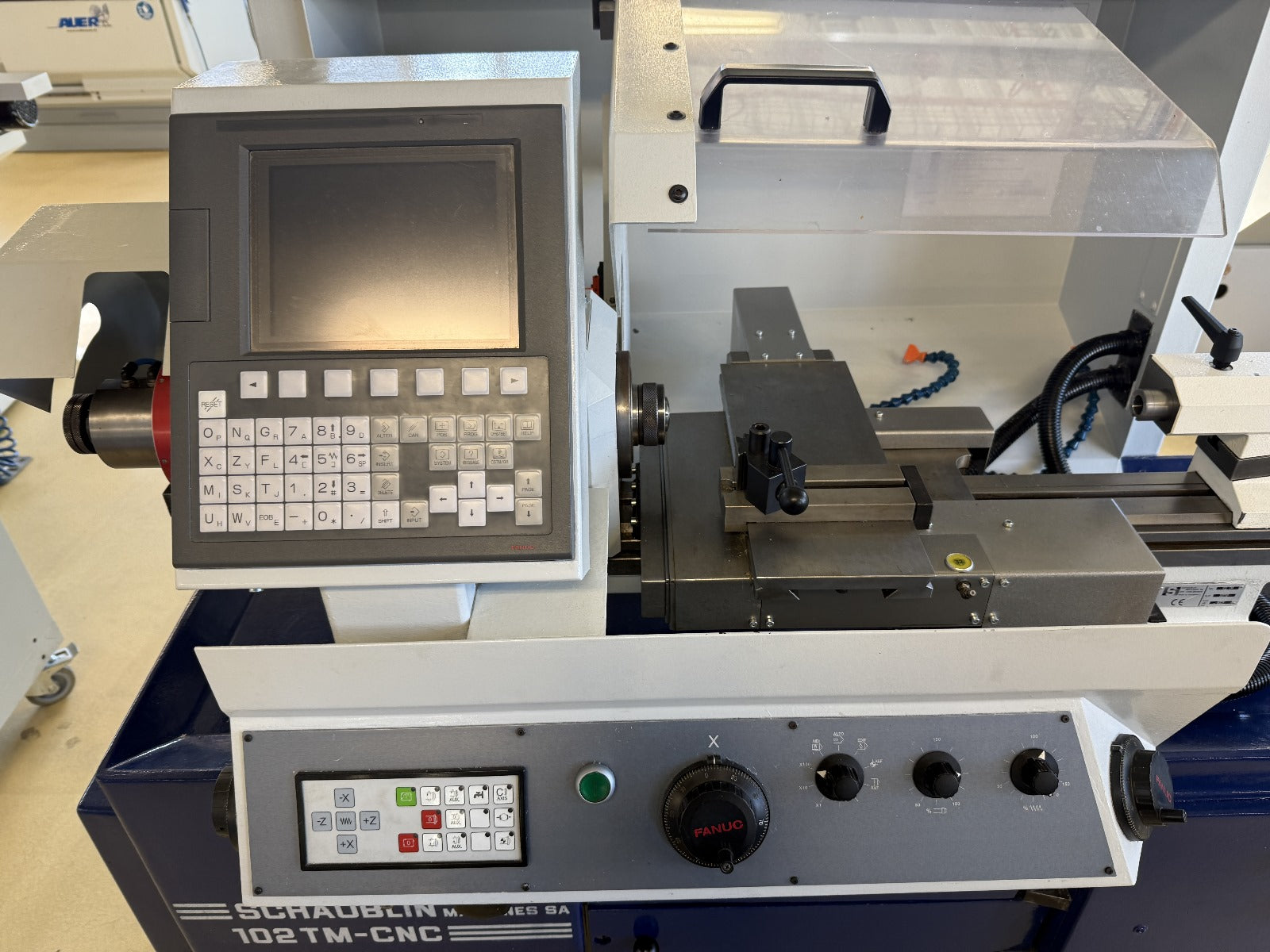

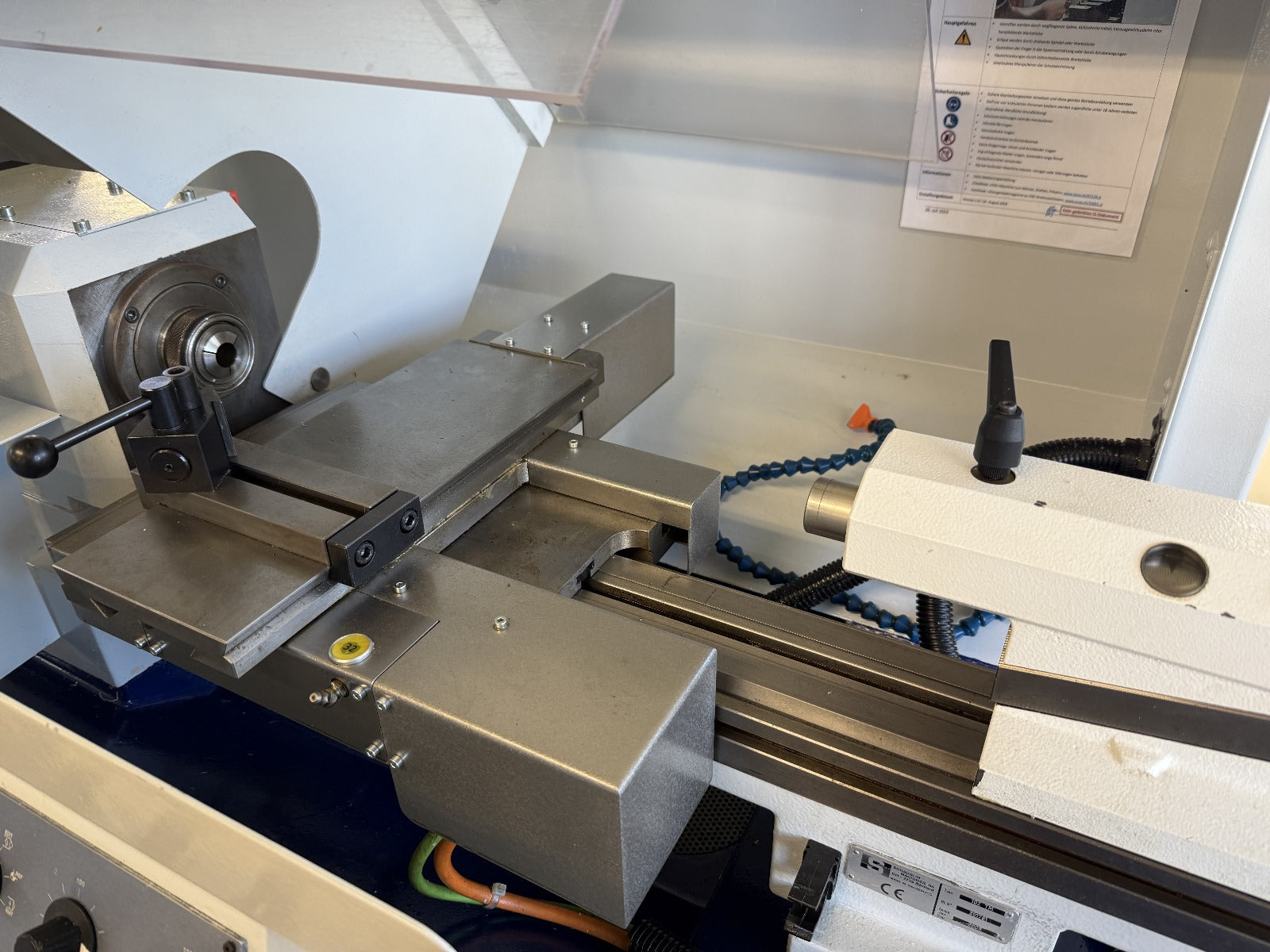

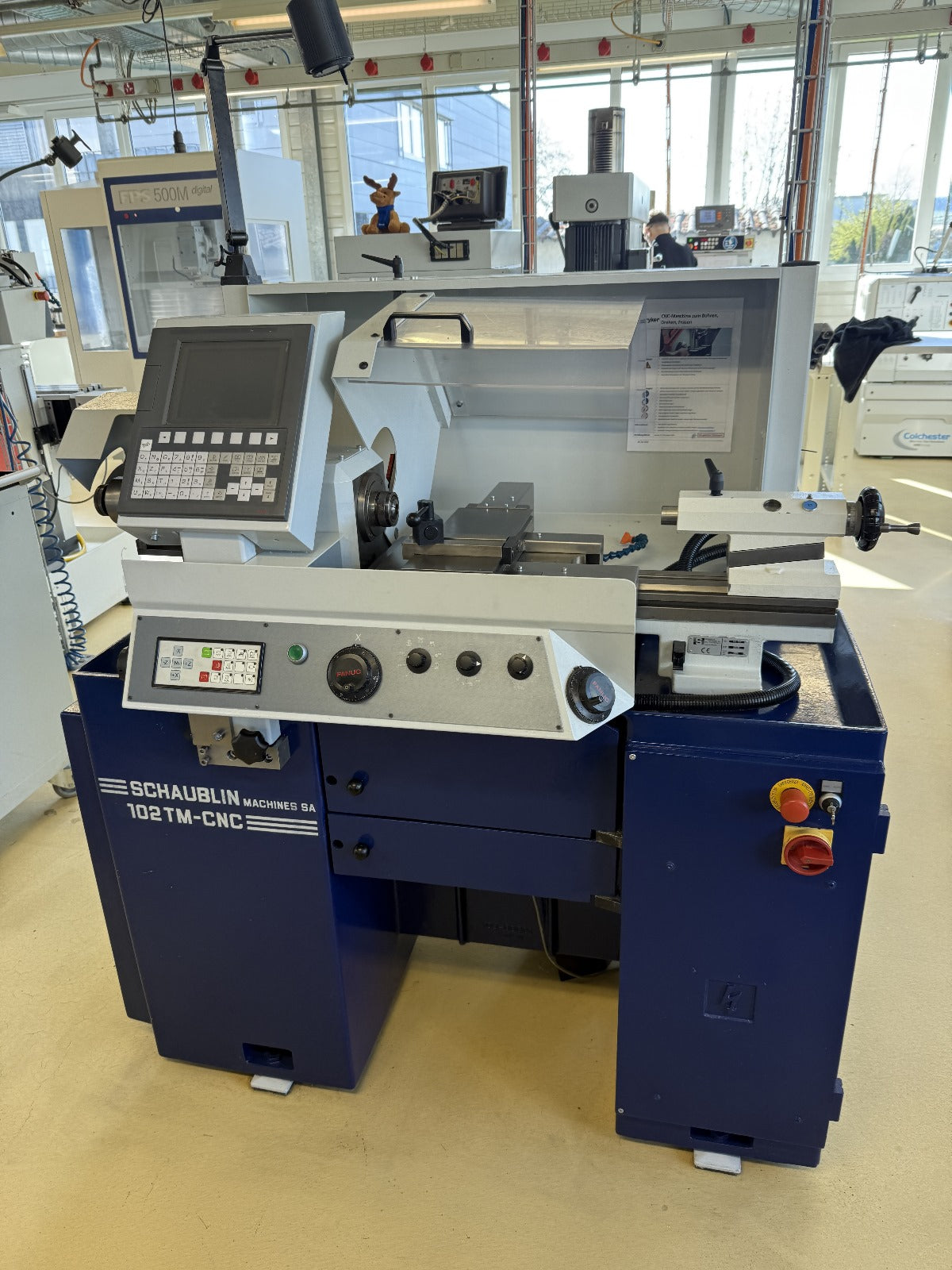

  • 023241 - SCHAUBLIN 102 TM CNC
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 3.
Centre height: 102 mm.
Swing over cross-slide: 75 mm.
Swing over bed: 125 mm.
Max. turning diameter: 19 mm.
Taper in spindle: W25.
Spindle hole: 28.6 mm.
Turning length: 100 mm.
Longitudinal travel (Z-axis): 100 mm.
Cross travel (x-axis): 120 mm.
C axis (spindle,resolution): 0.0015 °.
from: 50 t/min.
up to: 5000 mm/min.
Morse taper: 2 CM.
longitudinal from: mm/min.
transversal from: mm/min.
Rapid traverse:: 7 m/min.
Spindle motor: 2.2 kW.
Voltage 50 Hz 3x: 380 Volt.
Total power required: 8 kVA.
Machine's weight about: 650 kg.
Length: 1400 mm.
Width: 800 mm.
Height: 1470 mm.
Quick change tool: TRIPAN.
