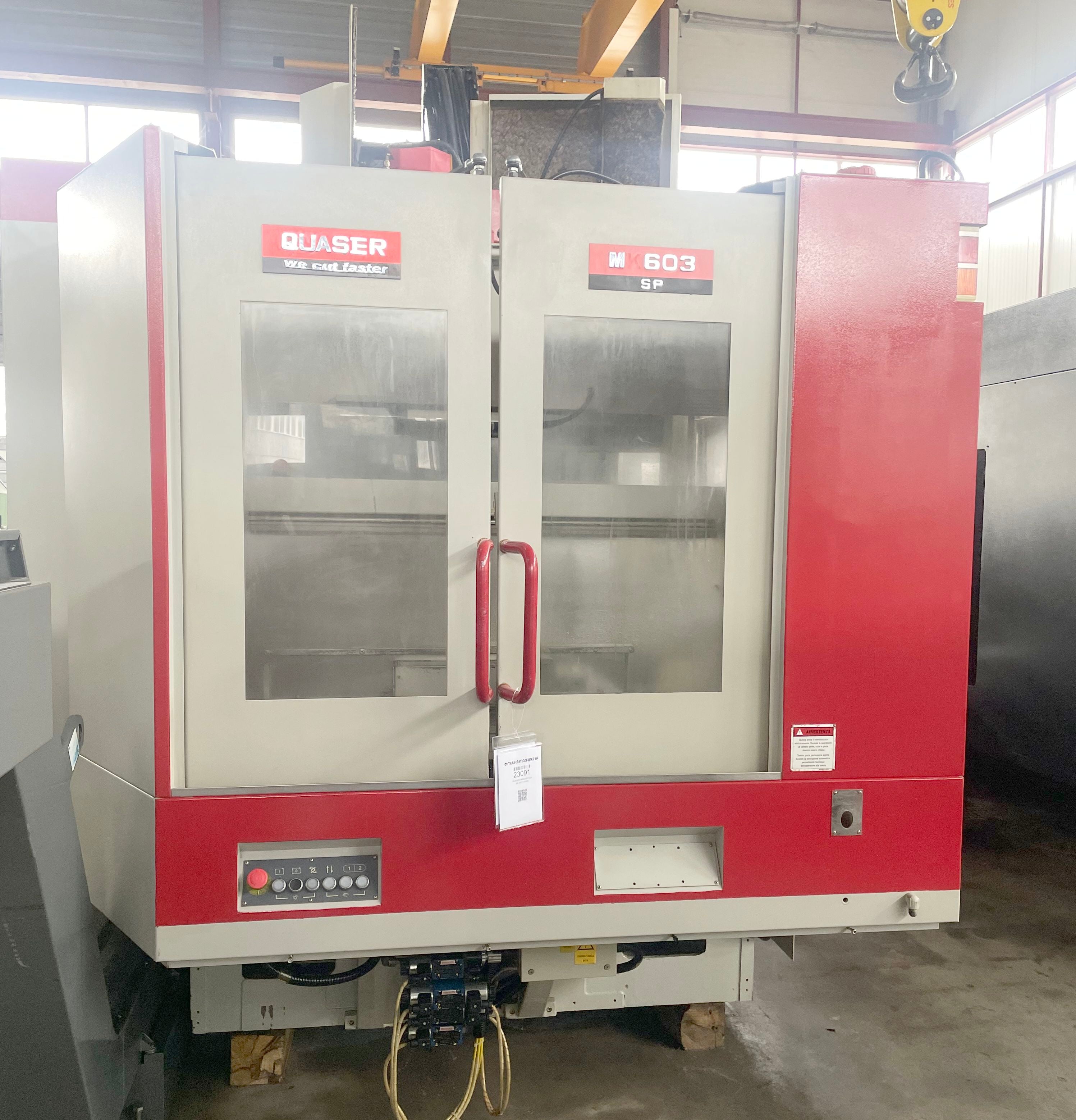

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • QUASER
  • Model:
  • 023091 - QUASER MK603SP/12B
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

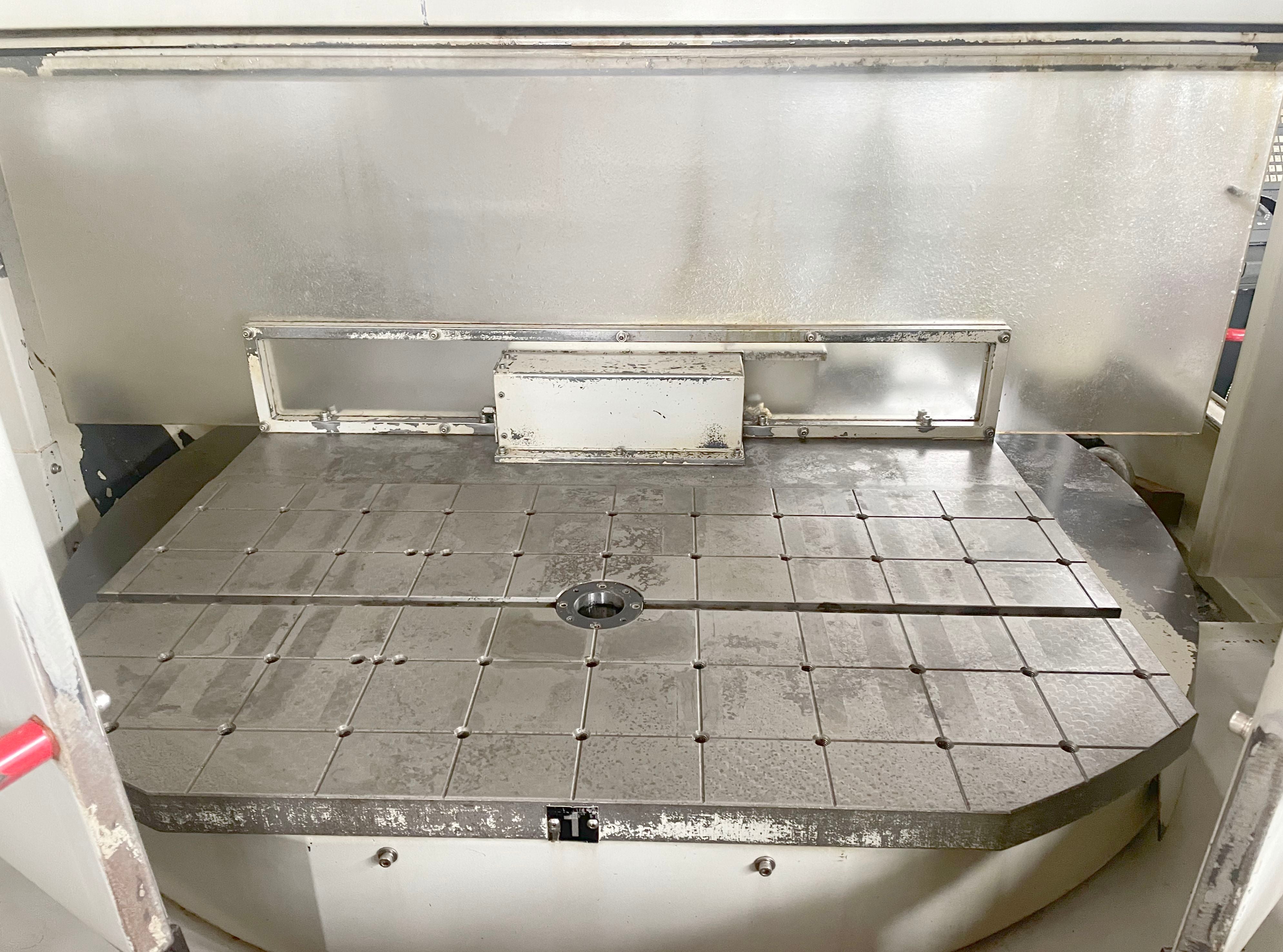

Table length: 1050 mm.
Table width: 550 mm.
Table load max.: 300 kg.
Longitudinal travel (X-axis): 1020 mm.
Transversal travel (y-axis): 610 mm.
Vertical travel (z axis): 600 mm.
Height: 3300 mm.
Diameter: 1630 mm.

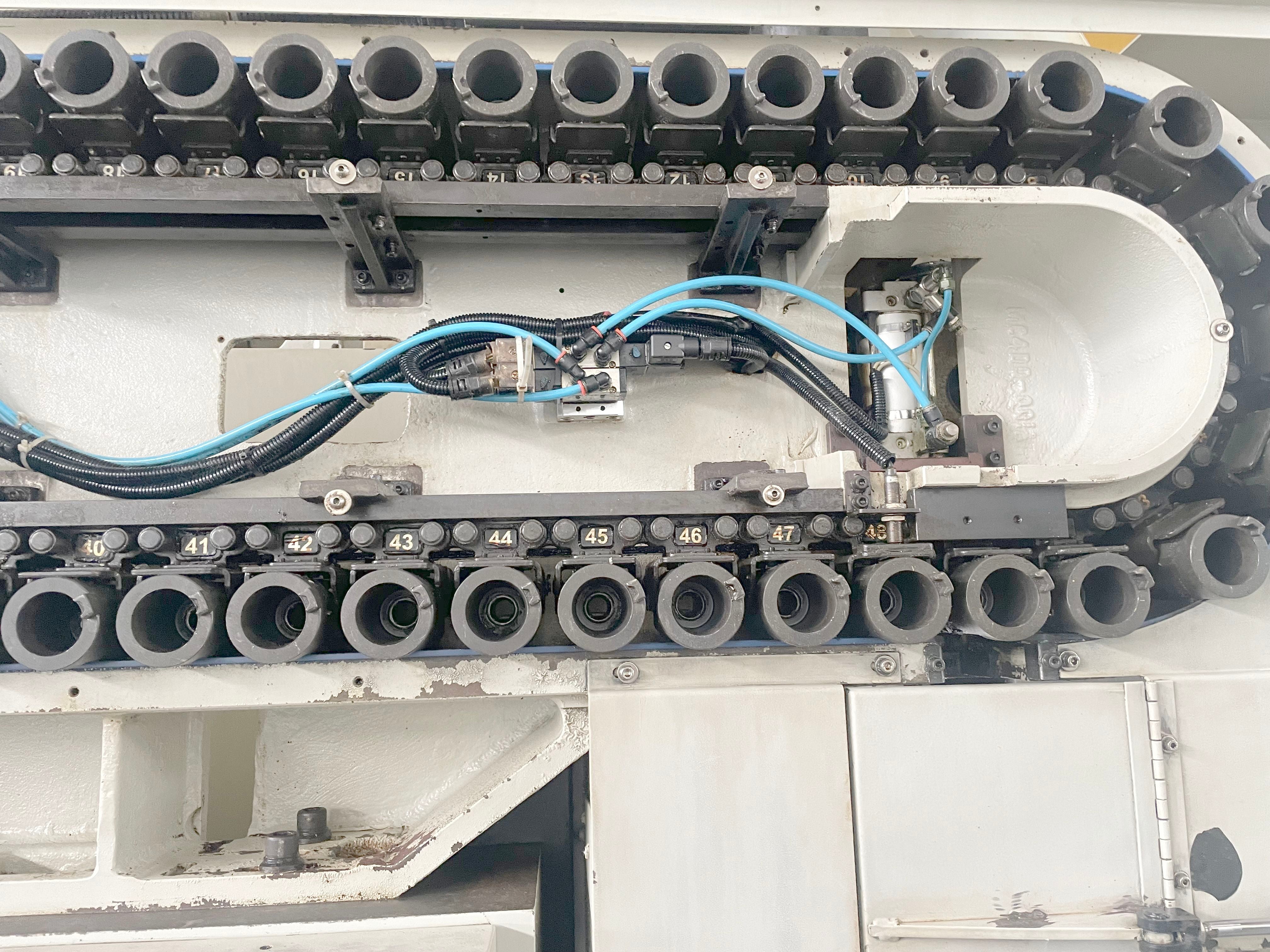

Tool magazine number of tool places: 48.
Tool diameter: 75 mm.
Diameter with free adjacent pockets: 125 mm.
Tool lenght: 300 mm.
Max. tool-weight: 7 kg.
Time of tool changing: 2.5 s.
Average chip-to-chip time: 6 s.
Spindle nose: ISO: 40.
Pull-Studs: DIN 69871.
spindle to table: 130-730 mm.
Spindle diameter: 70 mm.
from: 80 t/min.
up to: 1200 t/min.
Torque max.: 192 Nm.
Feed range: 20000 mm/min.
Feeds:: 36.
Air connect: 6-8 bar.
Voltage 50 Hz 3x: 400 Volt.
Spindle power: 30 / 22 kW.
Total power required: 45 kVA.
Machine's weight about: 12000 kg.
Length: 4650 mm.
Width: 2930 mm.

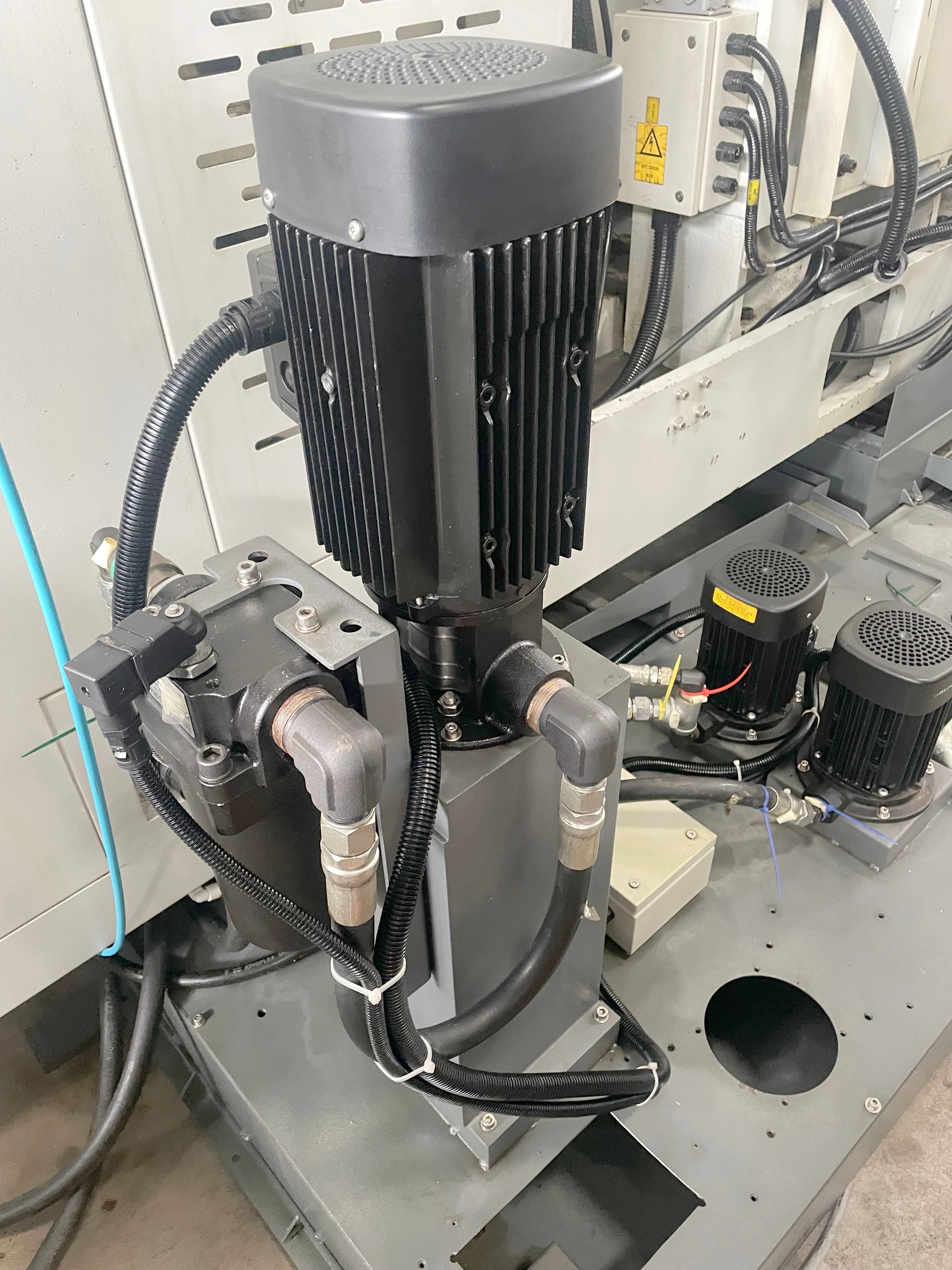

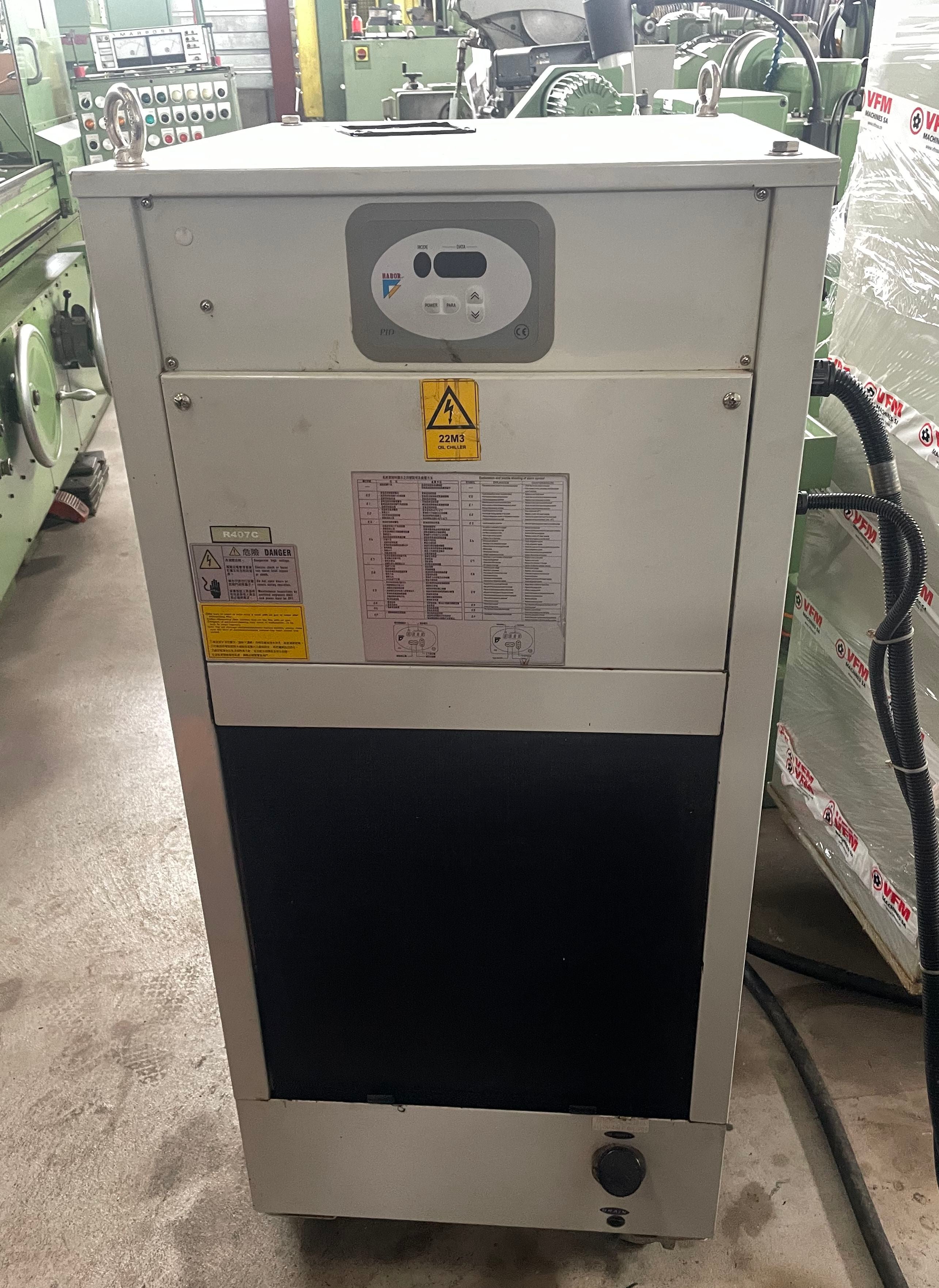

Coolant system: 400 l.
Coolant through spindle (cts): 20 bar.
