MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Star
  • Model:

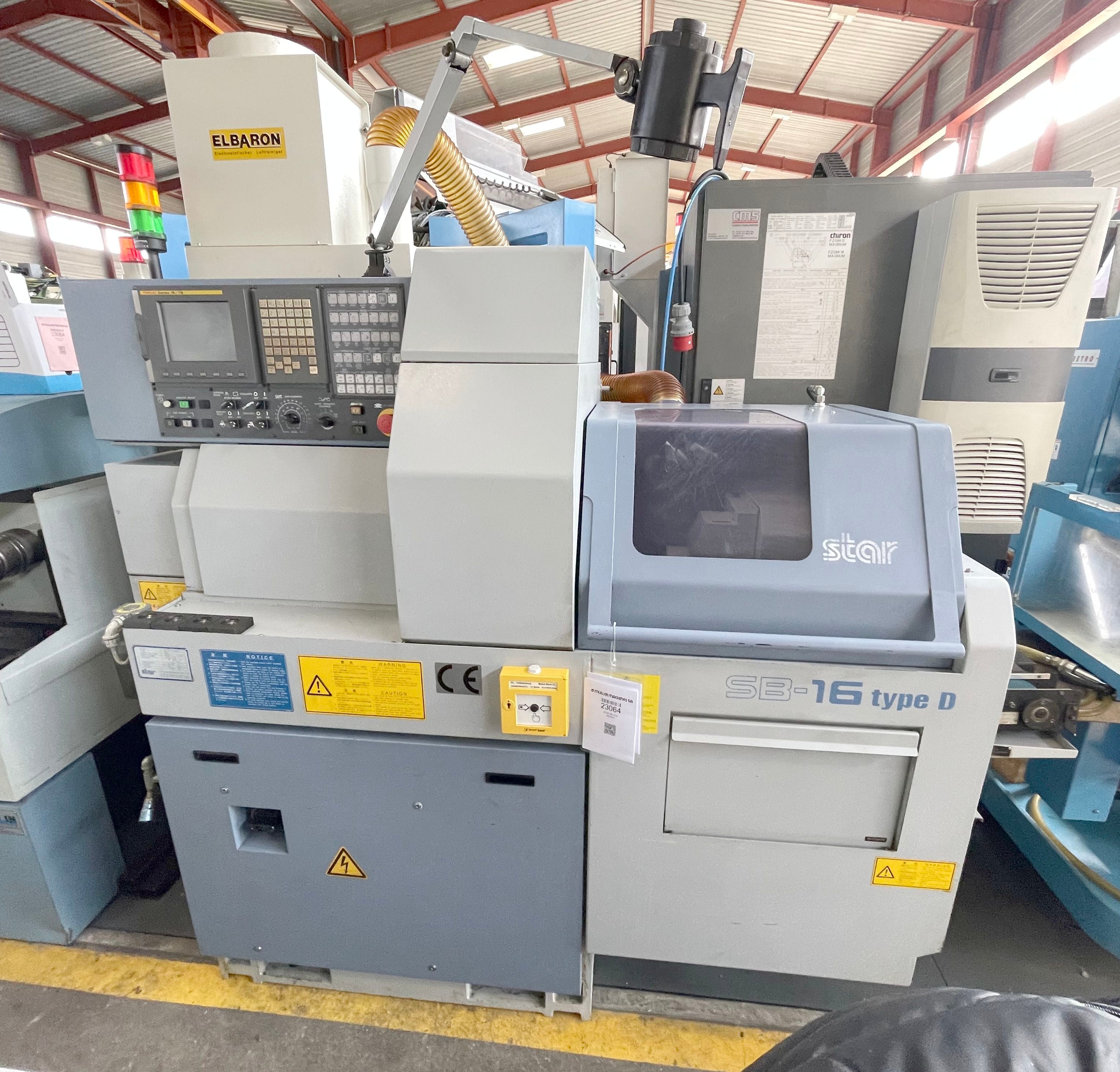

  • 023064 - STAR SB 16 D
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Max. turning diameter: 16 mm.
Turning length: 155 / 205 mm.
Max. drilling diameter: 10 mm.
Max. threading diameter: 8 M.

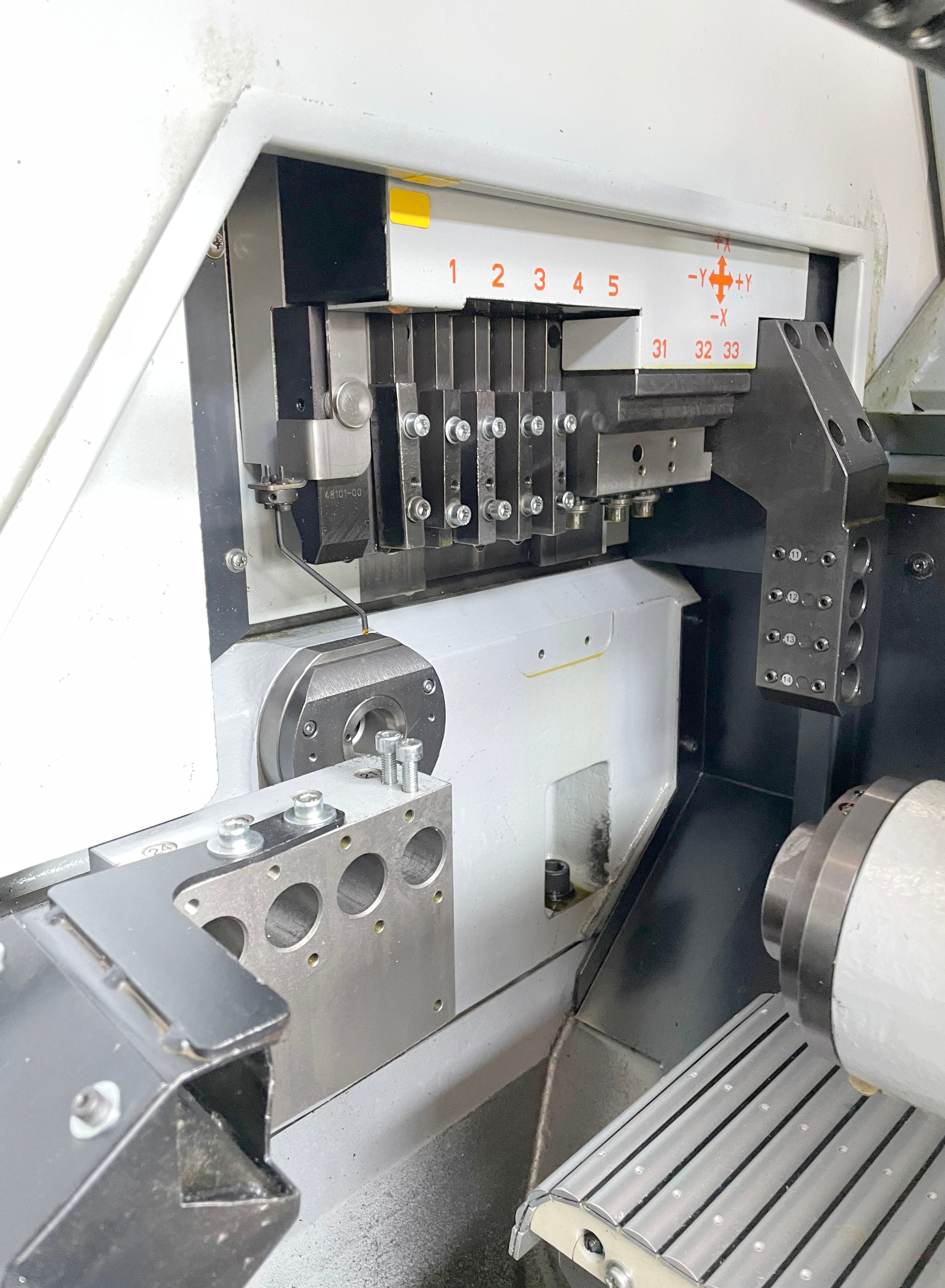

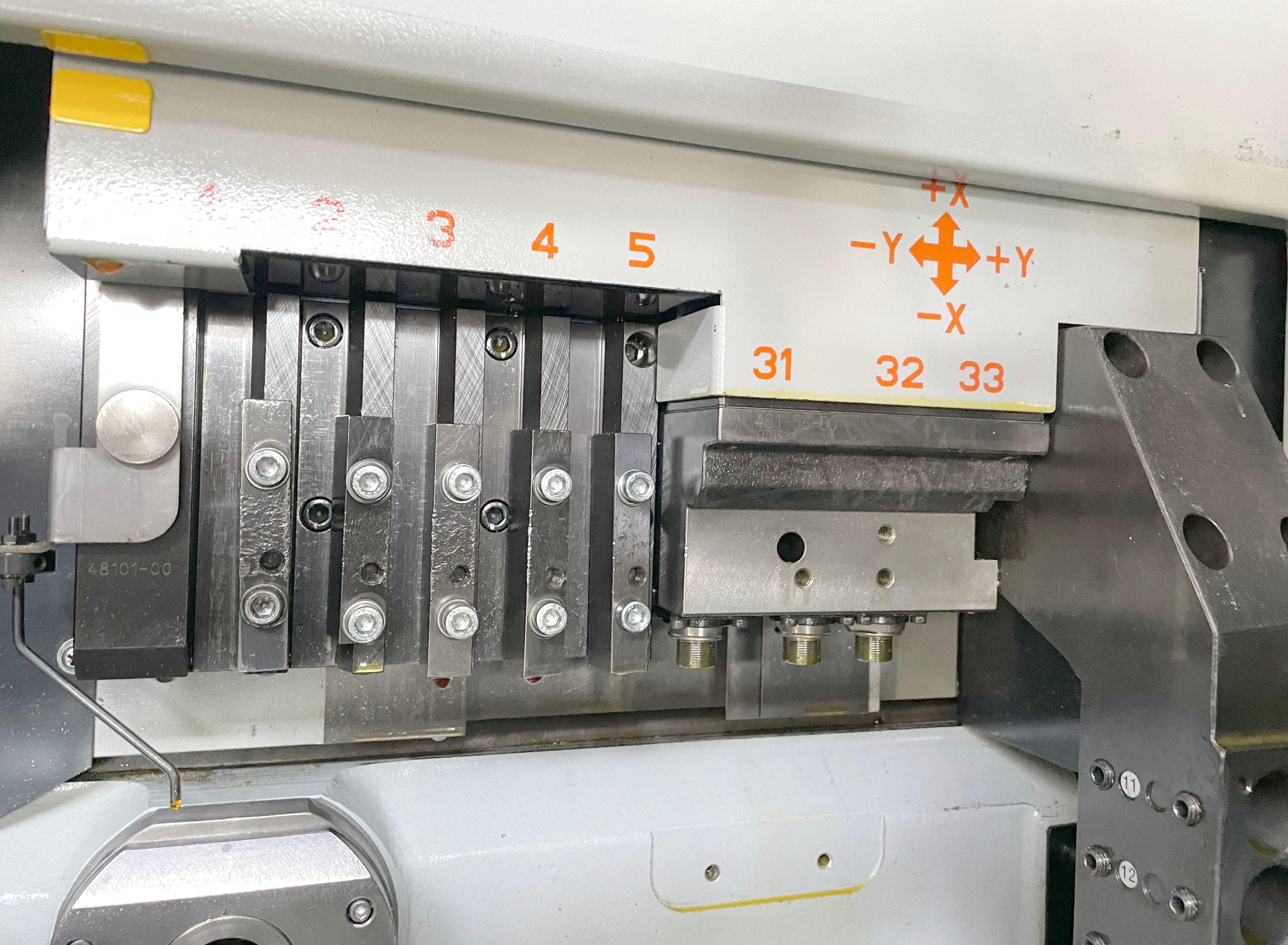

number of tools: 6.
from: 500 t/min.
up to: 8000 t/min.
number of driven tools: 3.
Spindle speeds (turning tools): 5000 t/min.
Power of driven tools: kW.
Thread drill diameter: 6 M.

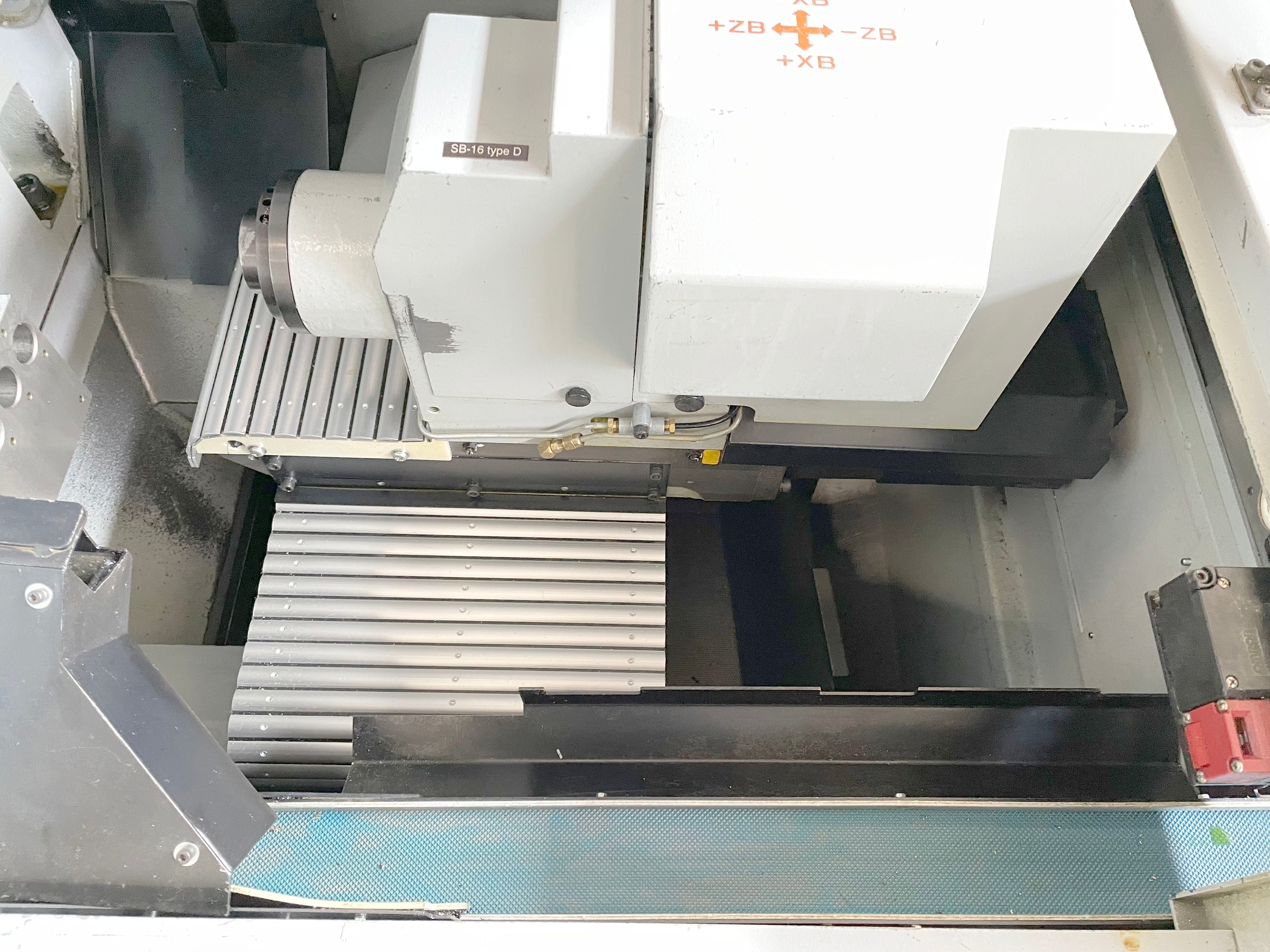

Back machining workpiece length max.: 80 mm.
Rapid traverse:: 35 m/min.
C axis (spindle,resolution): 15 °.
Voltage 50 Hz 3x: 400 Volt.
Spindle motor: 2.2 / 3.7 kW.
Machine's weight about: 1600 kg.
Length: 1900 mm.
Width: 1100 mm.
Height: 1800 mm.

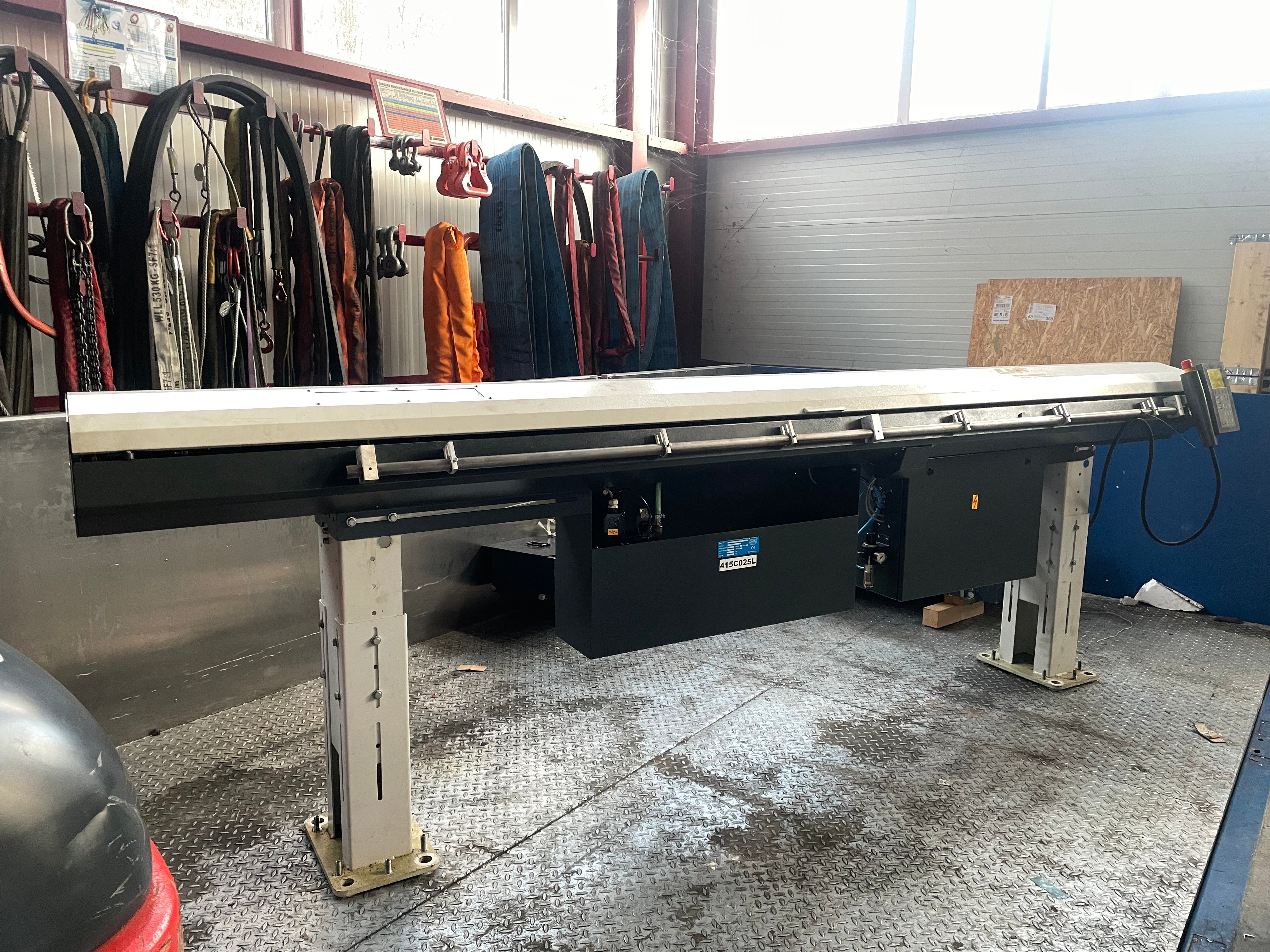

Manufacturer: LNS.
Type: HYDROBAR EXPRESS 220.
year of manufacture: 2007.
Length of bars max.: 3200 mm.
Bar diameter: 2 - 20 mm.

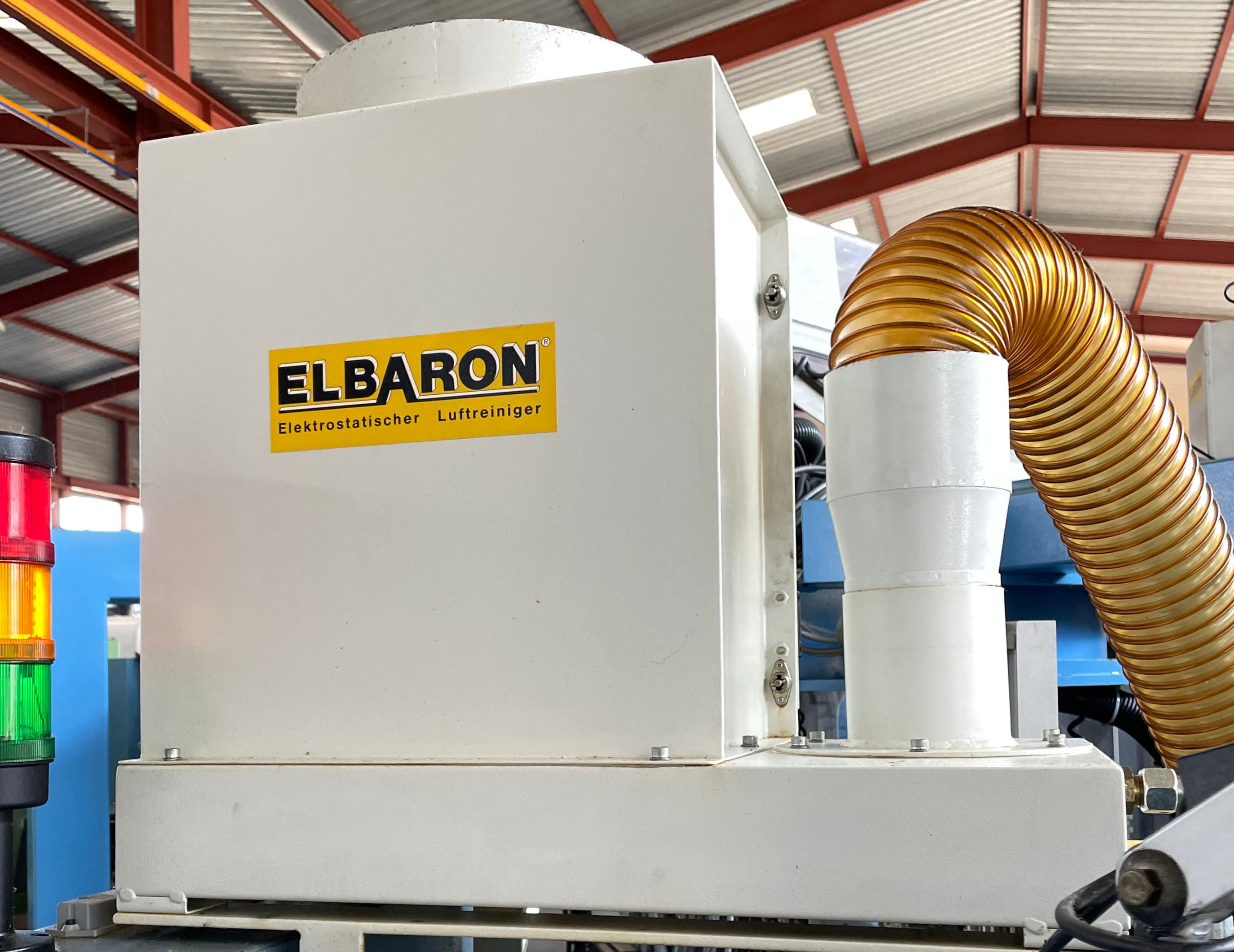

Oil mist extractor: ELBARON.
