MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SIXIS
  • Model:
  • 022999 - SIXIS S 2104
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

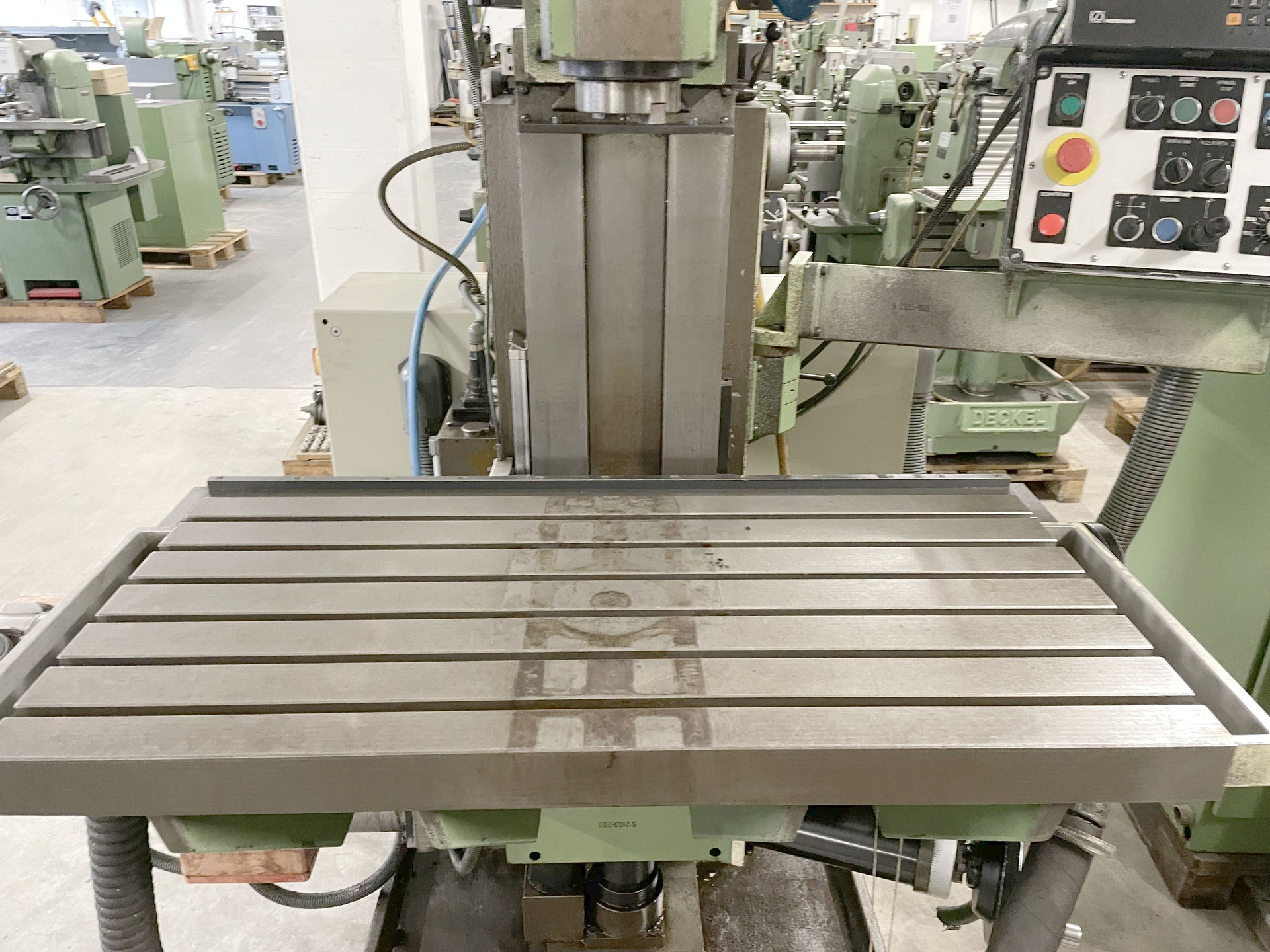

Table length: 850 mm.
Table width: 400 mm.
Longitudinal travel (X-axis): 450 mm.
Transversal travel (y axis): 350 mm.
Vertical travel (z axis): 400 mm.
from: 50 t/min.
up to: 4000 t/min.
Taper in spindle: 40 ISO.

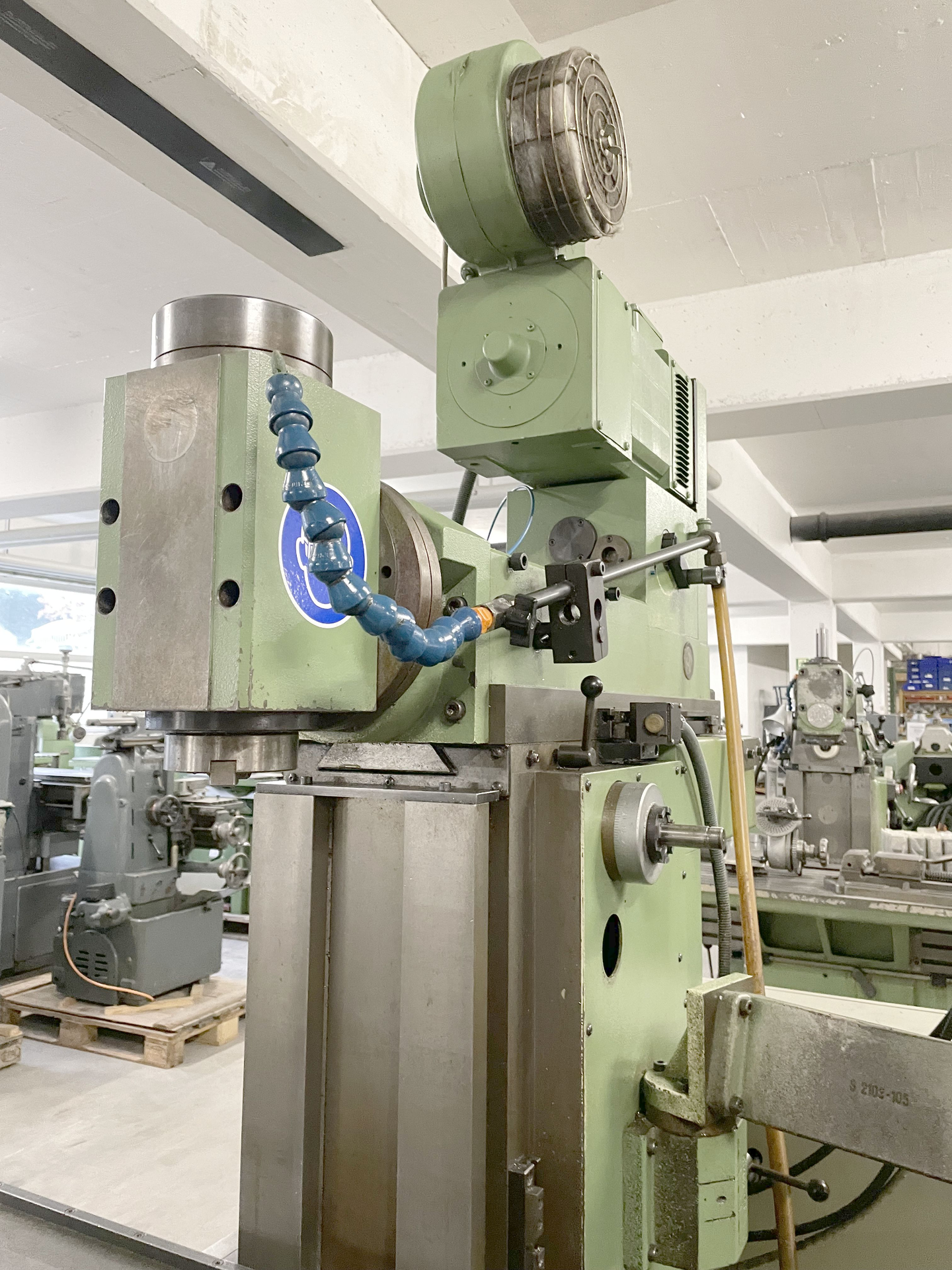

Swivel range Vertical milling head: 360 °.
Feeds: 0 - 750 mm/min.
Rapid traverse:: 30 m/min.
Voltage 50 Hz 3x: 380 Volt.
Spindle motor: 6.8 kW.
Machine's weight about: 1550 kg.
Length: 1700 mm.
Width: 1550 mm.
Height: 2250 mm.

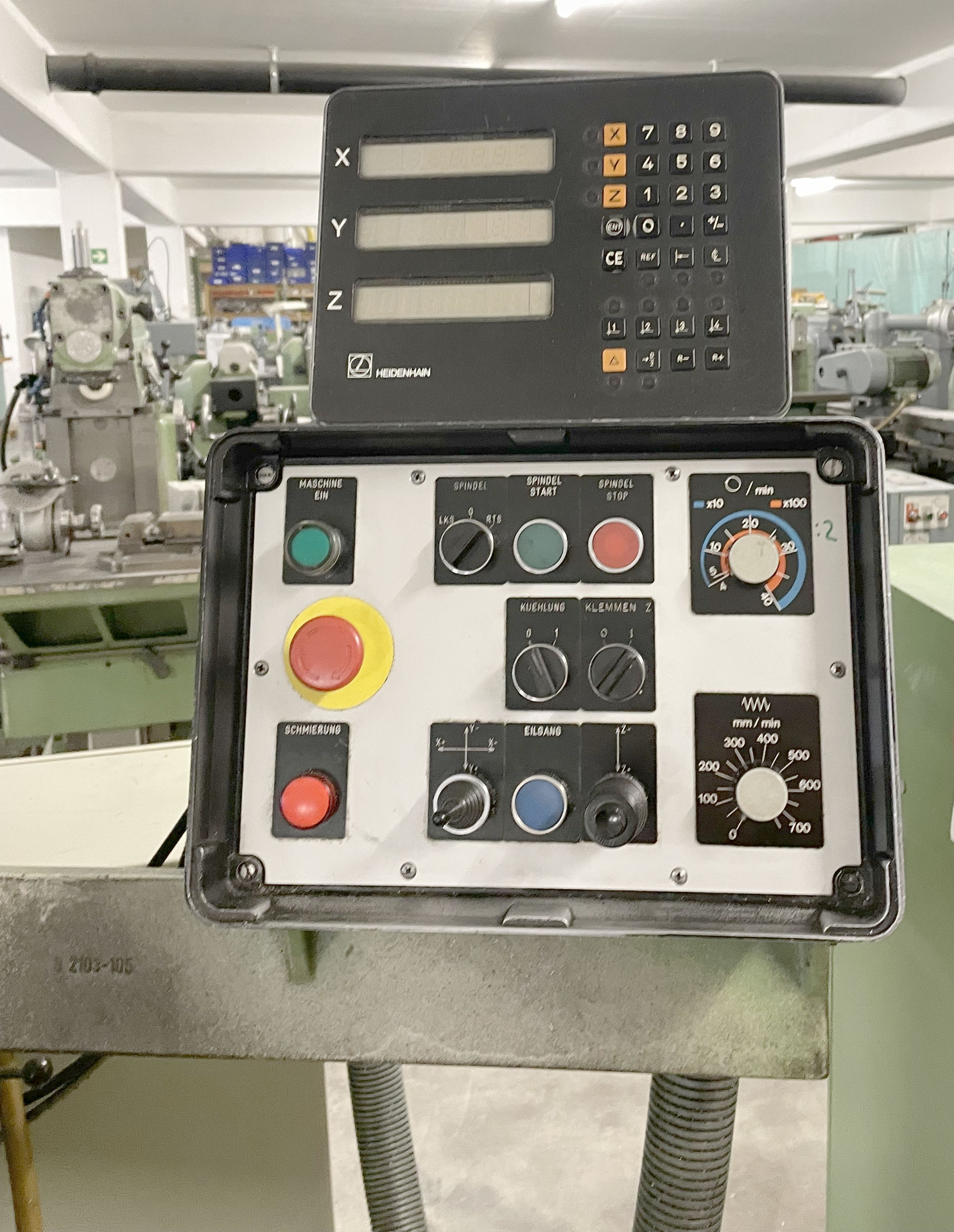

Digital readout number of axis:: 3.
