MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Citizen
  • Model:

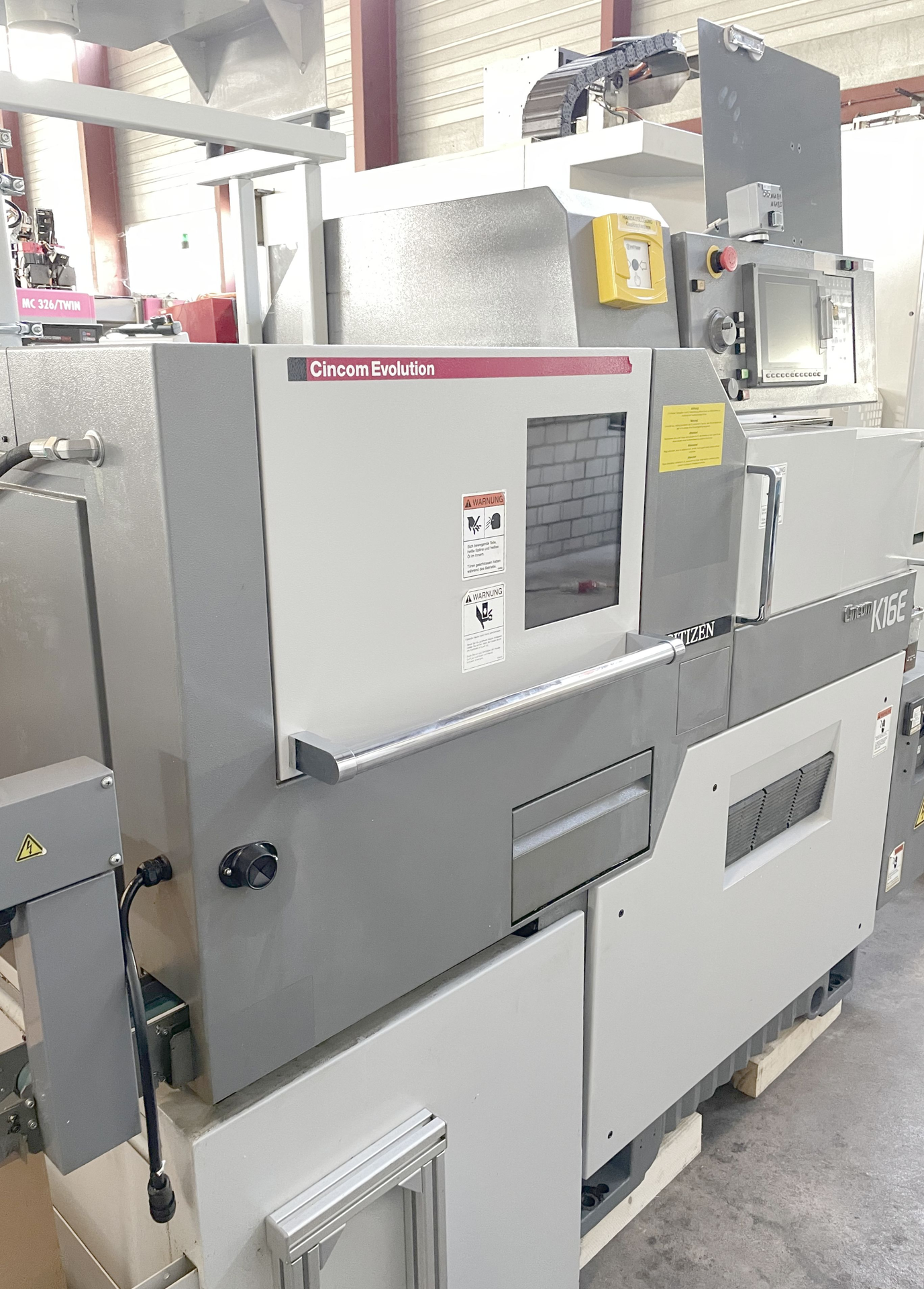

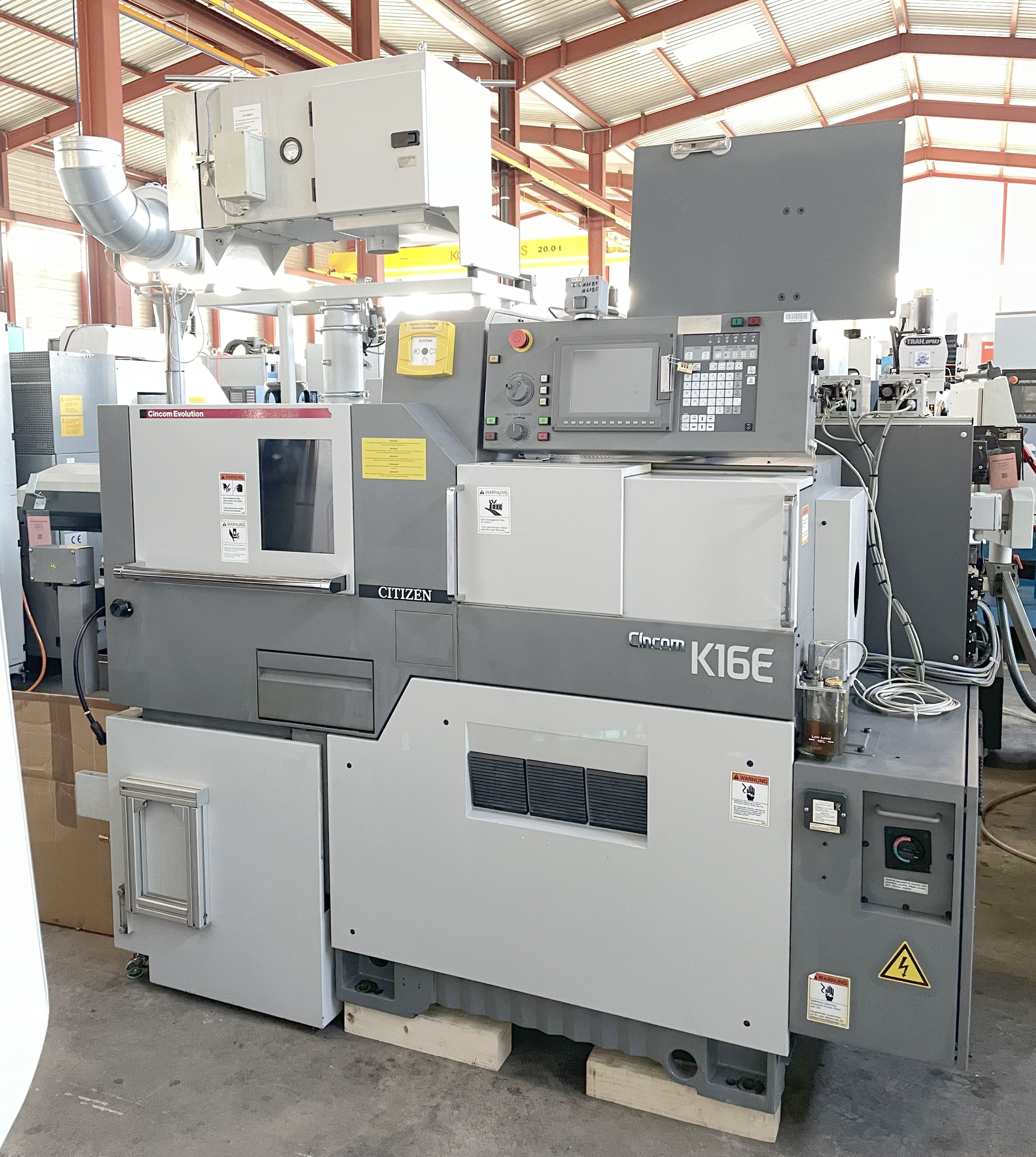

  • 022916 - CITIZEN CINCOM K 16 E V II P
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 7.
Max. turning diameter: 16 mm.
Turning length: 200 mm.
Max. threading diameter: 8 M.
Internal spindle diameter: 20 mm.
from: t/min.
up to: 10000 t/min.
Thread drill diameter: 5 M.
Back machining workpiece length max.: 80 mm.

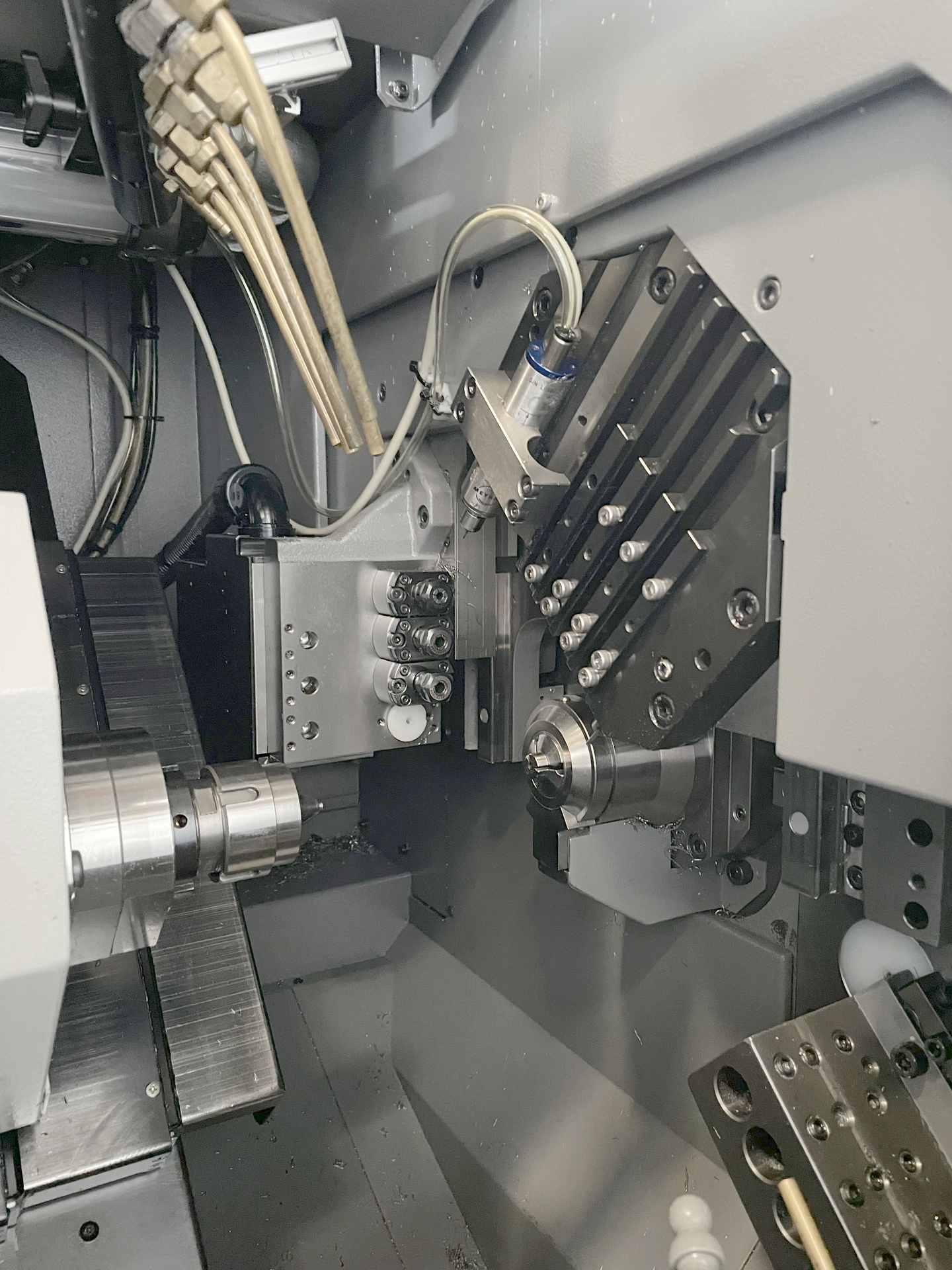

number of driven tools: 4.
Spindle speeds (turning tools): 6000 t/min.
Voltage 50 Hz 3x: 400 Volt.
Spindle motor: 3.7 kW.
Machine's weight about: 2250 kg.
Length: 2020 mm.
Width: 1070 mm.
Height: 1680 mm.

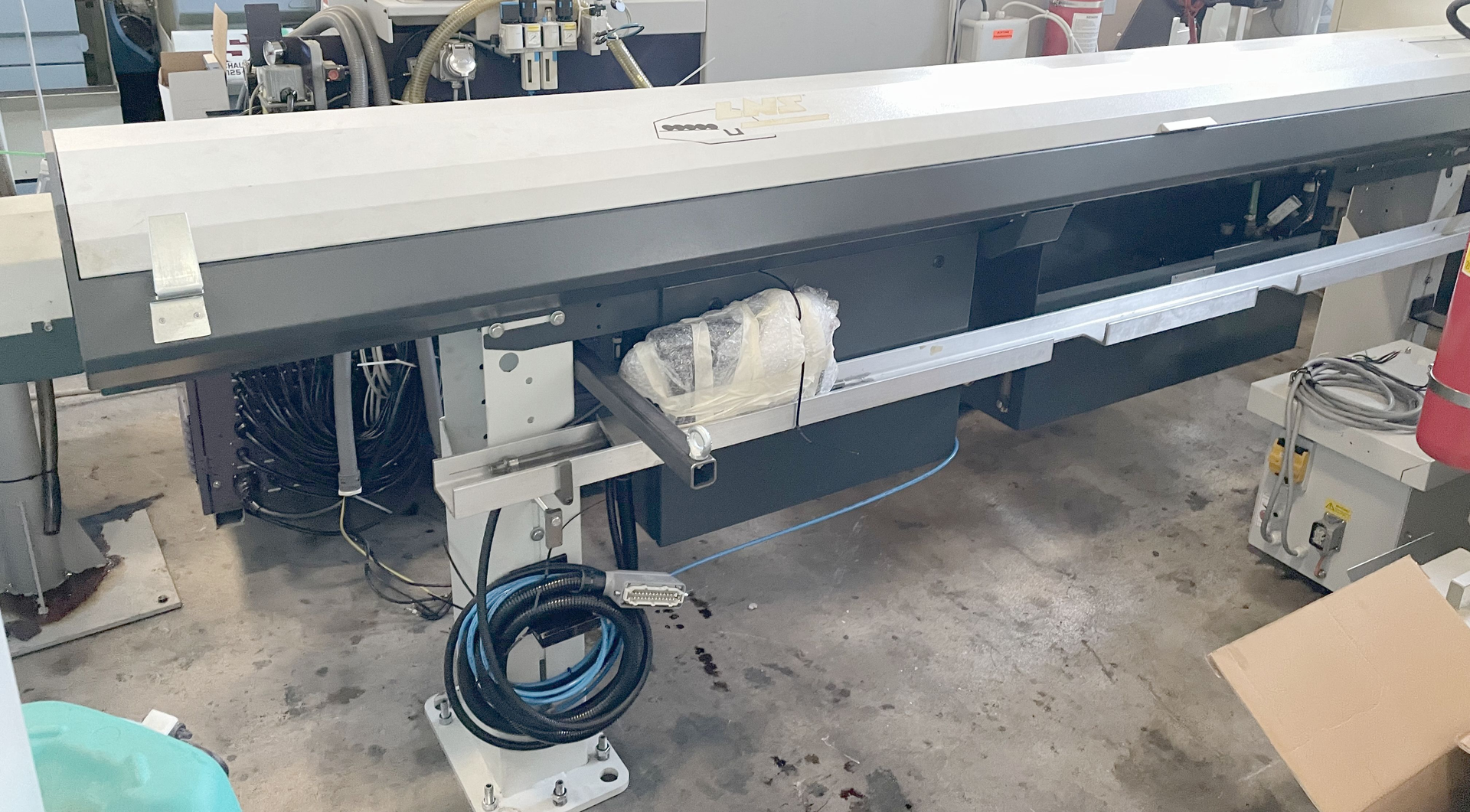

Bar feeder: LNS.

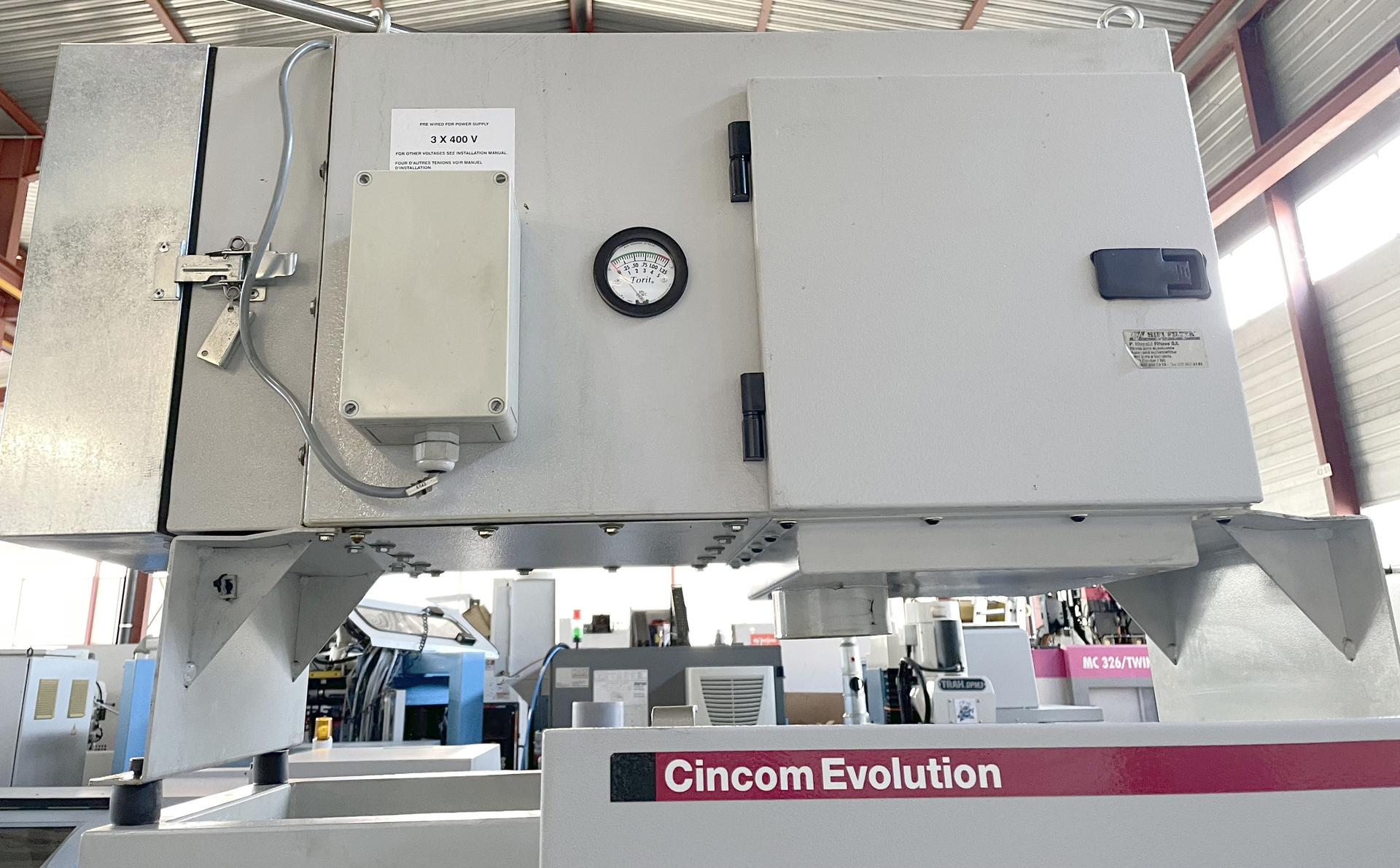

Oil mist extractor: Donaldson.
High frequency spindle: 2X.
Spindle speeds: 60000 t/min.
