MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • JUNG
  • Model:
  • 022880 - JUNG JF 625 CNC-B
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

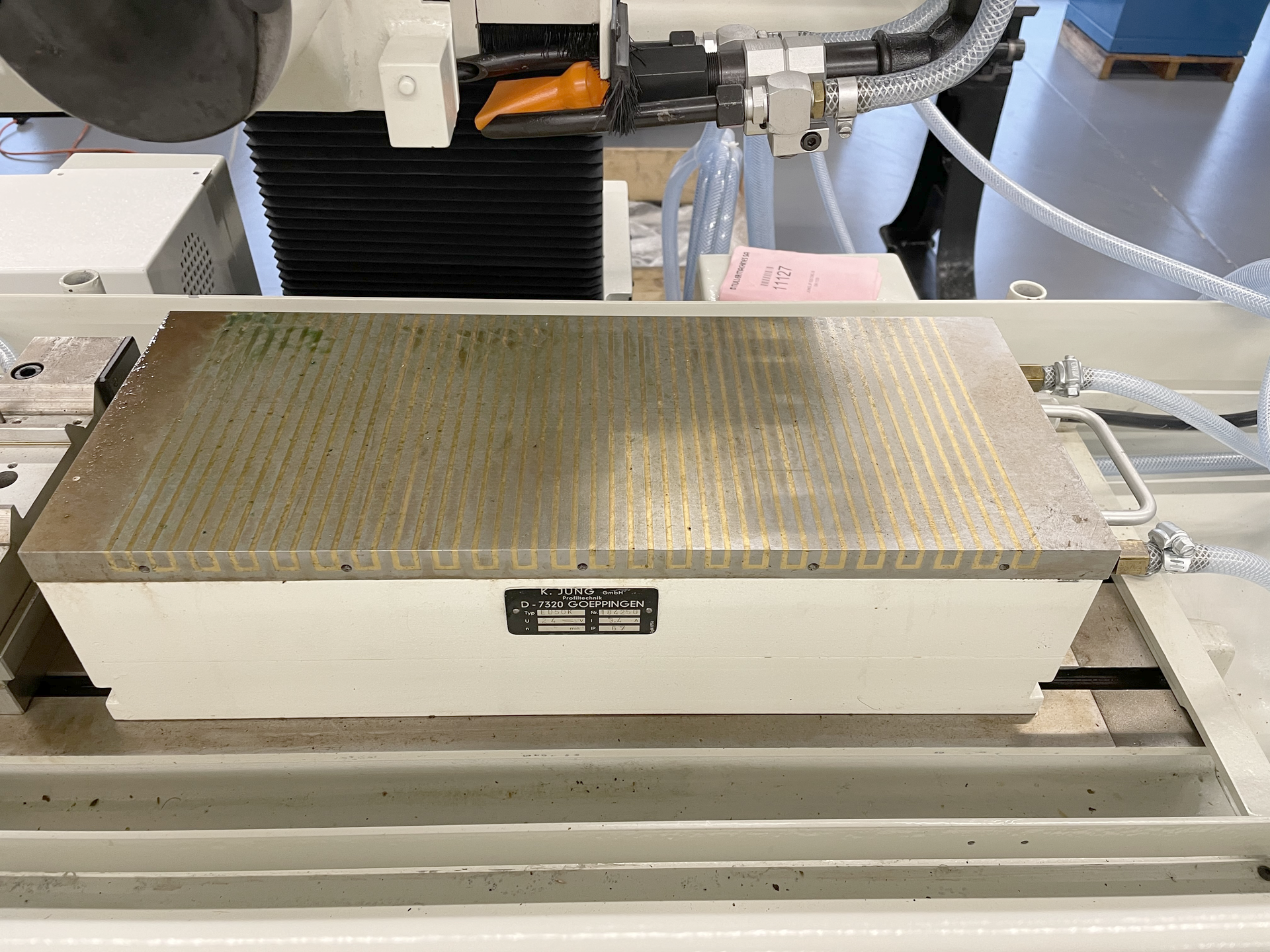

Table length: 600 mm.
Table width: 250 mm.
Longitudinal travel (X-axis): 600 mm.
Cross travel (z-axis): 280 mm.
to spindle centreline: 500 mm.
Grinding length: 600 mm.
from: mm/min.
up to: 10000 mm/min.
Voltage 50 Hz 3x: 380 Volt.
Grinding spindle motor: 9.5 kW.
Total power required: 13 kVA.
Machine's weight about: 2500 kg.
Length: 500 mm.
Width: 200 mm.
Height: 1840 mm.

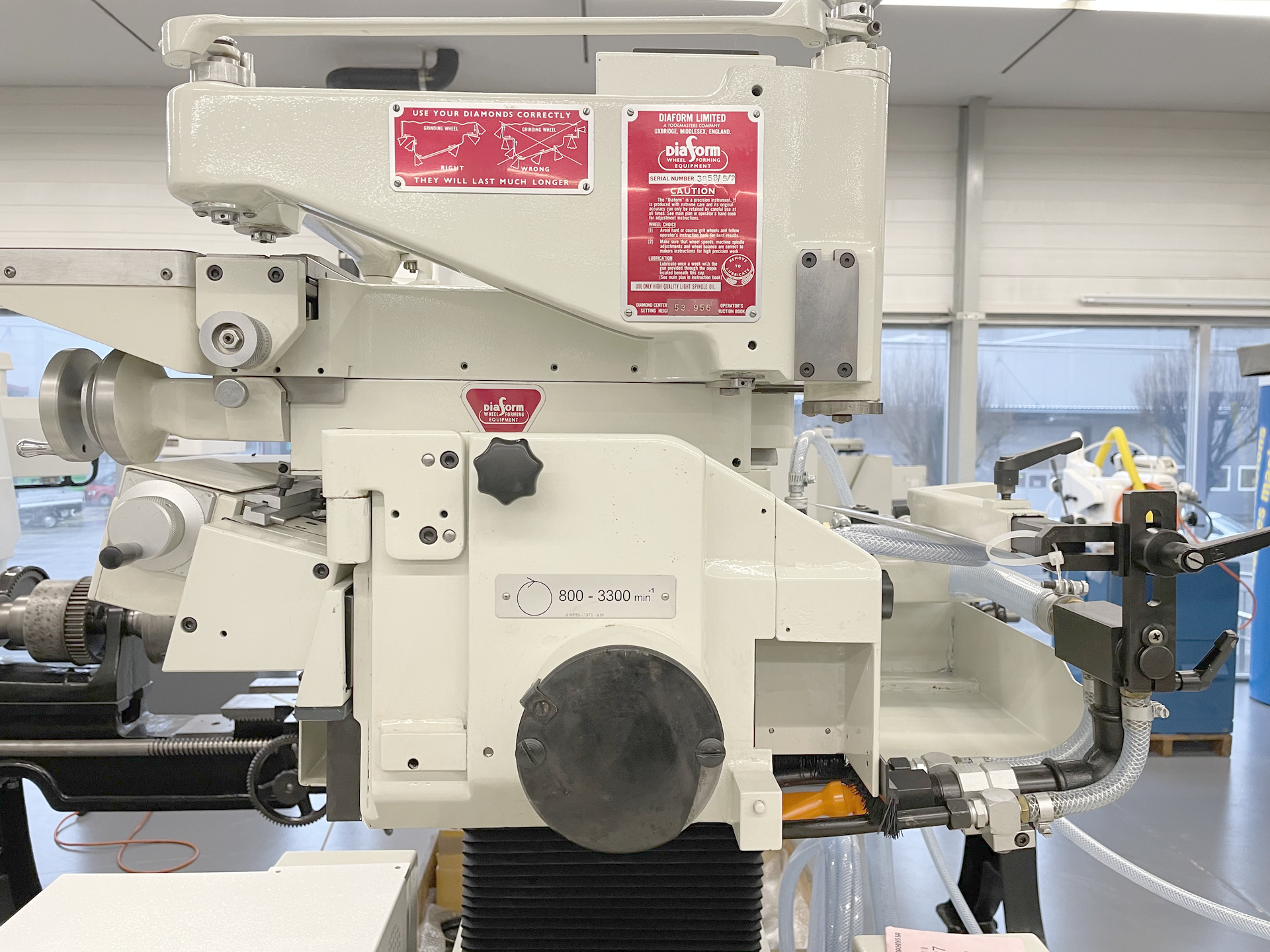

Diaform profiling device: Rapport 5:2.
