MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

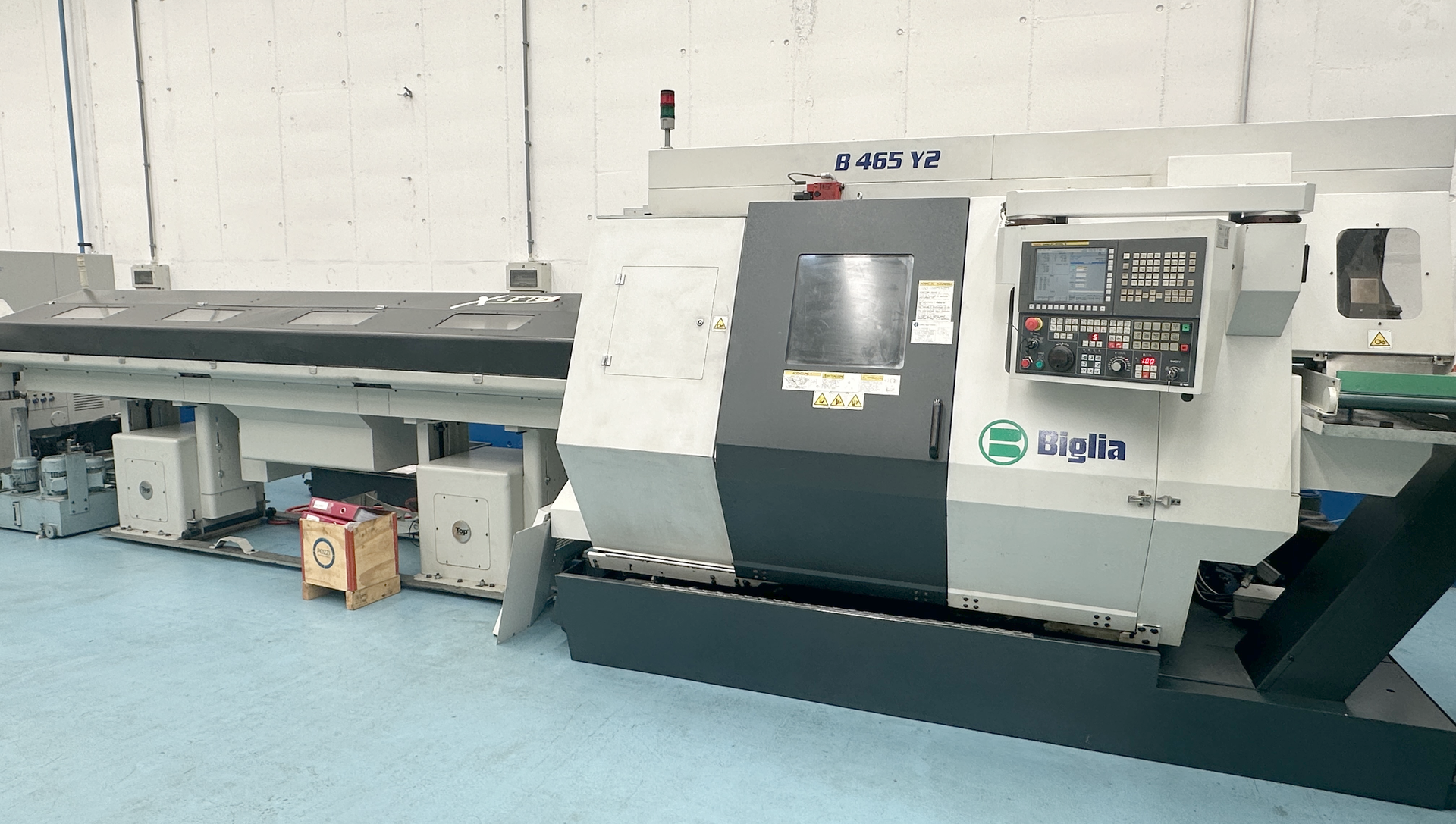

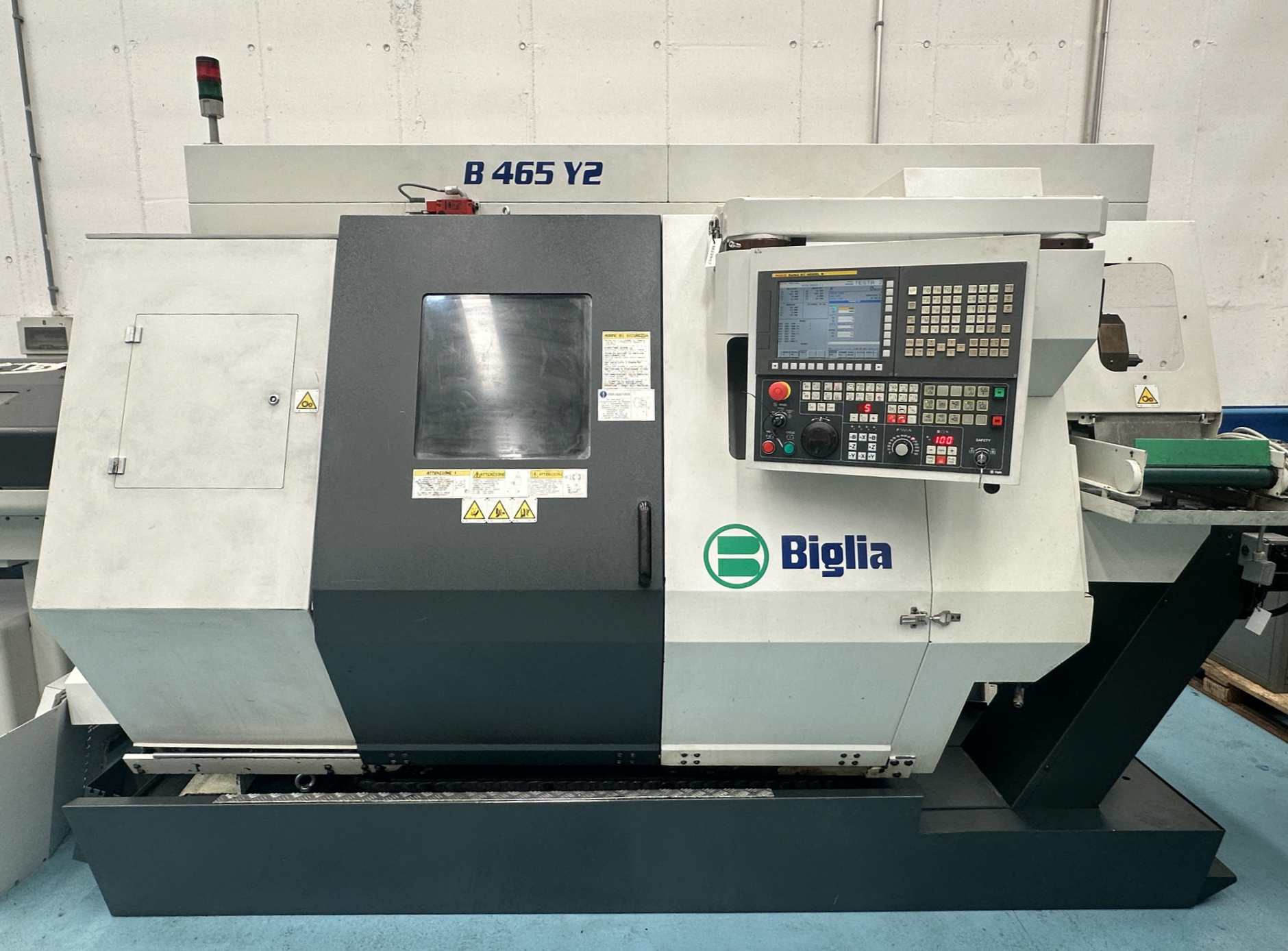

  • 022857 - BIGLIA B 465 T2Y2
  • Condition:
  • 1
  • YOM:
  • NA

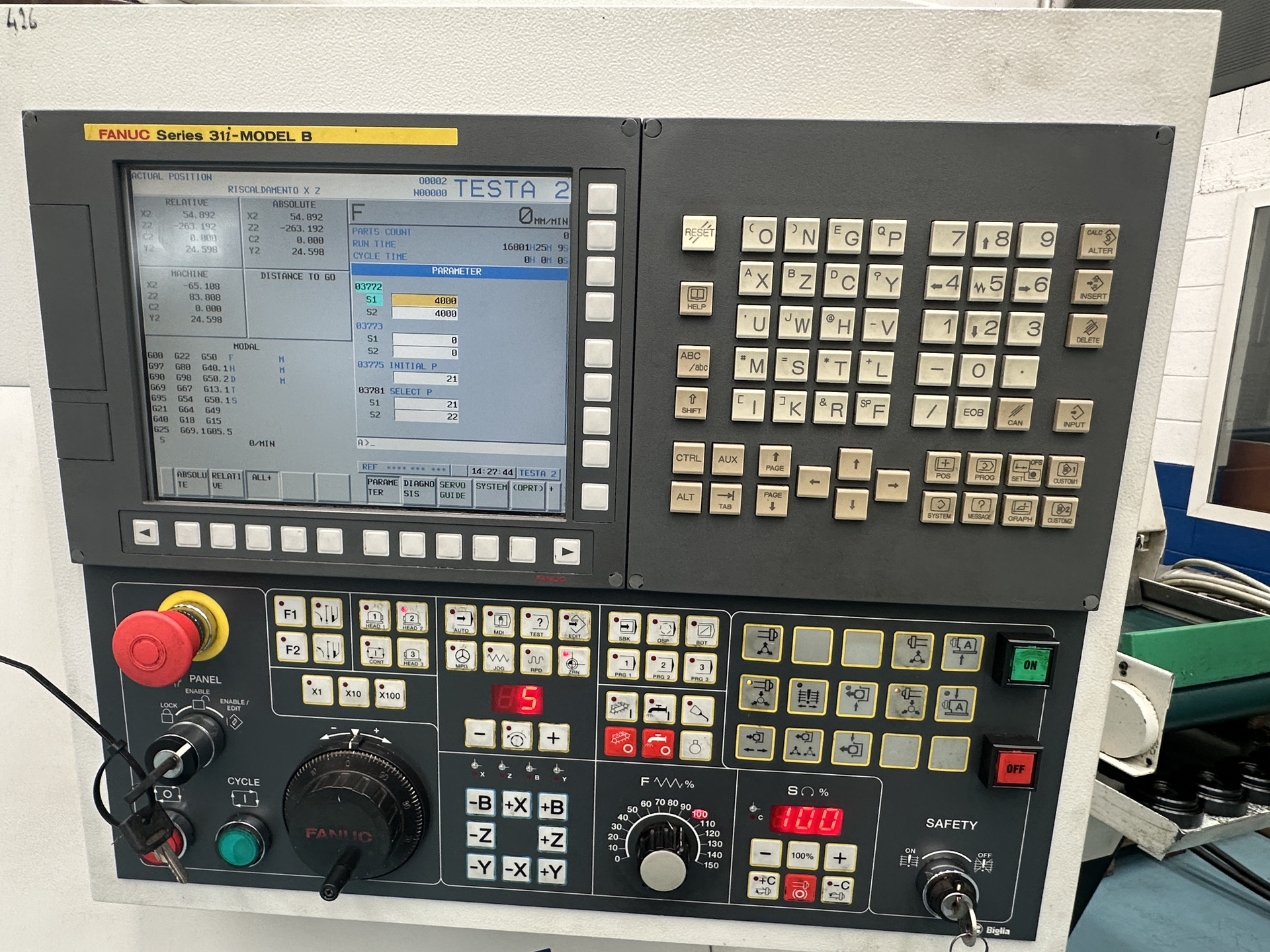

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

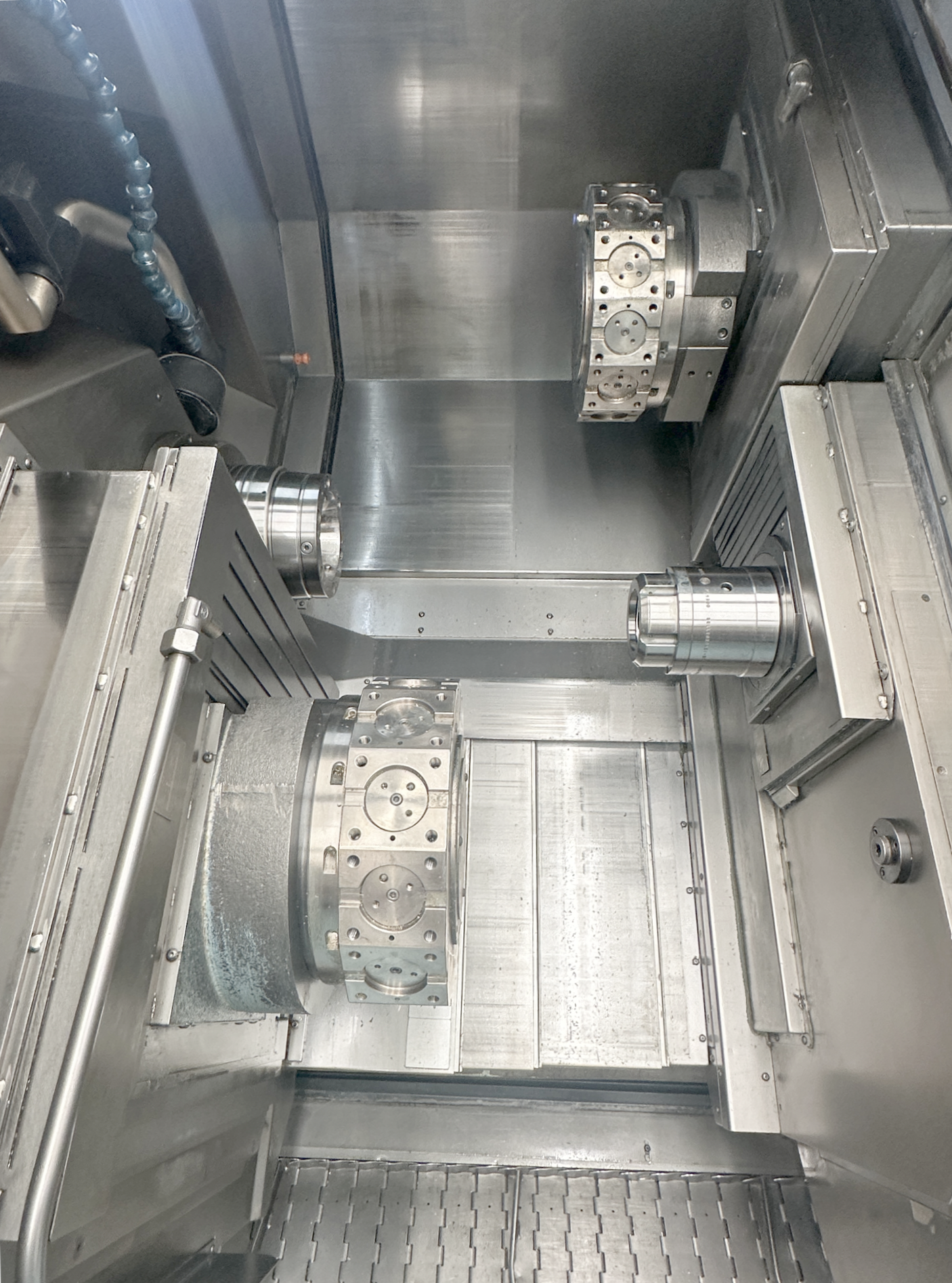

Number of spindles: 2.
Number of revolvers: 2.
Maximum turning length: 350 mm.
Max. turning diameter: 200 mm.
Bar diameter: 71 mm.
X1: 170 mm.
X2: 170 mm.
Z1: 390 mm.
Z2: 390 mm.
Y1: 90 mm.
Y2: 90 mm.

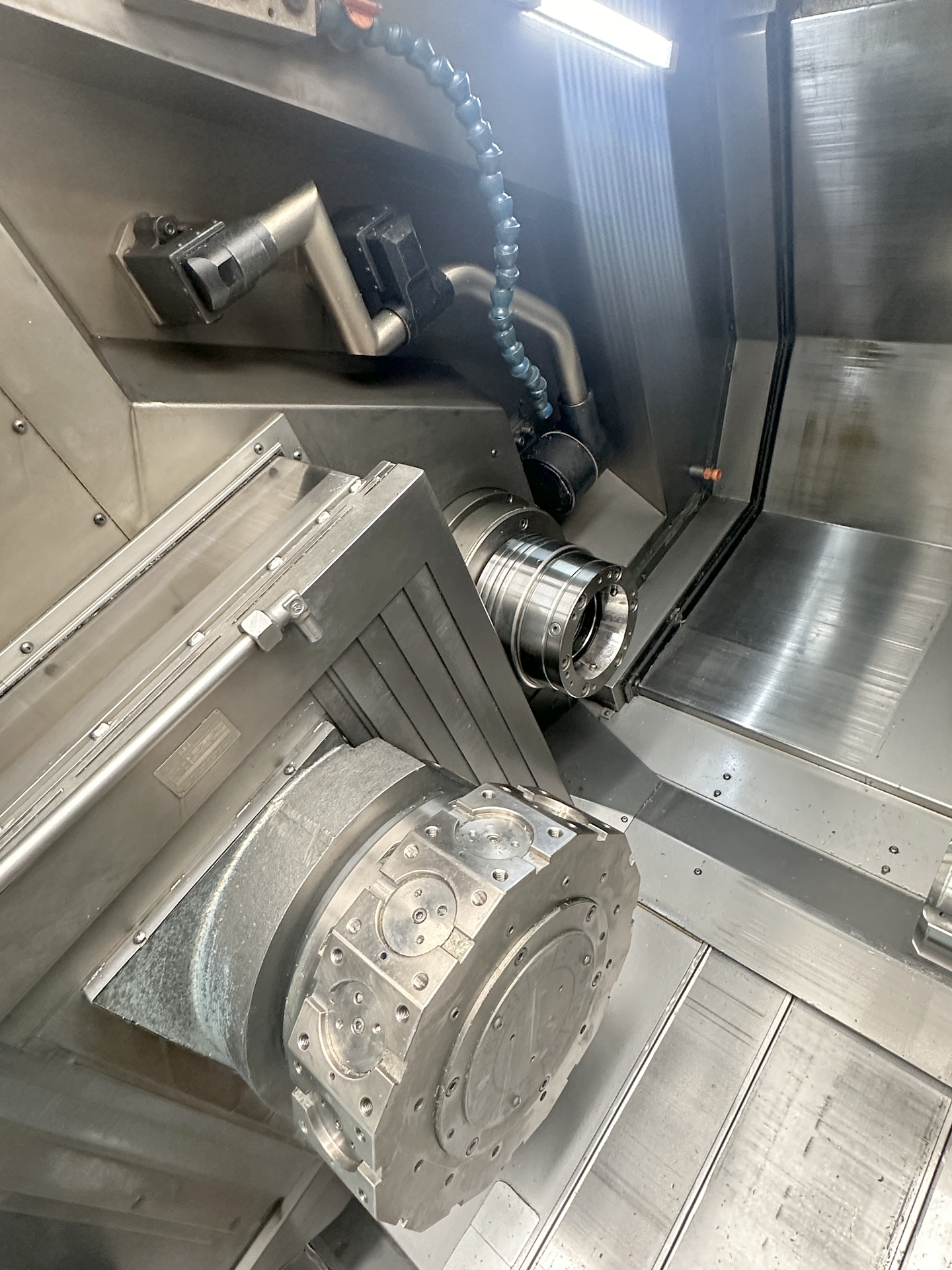

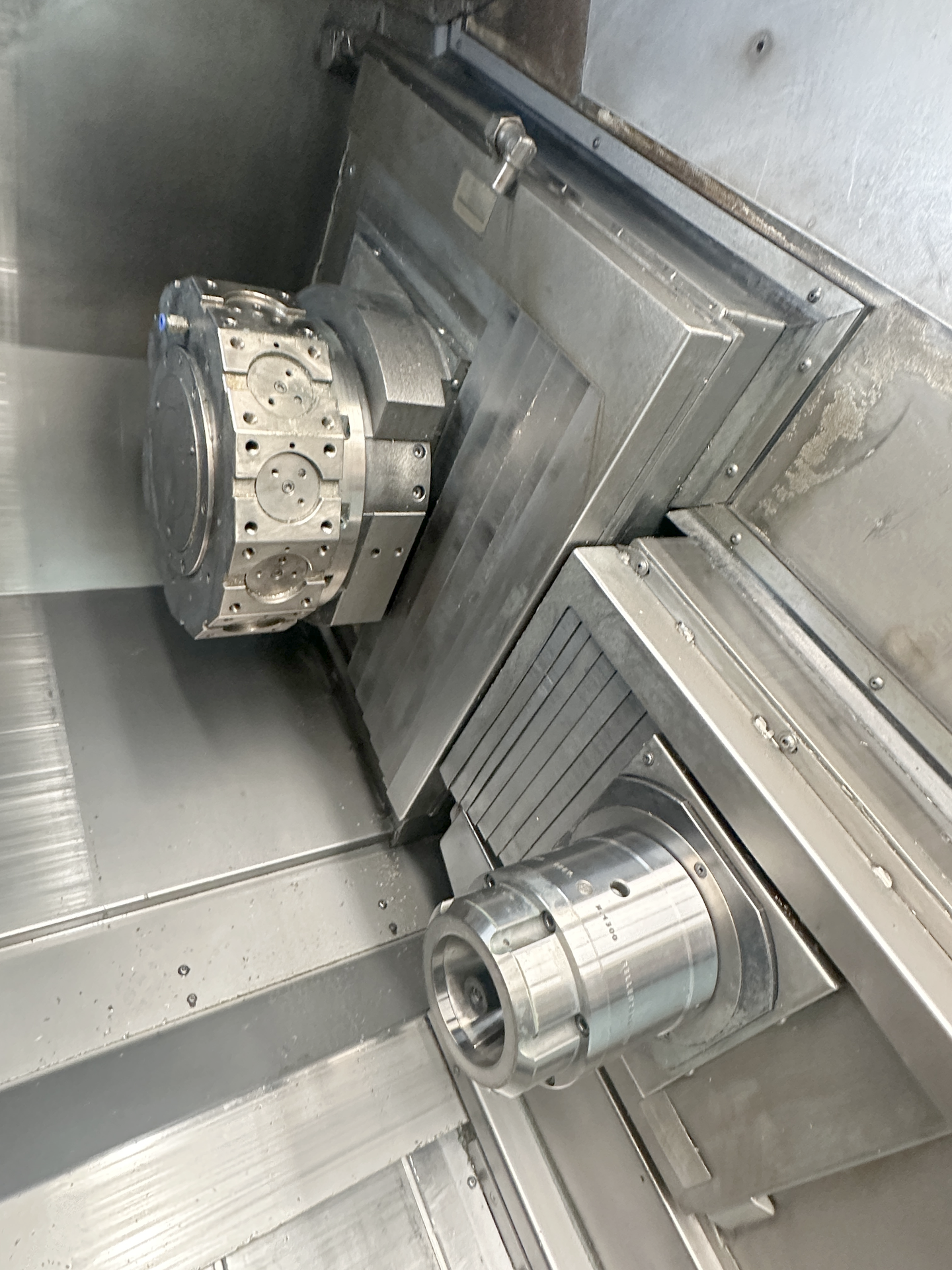

Number of positions turret 1: 12.
Number of positions turret 2: 12.
Spindle speeds: 4000 t/min.

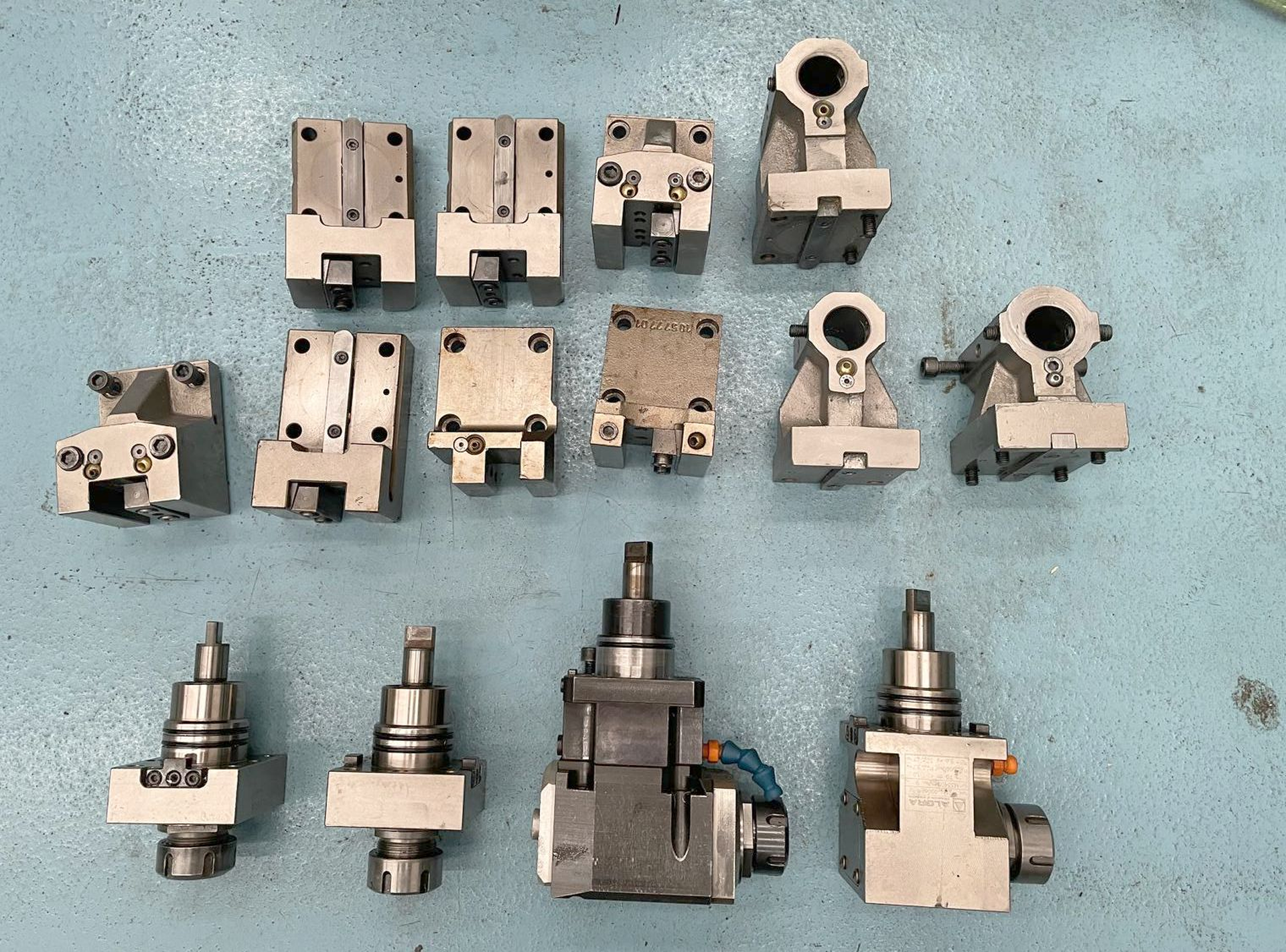

Power of driven tools: 3.7 kW.

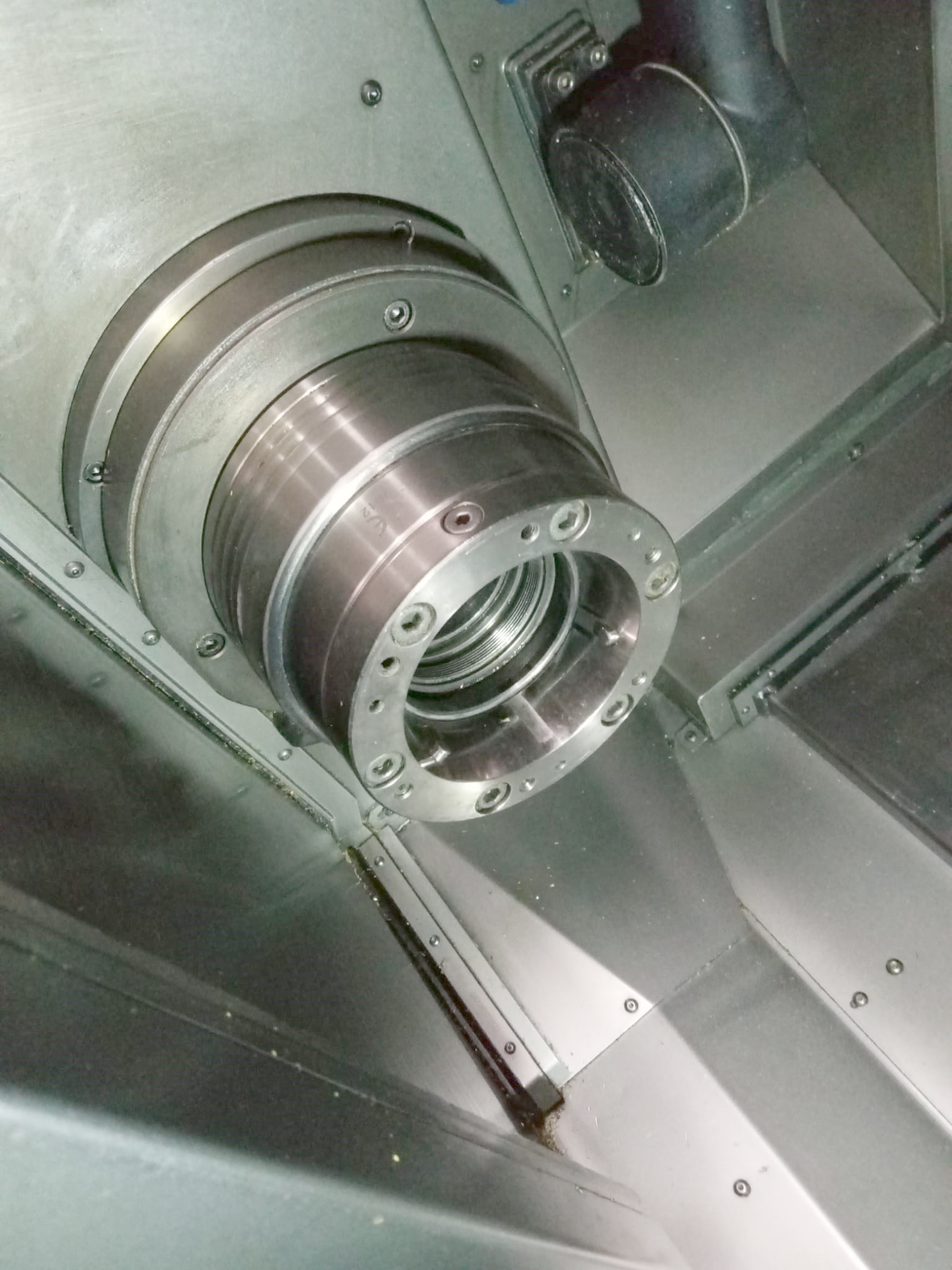

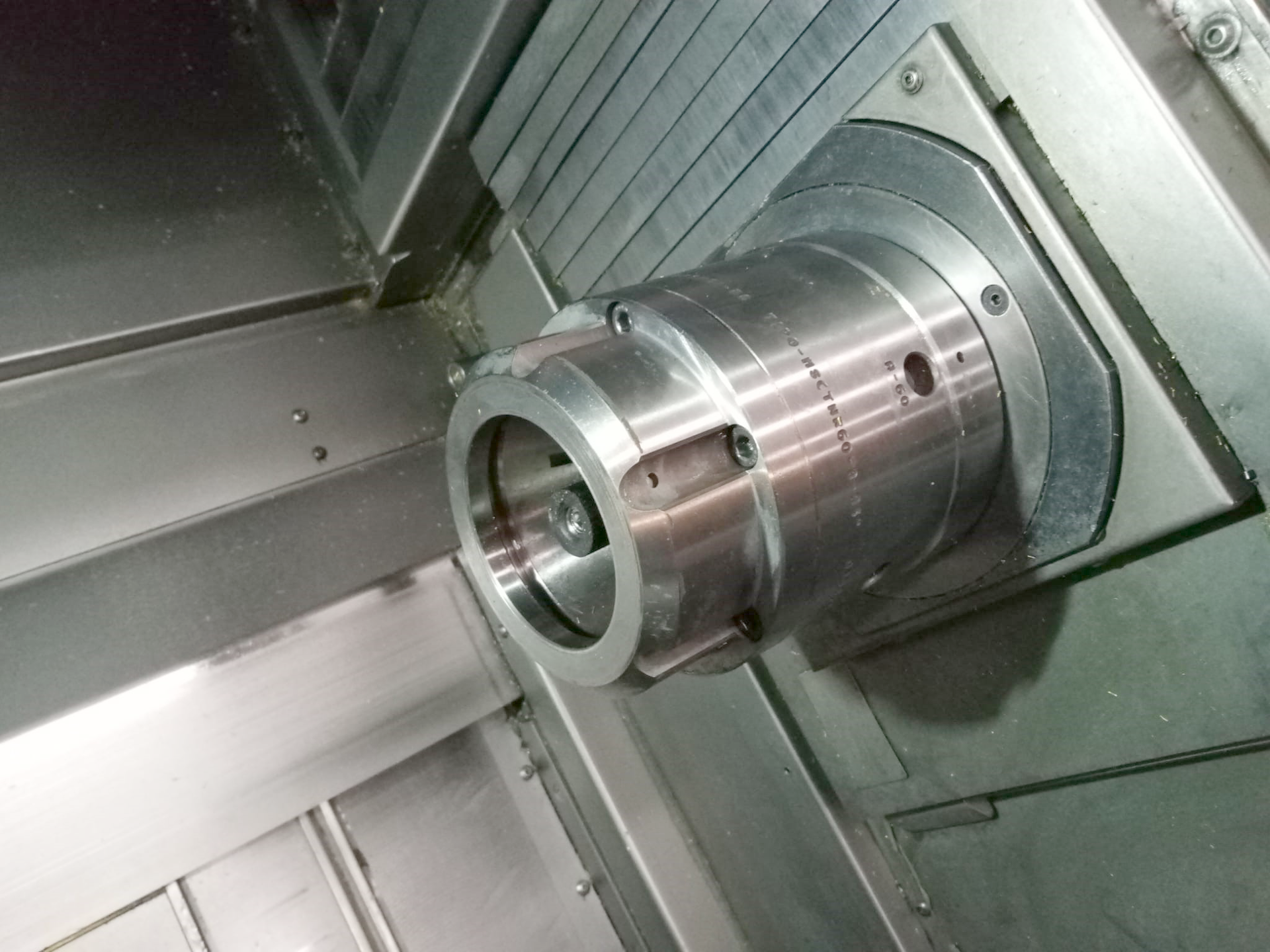

Spindle nose: ASA 5".
from: 0 t/min.
up to: 4000 t/min.
Spindle power: 22 / 26 kW.
Back spindle stroke: 420 mm.
Power of back spindle: 7.5 / 11 kW.
Rapid traverse X: 18 m/min.
Rapid traverse Z: 30 m/min.
Rapid traverse Y: 9 m/min.
Voltage 50 Hz 3x: 400 Volt.
Machine's weight about: 7400 kg.
Length: 4400 mm.
Width: 2150 mm.
Height: 2200 mm.

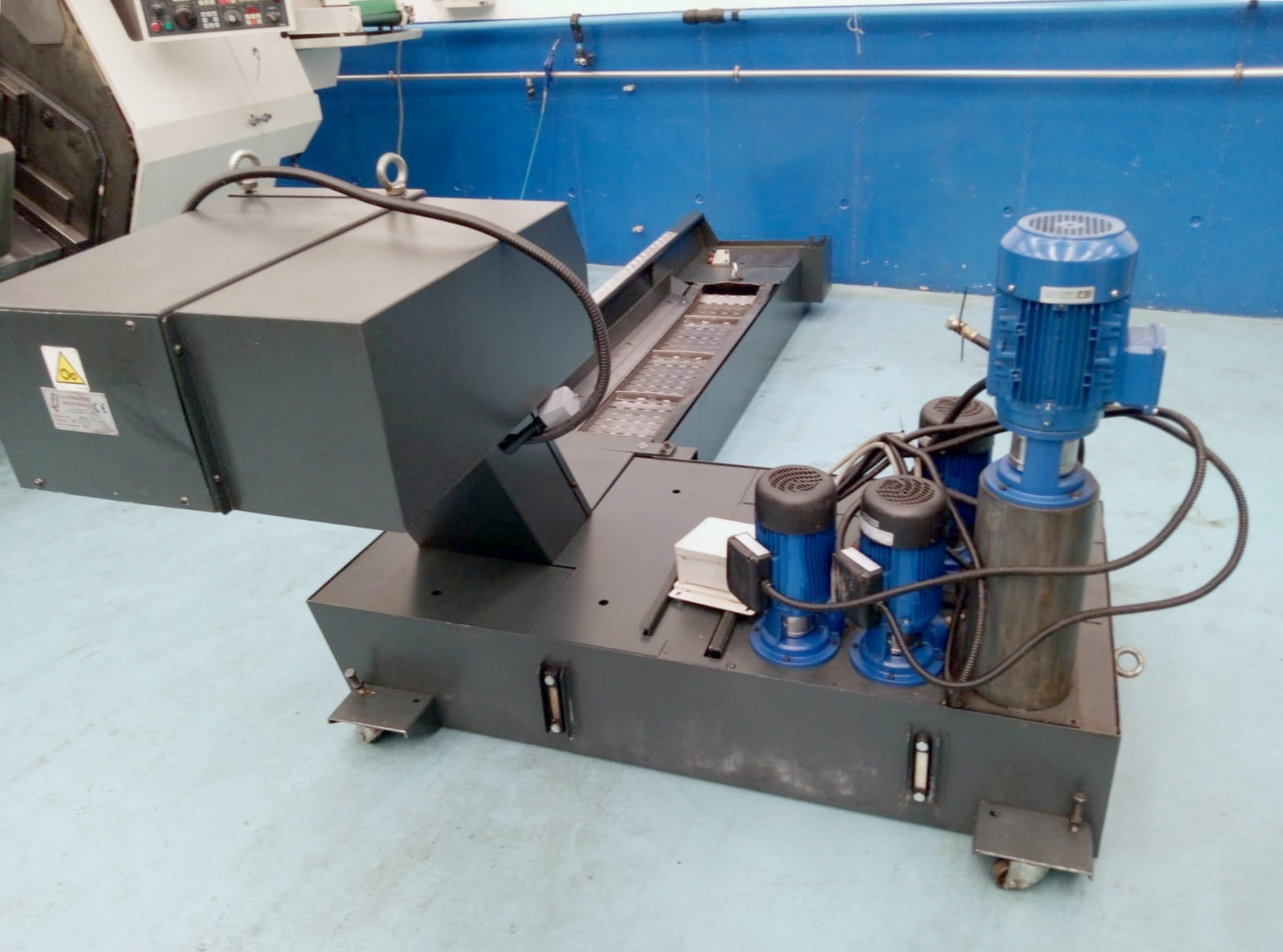

High pression colant device: 25 bar.

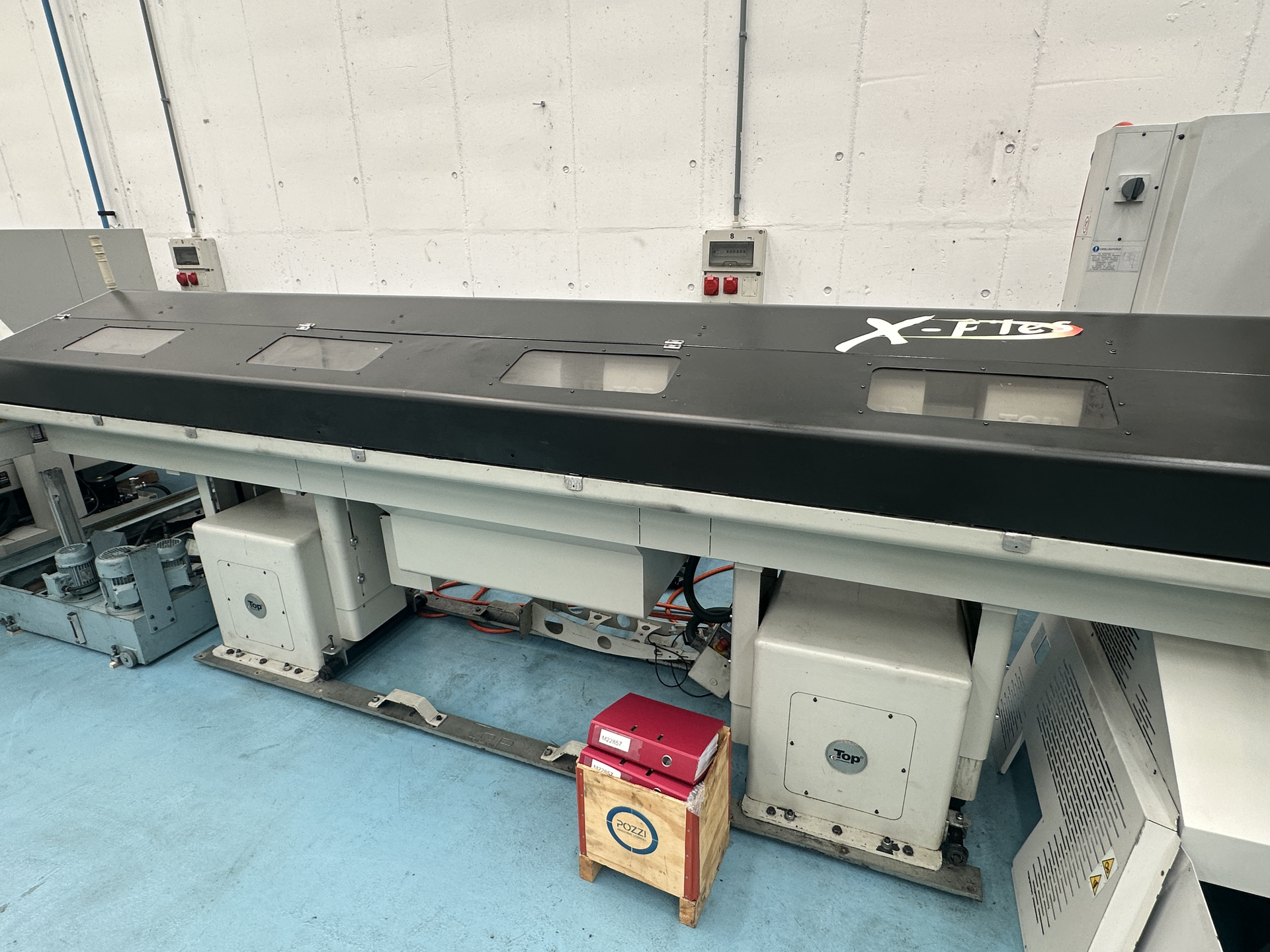

Bar feeder: TOP.
Type: XFILE 370.
