MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • EWAG
  • Model:

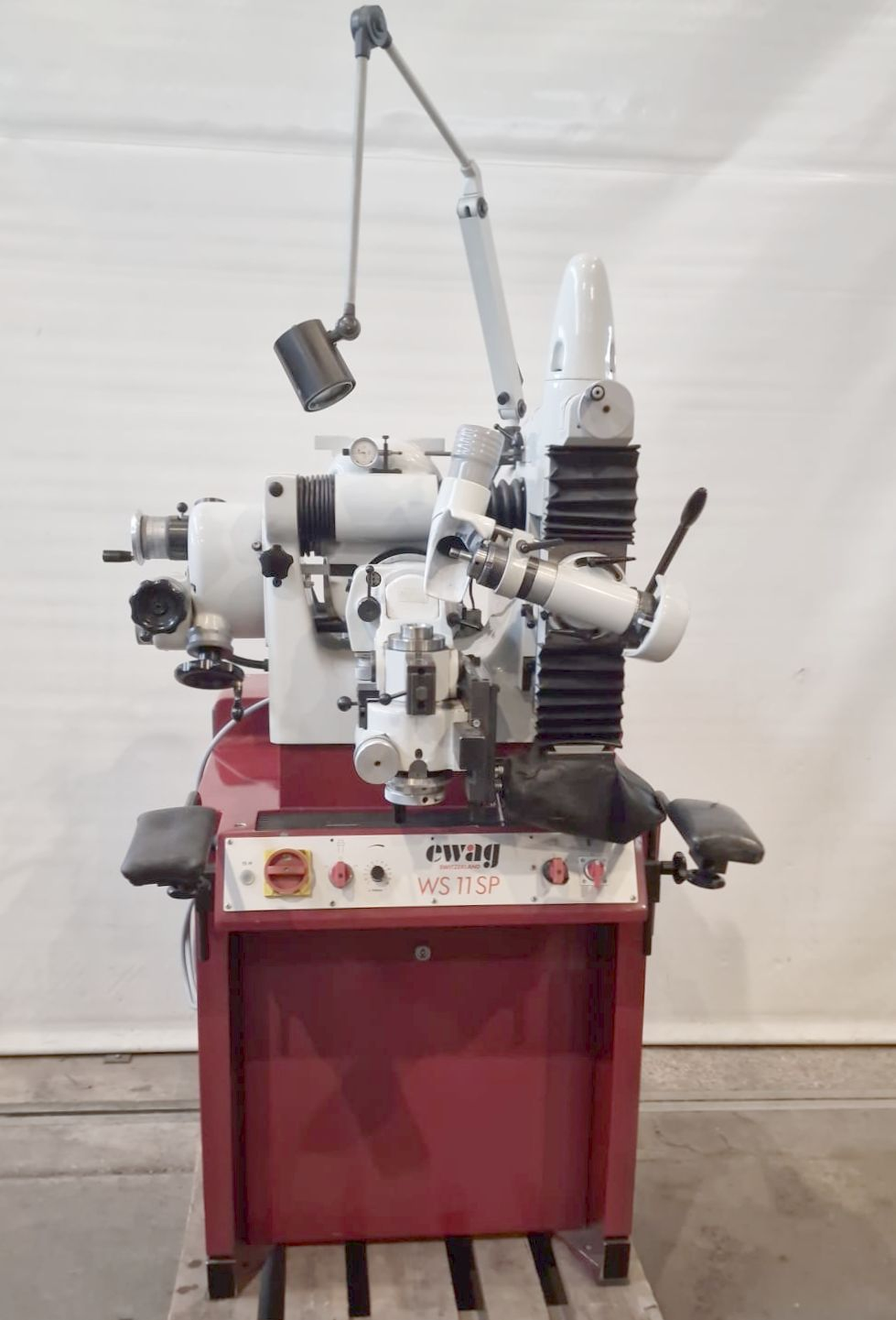

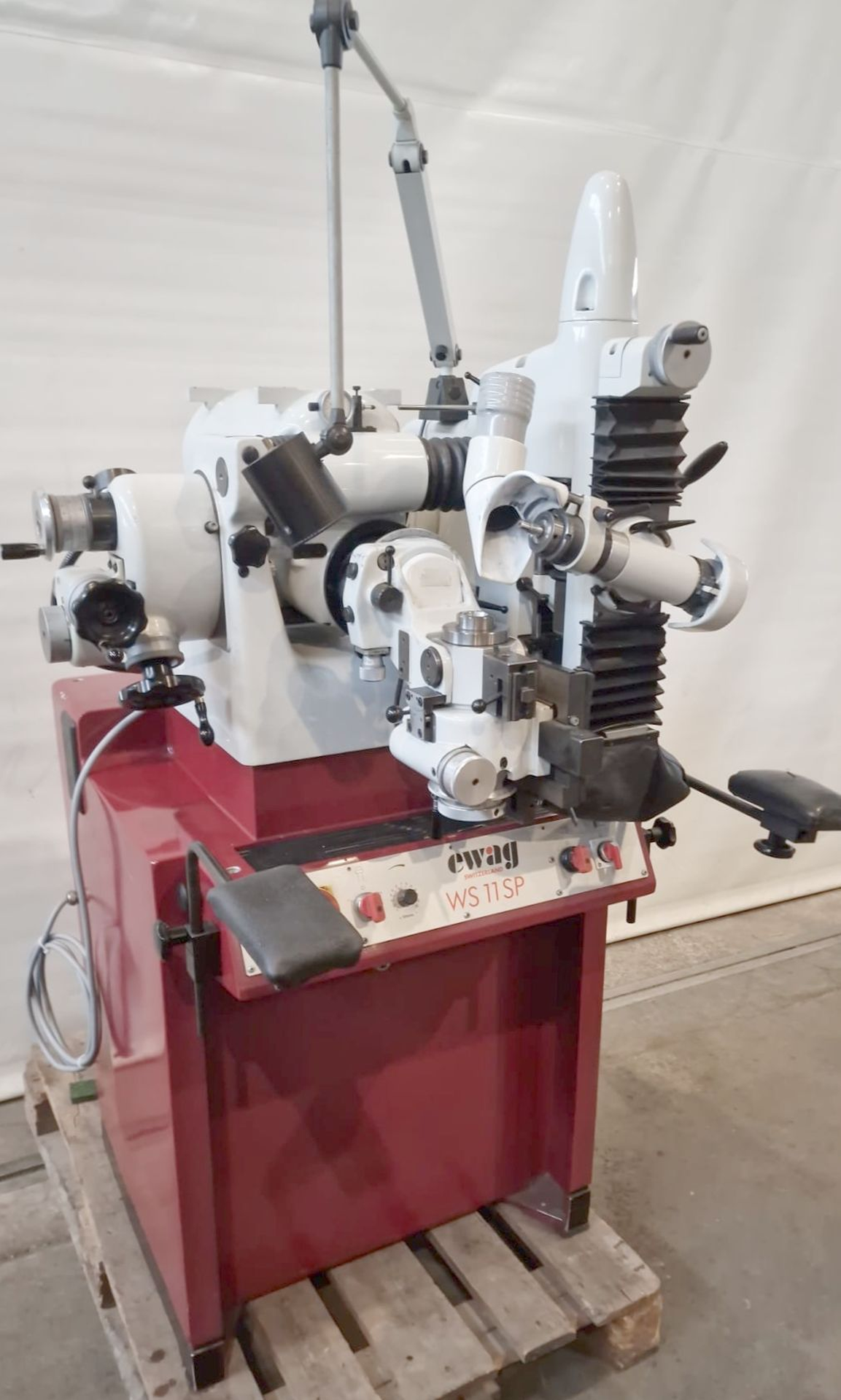

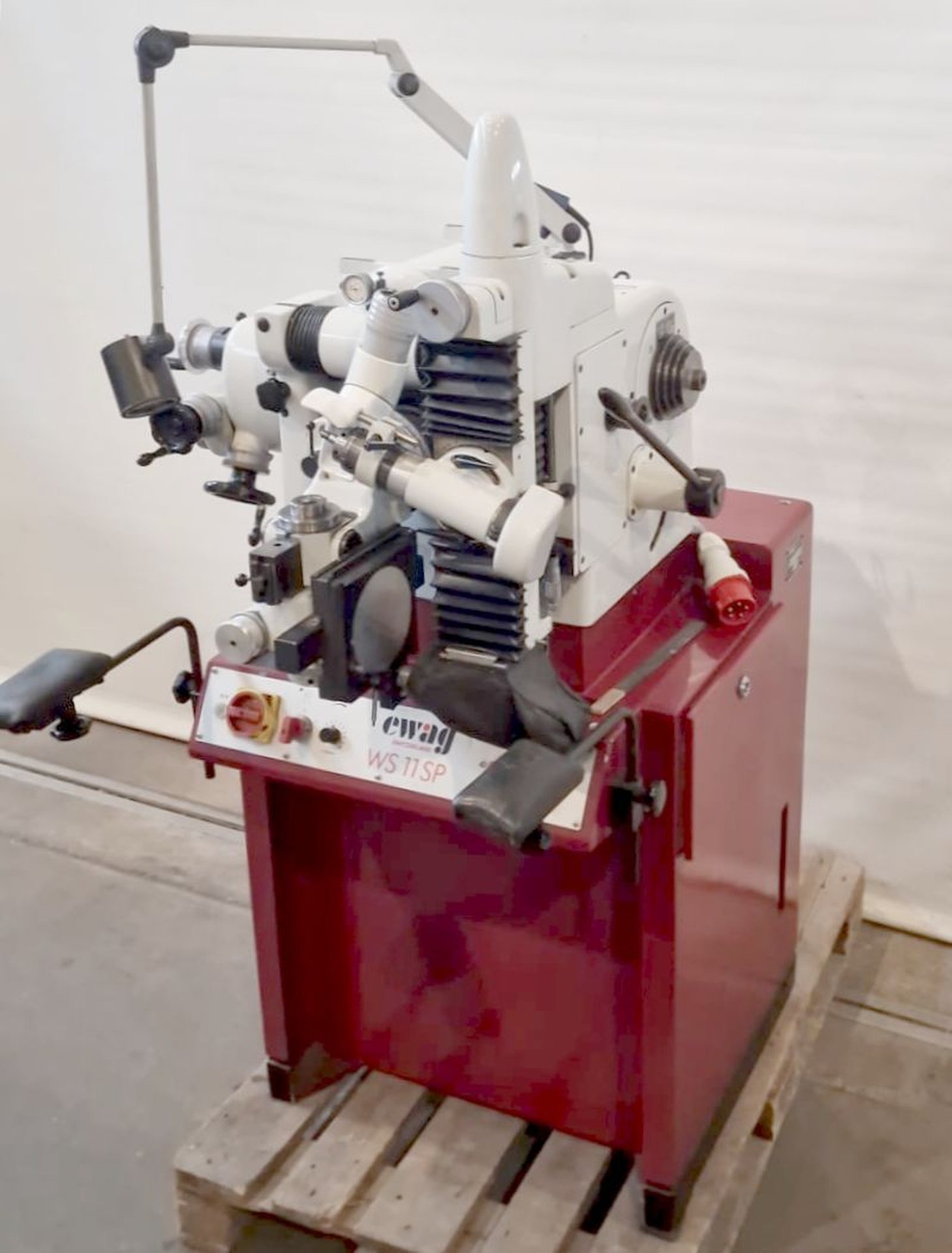

  • 022808 - EWAG WS 11 SP
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

X axis: 100 mm.
Y axis: 100 mm.
Z axis: 100 mm.
Grinding-wheel diameter: 75 mm.
Work piece spindle speed: 100 - 1300 t/min.
Vertical adjustment of grinding head: 100 mm.
Collet attachment: 20 W.
horizontal: 165 °.
from: 2500 t/min.
up to: 7100 t/min.
Voltage 50 Hz 3x: 380 Volt.
Workpiece spindle motor: kW.
Total power required: 2 kVA.
Machine's weight about: 400 kg.
Length: 850 mm.
Width: 850 mm.
Height: 1580 mm.
Feed unit (Z-axis): 4 E-M.
