MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Citizen
  • Model:

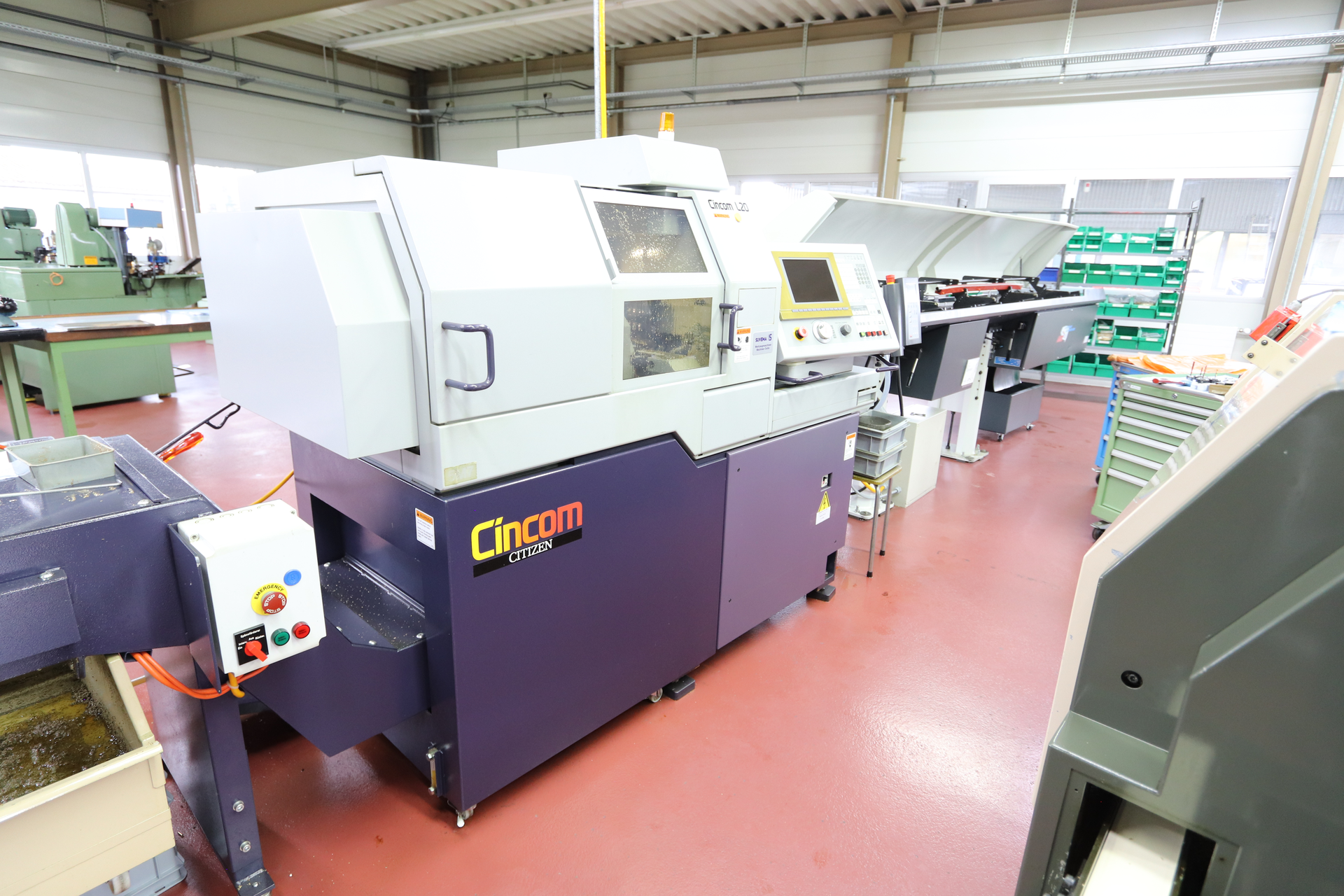

  • 022788 - CITIZEN CINCOM L 20
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of spindles: 2.
Max. turning diameter: 20 mm.
Maximum turning length: 200 mm.
Inner taper type: F25.
from: 200 t/min.
up to: 6000 t/min.
numbers: 3.
number of tools: 12.
Turning tools: 5 pce.
Drilling tools: 3 pce.
Transverse processing tools: 4 pce.
Voltage 50 Hz 3x: 380 Volt.
Spindle motor: 3.7 kW.
Power of back spindle: 1.5 kW.
Machine's weight about: 1800 kg.
Length: 2050 mm.
Width: 1085 mm.
Height: 1800 mm.
Type: LNS.
year of manufacture: 1998.
Length of bars max.: 3200 mm.
Bar diameter: 2 - 26 mm.
