MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

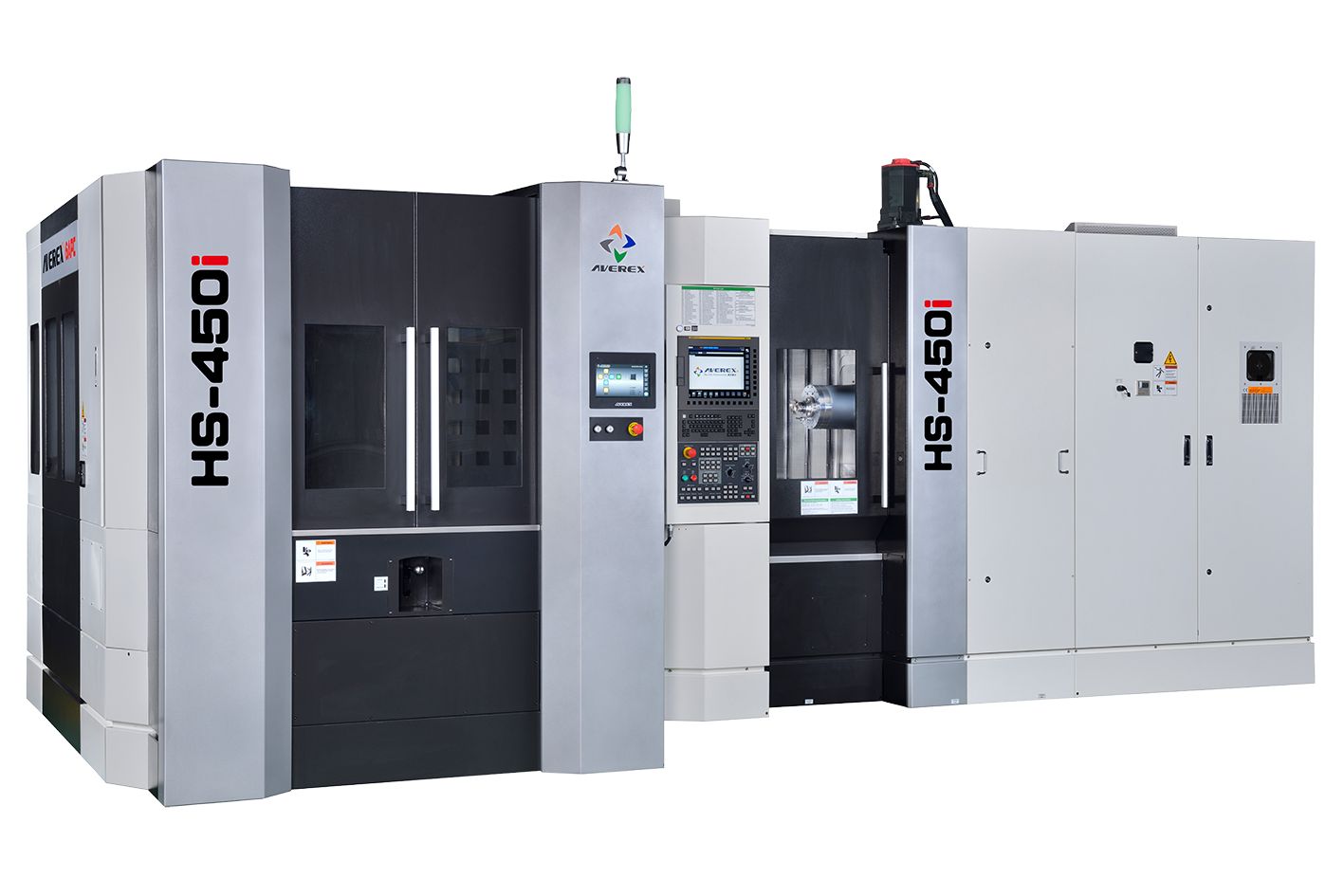

  • 022667 - AVEREX HS-450i
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Longitudinal travel (X-axis): 640 mm.
Transversal travel (y-axis): 610 mm.
Vertical travel (z axis): 680 mm.
Height: 2600 mm.
Diameter: 785 mm.
Table divisions (C): 0.001 °.
Automatic pallet change-unit (number of paletts): 2.
Maximum workpiece weight: 550 kg.
Rapid traverse: long.: 60 m/min.
Rapid traverse: transversal: 60 m/min.
Rapid traverse: vertical: 60 m/min.
Machine's weight about: 11645 kg.
Length: 4730 mm.
Width: 2260 mm.
