MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

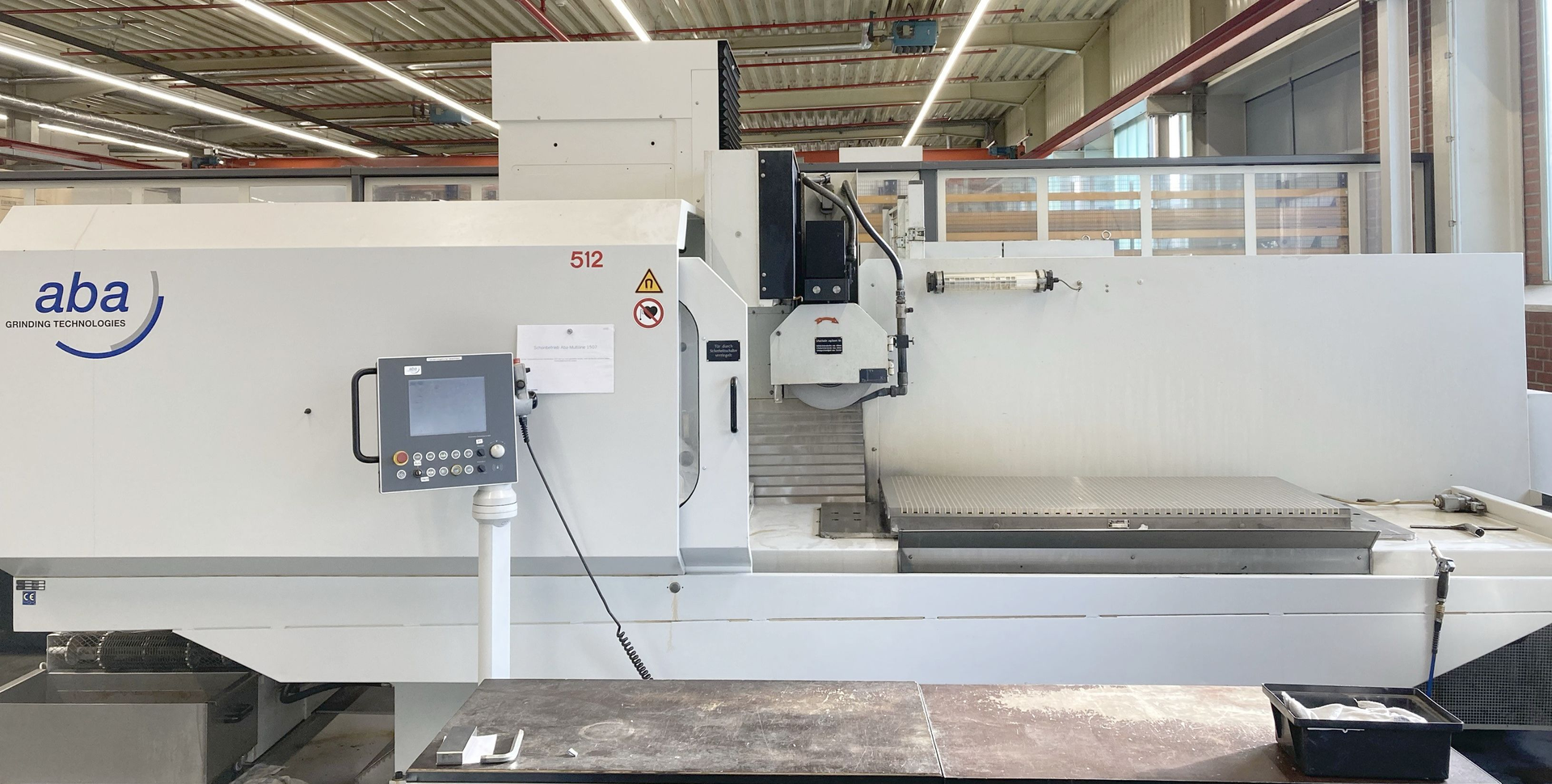

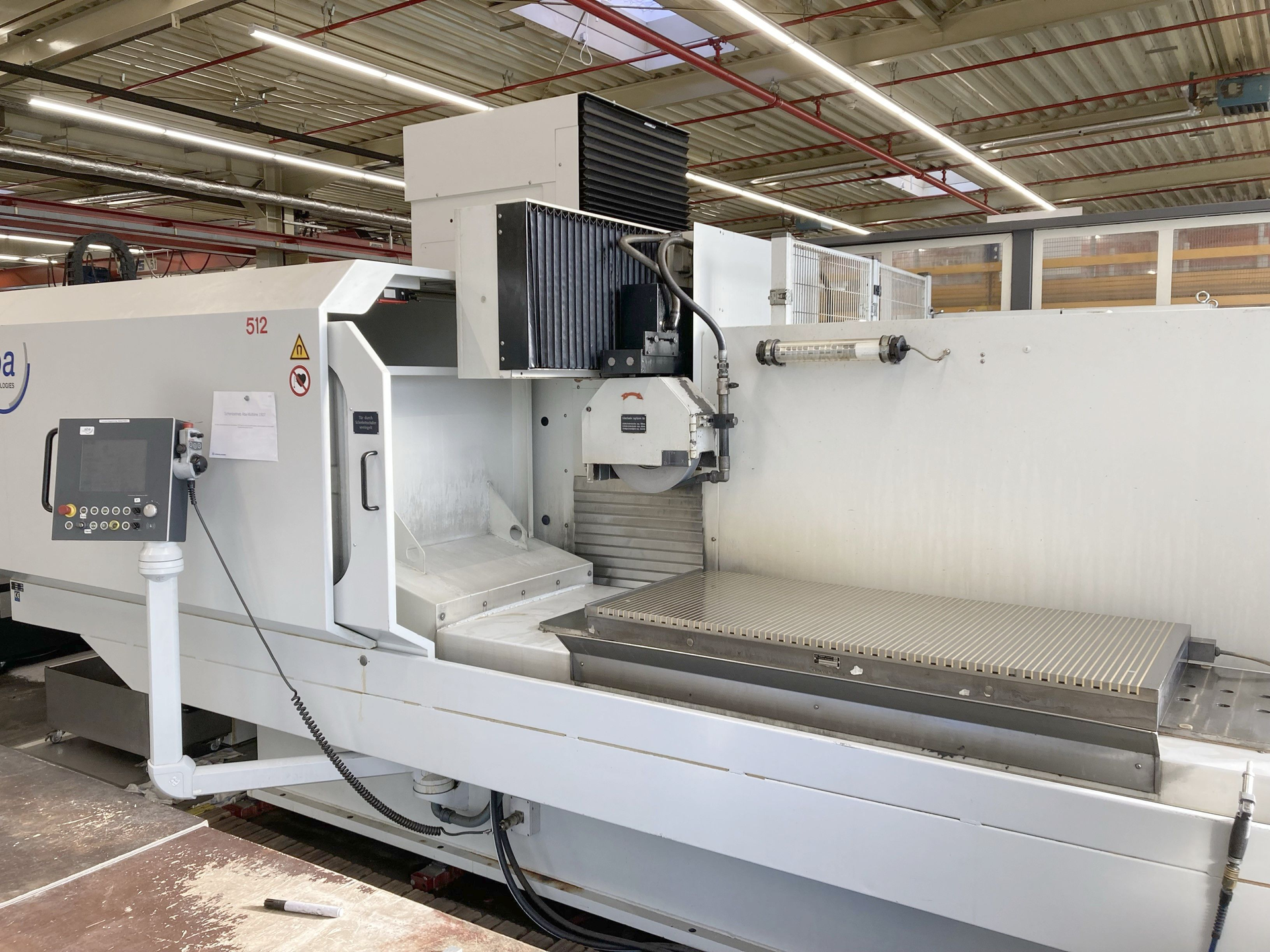

  • 022580 - ABA MULTILINE 1507 A
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

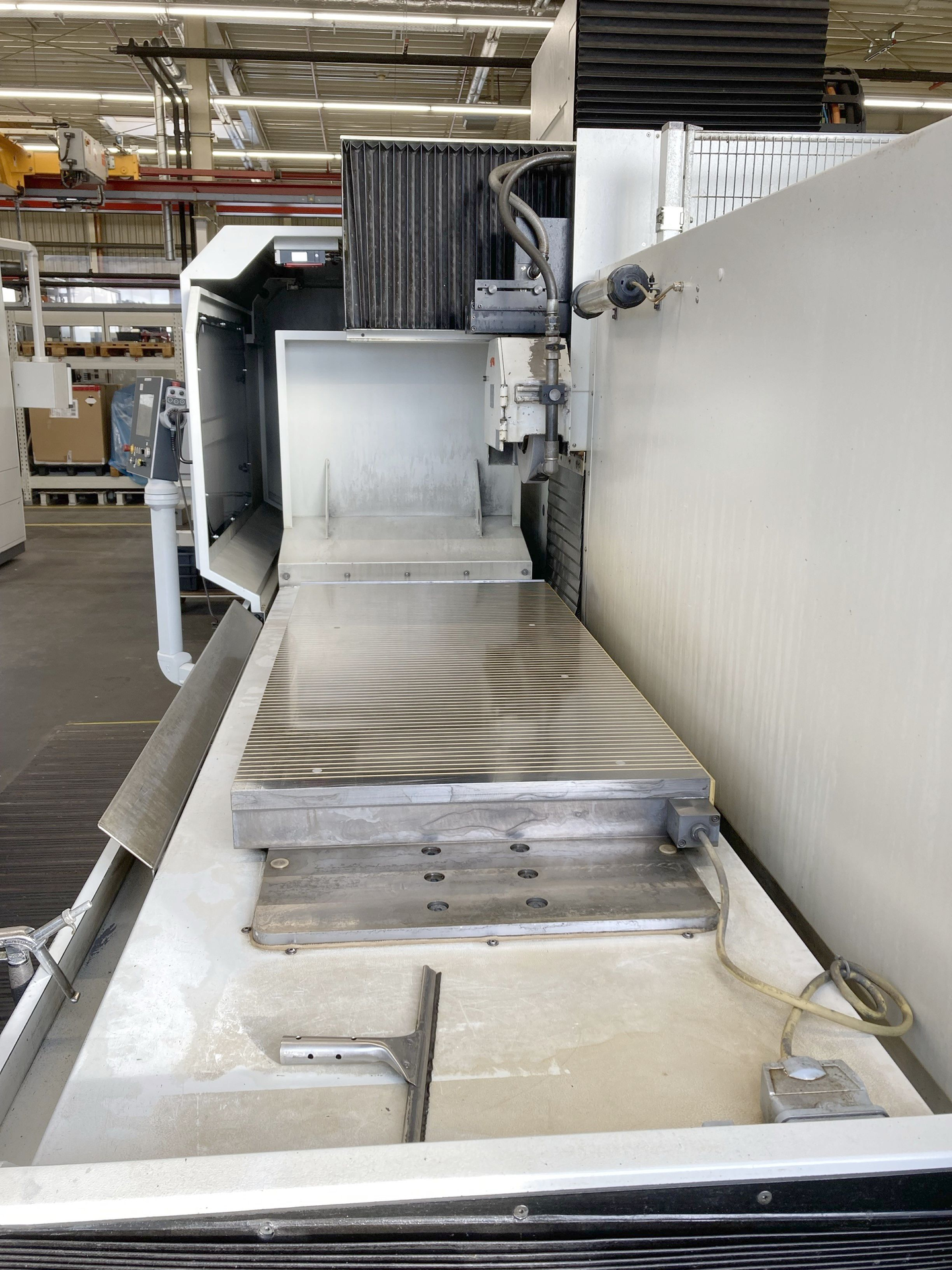

Table length: 2000 mm.
Table width: 600 mm.
Grinding length: 1500 mm.
Grinding width: 600 mm.
Table load max.: 2500 kg.
to spindle-centreline: 900 mm.
Longitudinal travel (X-axis): 1500 mm.
Cross travel (z-axis): 750 mm.
Vertical travel (Y-axis): 900 mm.
from: 50 t/min.
up to: 2500 t/min.
Diameter of grinding wheel: 400 mm.
Width of the grinding wheel: 60 mm.
Drilling cap. of grind.wheel: 127 mm.
Voltage 50 Hz 3x: 400 Volt.
Grinding spindle motor: 26 kW.
Total power required: 35 kW.
Machine's weight about: 11000 kg.
Length: 1500 mm.
Width: 700 mm.
Height: 3000 mm.
