MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • MIKRON
  • Model:

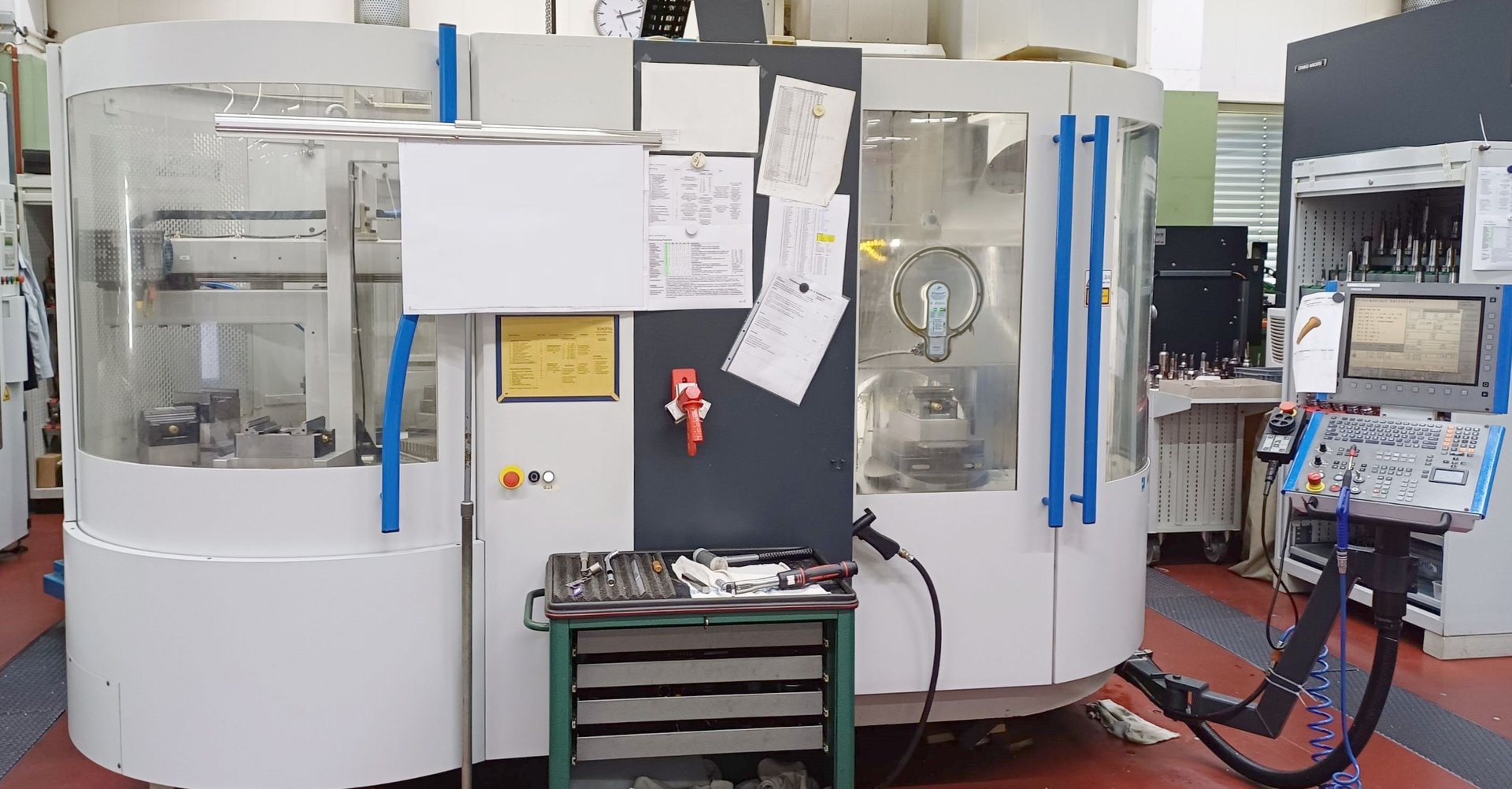

  • 022552 - MIKRON UCP 600 VARIO
  • Condition:
  • 1
  • YOM:
  • NA

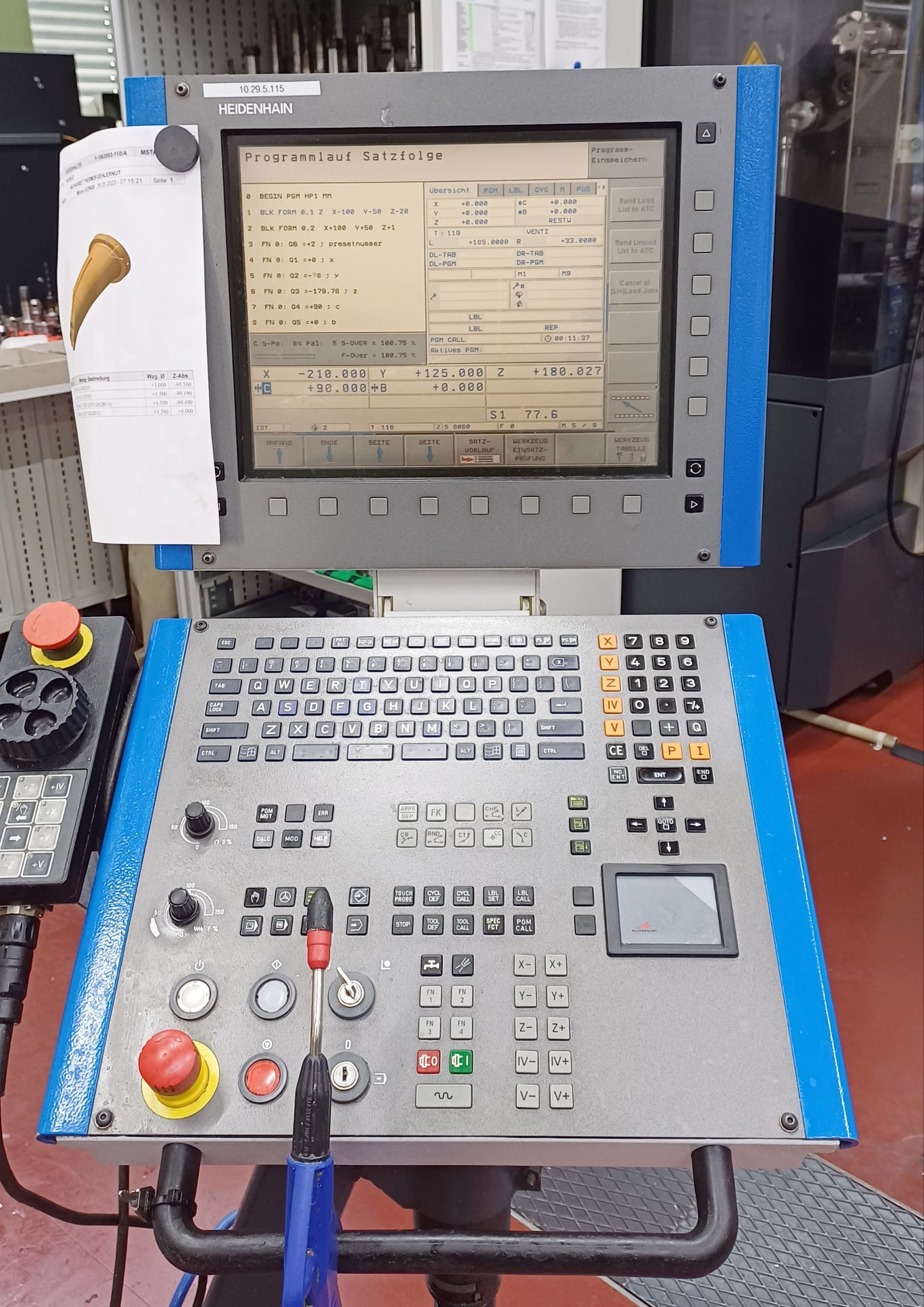

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 5.
Longitudinal travel (X-axis): 600 mm.
Transversal travel (y-axis): 450 mm.
Vertical travel (z axis): 450 mm.
Table load max.: 200 kg.
Milling head divisions (B): -115/+30 °.
Spindle nose:: HSK-A 63.
from: 0 t/min.
up to: 20000 t/min.
Voltage 50 Hz 3x: 400 Volt.
Total power required: 18 kW.
Noise level: 75 dB (A).
Machine's weight about: 7700 kg.
Overall dimensions machine:: total.
Length: 6820 mm.
Width: 4800 mm.
Height: 2540 (2810) mm.

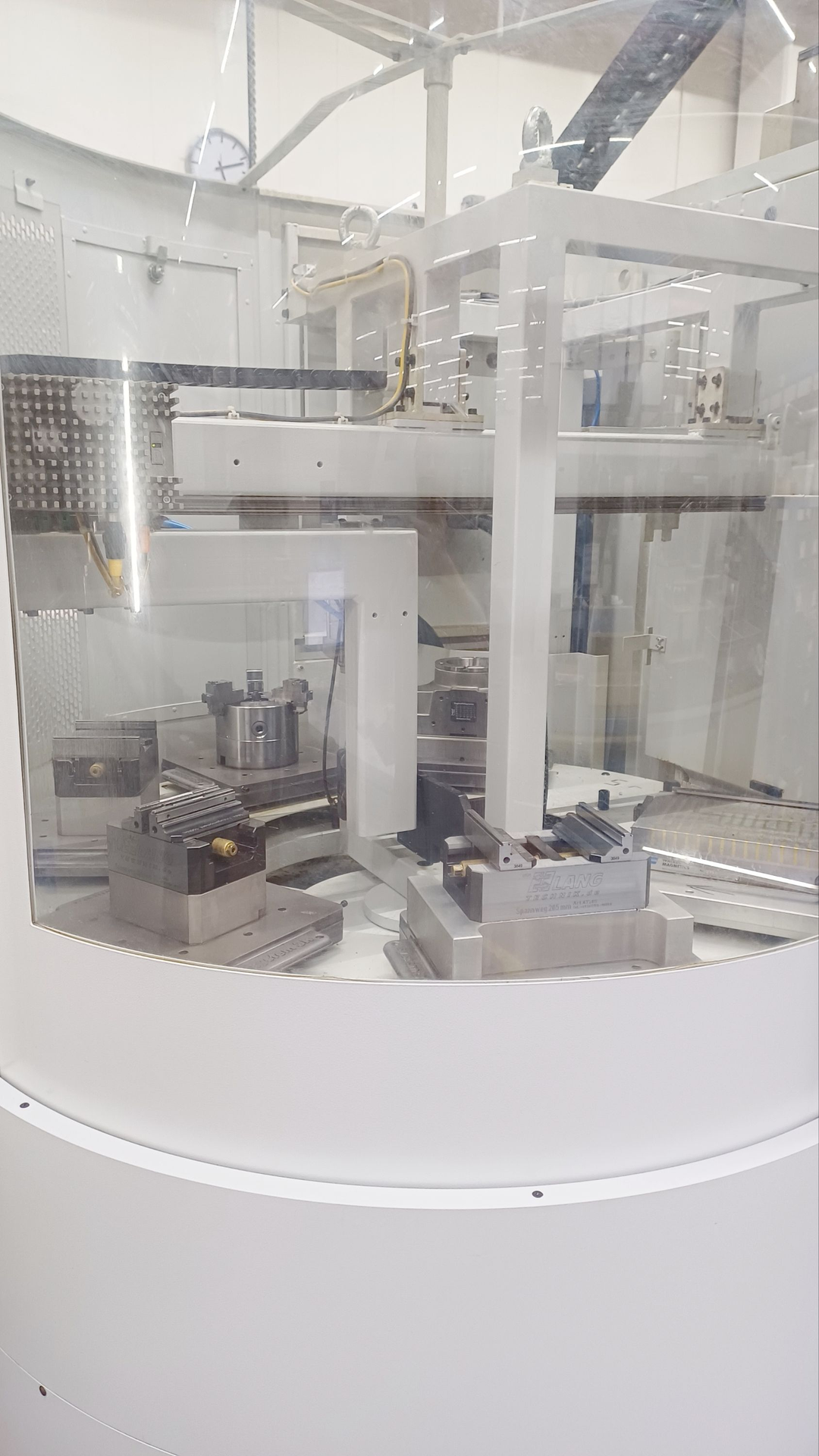

Pallets: number: 7.
