MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • WILLEMIN
  • Model:

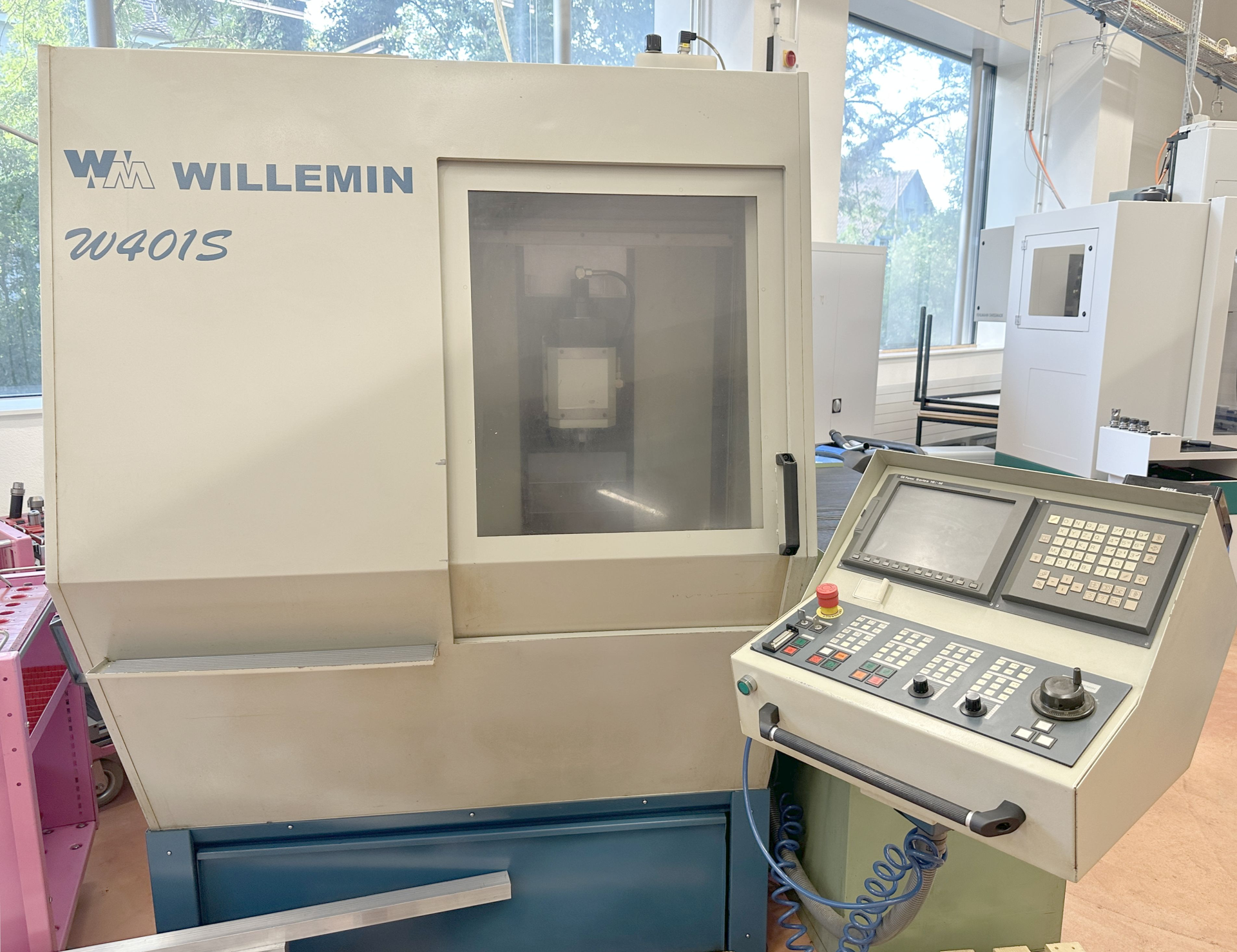

  • 022538 - WILLEMIN MACODEL W 401S
  • Condition:
  • 1
  • YOM:
  • NA

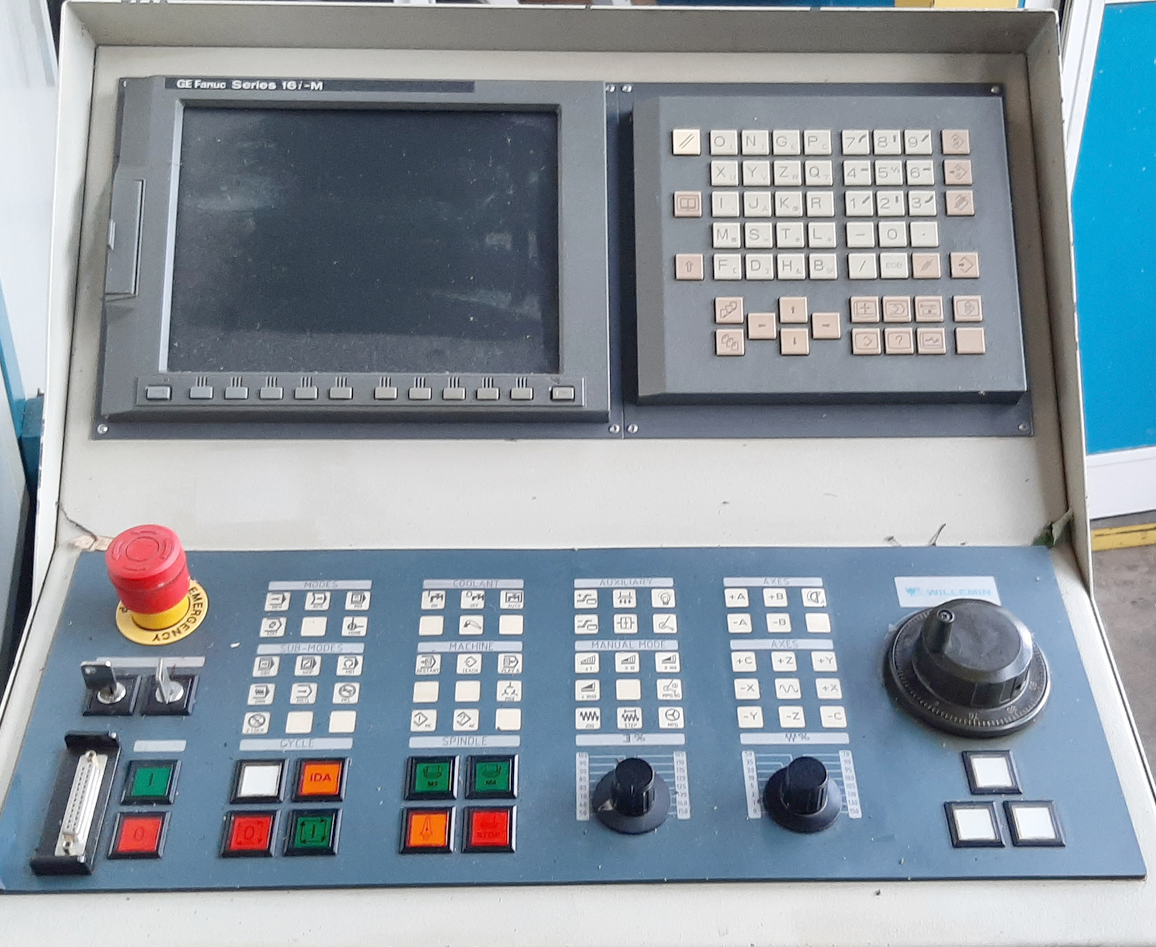

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 3.

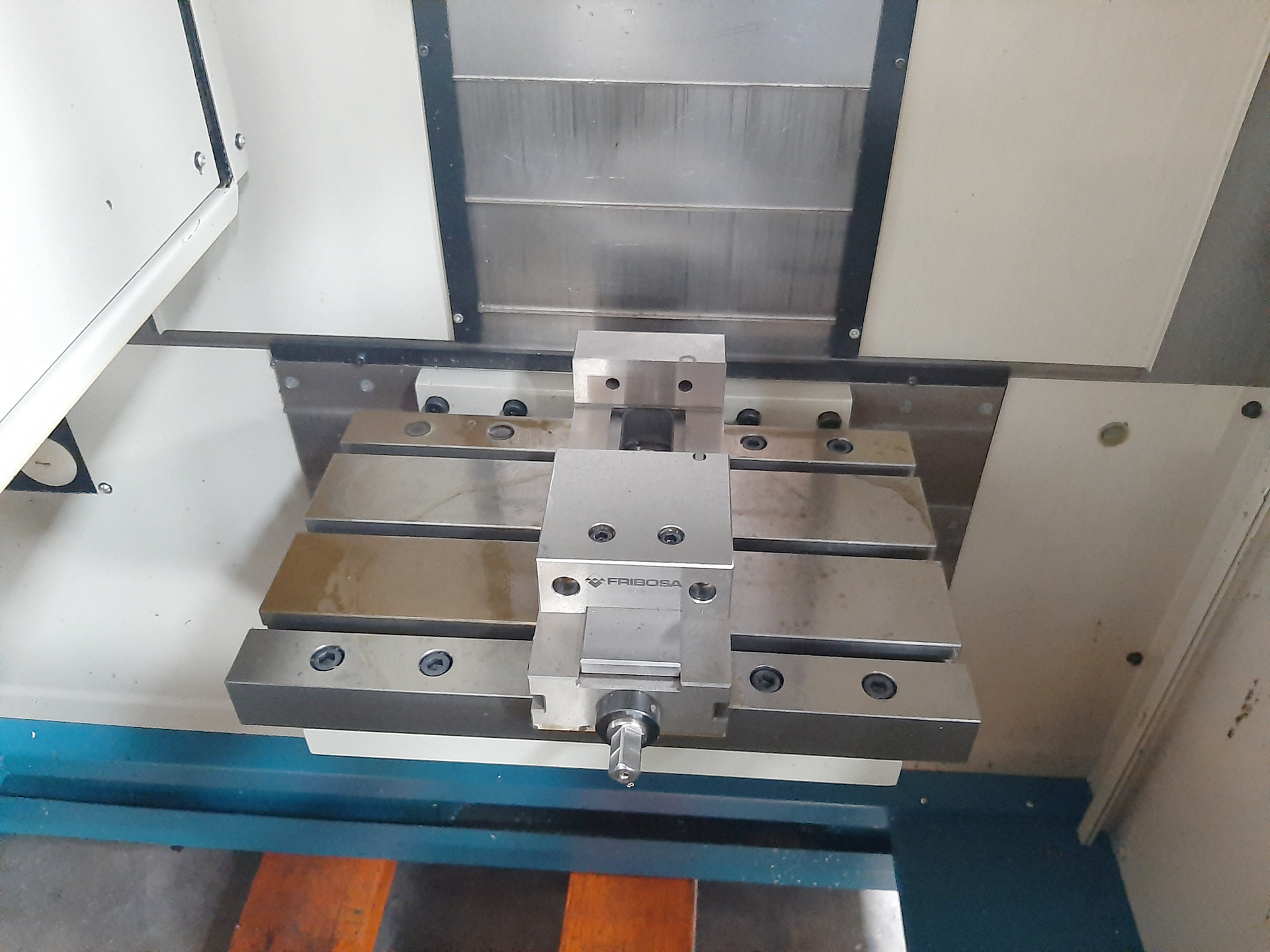

Table length: 400 mm.
Table width: 250 mm.
Number of T-channels: 3.
Distance of the T-slots: 80 mm.
T-channel width: 14 mm.
Longitudinal travel (X-axis): 250 mm.
Transversal travel (y-axis): 200 mm.
Vertical travel (z axis): 300 mm.

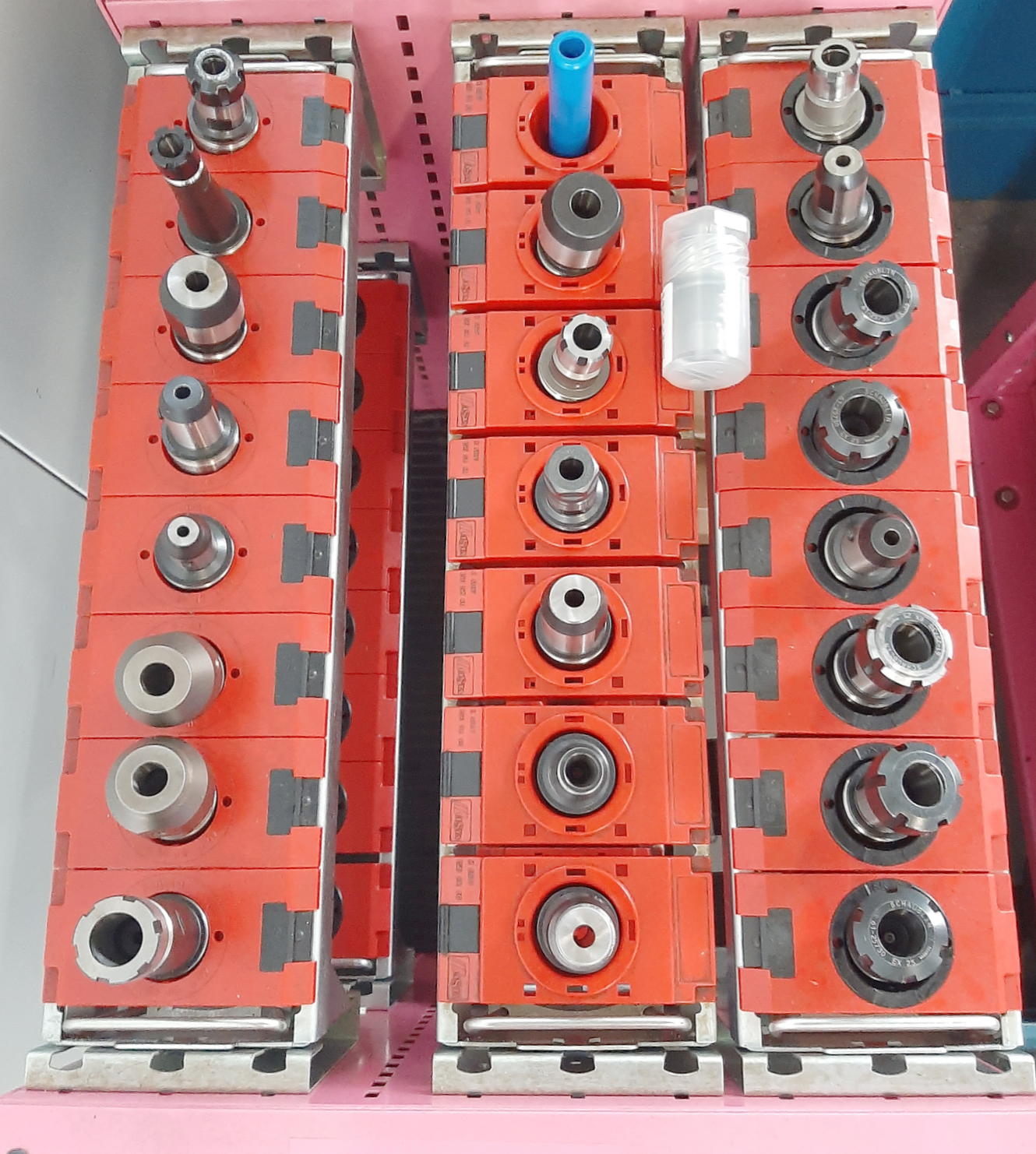

Tool magazine number of tool places: 48.

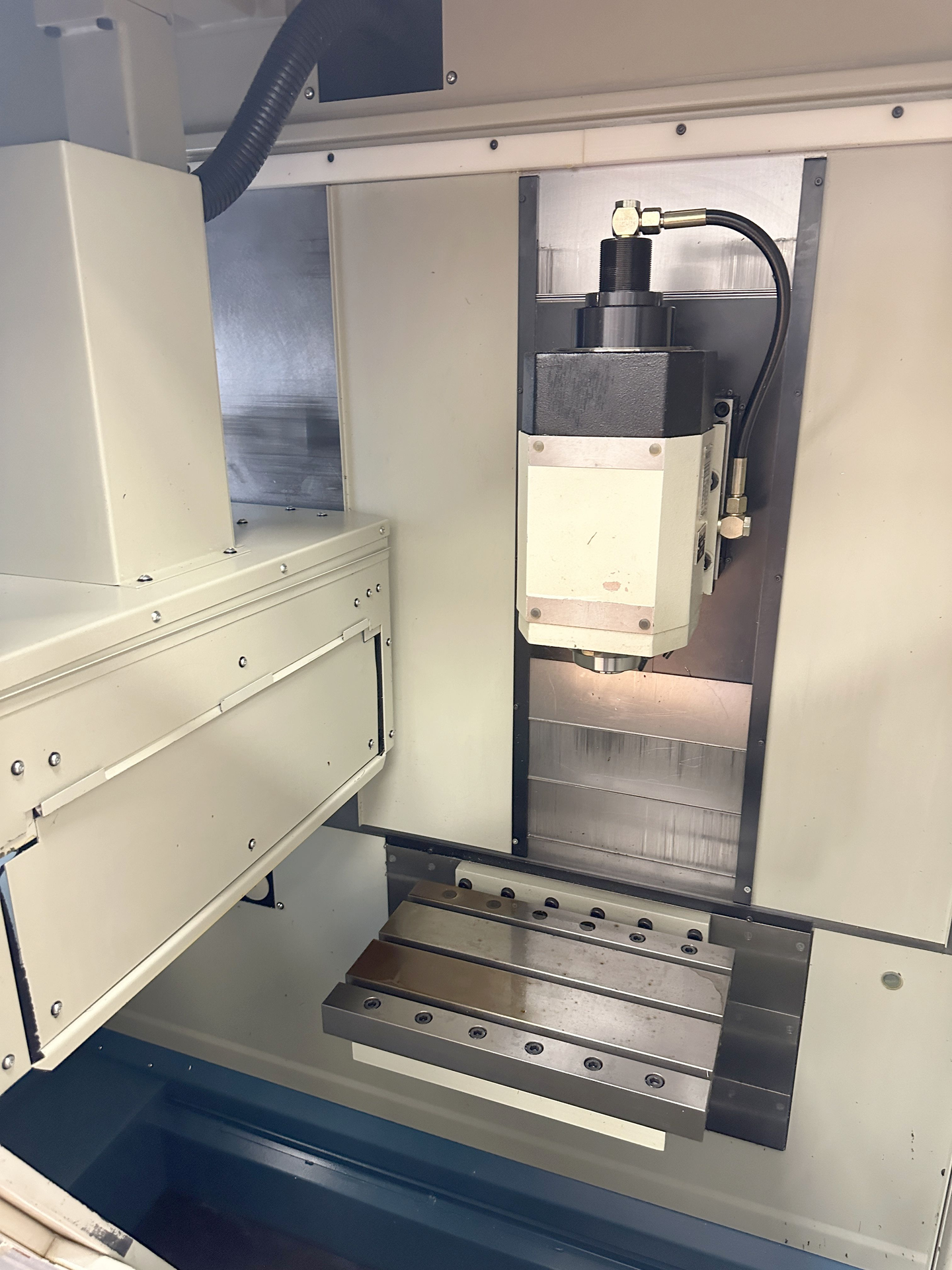

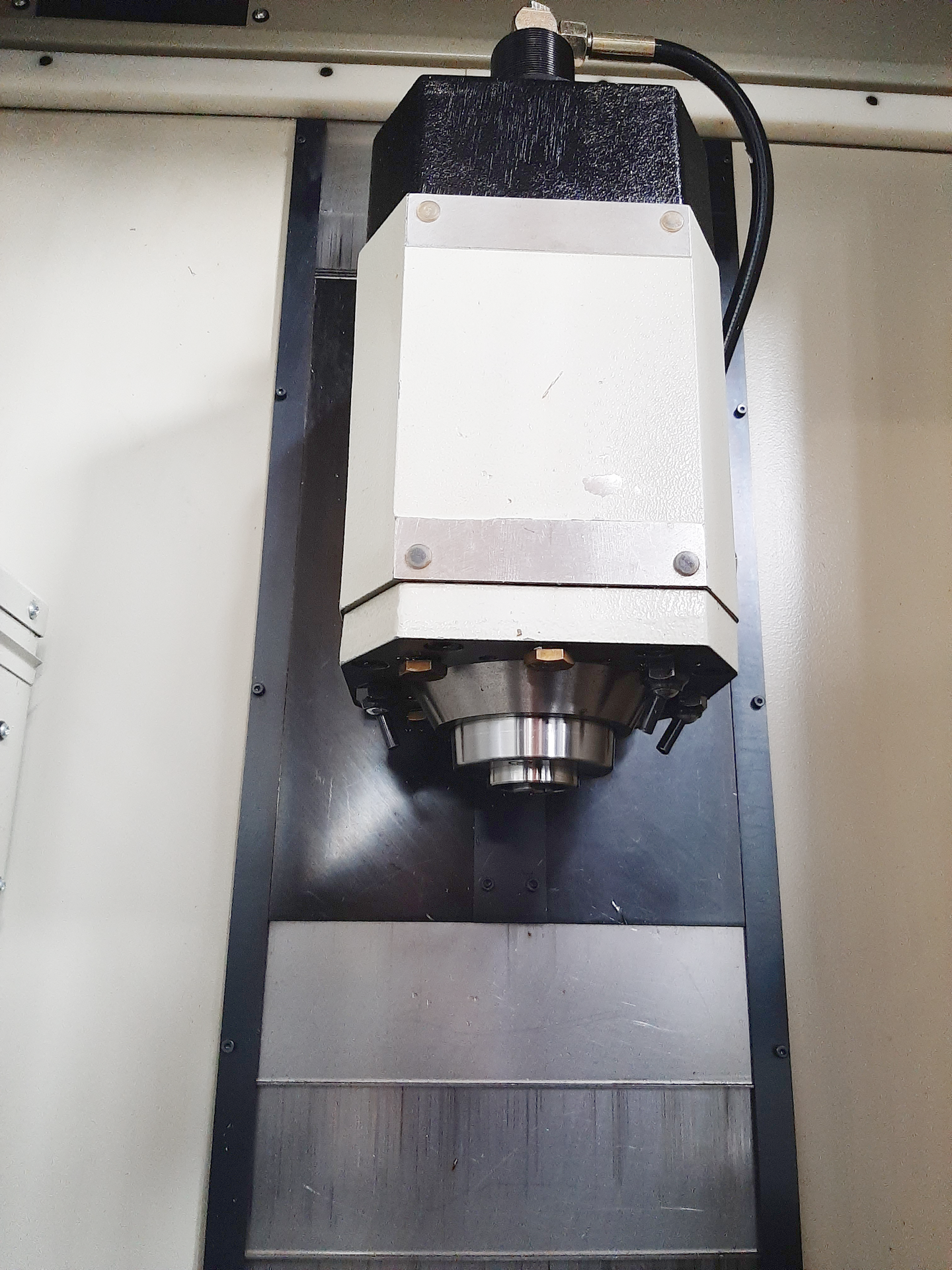

Spindle nose: HSK: E40.
from: 0 t/min.
up to: 14000 t/min.
Work feed rate: 20 m/min.
Rapid traverse:: 30 m/min.
Max. Feed force: 3700 N.
Resolution: 1 µm.
Air connect: 6 bar.
Voltage 50 Hz 3x: 400 Volt.
Spindle power: 10.4 kW.
Total power required: 18 kVA.
Machine's weight about: 1700 kg.
Length: 2100 mm.
Width: 1630 mm.
Height: 2265 mm.
Space requirement env.: 2 m2.
Vice: width: 100 mm.
