MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

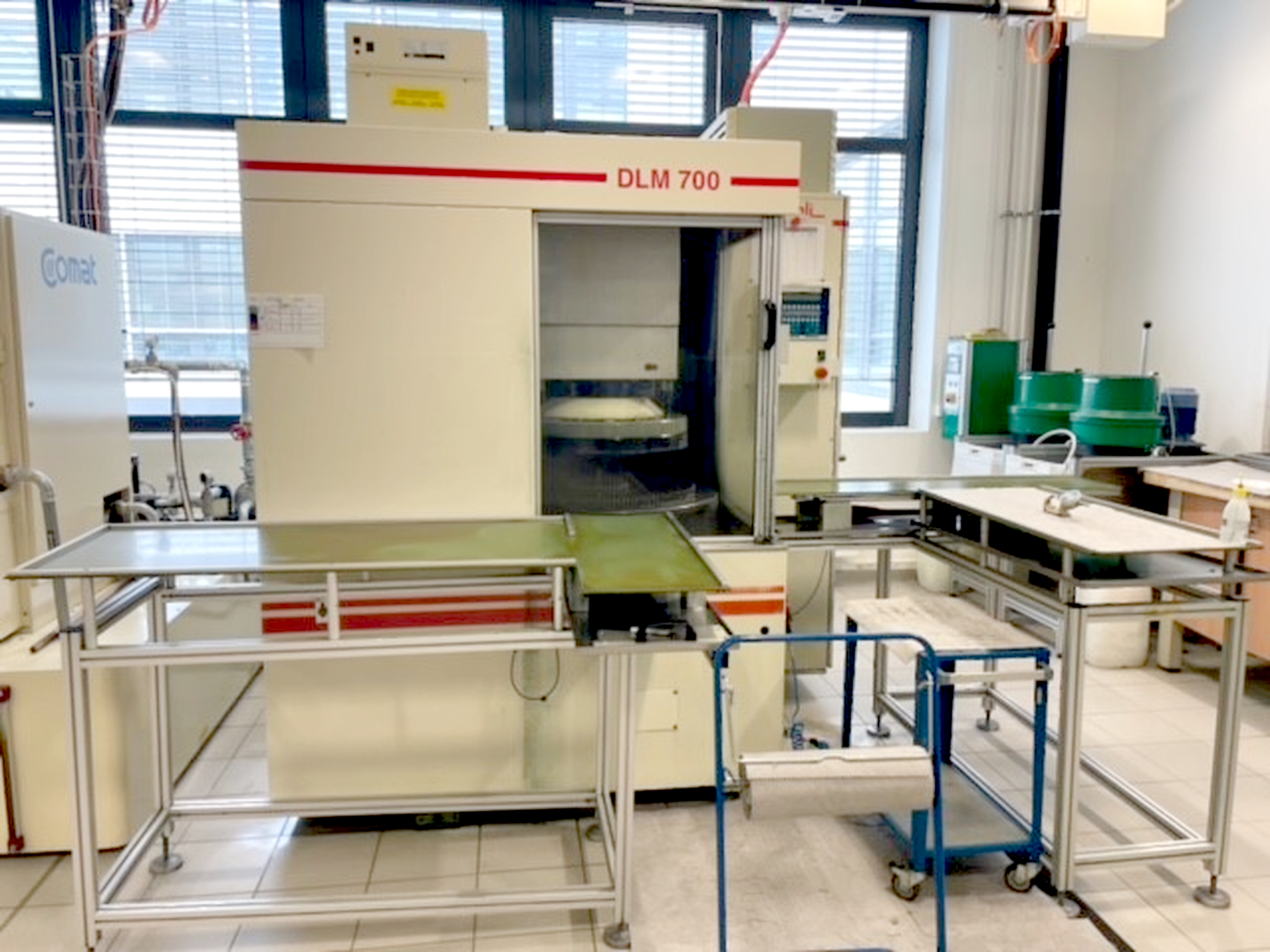

  • 022492 - STÄHLI DLM 700
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

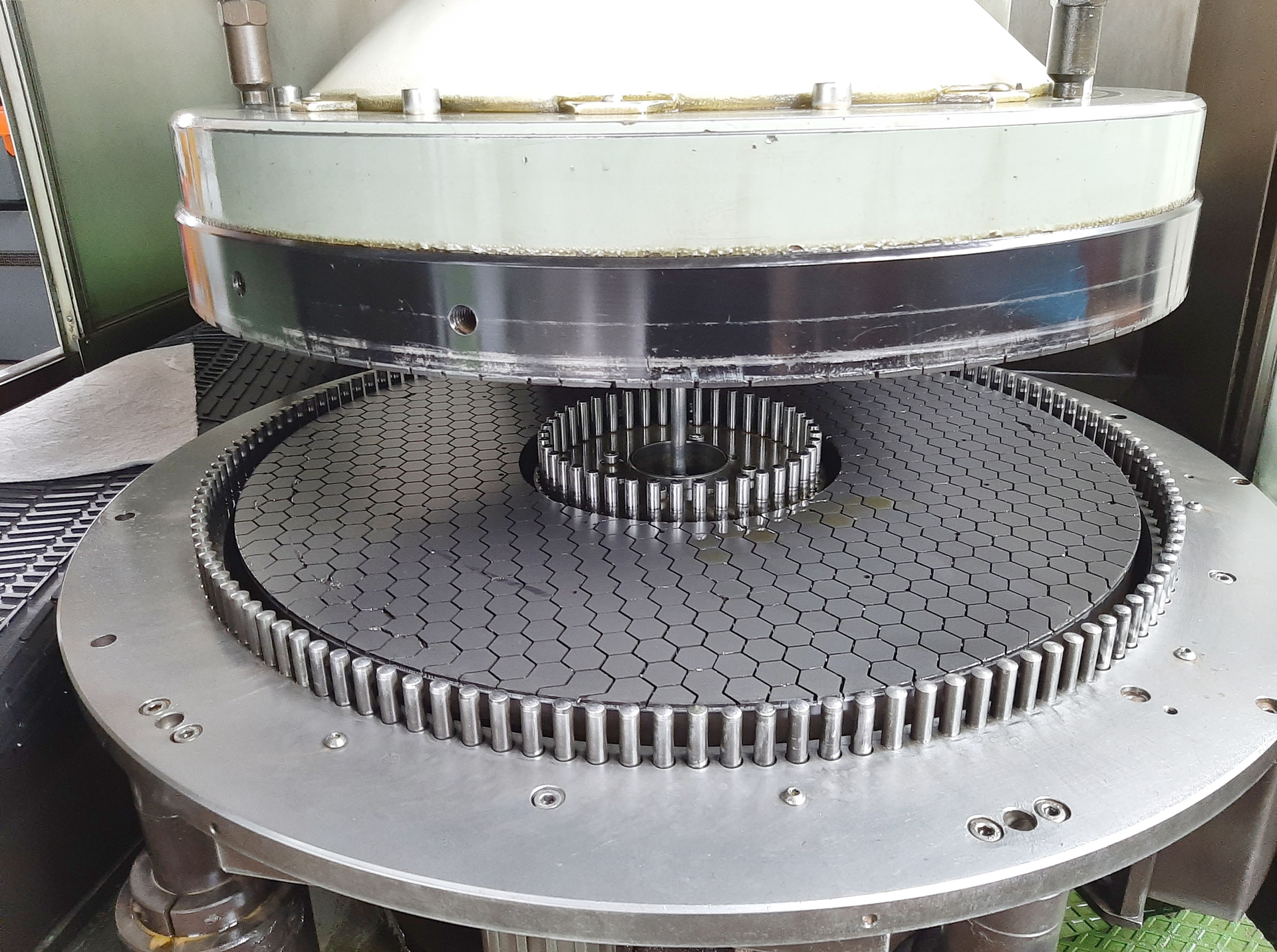

Number of rotor discs: 4 - 8 pce.
Max. wheel diameter: 650 mm.
Max. work-piece height: 100 mm.
from: t/min.
up to: 100 t/min.
Load on workpiece stepless: 600 daN.
Voltage 50 Hz 3x: 400 Volt.
Air connect: 7 - 8 bar.
Main motor: 4 kW.
pin ring mechanism: 2 kW.
Disc drive power: 2 kW.
Total power required: 18 kW.
Machine's weight about: 3000 kg.
Length: 2100 mm.
Width: 1750 mm.
Height: 2100 mm.
+ request more information
