MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Manufacturer:
Tacchella

Model:
022487 - TACCHELLA 4 AM

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Muller Machines SA

Country:

DESCRIPTION

Centre height: 125 mm.
Distance between centres: 550 mm.
Table length: 900 mm.
Table width: 130 mm.
Max. grinding diameter: 250 mm.
Grinding-wheel diameter: 200 mm.
Longitudinal way of table: 400 mm.
Transversal way of grinding head: 200 mm.
from: 2200 t/min.
up to: 6400 t/min.
Voltage 50 Hz 3x: 380 Volt.
Length: 1400 mm.
Width: 1300 mm.
Height: 1700 mm.

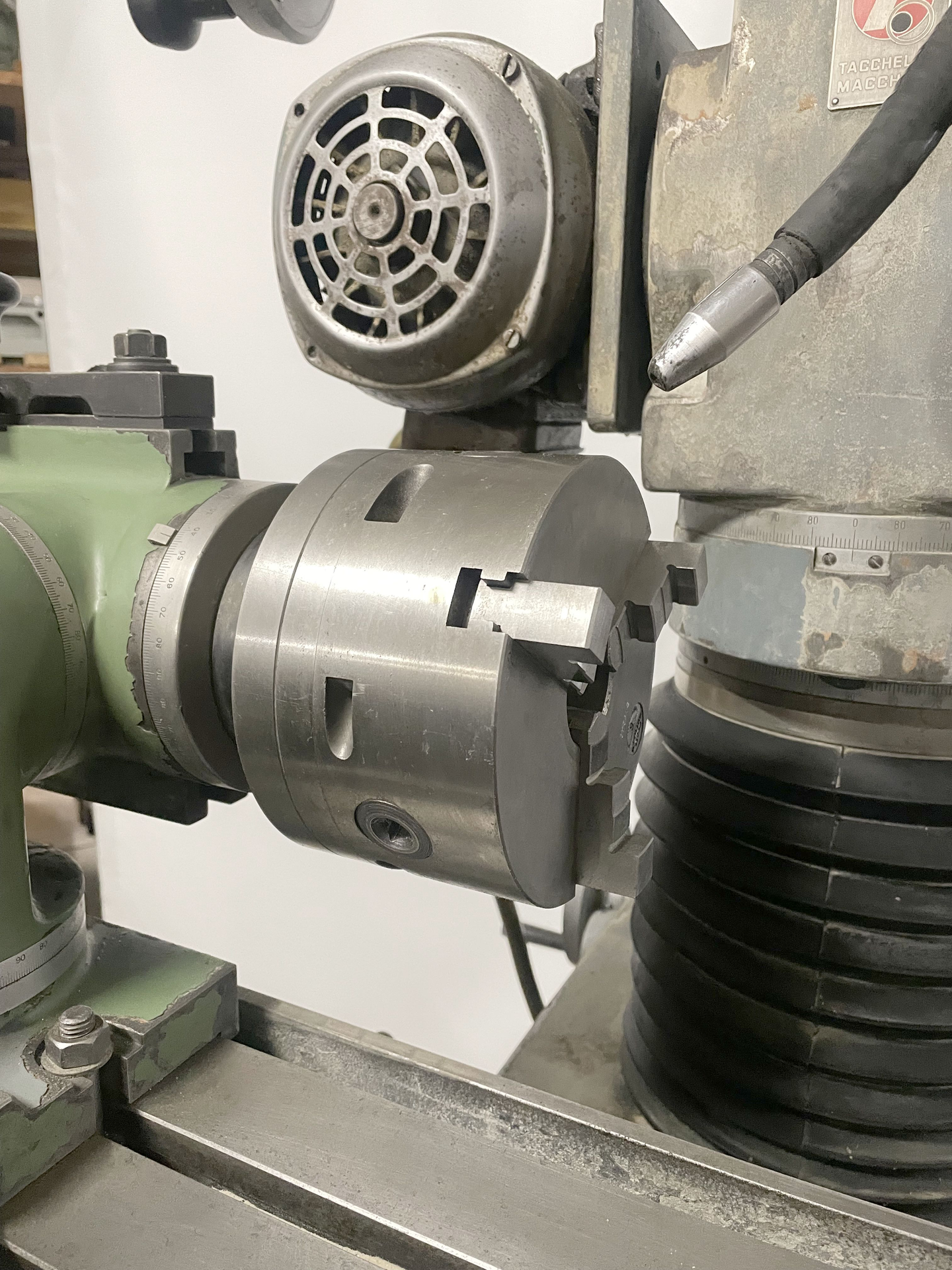

3-jaw chuck diameter: 160 mm.
