MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • EMAG
  • Model:

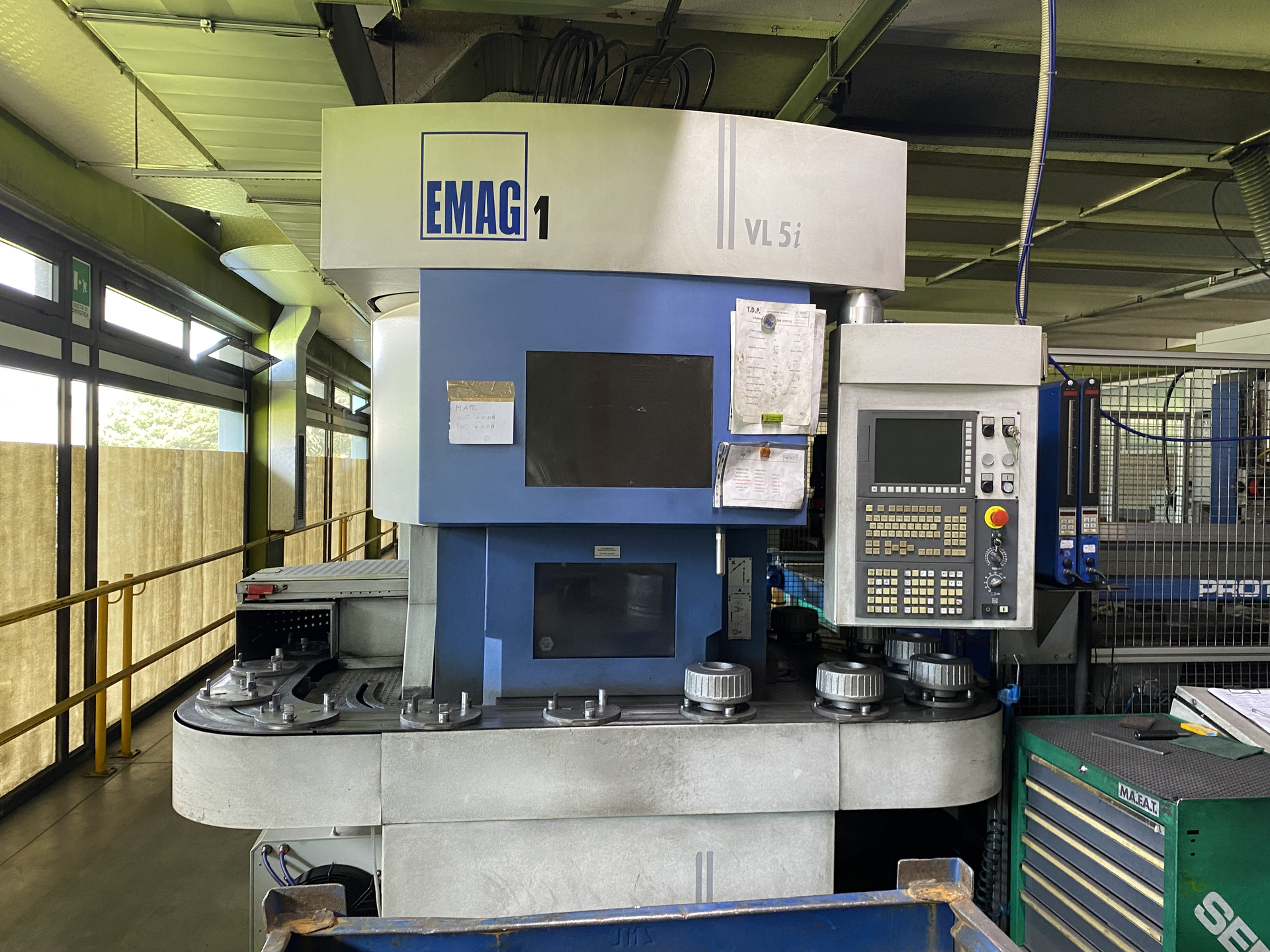

  • 022462 - EMAG VL5i
  • Condition:
  • 1
  • YOM:
  • NA

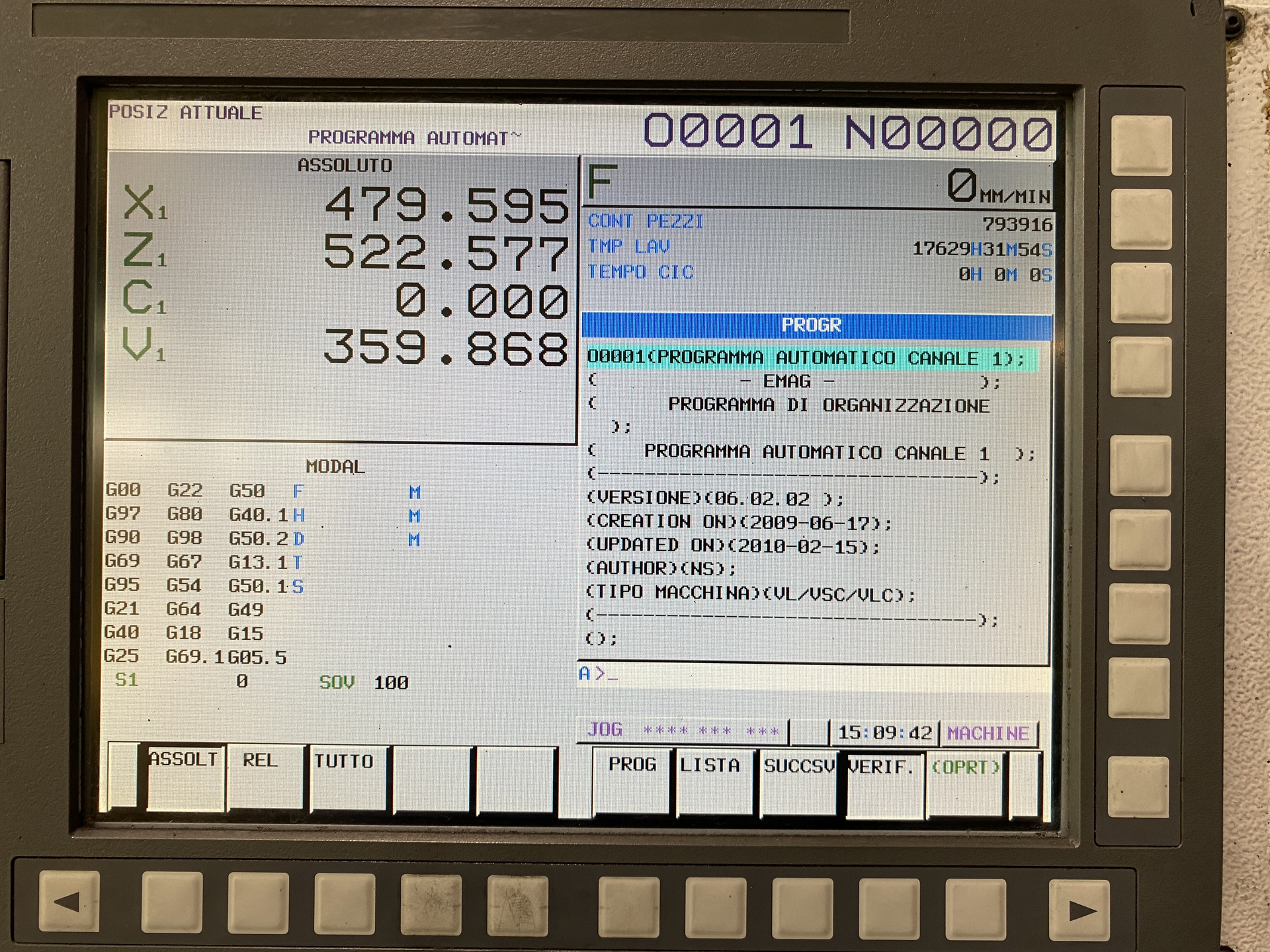

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 2.
Swing over bed: 270 mm.
Maximum turning length: 175 mm.
Max. turning diameter: 220 mm.
Longitudinal travel (Z-axis): 300 mm.
Transversal strocke (X axis): 660 mm.

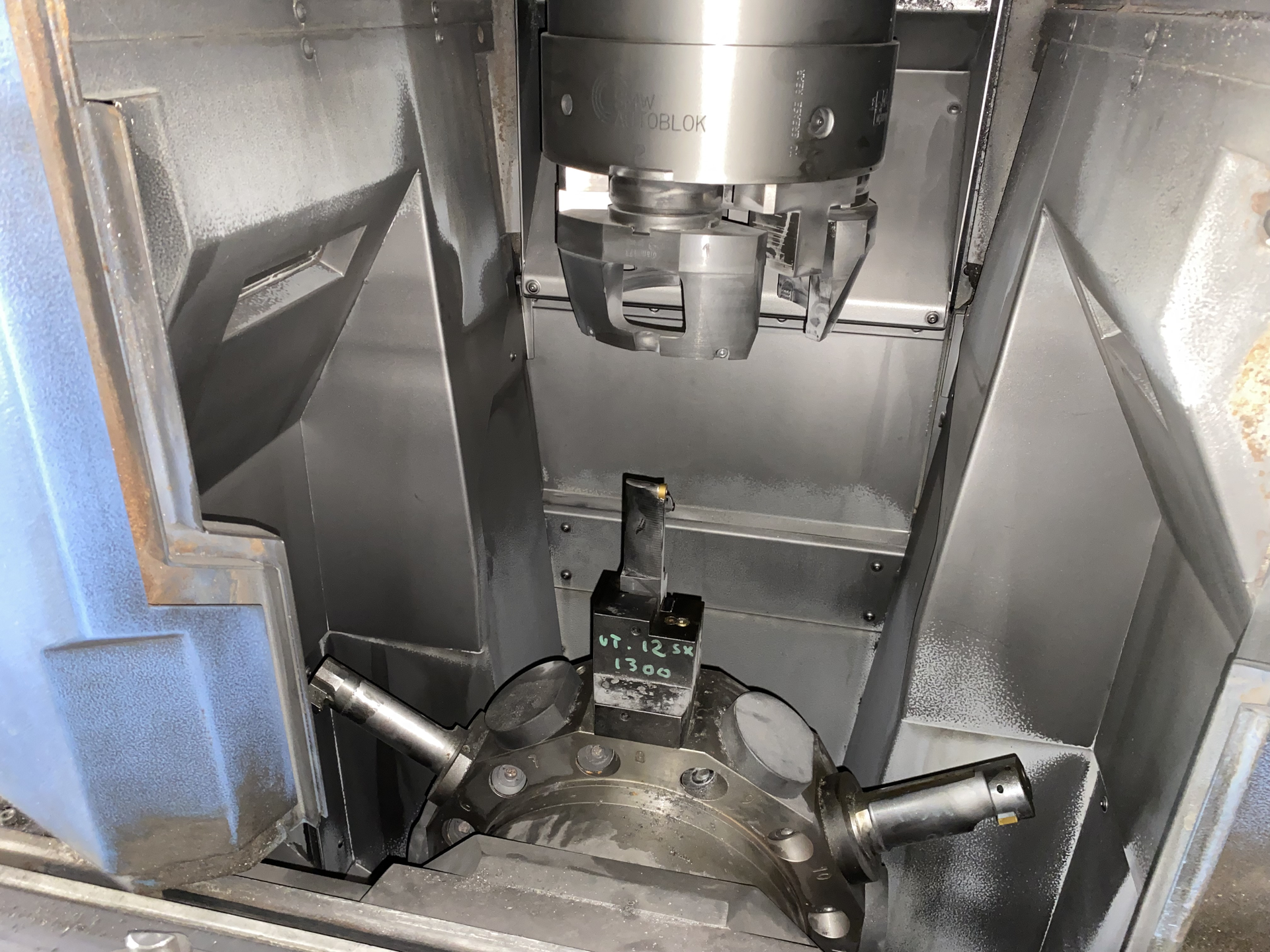

Number of positions: 12.
Spindle speeds: 6000 t/min.
Power of driven tools: 8.5 kW.
from: 0 t/min.
up to: 4500 t/min.
Spindle power: 18 / 27 kW.
Torque max.: 200 - 300 Nm.
Rapid traverse X: 60 m/min.
Rapid traverse Z: 30 m/min.
Air connect: 5.5 bar.
Voltage 50 Hz 3x: 400 Volt.
Total power required: 36 kW.
Machine's weight about: 7500 kg.
Length: 4185 mm.
Width: 2266 mm.
Height: 3200 mm.
Coolant system: 315 l.
+ request more information
