REQUEST PRICE

MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Manufacturer:
RAUSCH

Model:

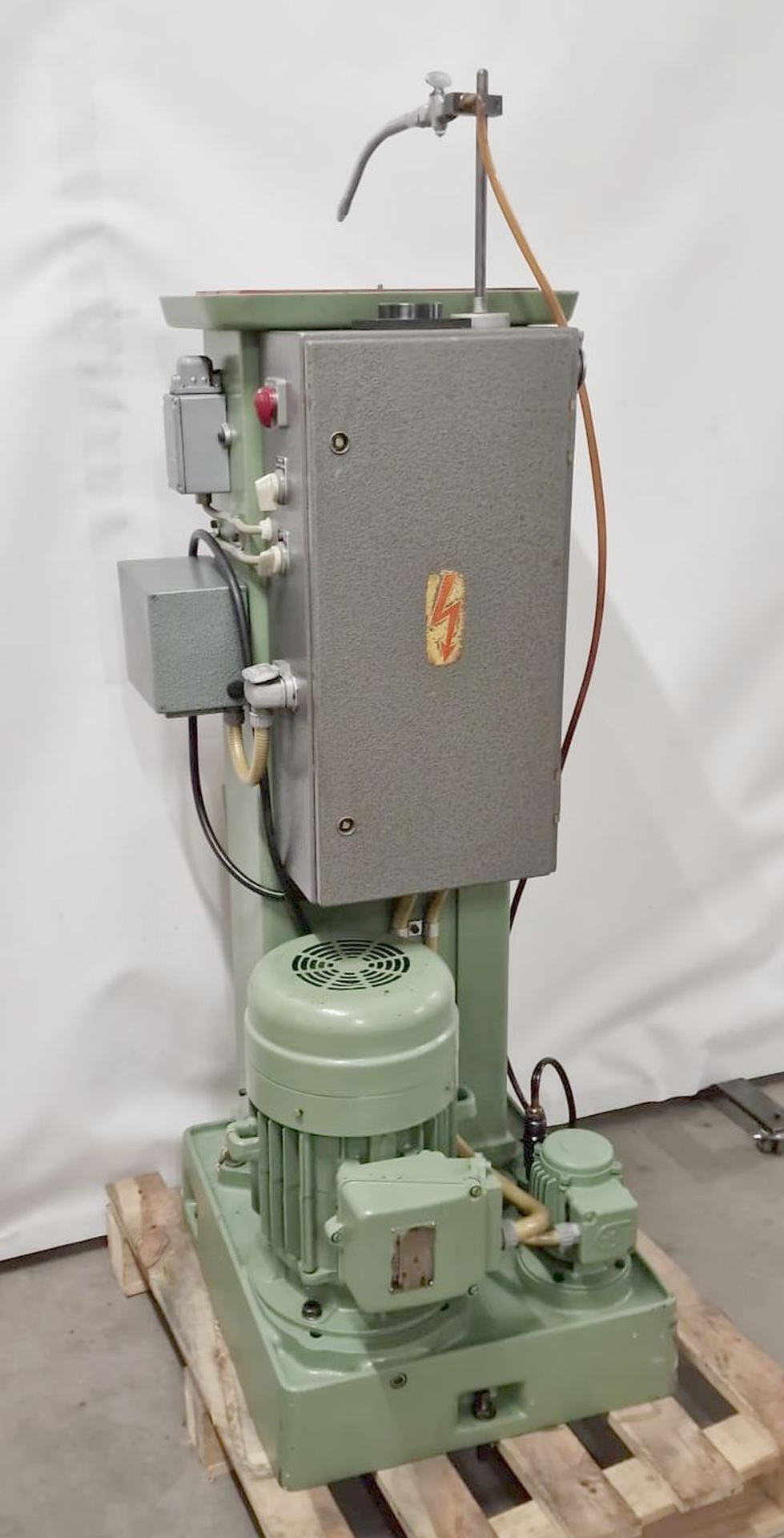

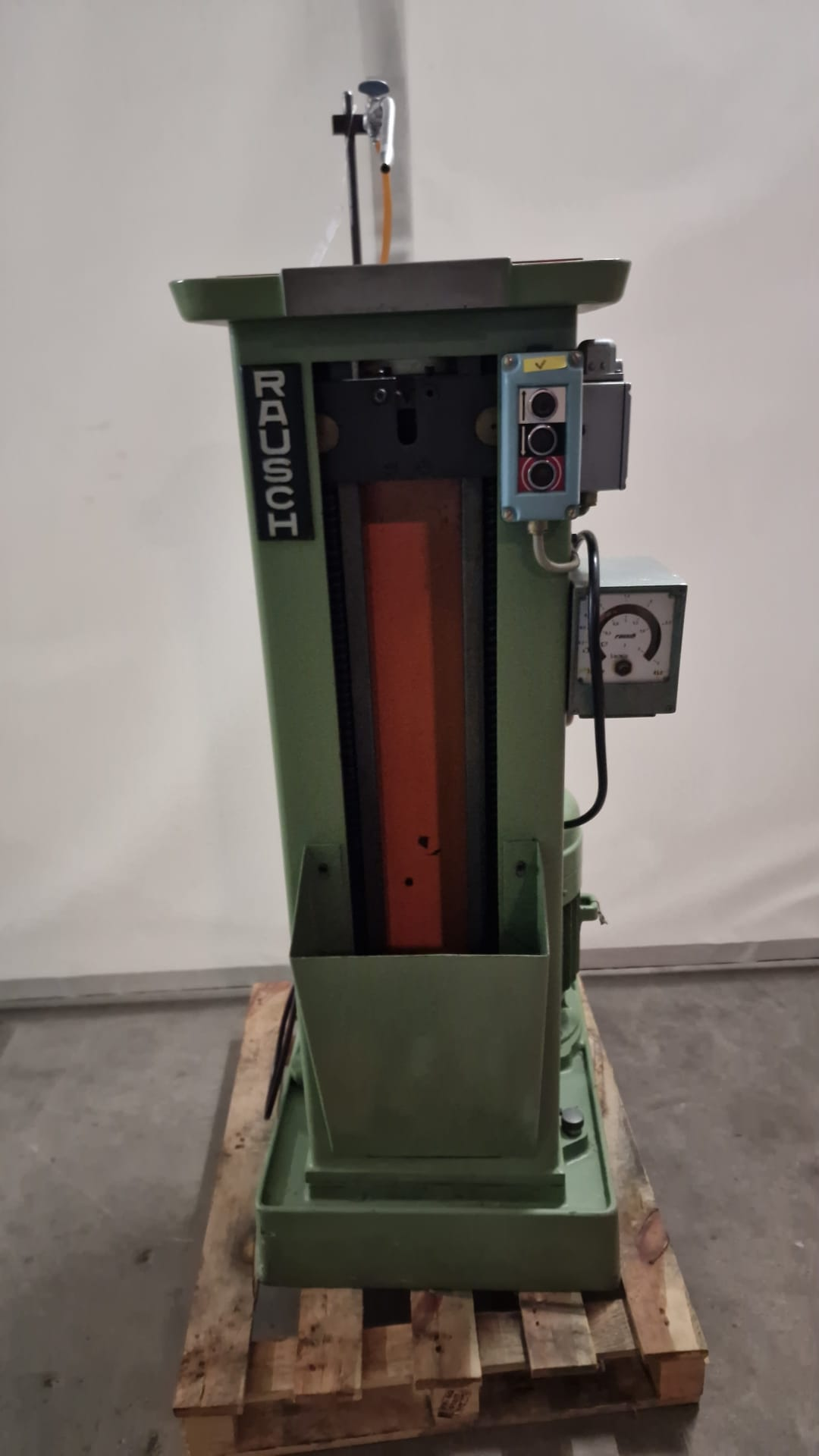

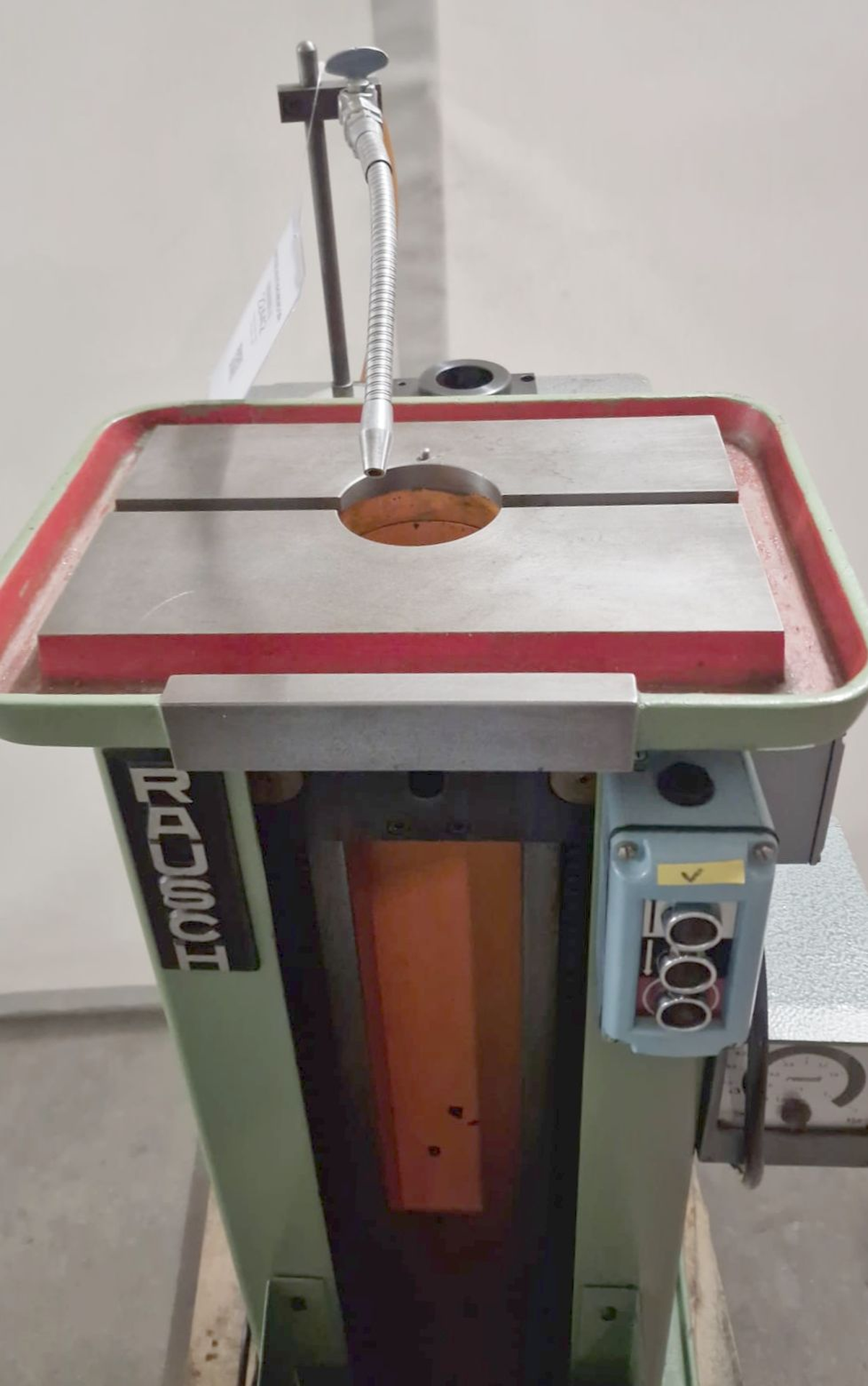

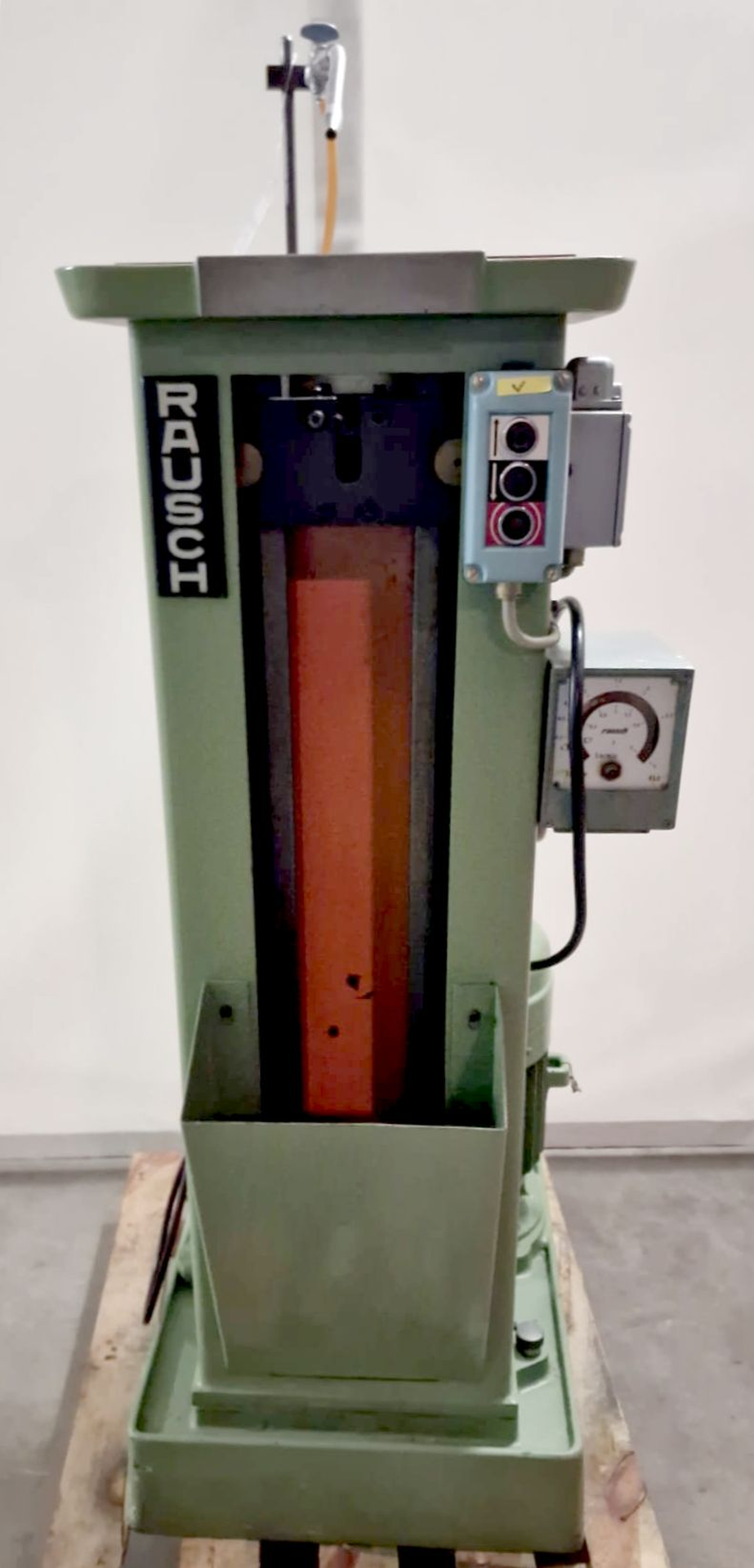

022442 - RAUSCH RS3 800

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Muller Machines SA

Country:

DESCRIPTION

Max. length of stroke: 1250 mm.
Traction power: 10000 kp.
from: 1 m/min.
up to: 8 m/min.
Return stroke speed: 36 m/min.
Work-piece diameter: 380 mm.

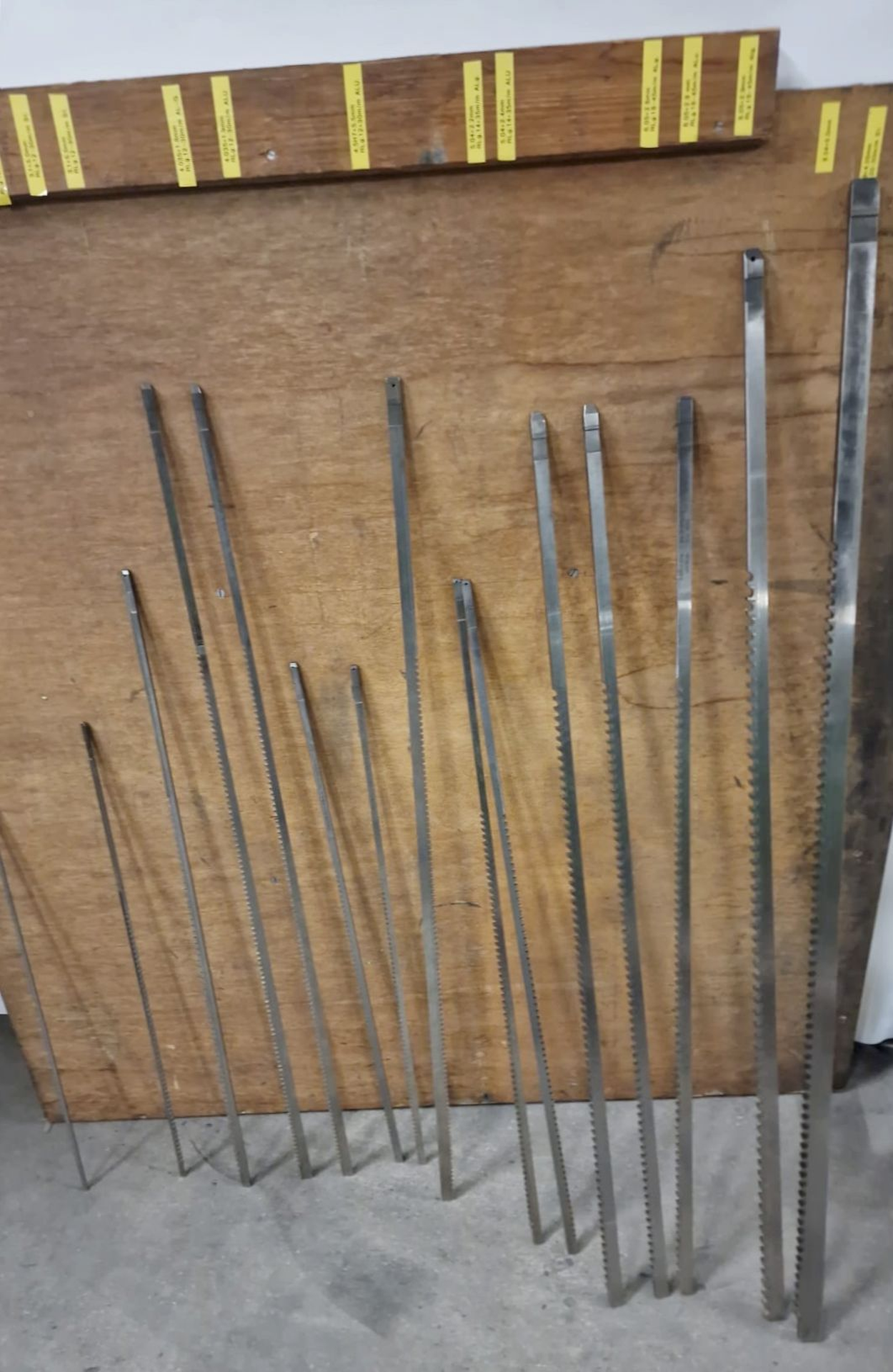

broach diameter: 85 mm.
Broaching tool receiv.dm: 40 mm.
Voltage 50 Hz 3x: 380 Volt.
Total installed power: 11 kW.
Length: 1400 mm.
Width: 1250 mm.
Height: 3600 mm.

+ request more information

SEND ENQUIRY

REQUEST MORE INFORMATION

SEND ENQUIRY

Sellers

Muller Machines SA

Contact Name
Laurent Muller
