MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SIXIS
  • Model:
  • 022441 - SIXIS S 101
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

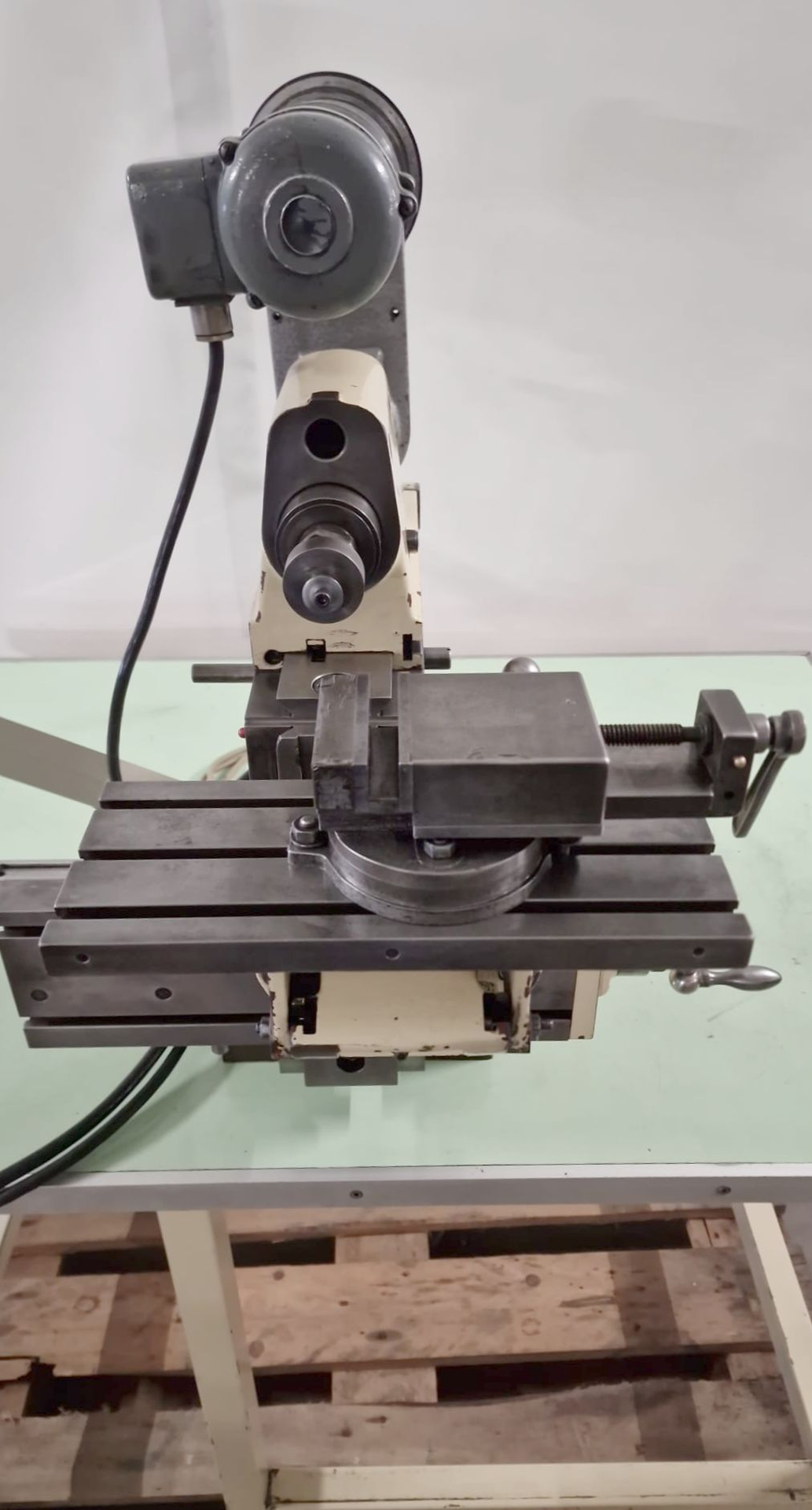

Table length: 300 mm.
Table width: 120 mm.
Number of T-channels: 3.
T-channel width: 8 mm.
Distance of the T-slots: 40 mm.
Longitudinal travel (X-axis): 150 mm.
Transversal travel (y axis): 100 mm.
Vertical travel (z axis): 150 mm.
number (steps): 6.
from: 125 t/min.
up to: 4000 t/min.
Taper in spindle:: 12 W.
Voltage 50 Hz 3x: 380 Volt.
Motor output: 0.3 CV.
Total power required: 1 CV.
Machine's weight about: 150 kg.
Length: 1100 mm.
Width: 750 mm.
Height: 1400 mm.

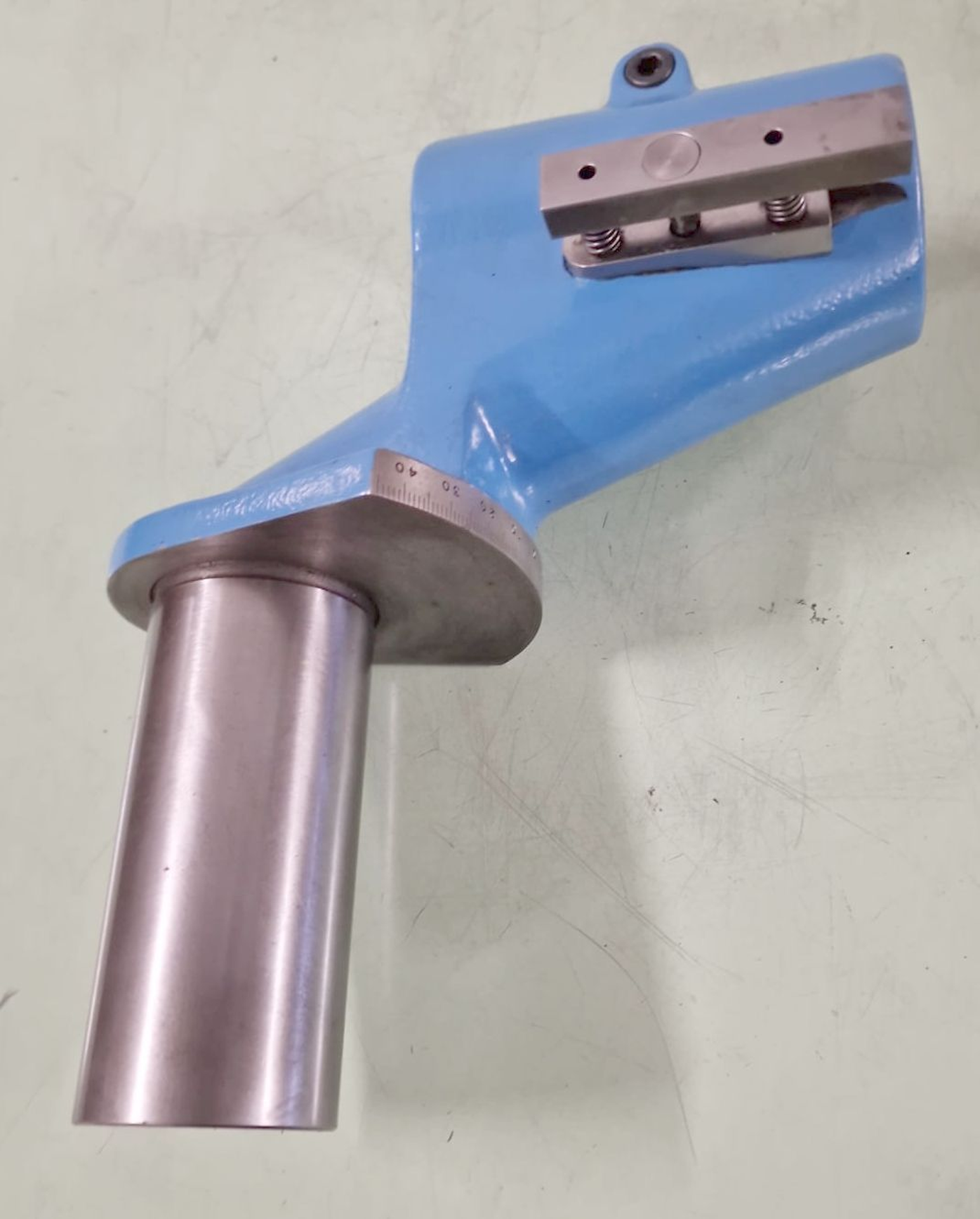

Vice: width: 80 mm.
