MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

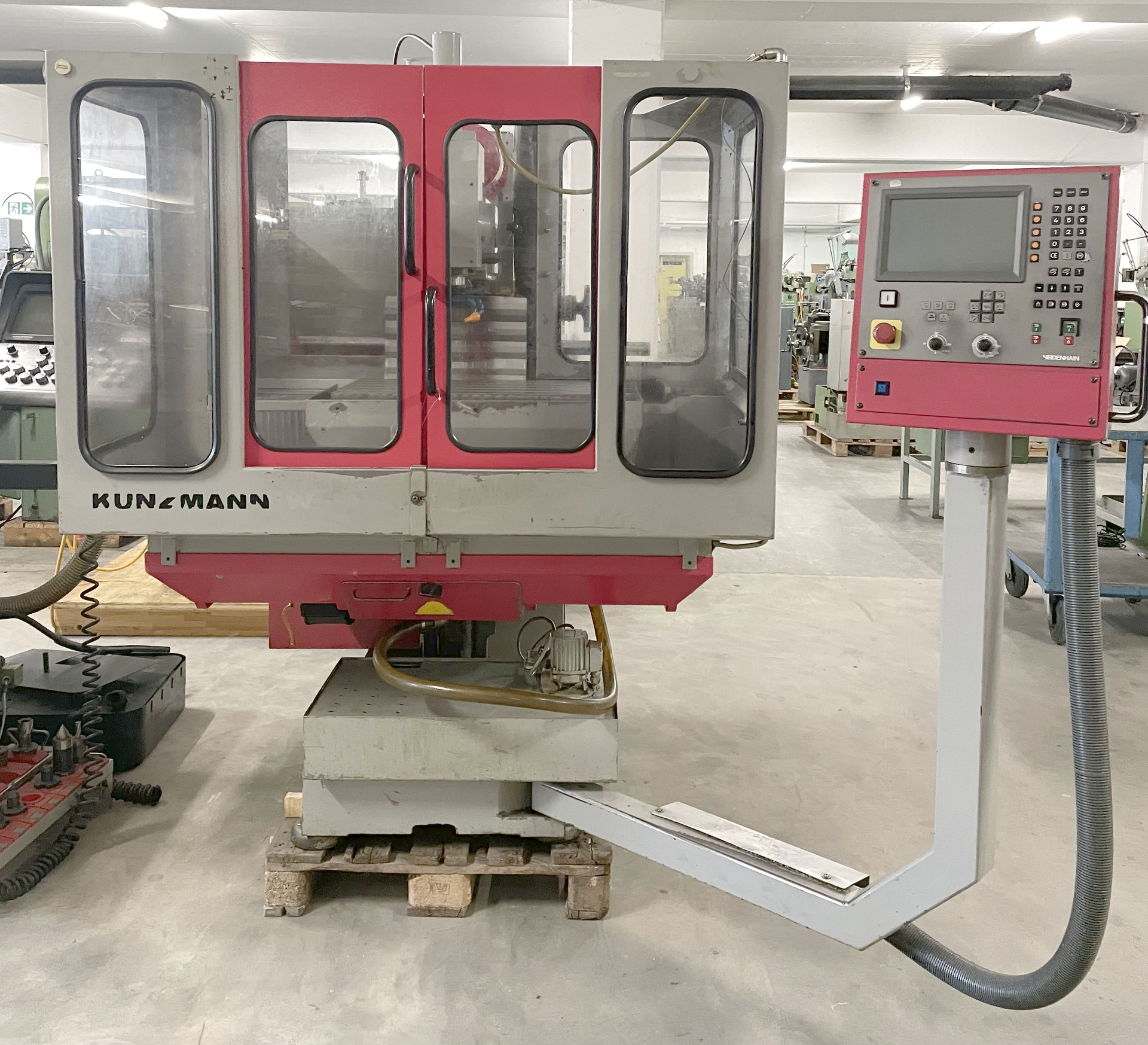

  • 022429 - KUNZMANN WF 4/3
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 3.

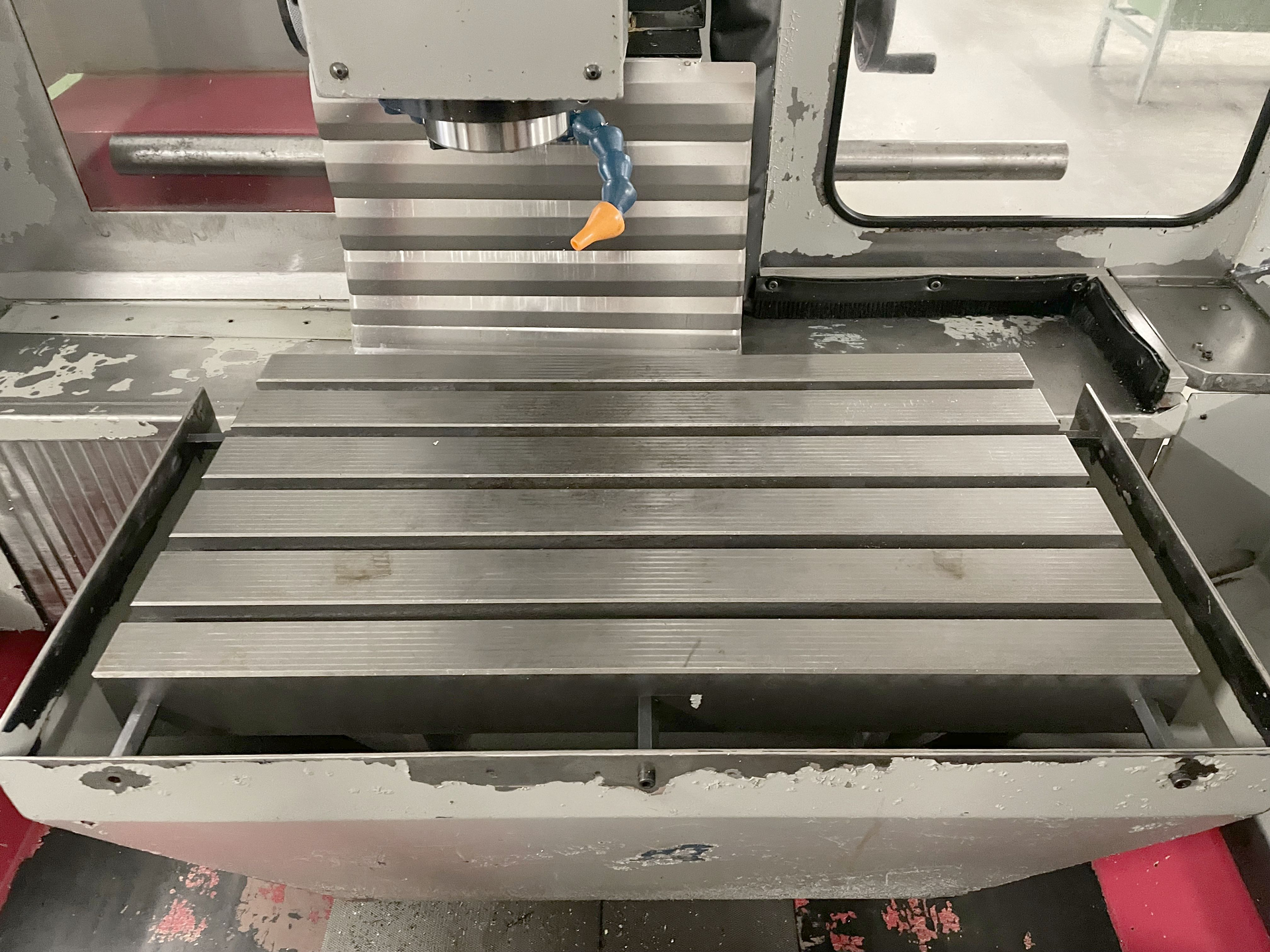

Table length: 650 mm.
Table width: 350 mm.
Number of T-channels: 5.
T-channel width: 14 mm.
Distance of the T-slots: 63 mm.
Table load max.: 250 kg.
Longitudinal travel (X-axis): 400 mm.
Transversal travel (y axis): 320 mm.
Vertical travel (z axis): 400 mm.
spindle to table: 140 - 540 mm.
from: 50 t/min.
up to: 1000 mm/min.

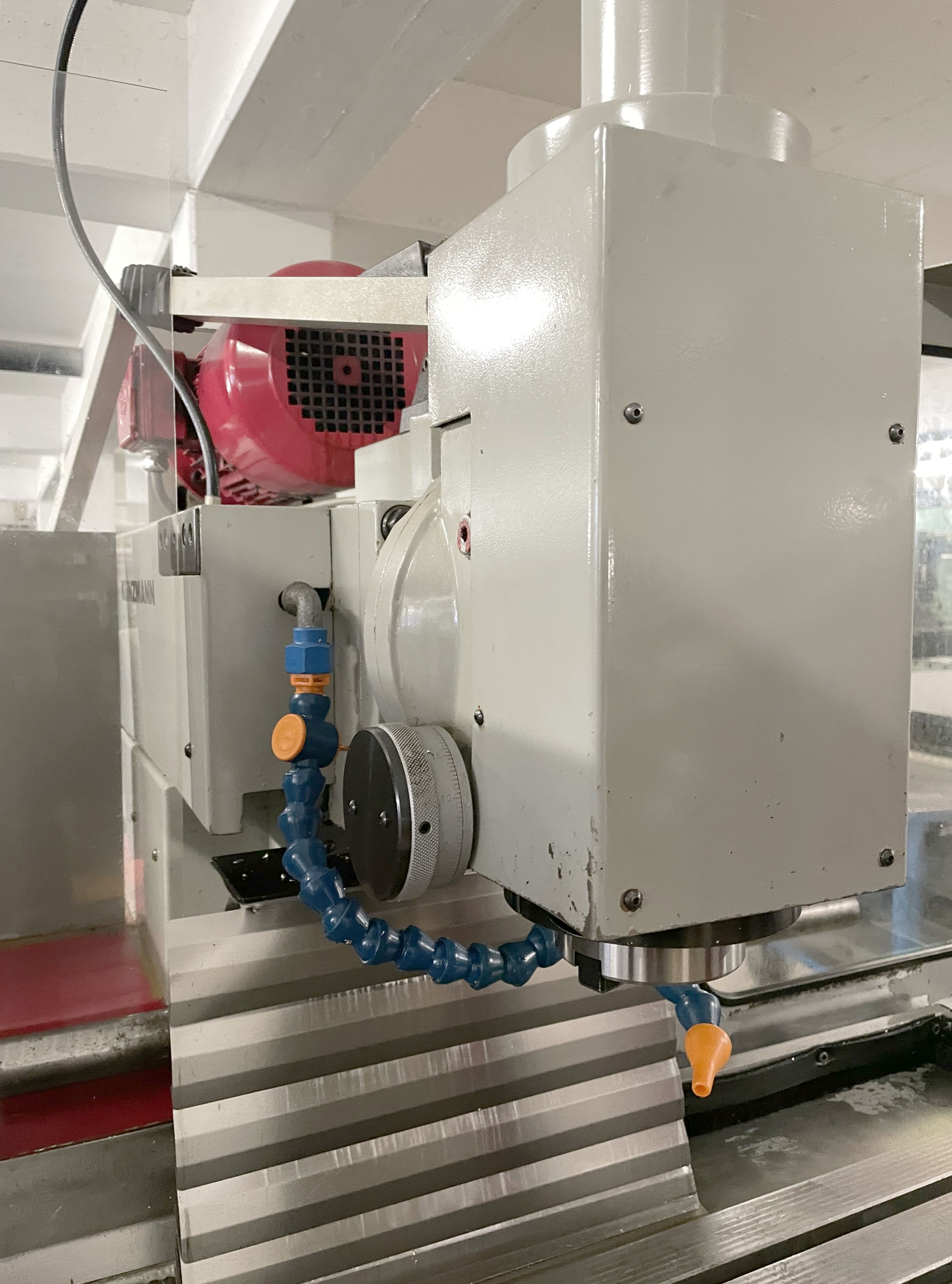

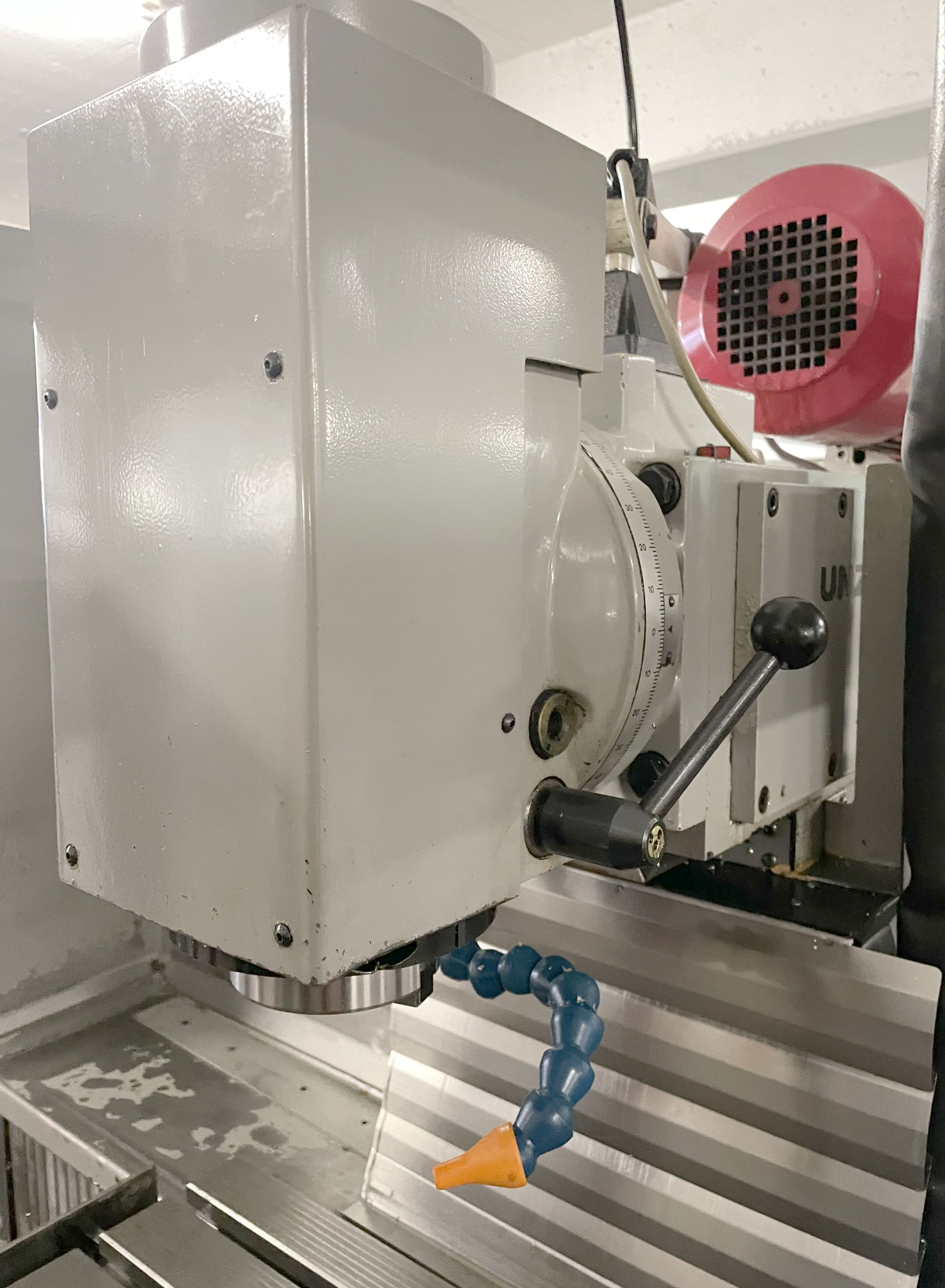

Swivel range Vertical milling head: +/-90 °.
Spindle nose: ISO: 40 DIN 69871.
longitudinal from: mm/min.
transversal from: mm/min.
Rapid traverse: long.: 4 m/min.
Rapid traverse: transversal: 4 m/min.
Rapid traverse: vertical: 3 m/min.
Vertical quill travel: 60 mm.
Voltage 50 Hz 3x: 400 Volt.
Milling spindle motor: 5.5 kW.
Total power required: 15 kVA.
Time under power: 6652 Heures.
Operating time: 1584 Heures.
Working time: 940 Heures.
Noise level: 78 dB (A).
Machine's weight about: 1300 kg.
Length: 2000 mm.
Width: 1950 mm.
Height: 1900 mm.
