MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • GILDEMEISTER
  • Model:

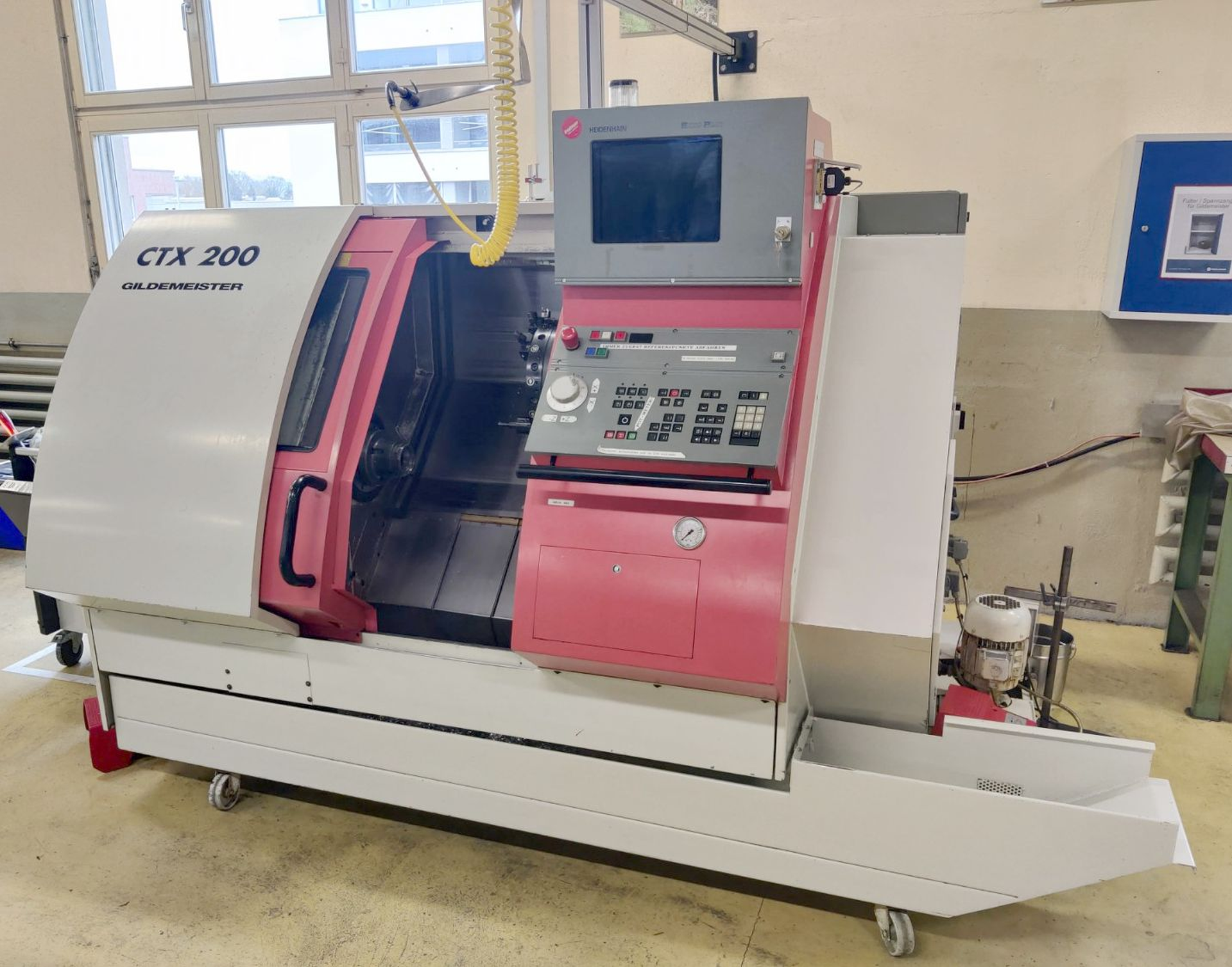

  • 022382 - GILDEMEISTER CTX 200
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 298 mm.
Swing diameter: 440 mm.
Swing over cross-slide: 210 mm.
Spindle hole: 56 mm.
Maximum turning length: 305 mm.
Longitudinal travel (Z-axis): 350 mm.
Transversal strocke (X axis): 160 mm.
Number of positions: 12.

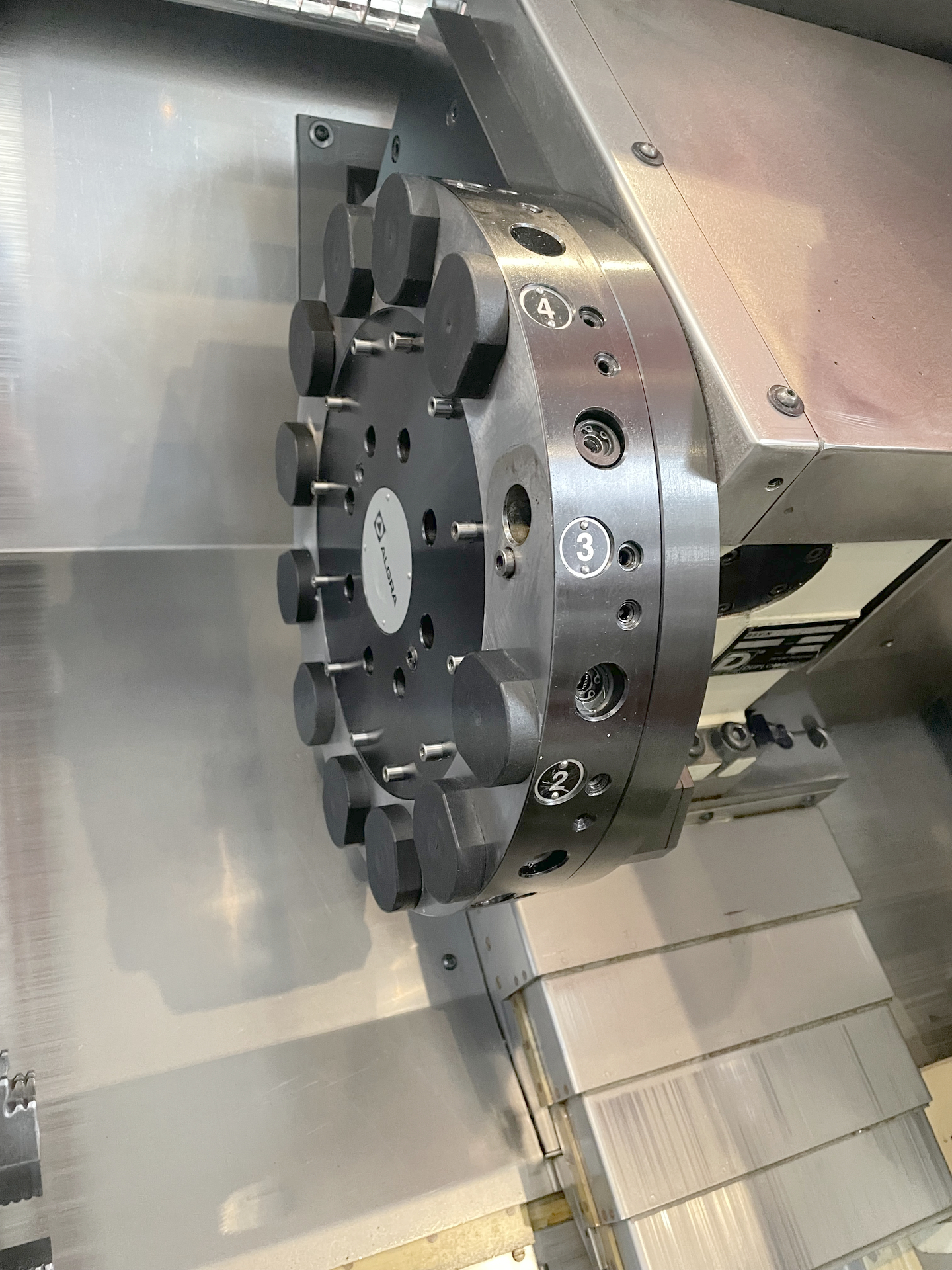

Driven tools turret: 12.
Spindle speeds: 0 - 5000 t/min.
Power of driven tools: 3 kW.
Torque max.: 58 / 84 Nm.
Inner cone diameter: 20 mm.
from: 25 t/min.
up to: 5000 t/min.
Spindle power: 7.5 / 11 kW.
Morse taper: 3 CM.

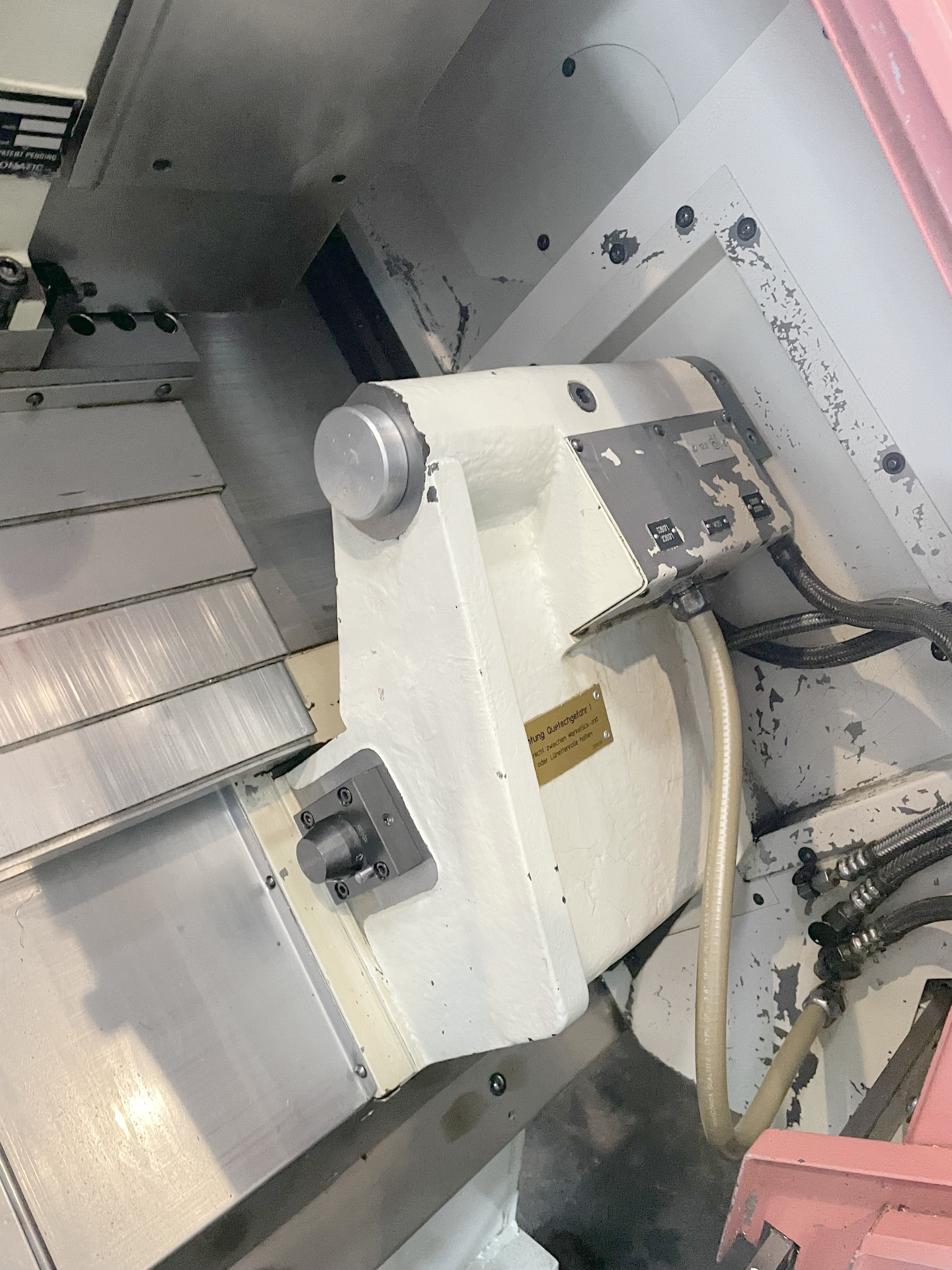

Spindle stroke: 120 mm.
Spindle diameter: 50 mm.
Pressure: 3 kN.
Rapid traverse X: 12 m/min.
Rapid traverse Z: 16 m/min.
Voltage 50 Hz 3x: 380 Volt.
Noise level: 77 dB (A).
Total power required: 34 kVA.
Machine's weight about: 3200 kg.
Length: 2600 mm.
Width: 1700 mm.
Height: 1700 mm.

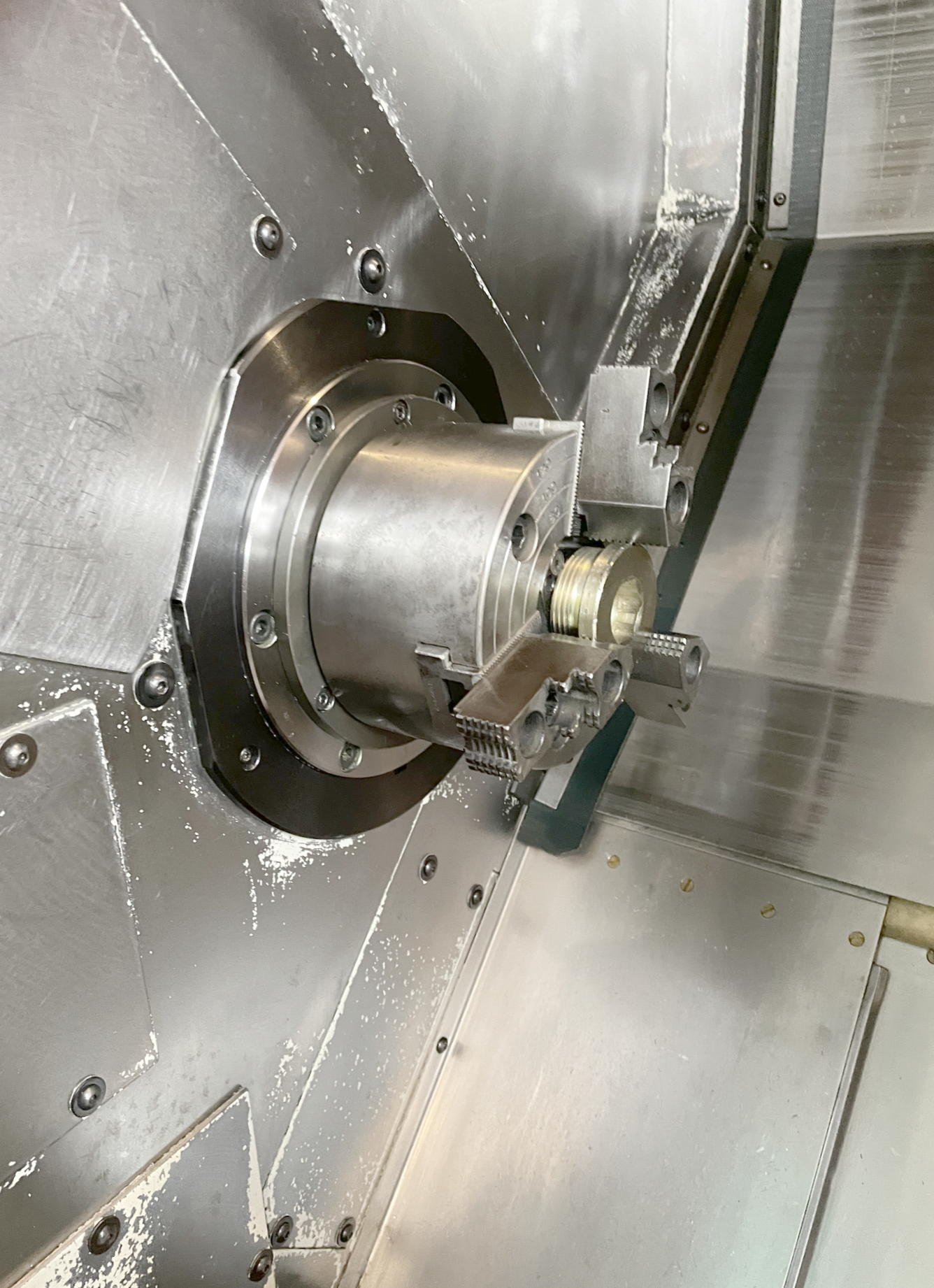

3-jaw chuck diameter: 140 mm.
