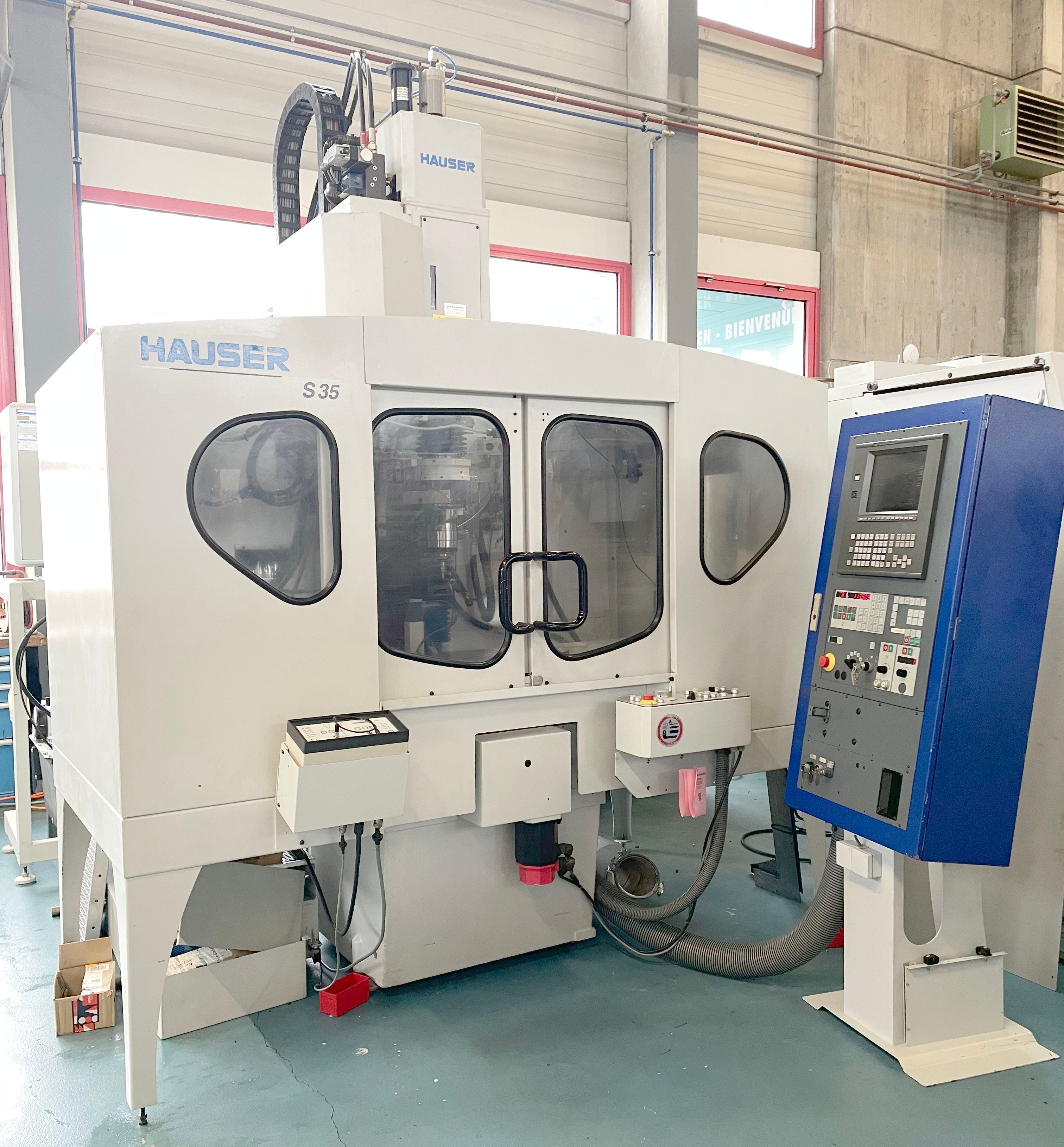

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Hauser
  • Model:
  • 022352 - HAUSER S 35-400
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Table length: 600 mm.
Table width: 380 mm.
T-channel width: 10 mm.
Number of spline: 6.
Distance of the T-slots: 50 mm.
Table load max.: 200 kg.
Longitudinal travel (X-axis): 500 mm.
Transversal travel (y-axis): 300 mm.
Travel of the vertical slide: 450 mm.
Passage from grinding motor to table: 485 mm.
Max. grinding diameter: 230 mm.
with display-plate: 360 mm.
Stroke of spindle-nose: 340 mm.
up to: 250 t/min.
stepless from: 1 mm.
from: 5 t/min.
X axis: 0 - 12 m/min.
Y axis: 0 - 12 m/min.
W axis: 900 mm/min.
Voltage 50 Hz 3x: 380 Volt.
Spindle motor: 7.5 kW.
Machine's weight about: 4000 kg.
Length: 2700 mm.
Width: 1700 mm.
Height: 2850 mm.

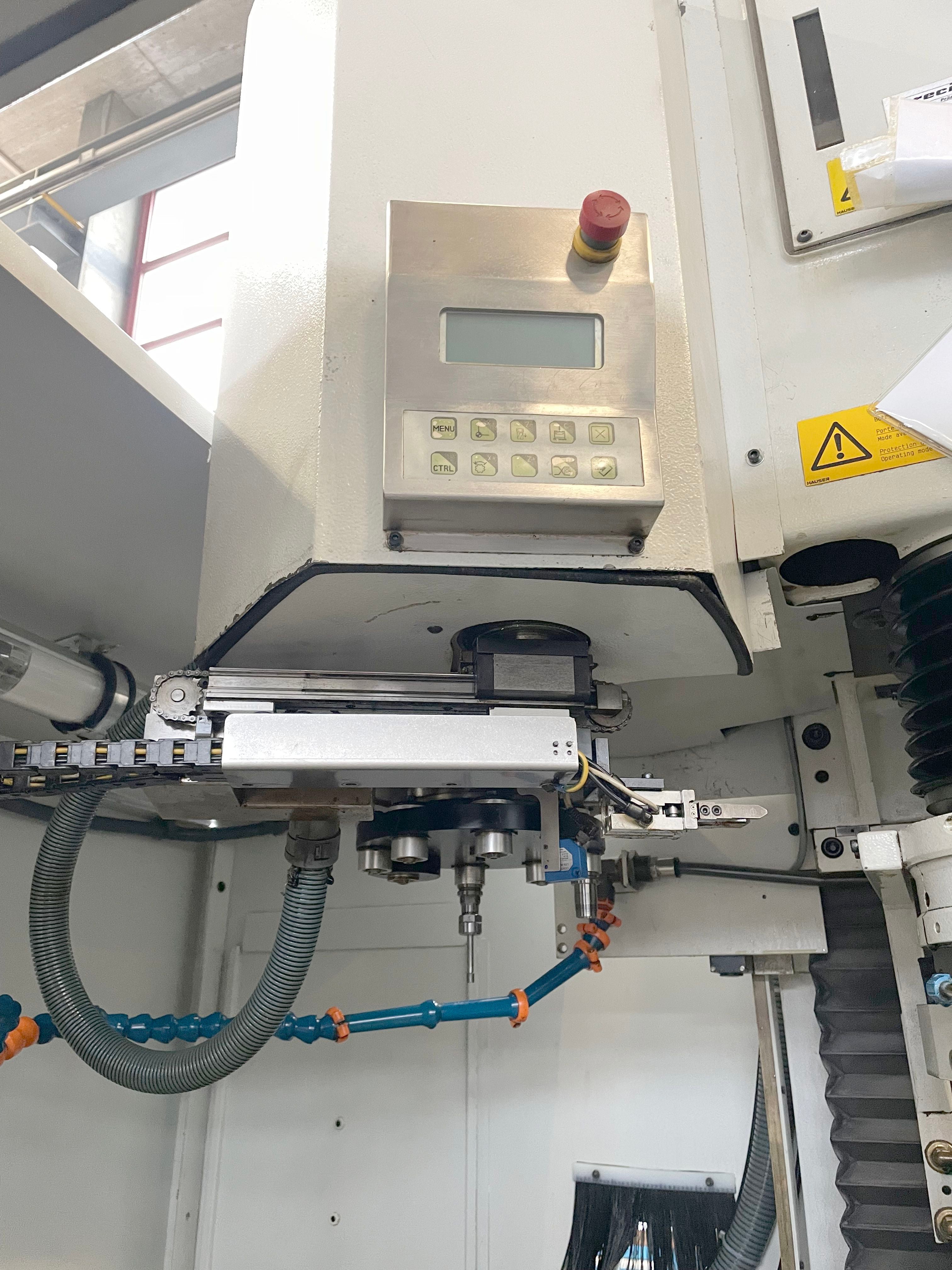

Tool changer: (number of tools): 8.
Type: EROWA.
