MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • HUAWIN
  • Model:

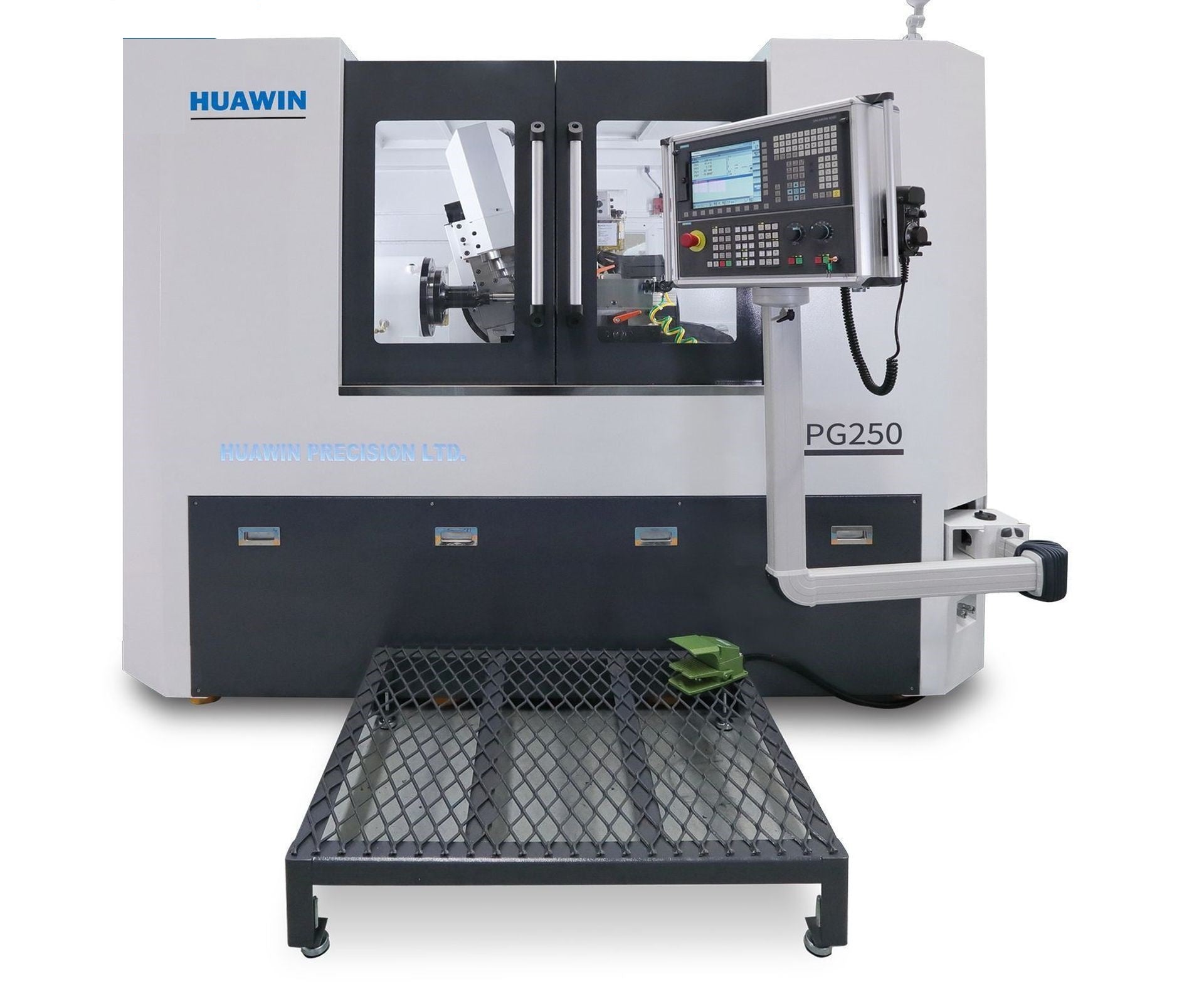

  • 022307 - HUAWIN PG250
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

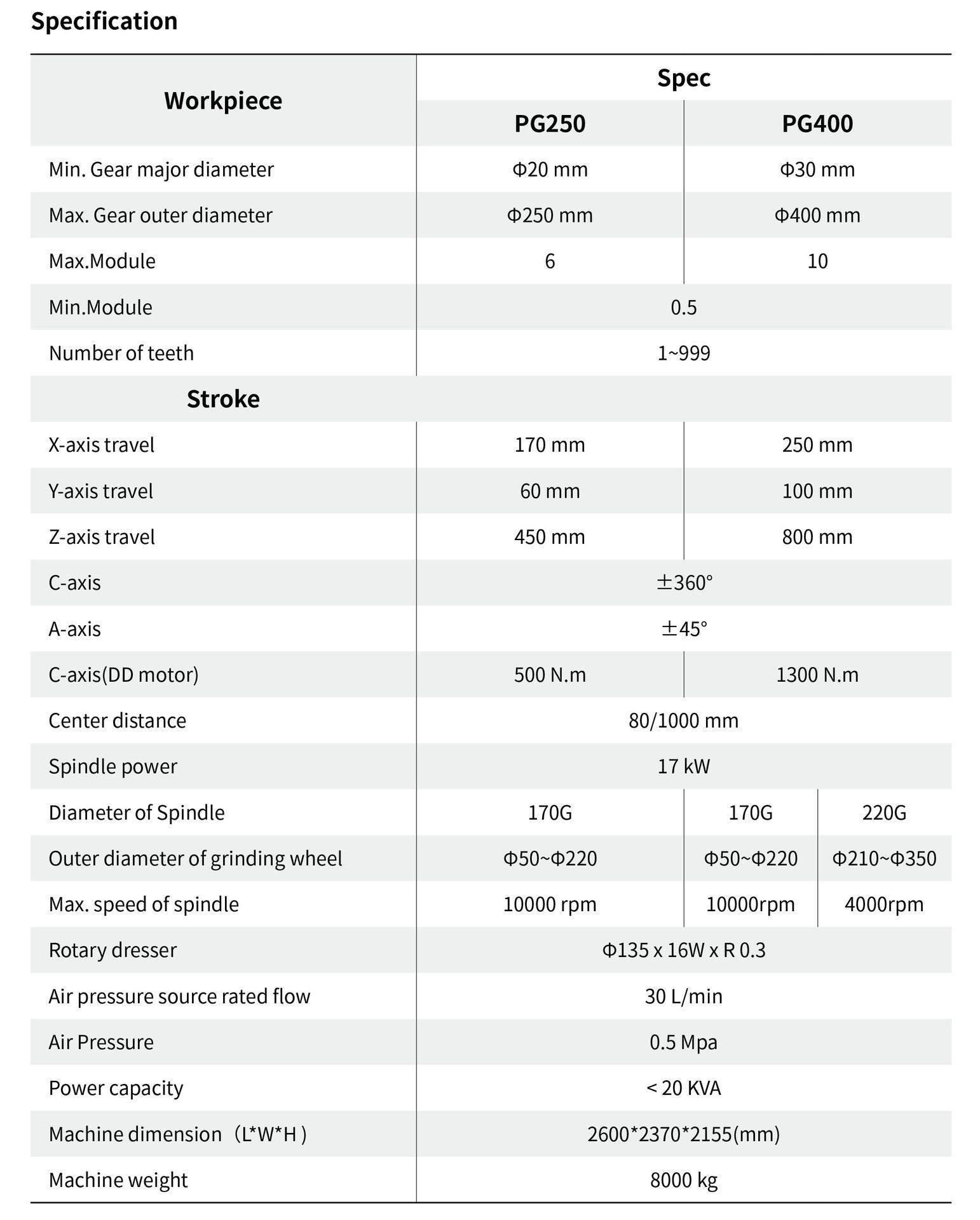

DESCRIPTION

Min. grinding diameter: 20 mm.
Max. grinding diameter: 250 mm.
Min. root diameter: 20.
Min. diametrical pitch: 1.
Max. diametrical pitch: 999.
Max. circular pitch (modul): 6.
Min. circular pitch (modul): 1.
X axis: 170 mm.
Y axis: 60 mm.
Z axis: 450 mm.
C axis: 360 °.
A axis: +/-45 °.
max. speed: 10000 t/min.
Grinding spindle motor: 17 kW.
Total power required: <20 kVA.
Voltage 50 Hz 3x: 400 Volt.
Machine's weight about: 8000 kg.
Length: 2600 mm.
Width: 2370 mm.
Height: 2155 mm.
