MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Manufacturer:
Kellenberger

Model:

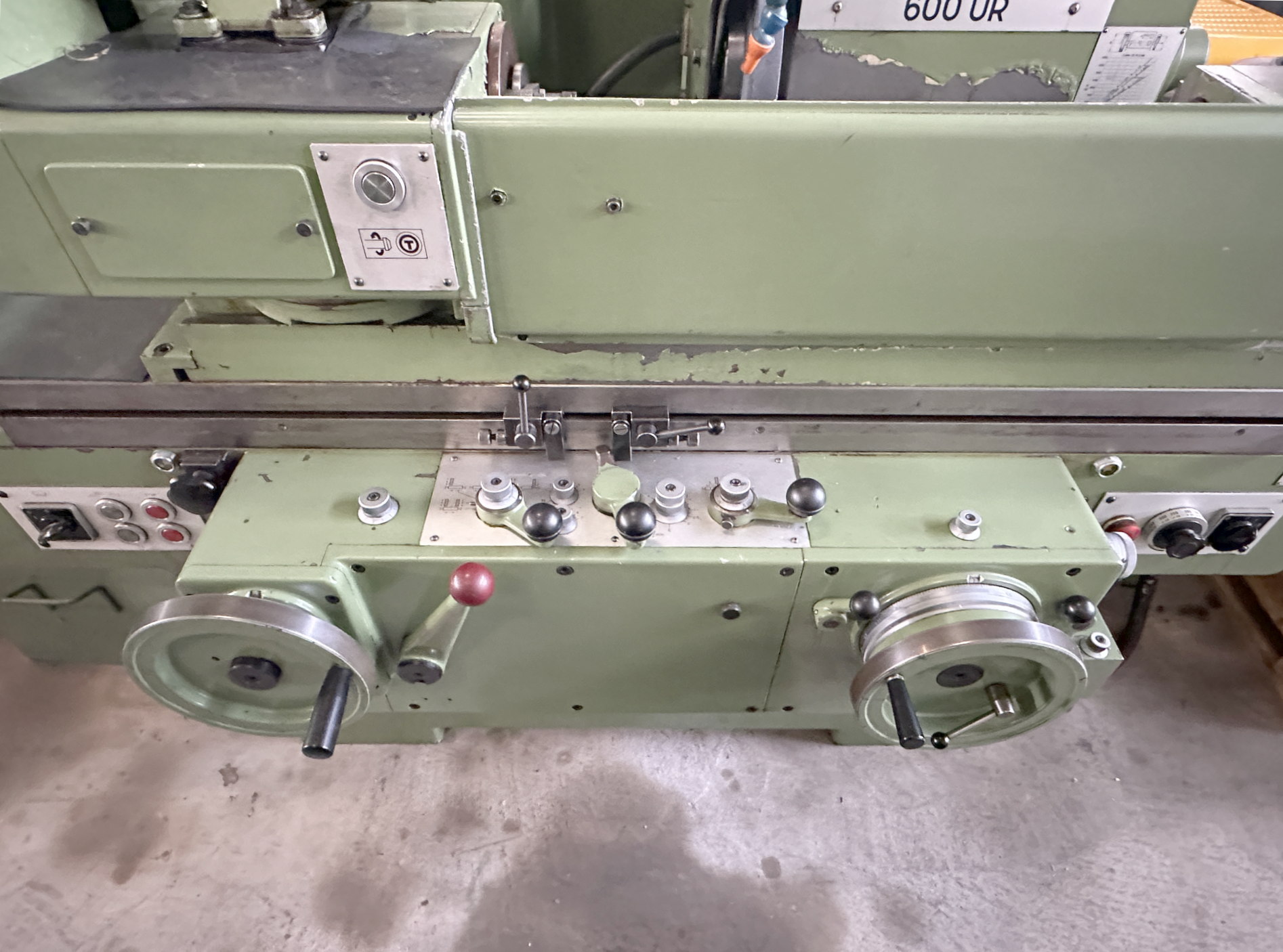

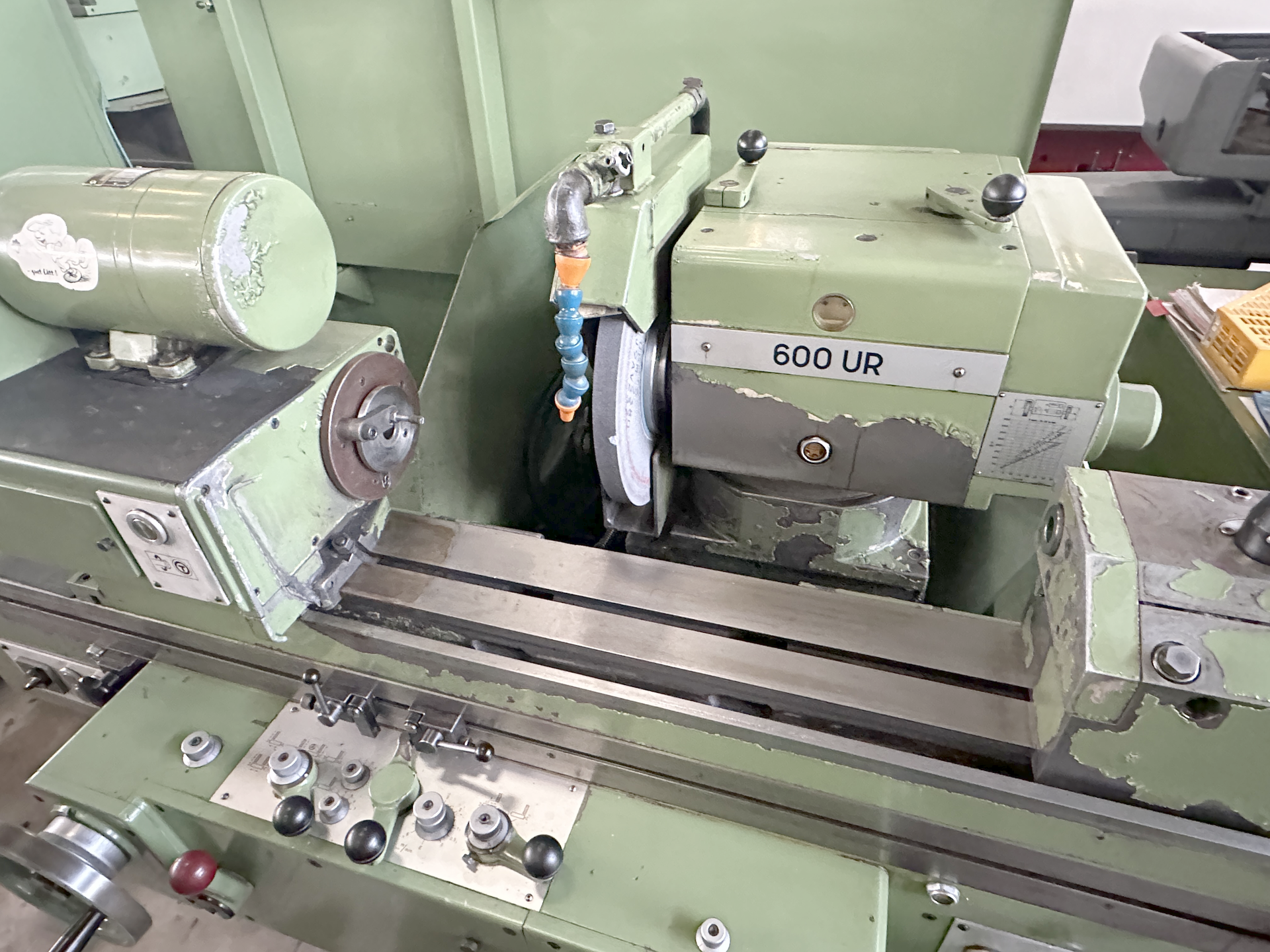

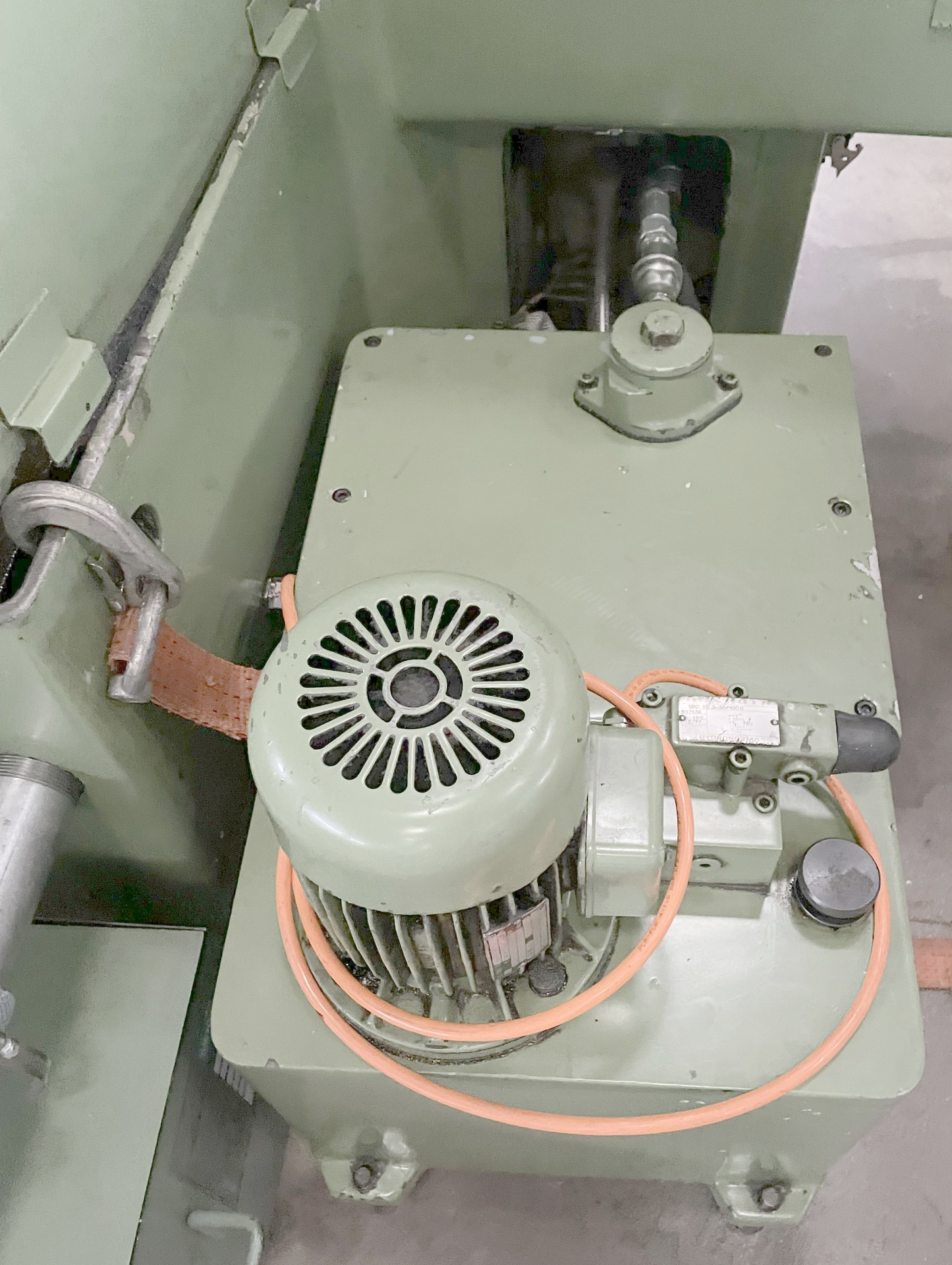

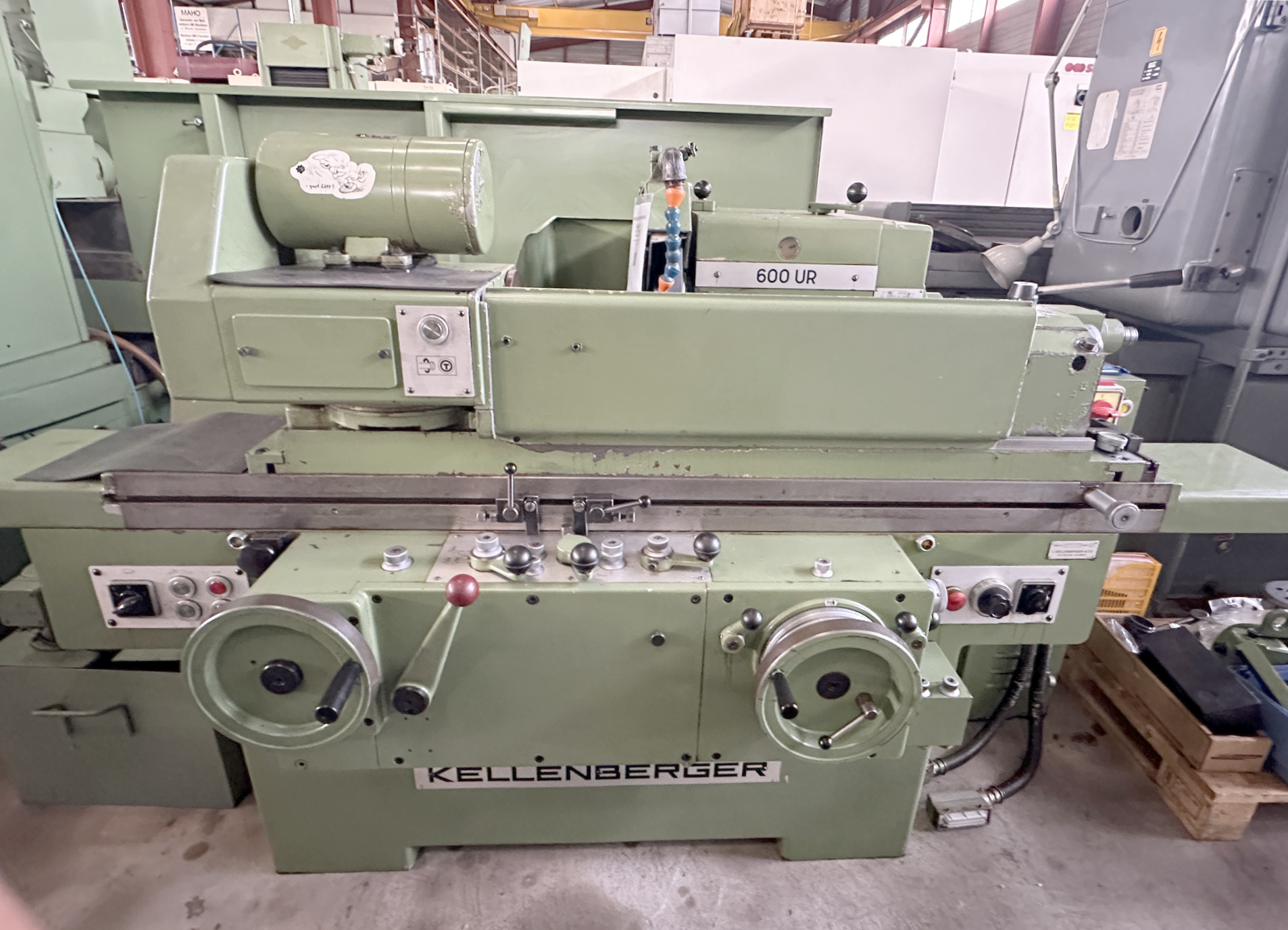

022228 - KELLENBERGER 600 UR

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Muller Machines SA

Country:

DESCRIPTION

Centre height: 125 mm.
Distance between centres: 600 mm.
Diameter: 350 mm.
Width: 1750 mm.
Bore: 127 mm.
number (steps): 4.
from: 20 t/min.
up to: 6 m/min.
Angular displacement: 270 °.
rotatable: 360 °.
Spindle taper: 5 CM.
Taper in tailstock:: 3 CM.
Table angular displacement: 10 °.
Voltage 50 Hz 3x: 380 Volt.
External Grinding wheel motor: 4.0 CV.
Machine's weight about: 2200 kg.
Length: 3000 mm.
Height: 1600 mm.
