MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Aciera
  • Model:

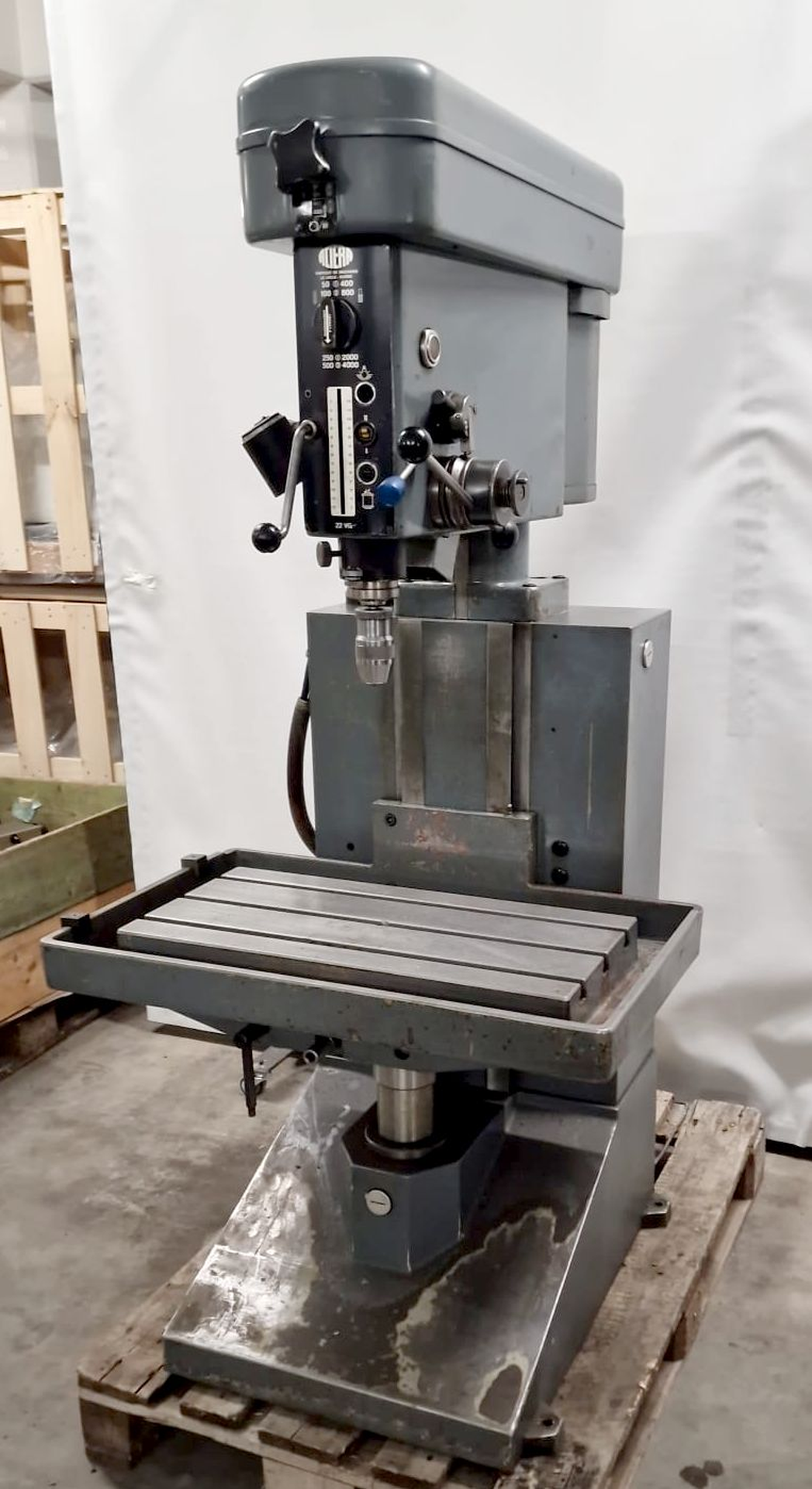

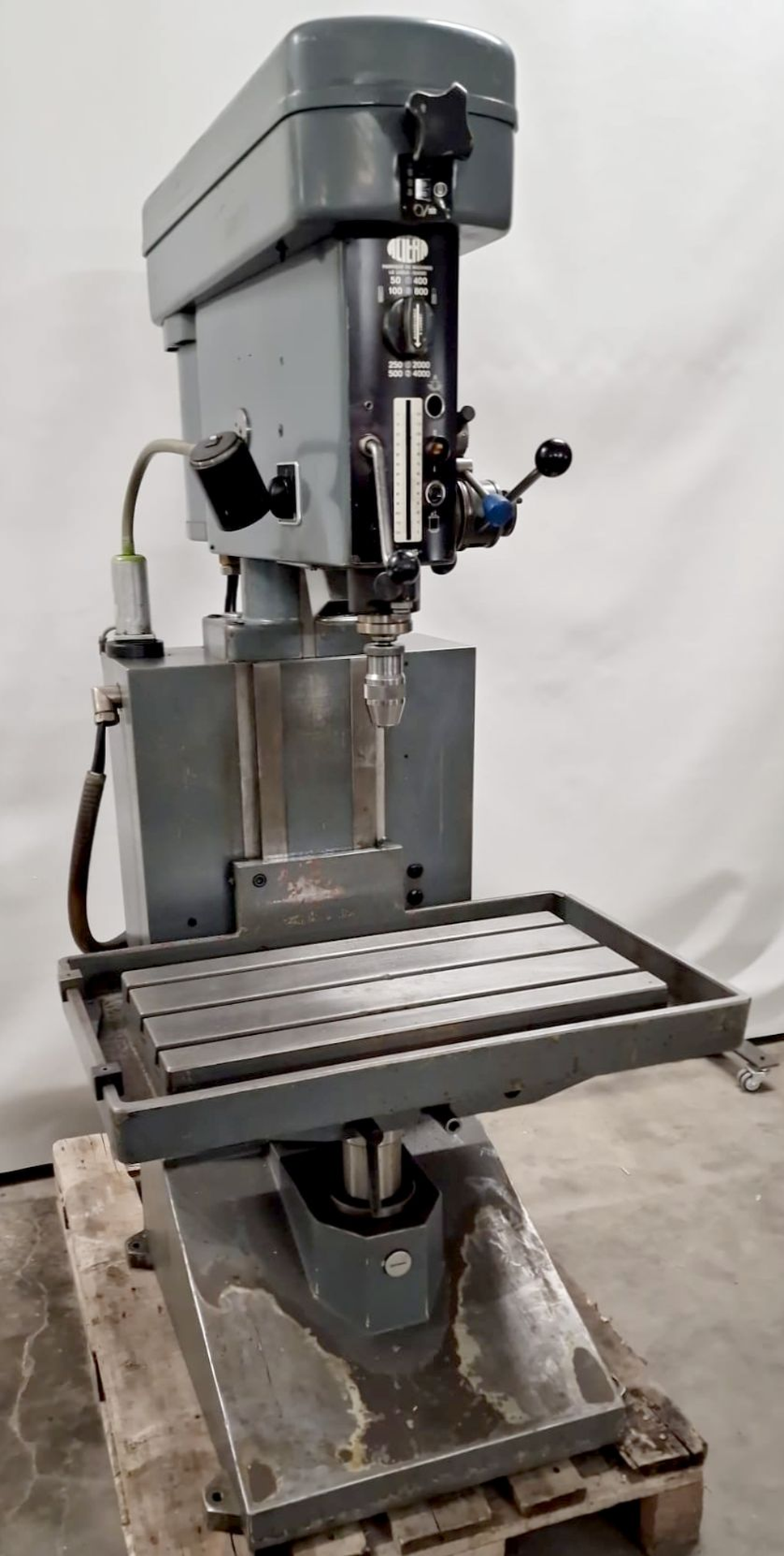

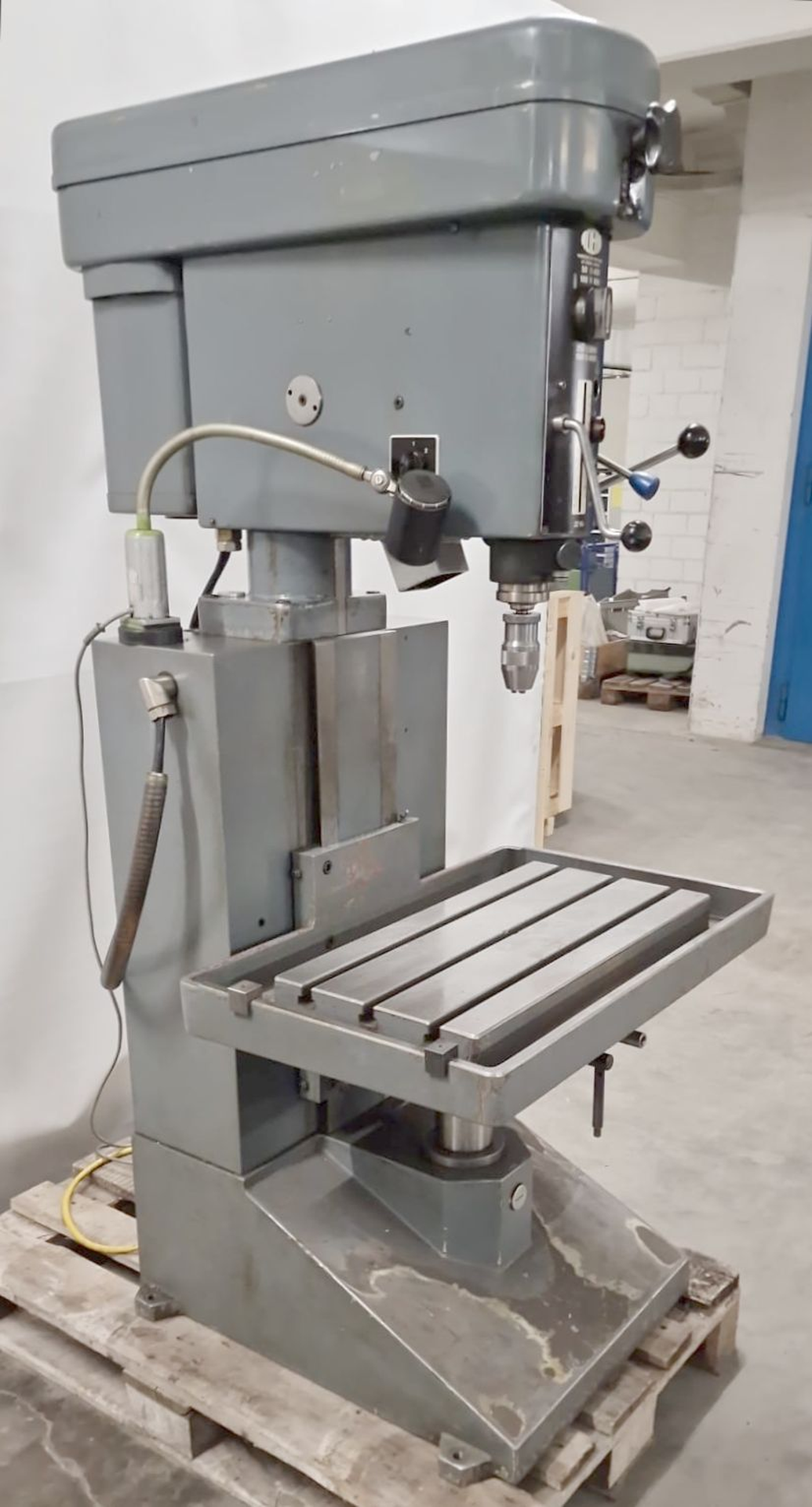

  • 022207 - ACIERA 22 VG
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

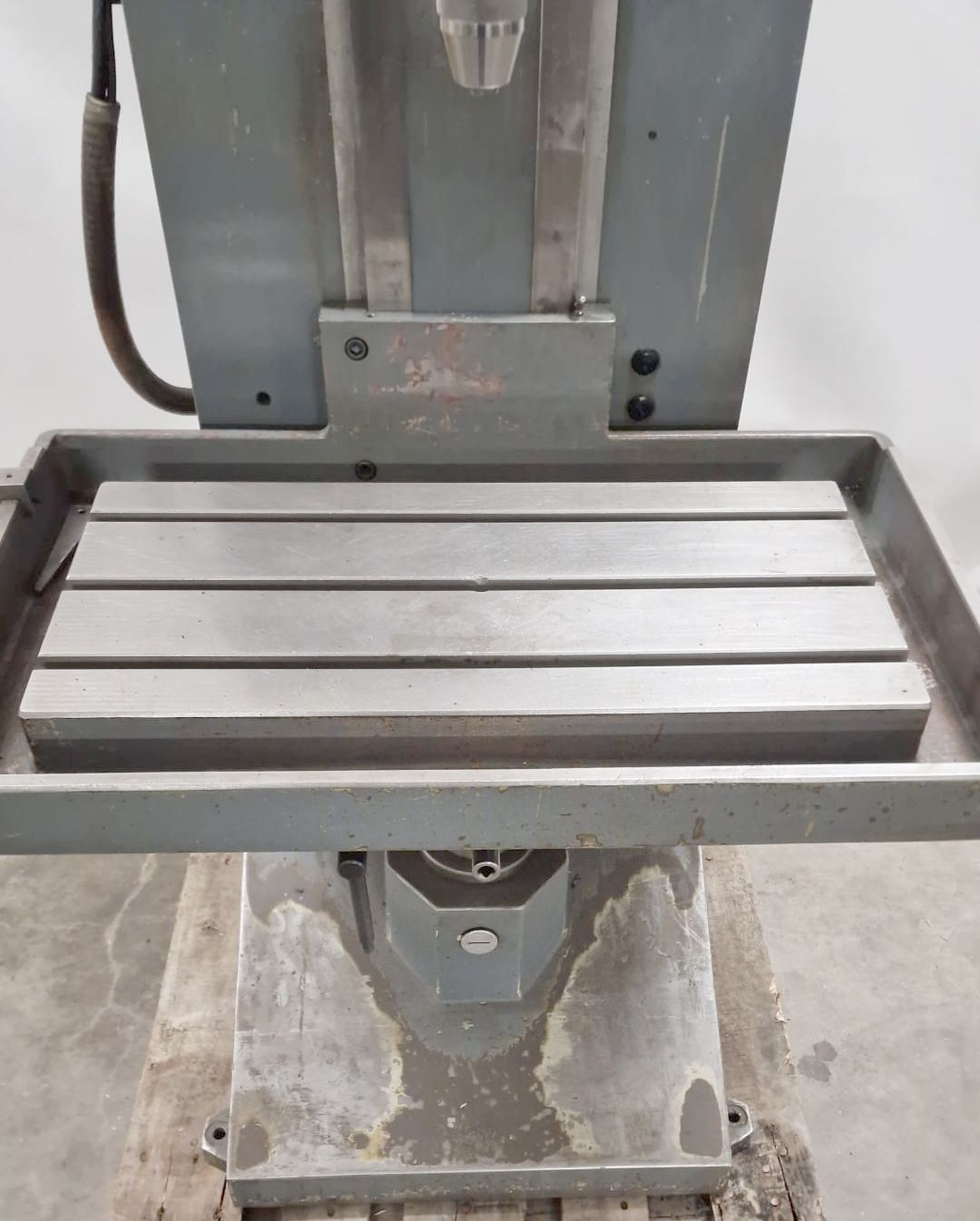

Table length: 650 mm.
Table width: 320 mm.
Drill capacity in steel: 22 mm.
Drill capacity in cast-iron: 24 mm.
Depth of throat: 300 mm.
Drill depth (spindle stroke): 120 mm.
Spindle head adjustment: 300 mm.
Longitudinal travel (X-axis): 330 mm.
Transversal travel (y-axis): 210 mm.
Vertical travel (z axis): 350 mm.
from: 0.12 mm/t.
up to: 0.6 mm/t.
Voltage 50 Hz 3x: 380 Volt.
Spindle motor: 2 CV.
Machine's weight about: 990 kg.
Length: 1100 mm.
Width: 600 mm.
Height: 2100 mm.

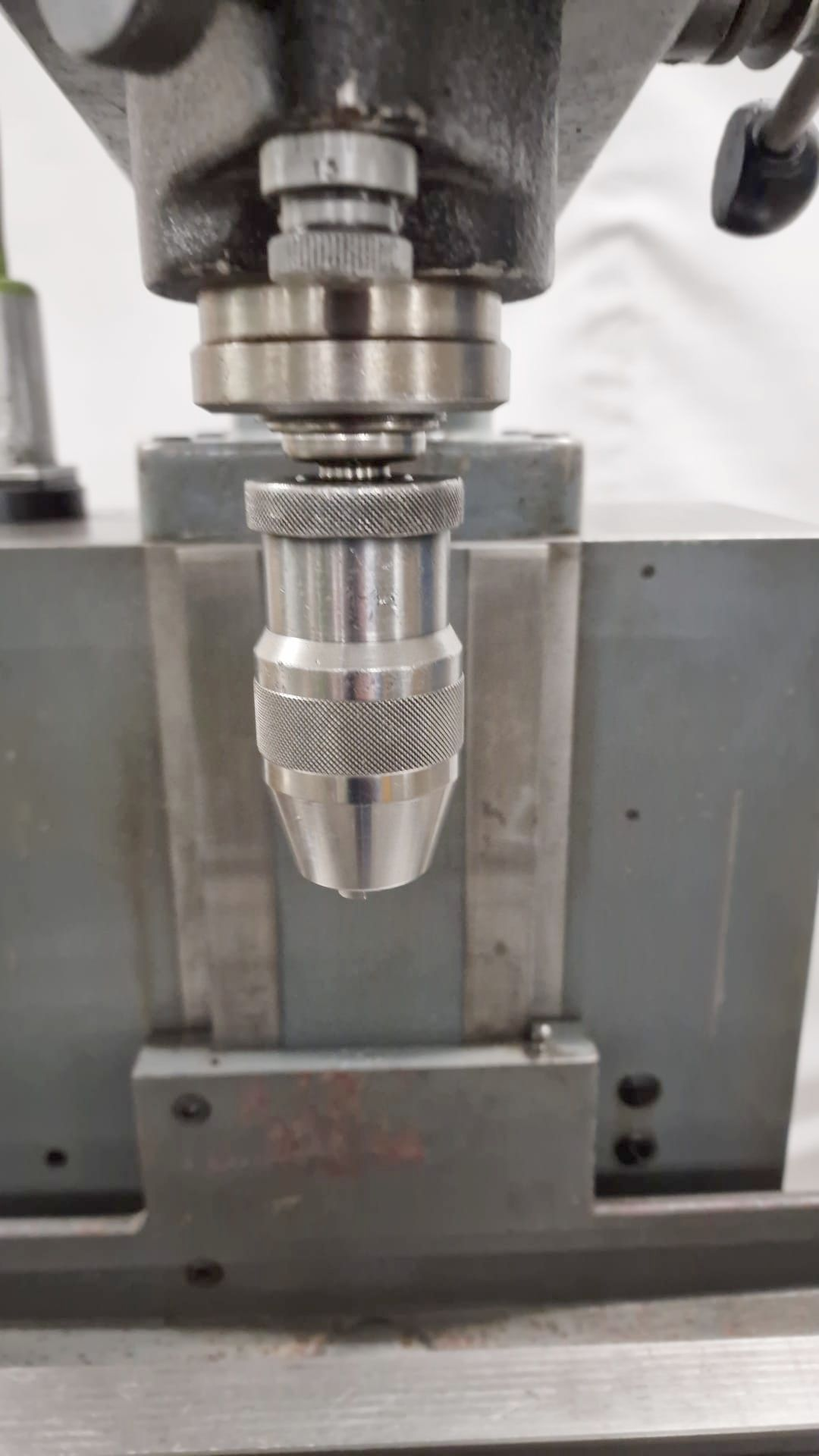

Drill chuck: 1 - 13 mm.
+ request more information
