MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • MIKRON
  • Model:
  • 022150 - MIKRON UCP 600 VARIO
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Time under power: 68163 Heures.
Operating time: 54350 Heures.
Working time: 20640 Heures.
Spindle run time: 19232 Heures.
Number of axis simultaneous: 5.
Table length: 320 mm.
Table width: 320 mm.
Longitudinal travel (X-axis): 600 mm.
Transversal travel (y-axis): 450 mm.
Vertical travel (z axis): 450 mm.
Table divisions (C): n x 360 °.
Milling head divisions (B): -115/+30 °.

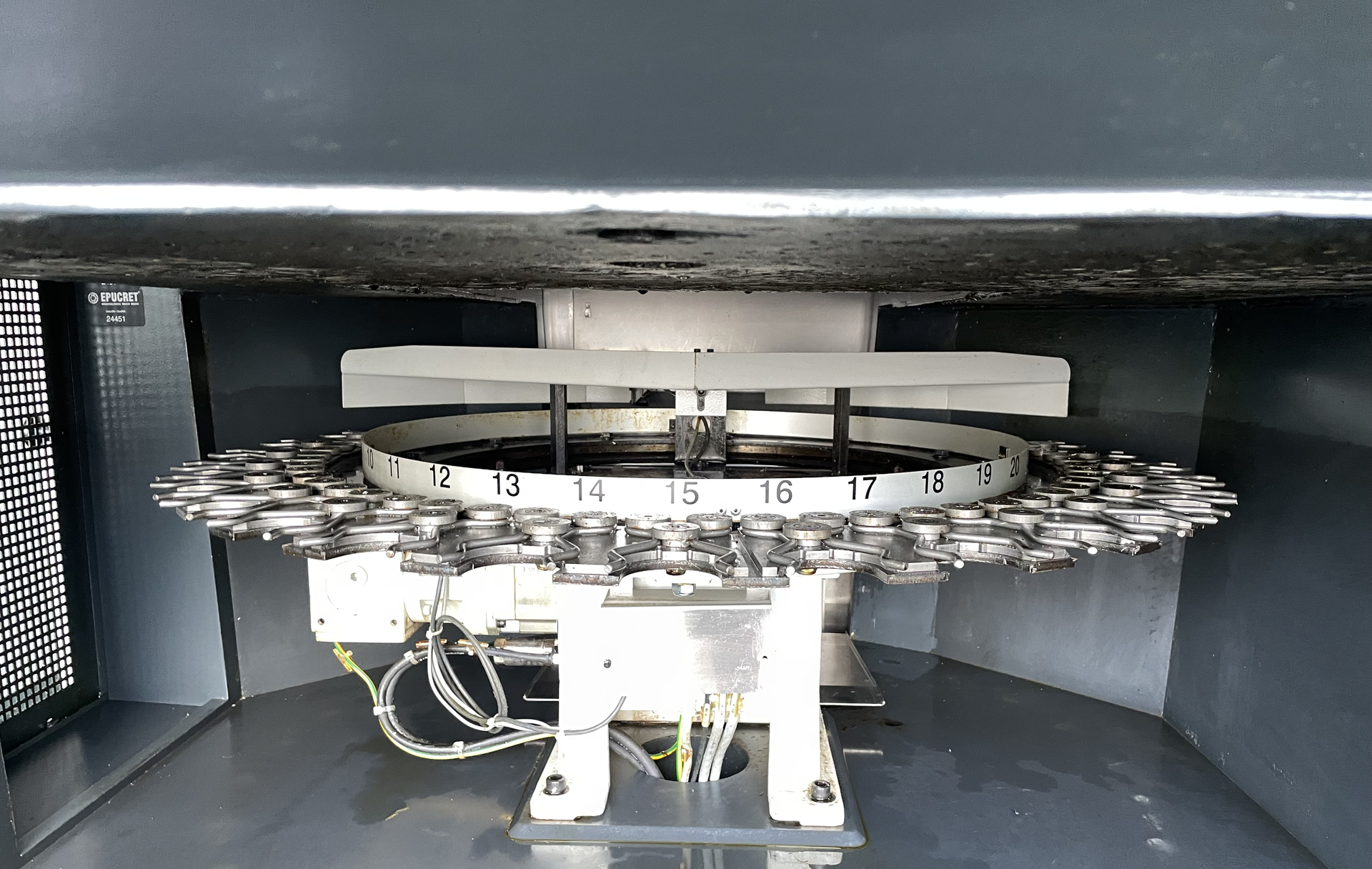

Number of tools: 30.
Tool diameter max.: 80 mm.
Tool lenght: 200 mm.
Max. tool-weight: 8 kg.
Spindle nose:: HSK-A 63.
from: 0 t/min.
up to: 20000 t/min.
Feed range: 15000 mm/min.
Rapid traverse:: 22 m/min.
Voltage 50 Hz 3x: 400 Volt.
Spindle power: 30 kW.
Torque max.: 91 Nm.
Noise level: 75 dB (A).
Machine's weight about: 7700 kg.
Length: 6820 mm.
Width: 4800 mm.
Height: 2540 (2810) mm.

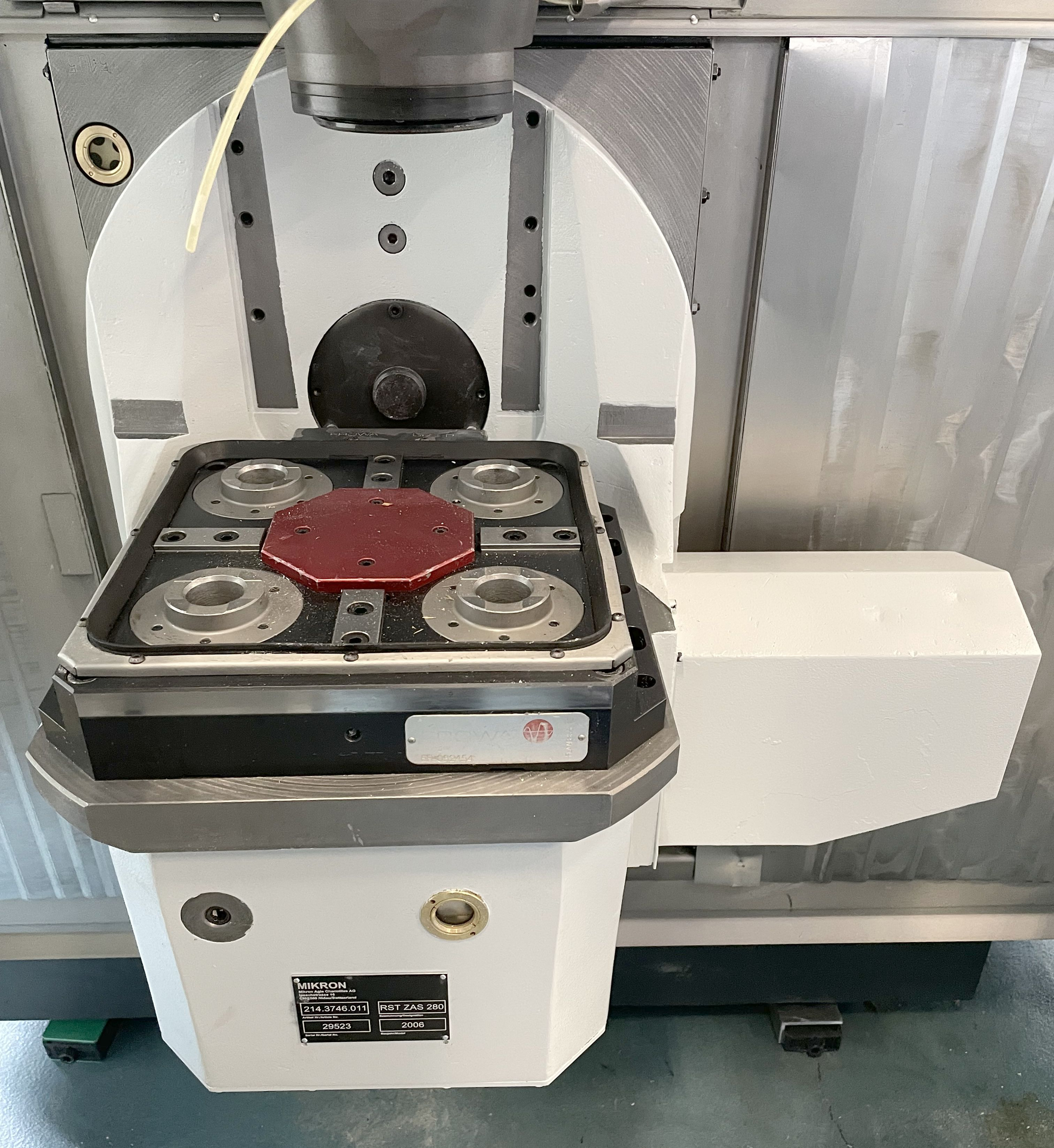

Type of table: EROWA UPC.
4+5 Axis revised: 2023.
