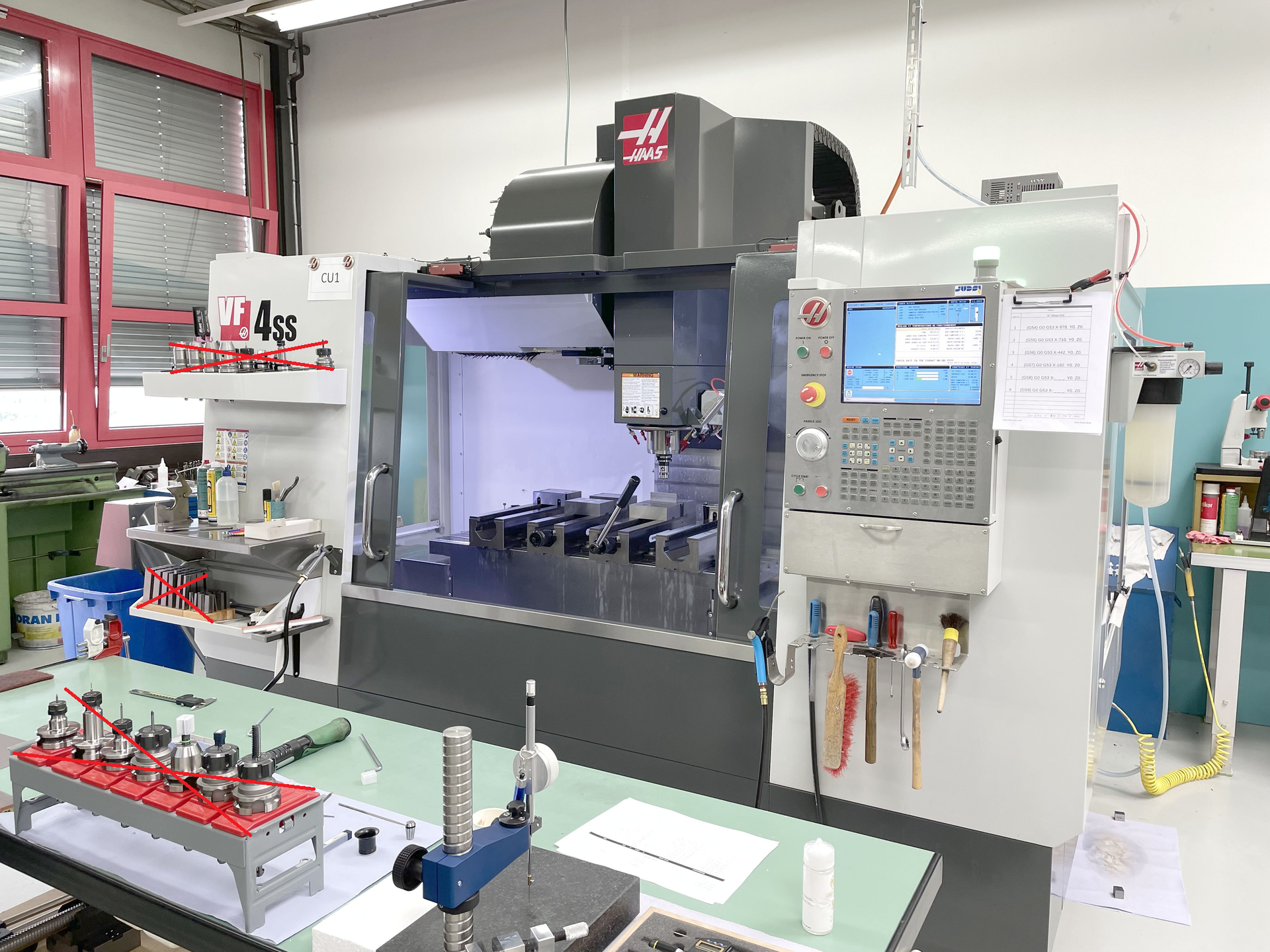

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Haas
  • Model:
  • 022056 - HAAS VF-4 SS
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis simultaneous: 3.
Table length: 1321 mm.
Table width: 457 mm.
Number of T-channels: 5.
Distance of the T-slots: 80 mm.
T-channel width: 16 mm.
Table load max.: 800 kg.
Longitudinal travel (X-axis): 1270 mm.
Transversal travel (y-axis): 508 mm.
Vertical travel (z axis): 635 mm.
Number of tools: 30.
Tool diameter max.: 64 mm.
Diameter with free adjacent pockets: 127 mm.
Tool lenght: 330 mm.
Max. tool-weight: 5.4 kg.
Time of tool changing: 1.8 s.
Average chip-to-chip time: 2.4 s.

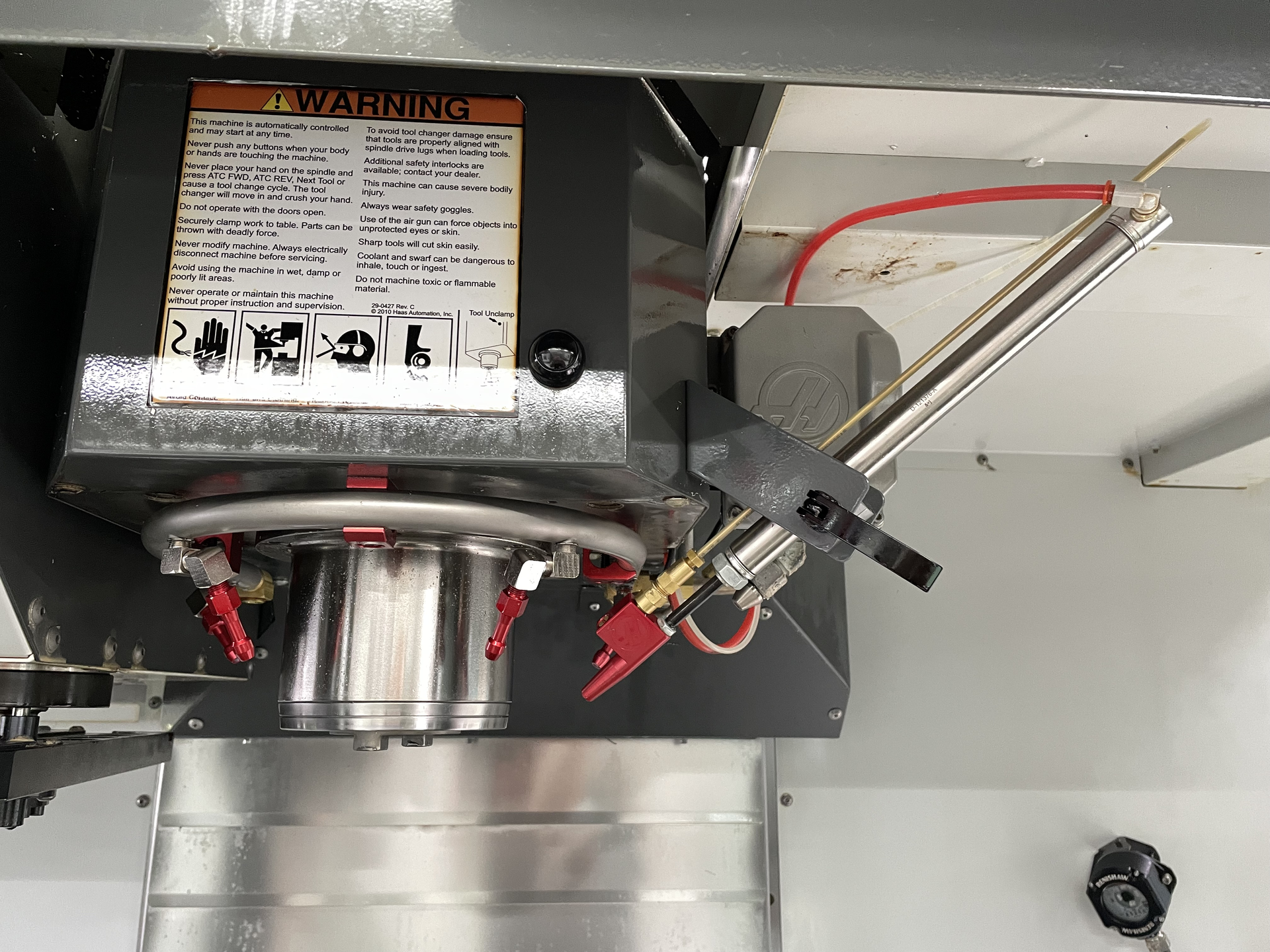

Spindle nose: BT: 40.
Distance spindle nose to table: 742 mm.
from: 0 t/min.
up to: 12000 t/min.
Rapid traverse:: 35.6 m/min.
Voltage 50 Hz 3x: 400 Volt.
Machine's weight about: 6200 kg.
Length: 3300 mm.
Width: 2330 mm.
Height: 2570 mm.

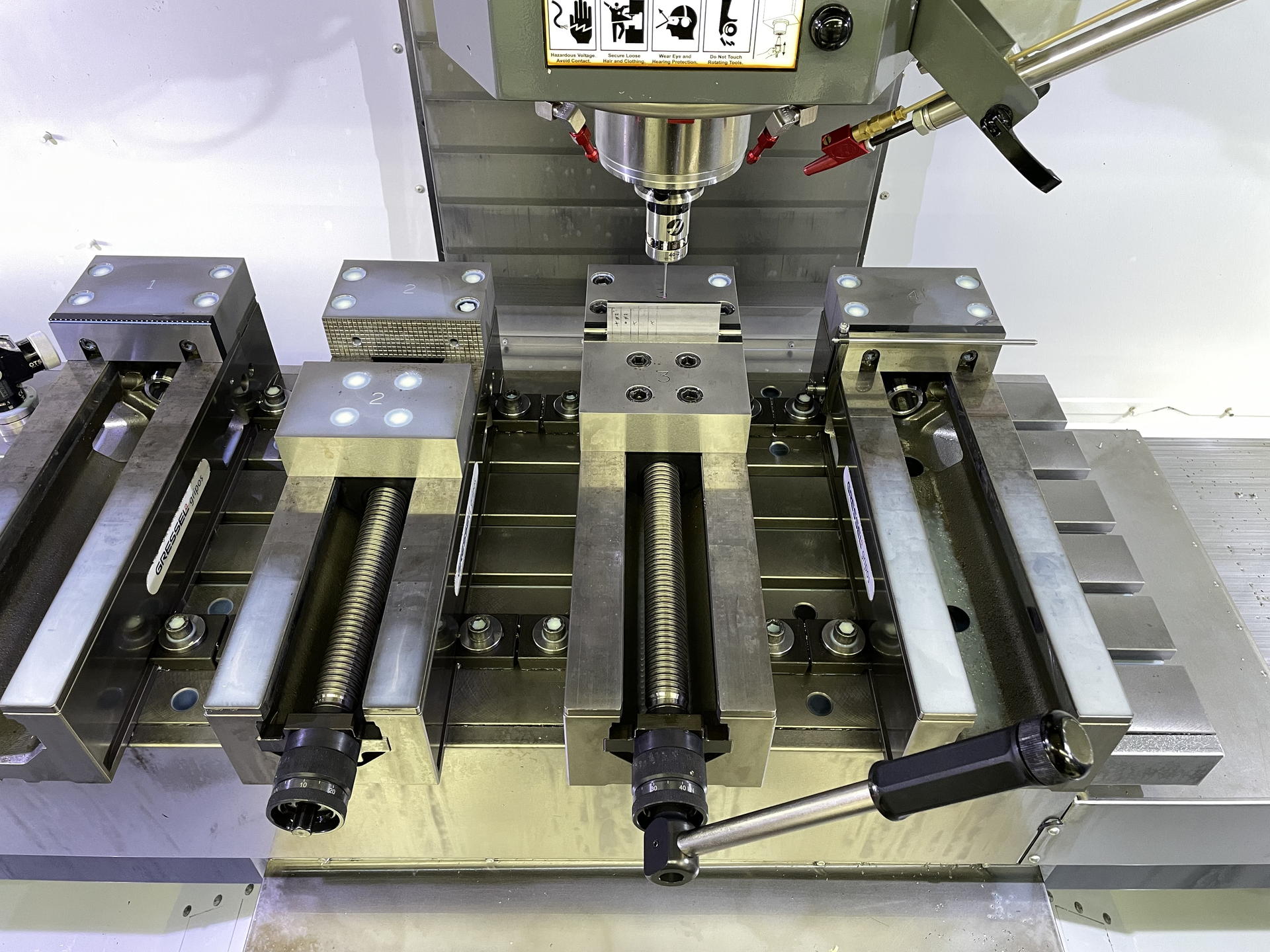

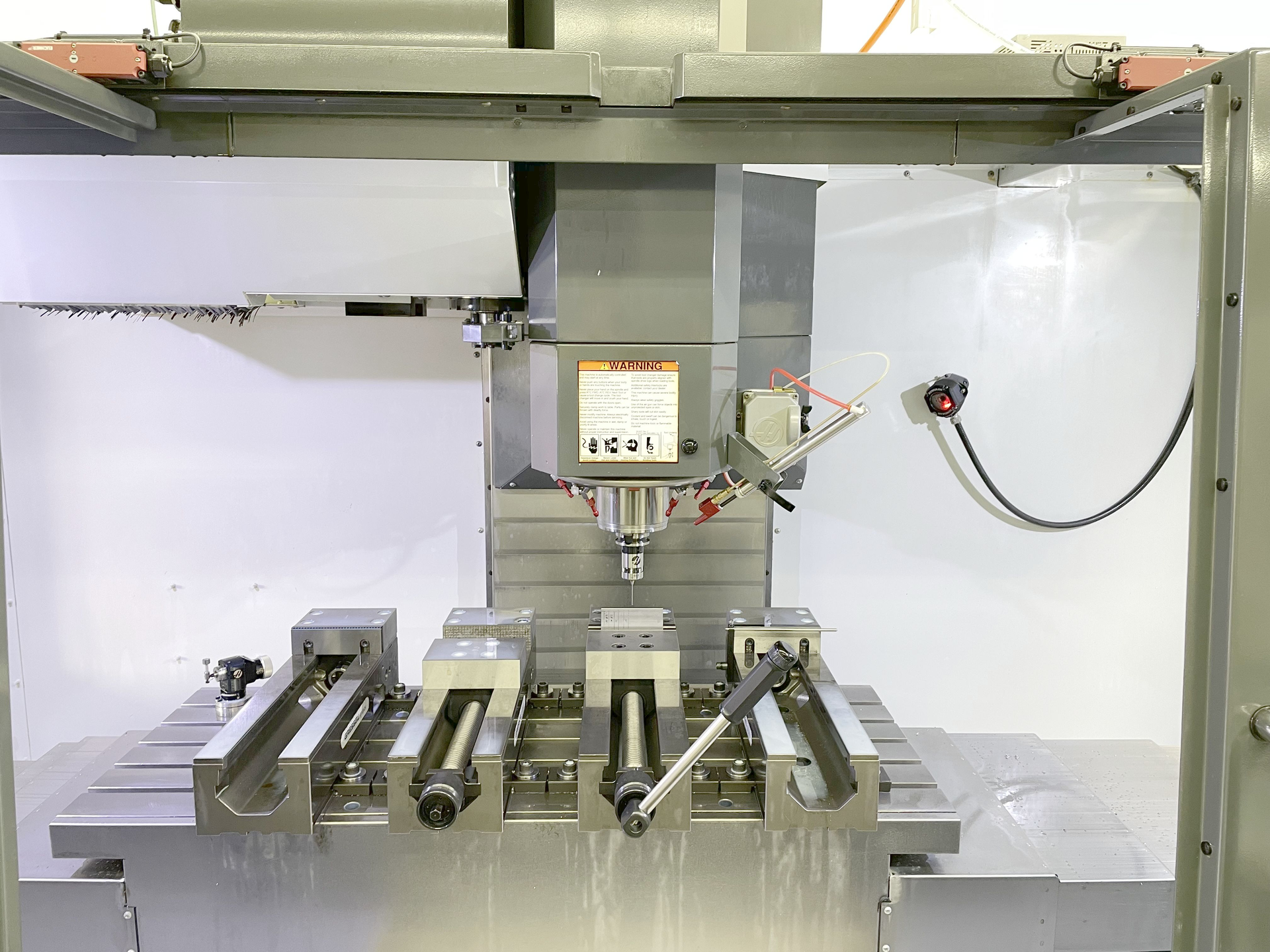

Vice: (4x).
Coolant through spindle (cts): 21 bar.
