MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Aciera
  • Model:
  • 021925 - ACIERA 6
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Drill capacity in steel: 6 mm.
Table length: 310 mm.
Table width: 280 mm.
T-channel width: 8 mm.
Depth of throat: 150 mm.
Spindle stroke: 50 mm.

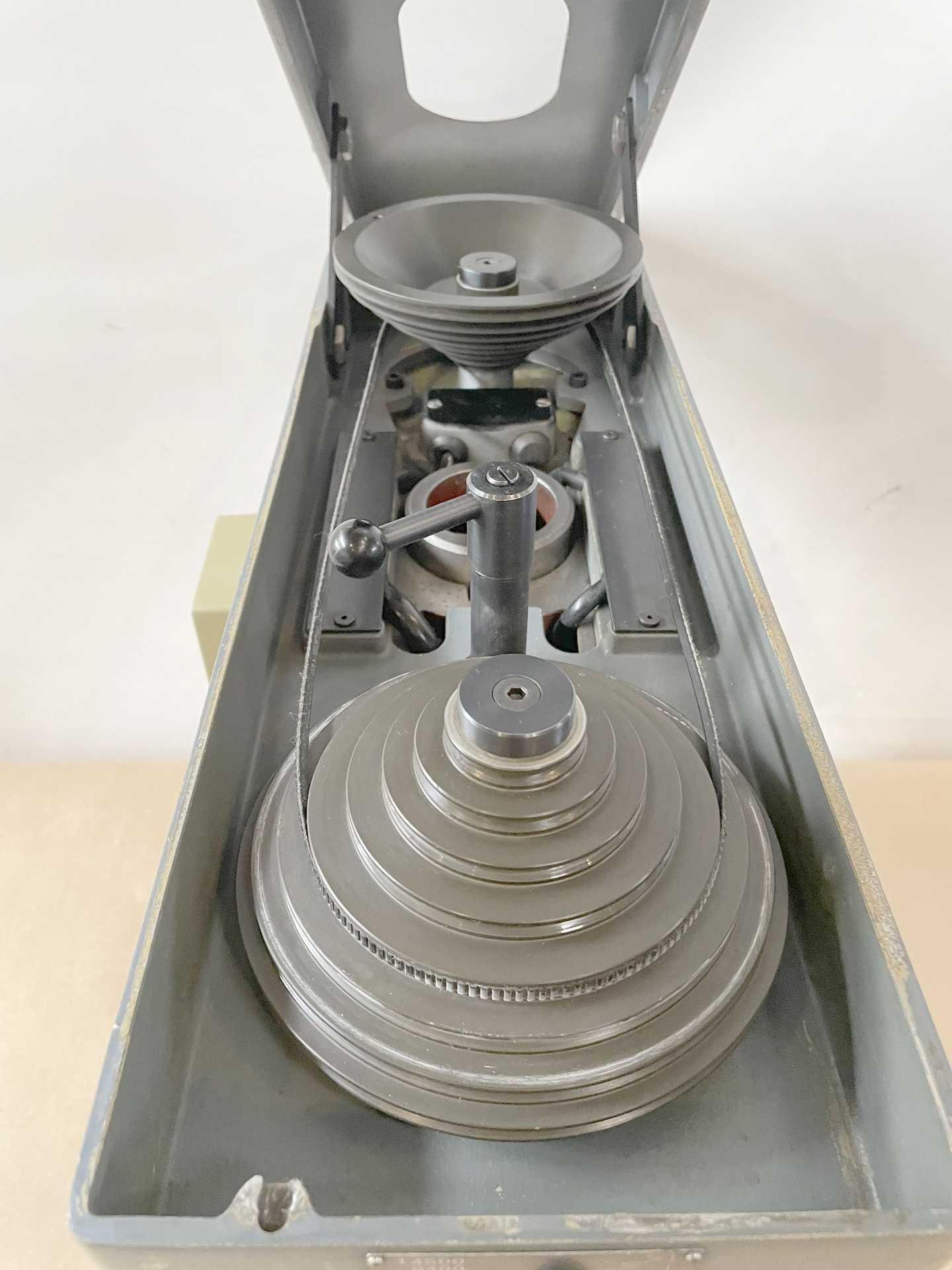

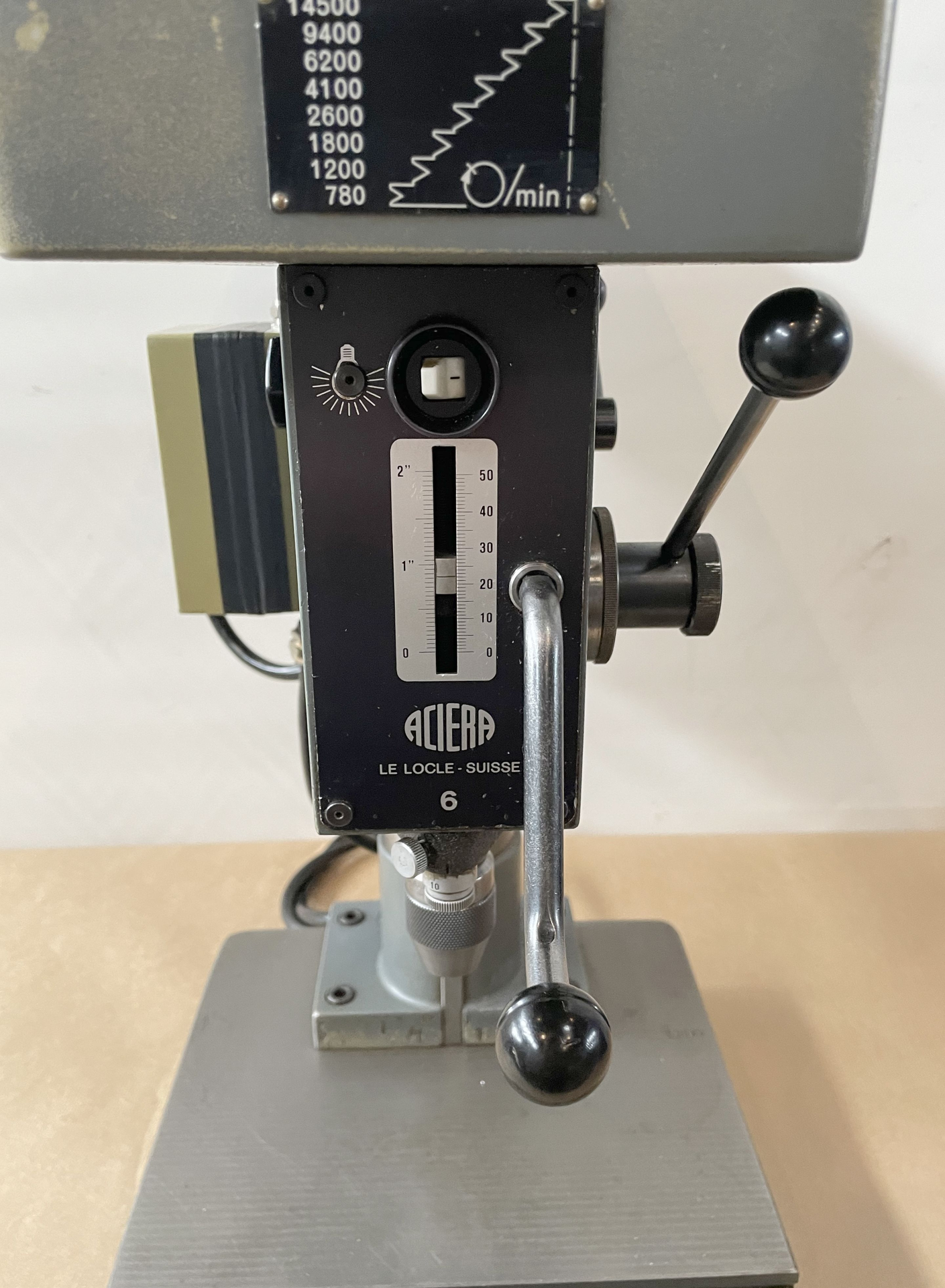

number (steps): 8.
from: 780 t/min.
up to: 14500 t/min.
Voltage 50 Hz 3x: 120 Volt.
Power: 0.3 CV.
Machine's weight about: 50 kg.
Length: 600 mm.
Width: 350 mm.
Height: 650 mm.

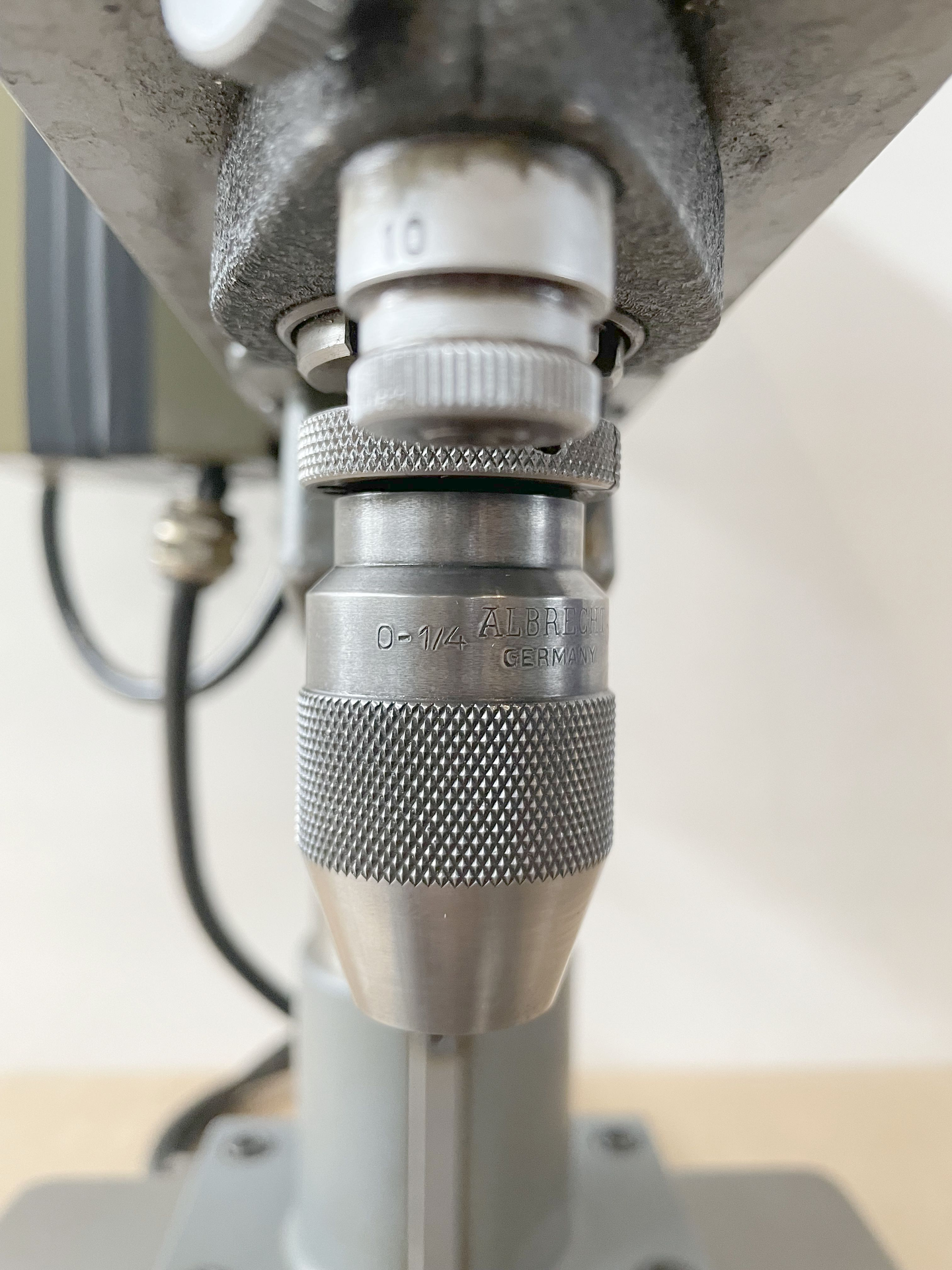

Drill chuck: 0 - 6.5 mm.
