MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Manufacturer:
DECKEL

Model:
021649 - DECKEL S 11

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Muller Machines SA

Country:

DESCRIPTION

Centre height: 300 mm.
Distance between centres: 380 mm.
Table length: 500 mm.
Table width: 180 mm.
Max. grinding diameter: 238 / 620 mm.
Max. grinding wheel diamter: 125 mm.
Longitudinal way of table: mm.
Transversal way of the table: 220 mm.
Crosswise: 100 mm.
Longitudinal: 190 mm.
Vertical: 325 mm.
Vertical adjustment of grinding head: 325 mm.
horizontal: 360 °.
vertical: 360 °.
rotary axis of the grinding spindle head: 360 °.
number (steps): 2.
from: 400 t/min.
up to: 8000 t/min.
Voltage 50 Hz 3x: 380 Volt.
Grinding spindle motor: 1.3 kW.
Total power required: 2 kVA.
Machine's weight about: 500 kg.
Length: 1100 mm.
Width: 800 mm.
Height: 1760 mm.

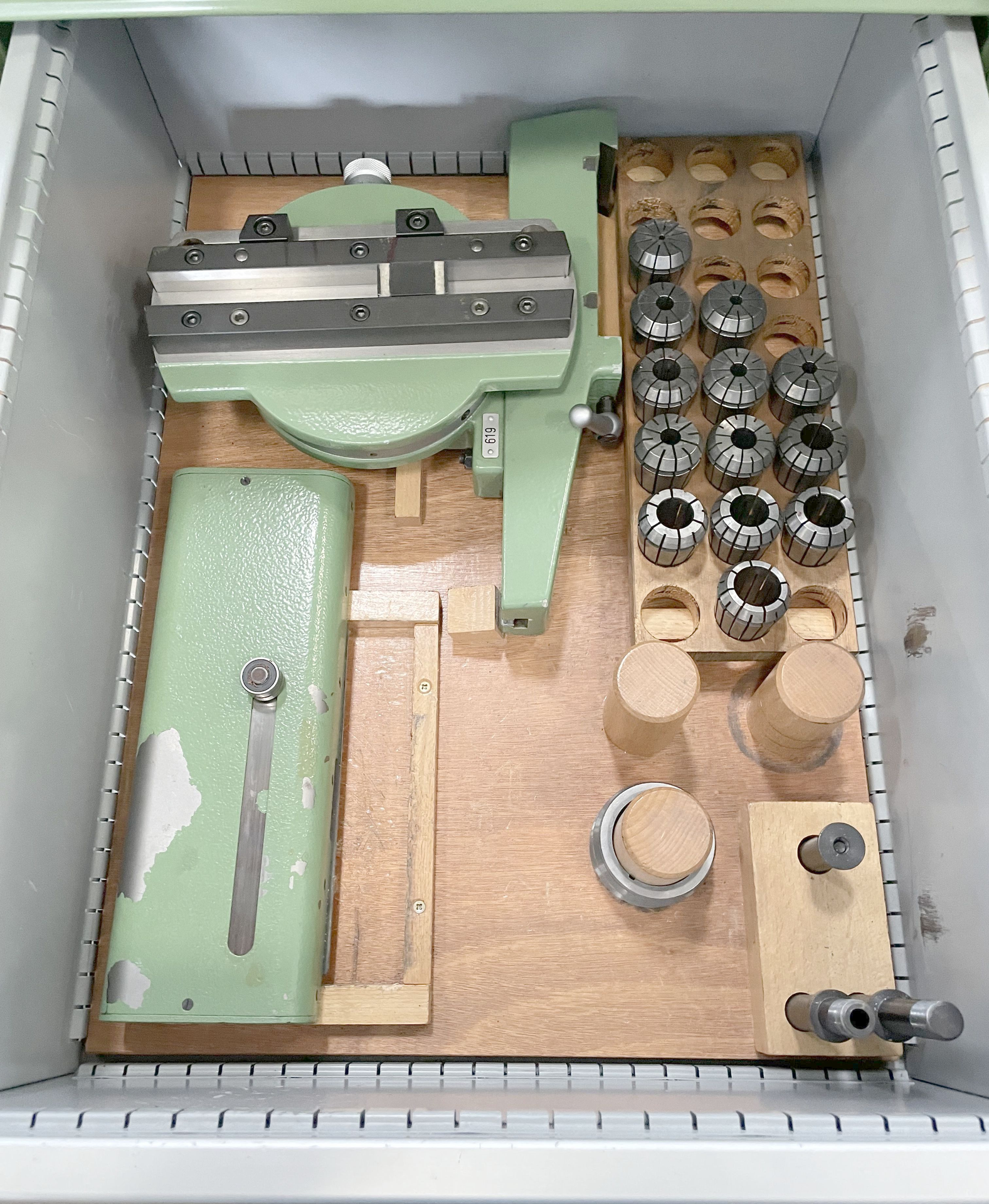

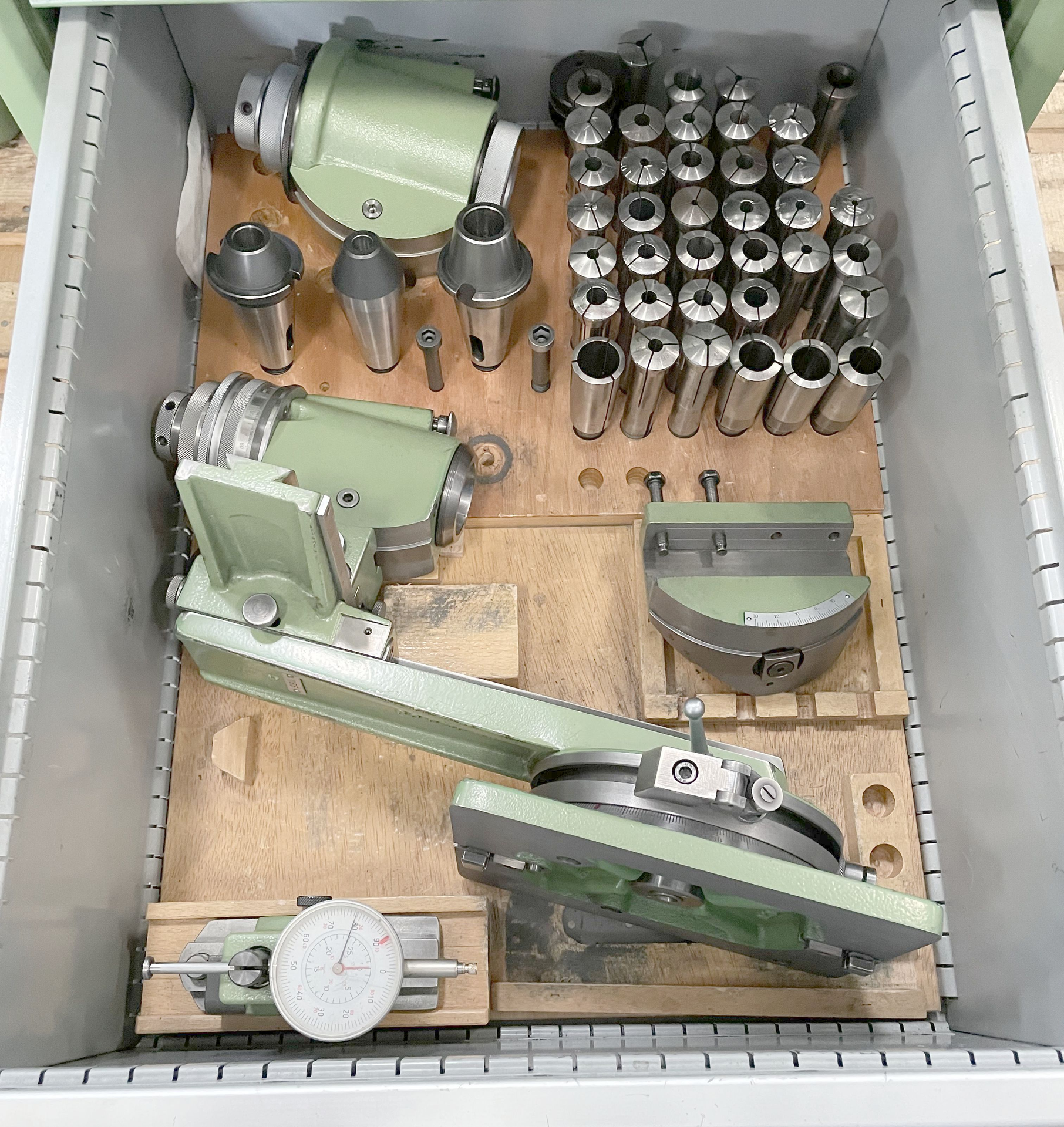

Set of collets: ESX.
