REQUEST PRICE

MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Manufacturer:

Model:

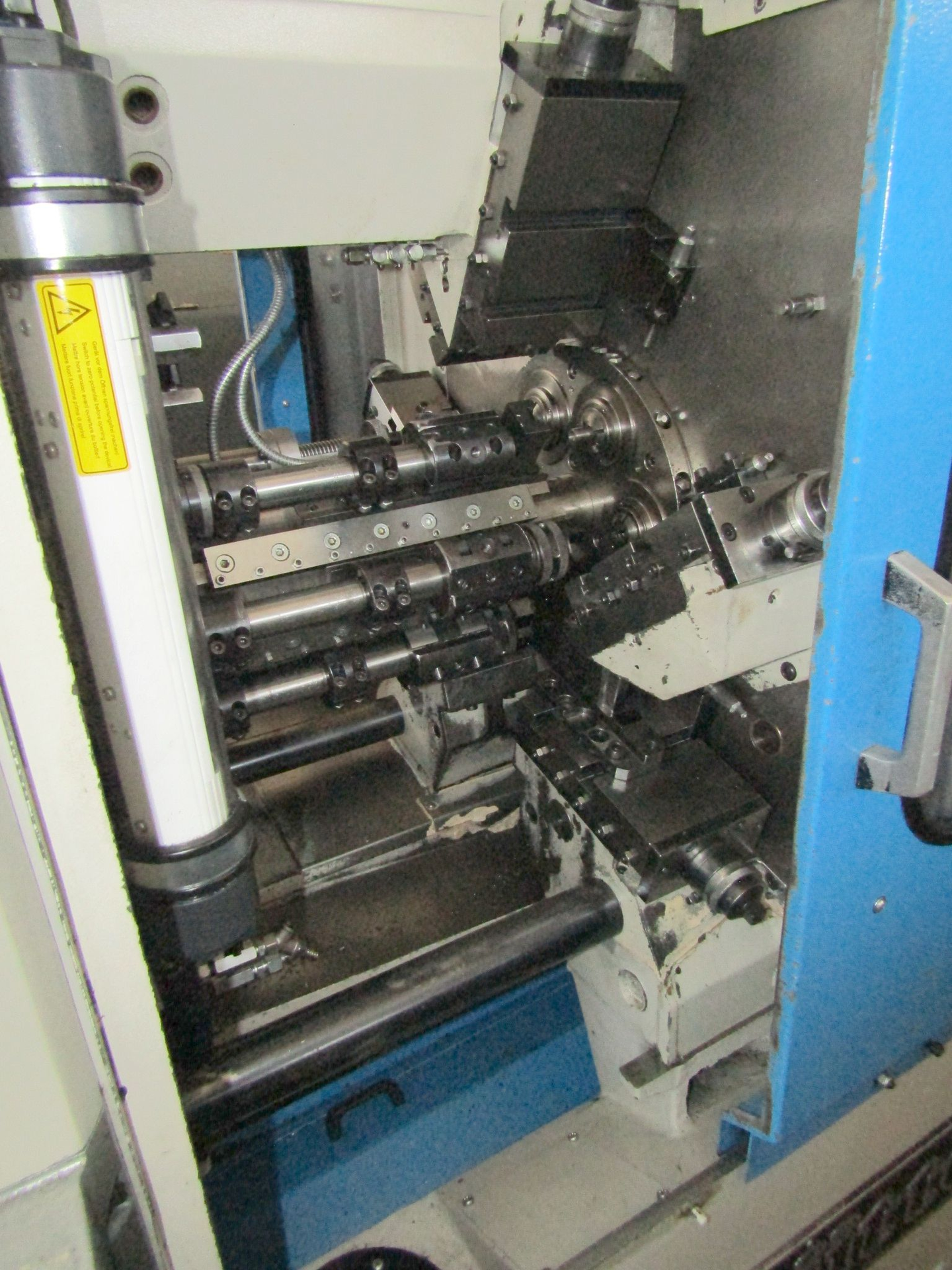

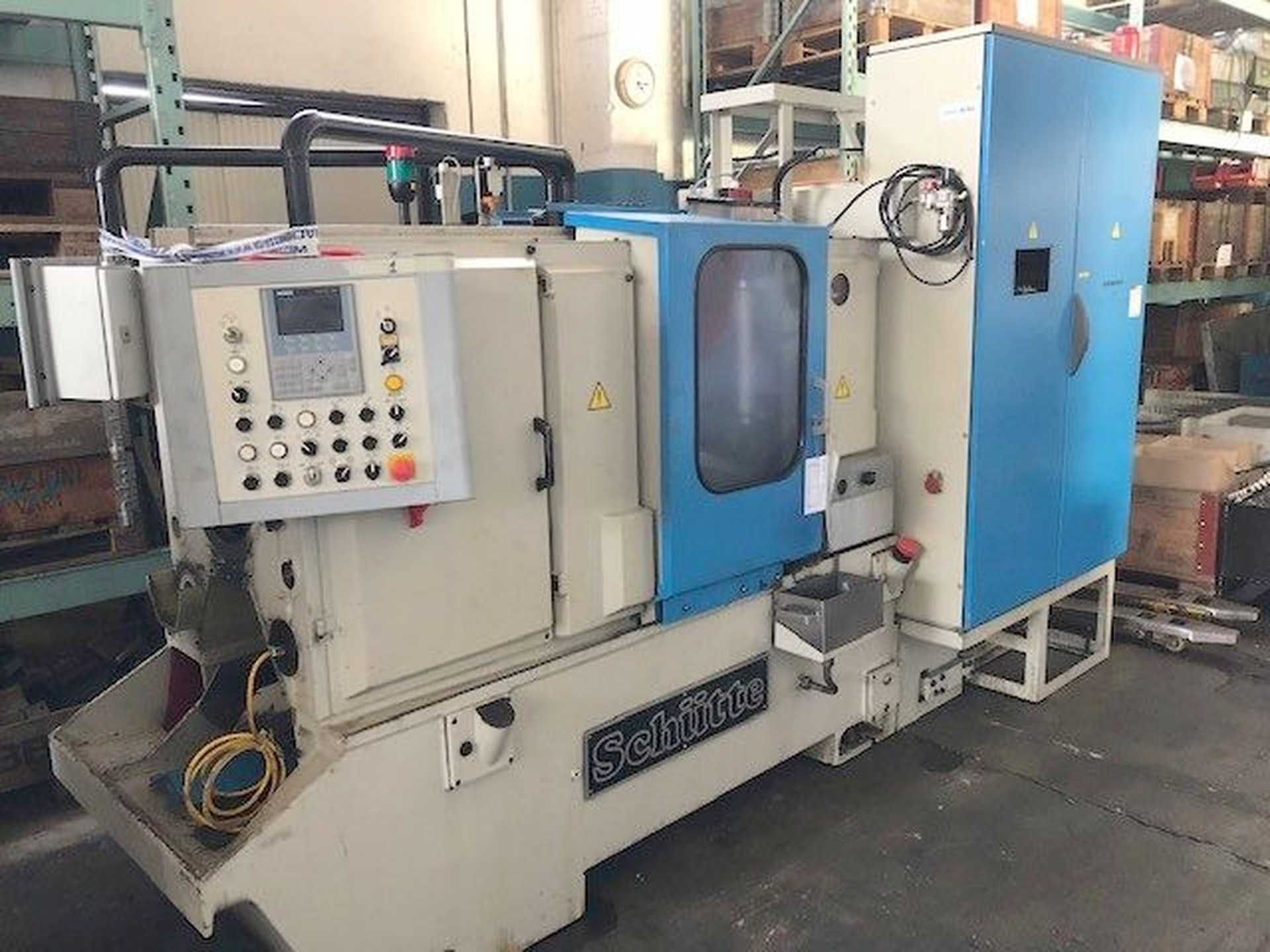

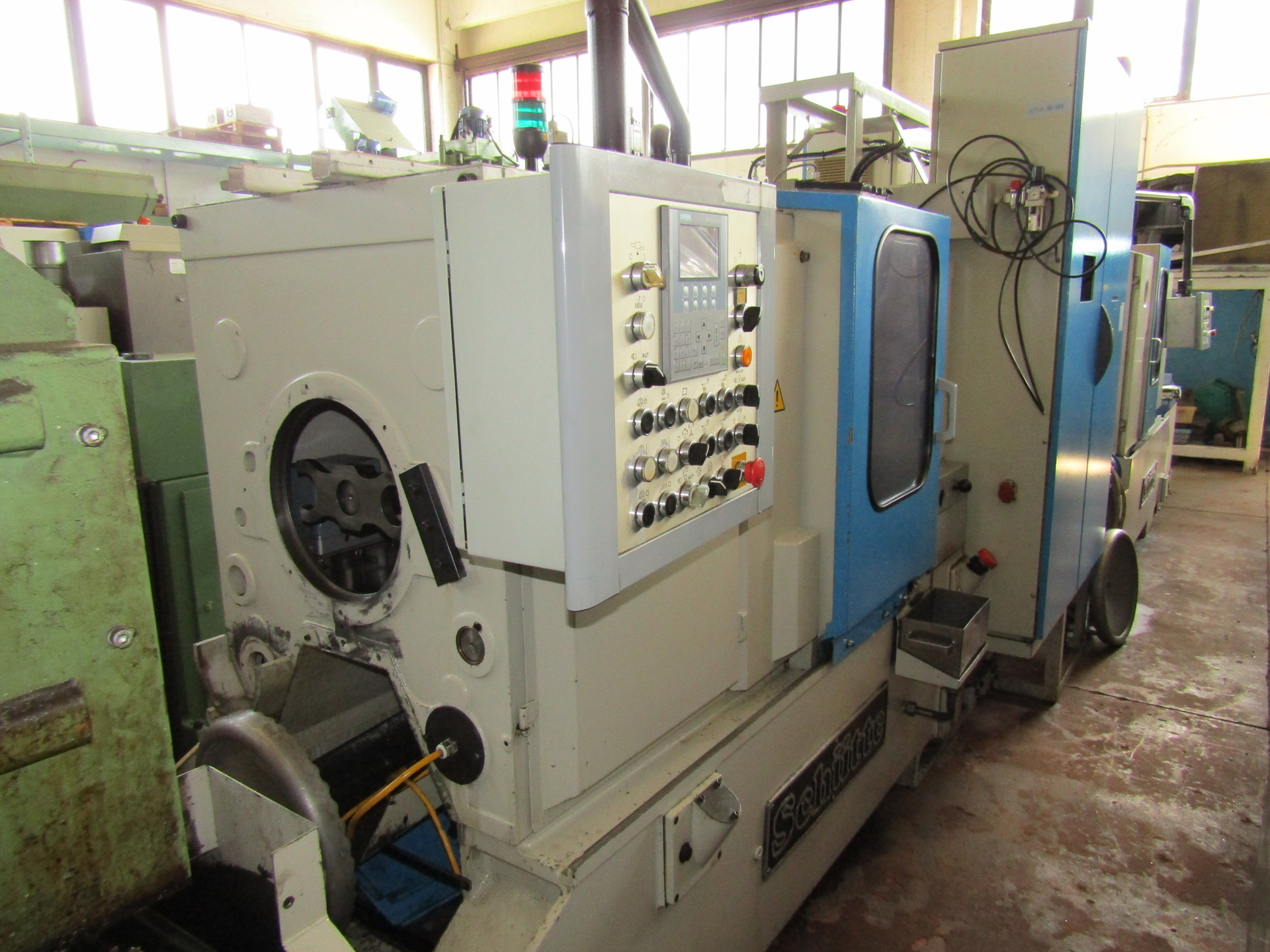

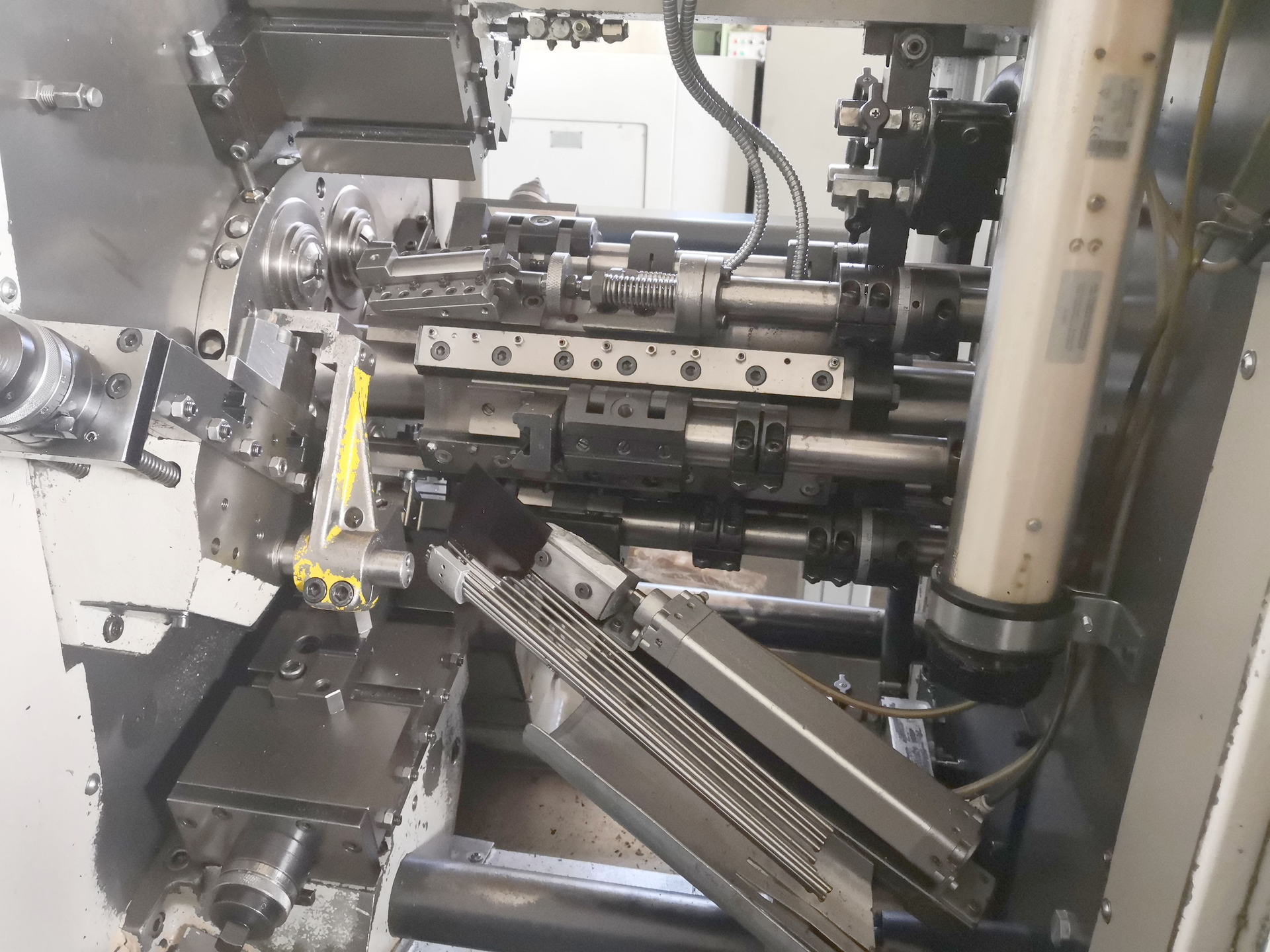

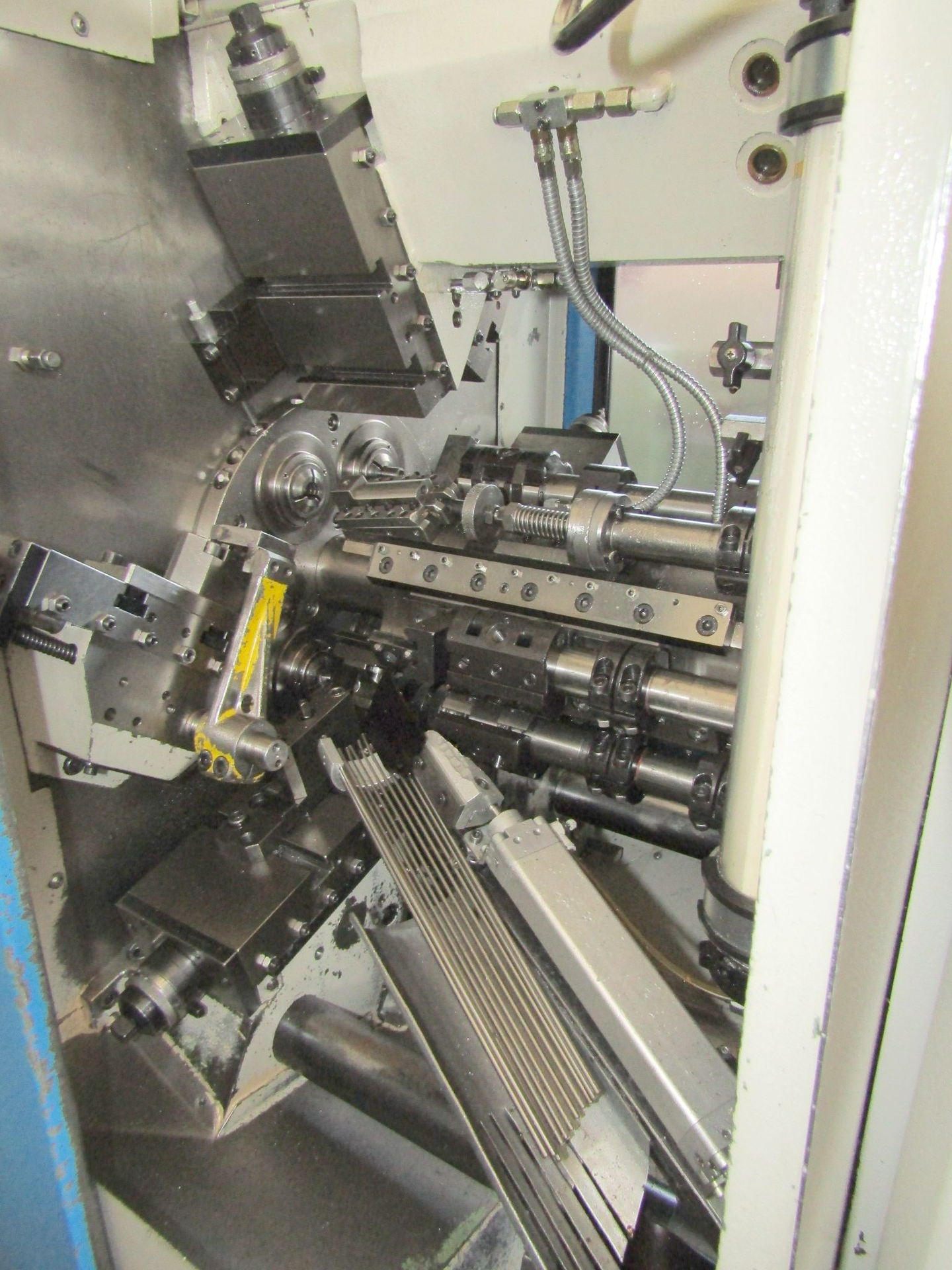

021344 - SCHÜTTE SF 20-6

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Muller Machines SA

Country:

DESCRIPTION

Number of spindles: 6.
Capacity round bar: 20 mm.
Capacity square bar: 14 mm.
Capacity hexagon bar: 17 mm.
Max. advance of bar: 80 mm.
Max. turning length: 40 mm.
Max. stroke of long slide: 63 / 39.6 mm.
Number of possible pieces: 31.
from: 355 t/min.
up to: 5000 t/min.
Voltage 50 Hz 3x: 380 Volt.
Power: 15 kW.
Machine's weight about: 4000 kg.
Length: 3125 mm.
Width: 1030 mm.
Height: 2000 mm.

+ request more information
