MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Chiron
  • Model:

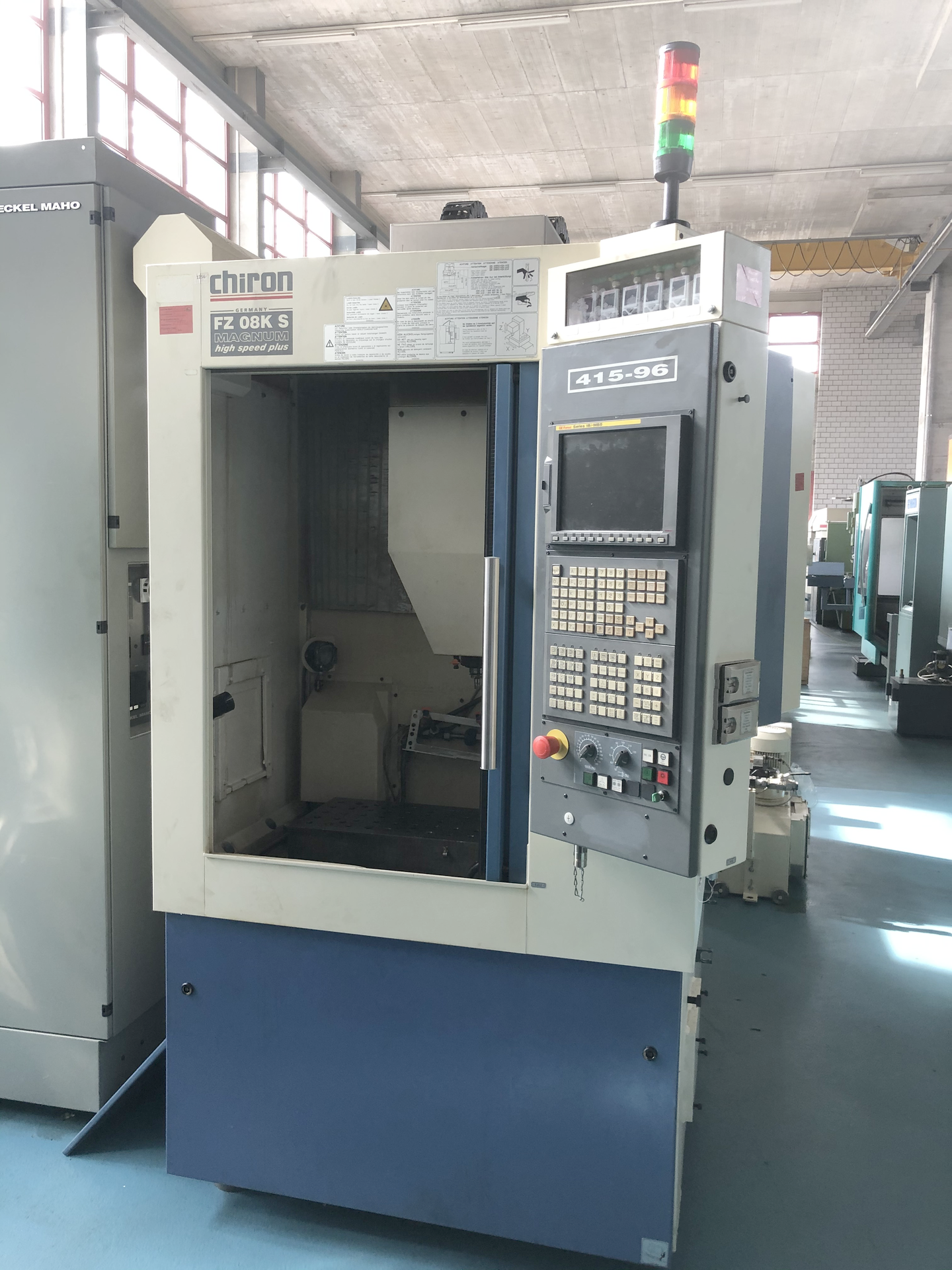

  • 021234 - CHIRON FZ 08 KS Magnum
  • Condition:
  • 1
  • YOM:
  • NA

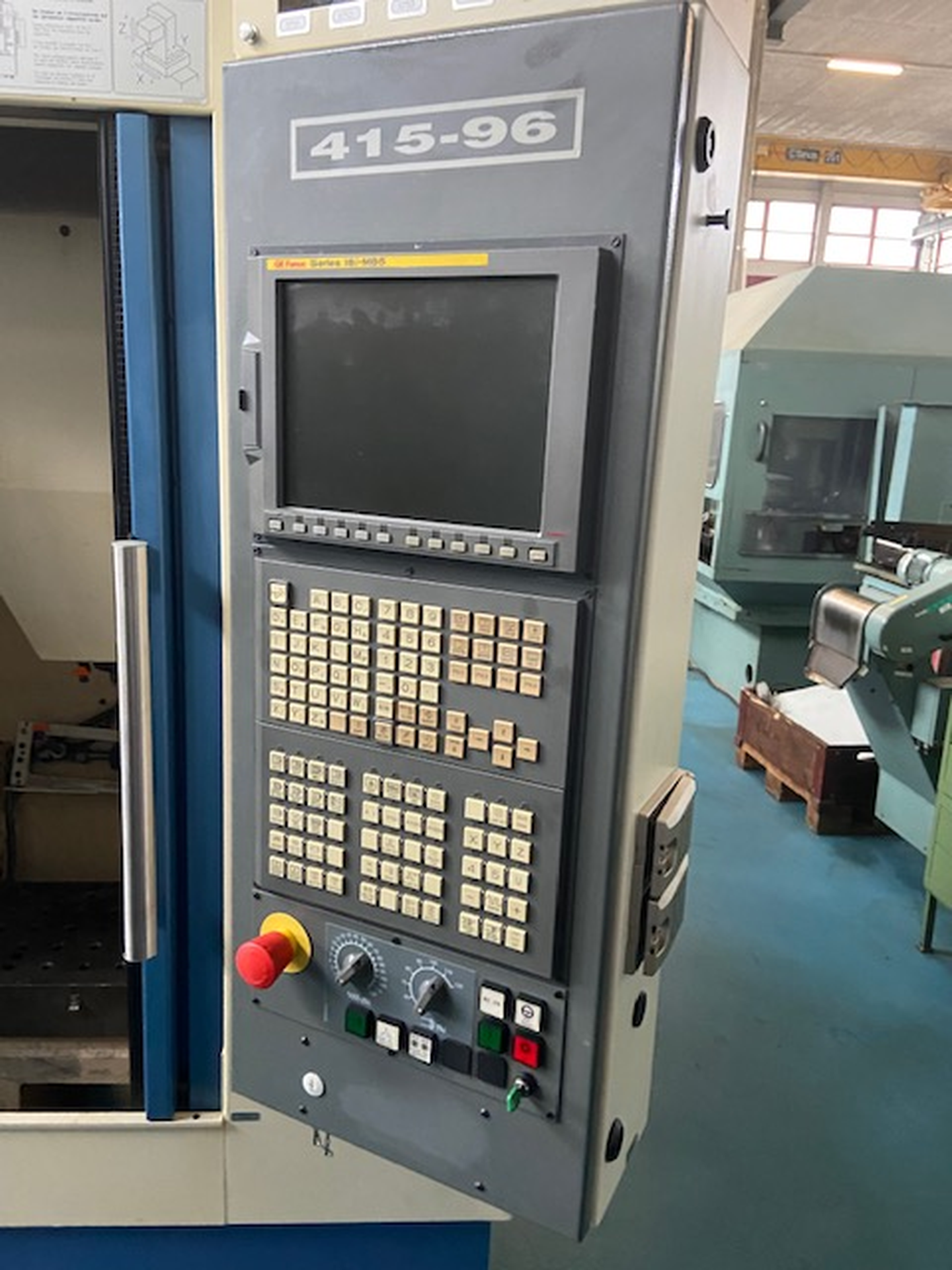

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 3.
Number of spindles: 1.

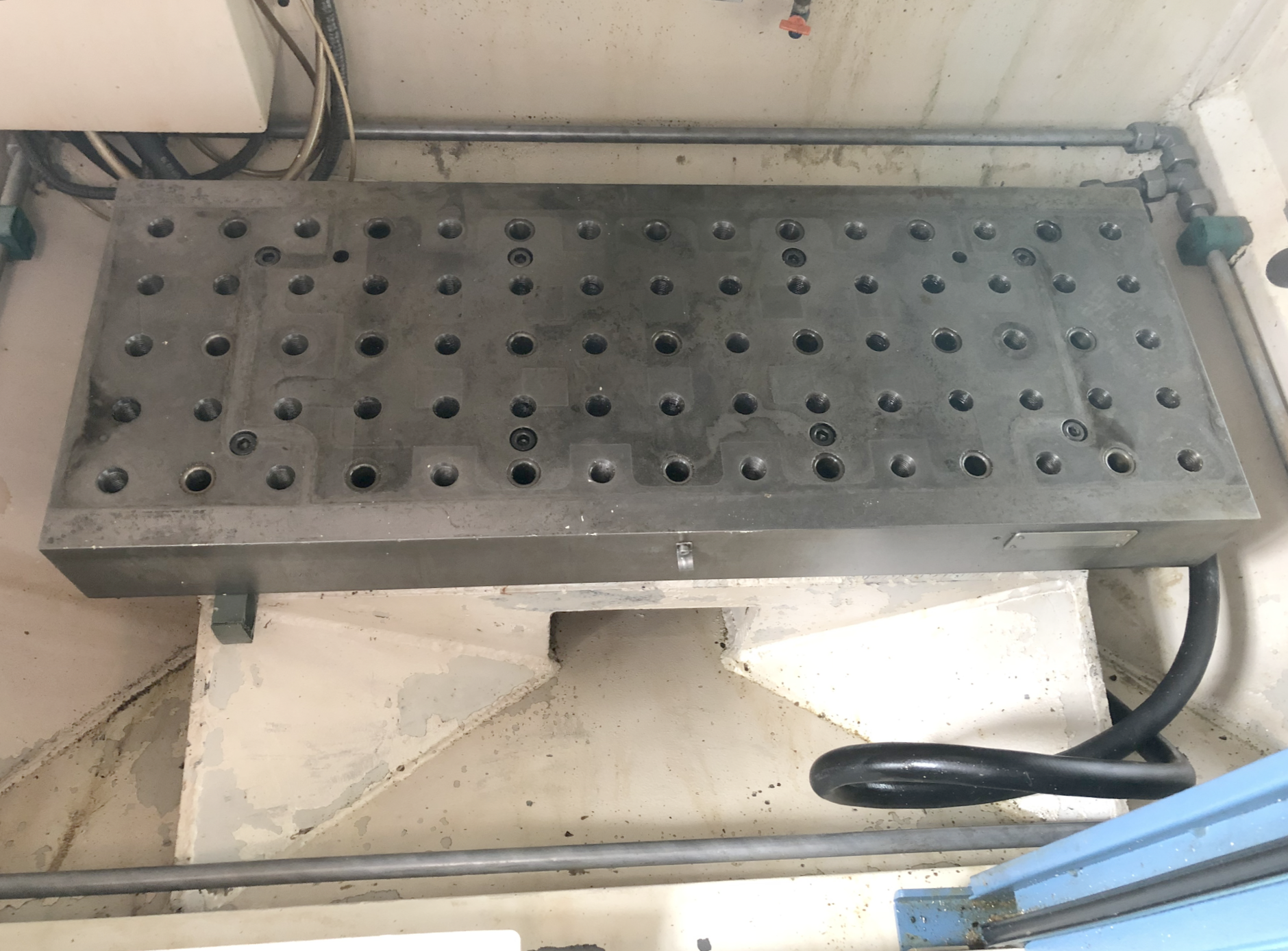

Table length: 770 mm.
Table width: 290 mm.
Longitudinal travel (X-axis): 450 mm.
Transversal travel (y-axis): 270 mm.
Vertical travel (z axis): 310 mm.
Drill capacity: 12 mm.
Max. taping diameter M: 8.
Number of tools: 24.
Tool diameter max.: 47 mm.
Diameter with free adjacent pockets: 100 mm.
Tool lenght: 160 mm.
Max. tool-weight: 1.2 kg.
Time of tool changing: 0.8 / 2.3 s.
Average chip-to-chip time: 2.2 s.

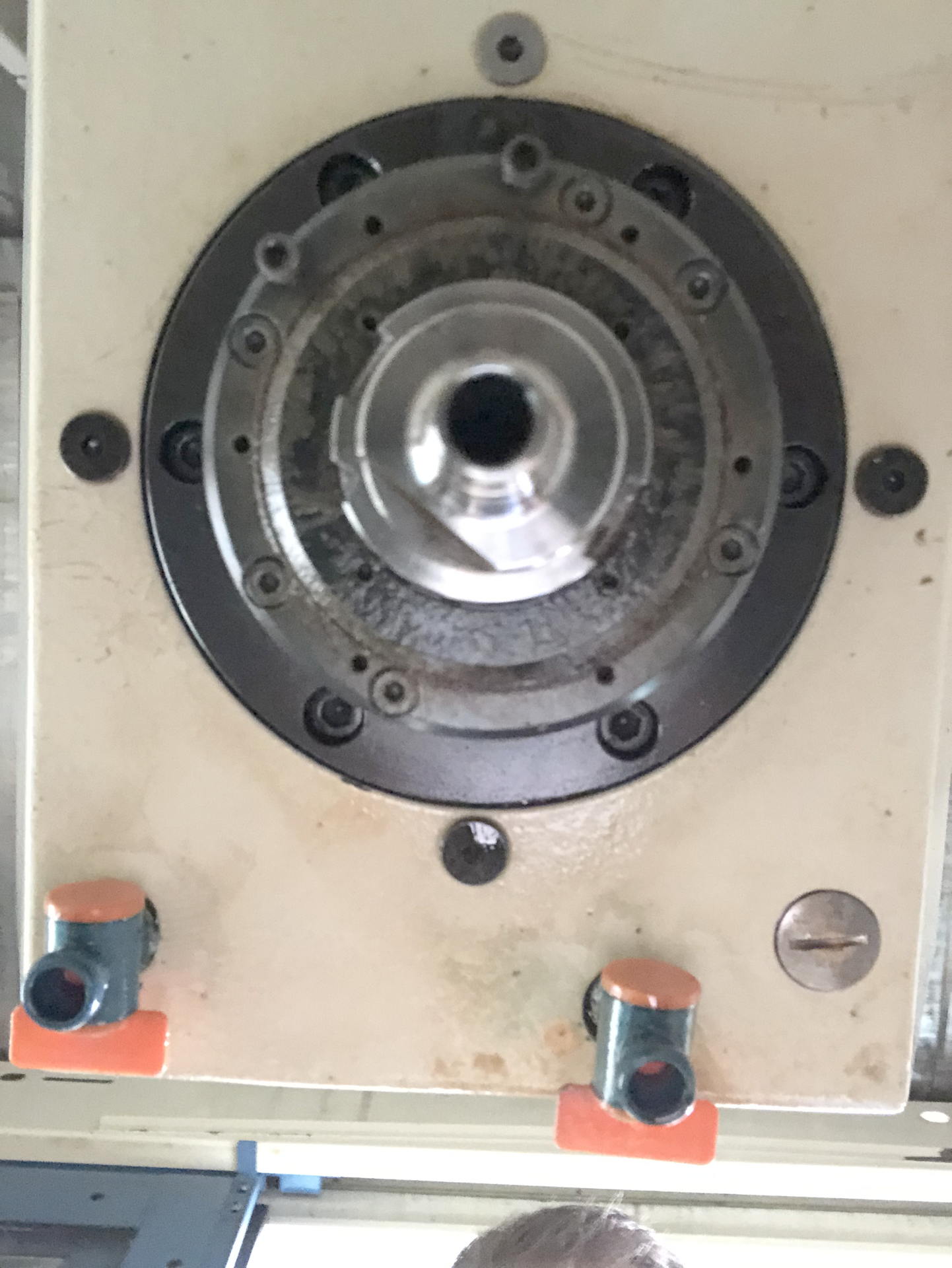

Spindle nose: HSK-A: 40 DIN 69893.
up to: 30000 t/min.
Rapid traverse:: 75 m/min.
Air connect: 6 bar.
Voltage 50 Hz 3x: 400 Volt.
Spindle motor: 7 kW.
Total power required: 19 kVA.
Machine's weight about: 3400 kg.
Length: 2308 mm.
Width: 1405 mm.
Height: 2447 mm.
