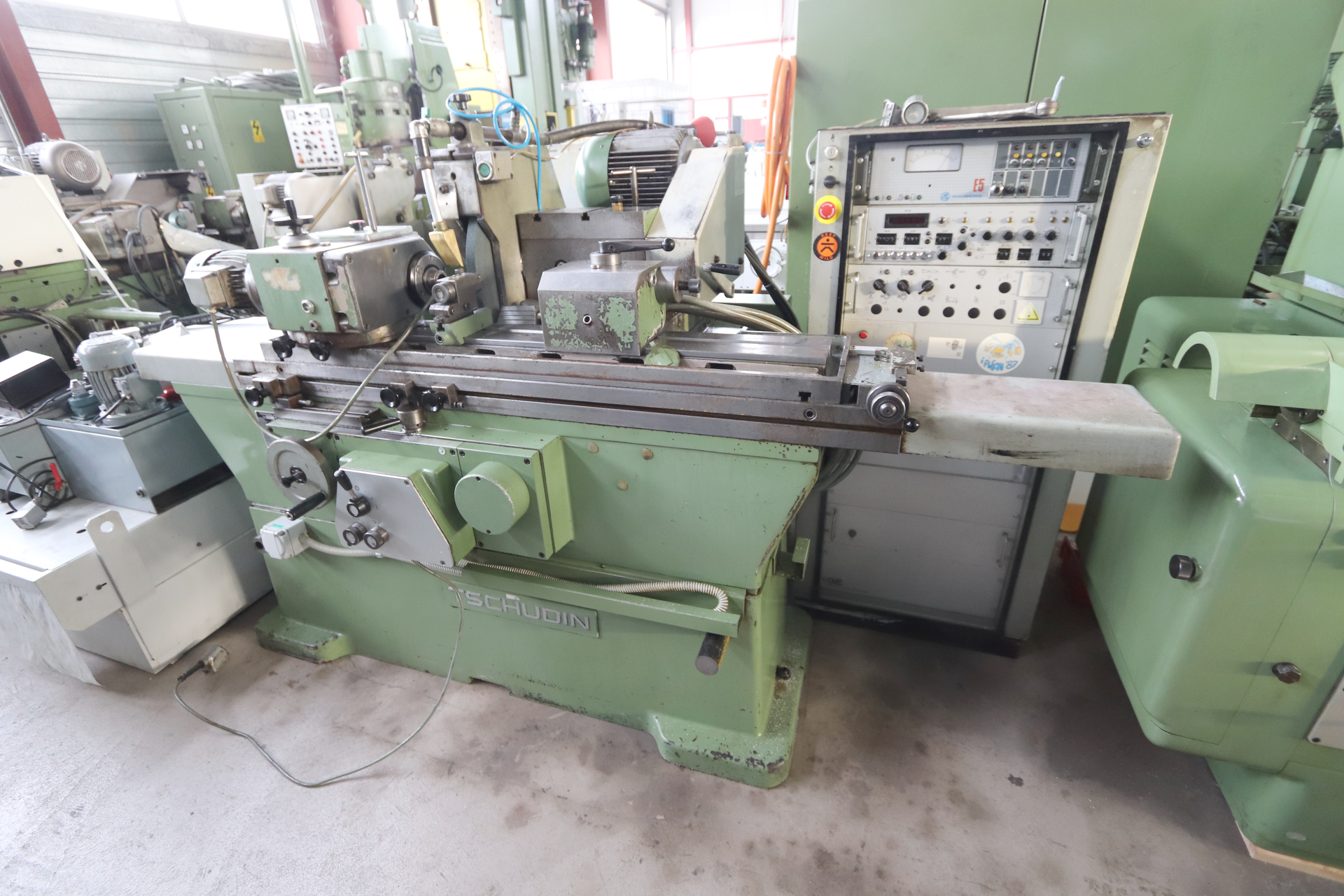

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Tschudin
  • Model:
  • 020883 - TSCHUDIN HTG 622
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 100 mm.
Distance between centres: 680 mm.
Max. Longitudinal travel: 620 mm.
Max. transversal travel: 45 mm.
Diameter: 500 mm.
Width: 1800 mm.
Bore: 203 mm.
grinding wheel width: 80 mm.
number (steps): 3.
from: 65 t/min.
up to: 5 m/min.
Angular displacement: 3 °.
rotatable: 360 °.
Spindle taper: 4 CM.
Taper in tailstock:: 3 CM.
Spindle stroke: 20 mm.
Shearing force: 4 - 15 kp.
Table angular displacement: 9 °.
Voltage 50 Hz 3x: 380 Volt.
External Grinding wheel motor: 5.5 kW.
Workhead spindle motor: 0.7 CV.
Total power required: 10 CV.
Machine's weight about: 2900 kg.
Length: 2300 mm.
Height: 1900 mm.
