MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Ford
  • Model:
  • 020763 - JOHNFORD 3 VS
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Table length: 1230 mm.
Table width: 250 mm.
Longitudinal travel (X-axis): 800 mm.
Transversal travel (y axis): 350 mm.
Vertical travel (z axis): 400 mm.

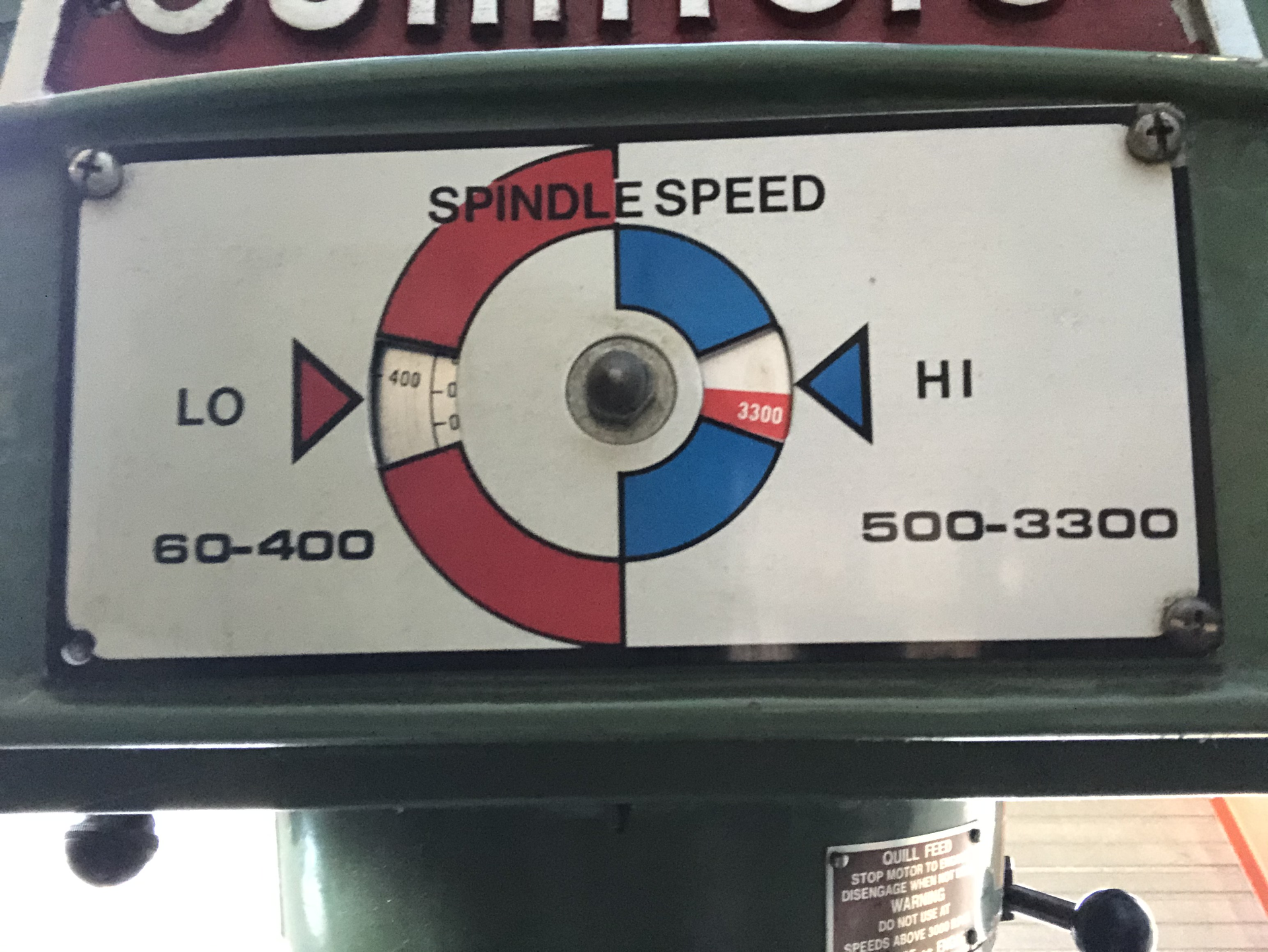

number (steps): 2.
from: 60 / 500 t/min.
up to: 400 / 3300 t/min.
Taper in spindle: R-8.

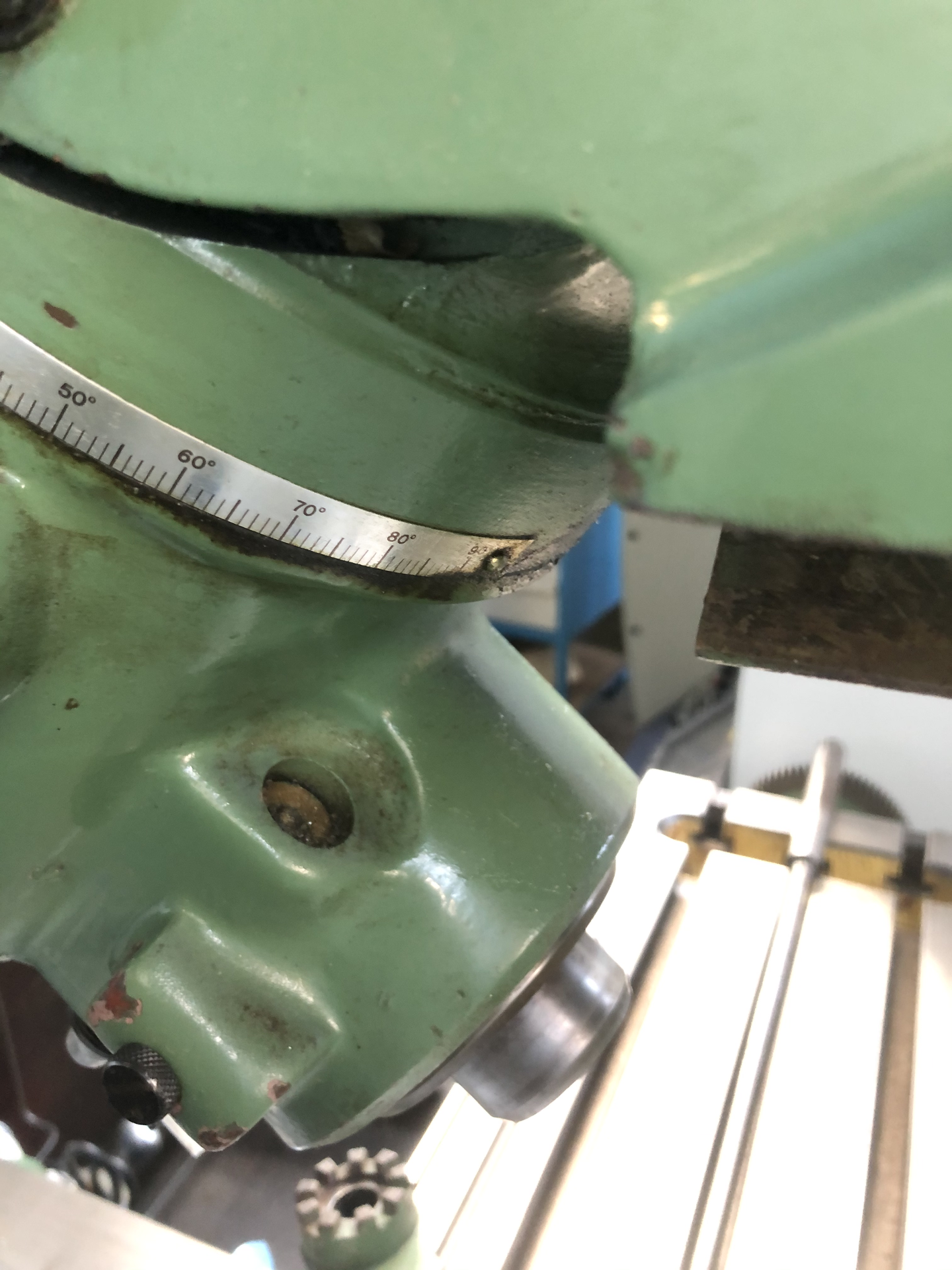

Swivel range Vertical milling head: + / - 90 °.

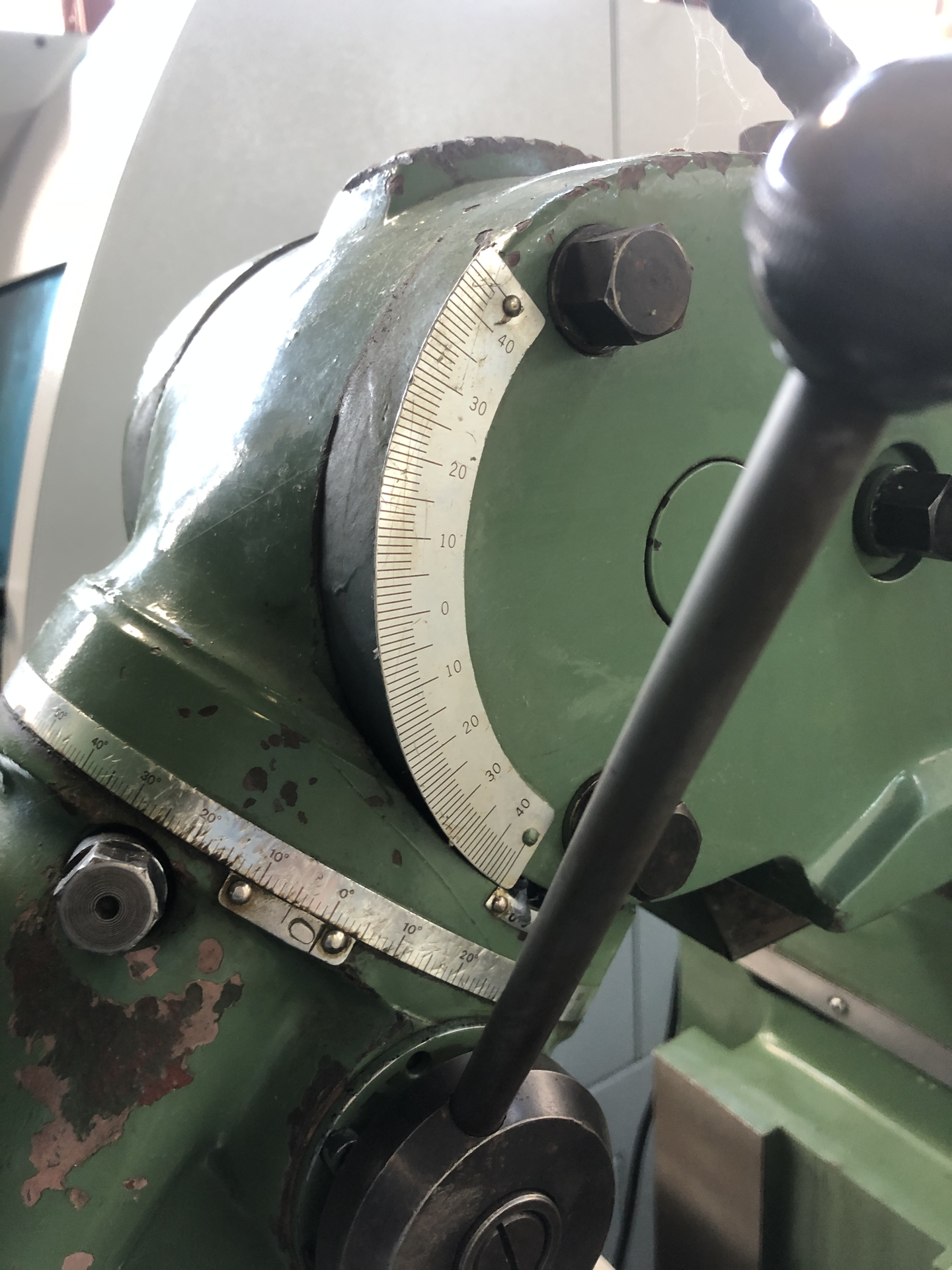

Head inclining + -: 45 °.
Voltage 50 Hz 3x: 380 Volt.
Machine's weight about: 1000 kg.
Length: 1500 mm.
Width: 1500 mm.
Height: 2200 mm.
Centre height: 130 mm.
