MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

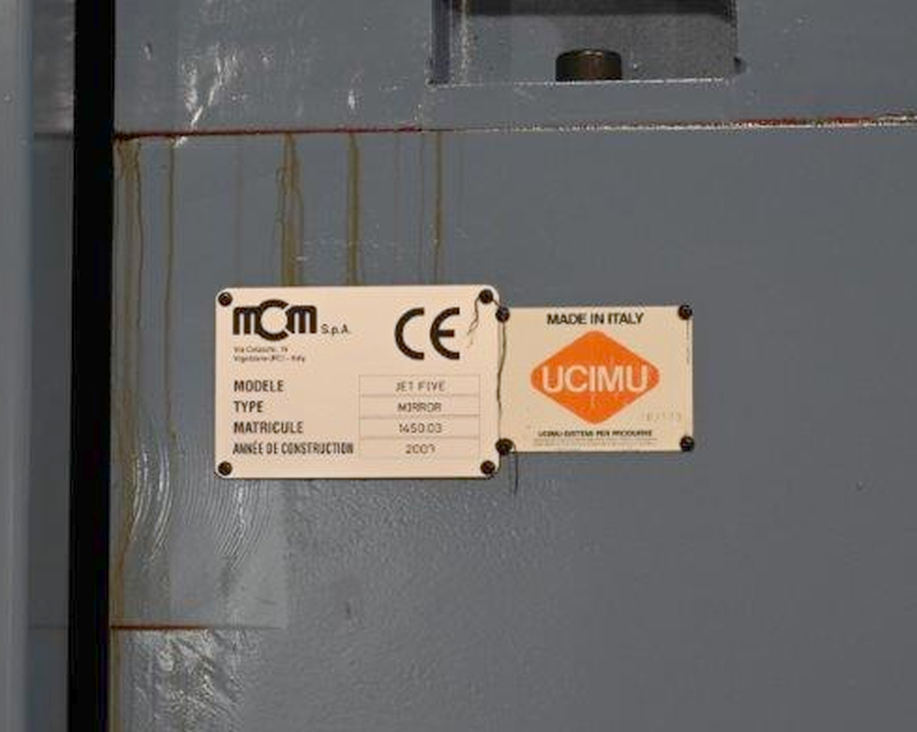

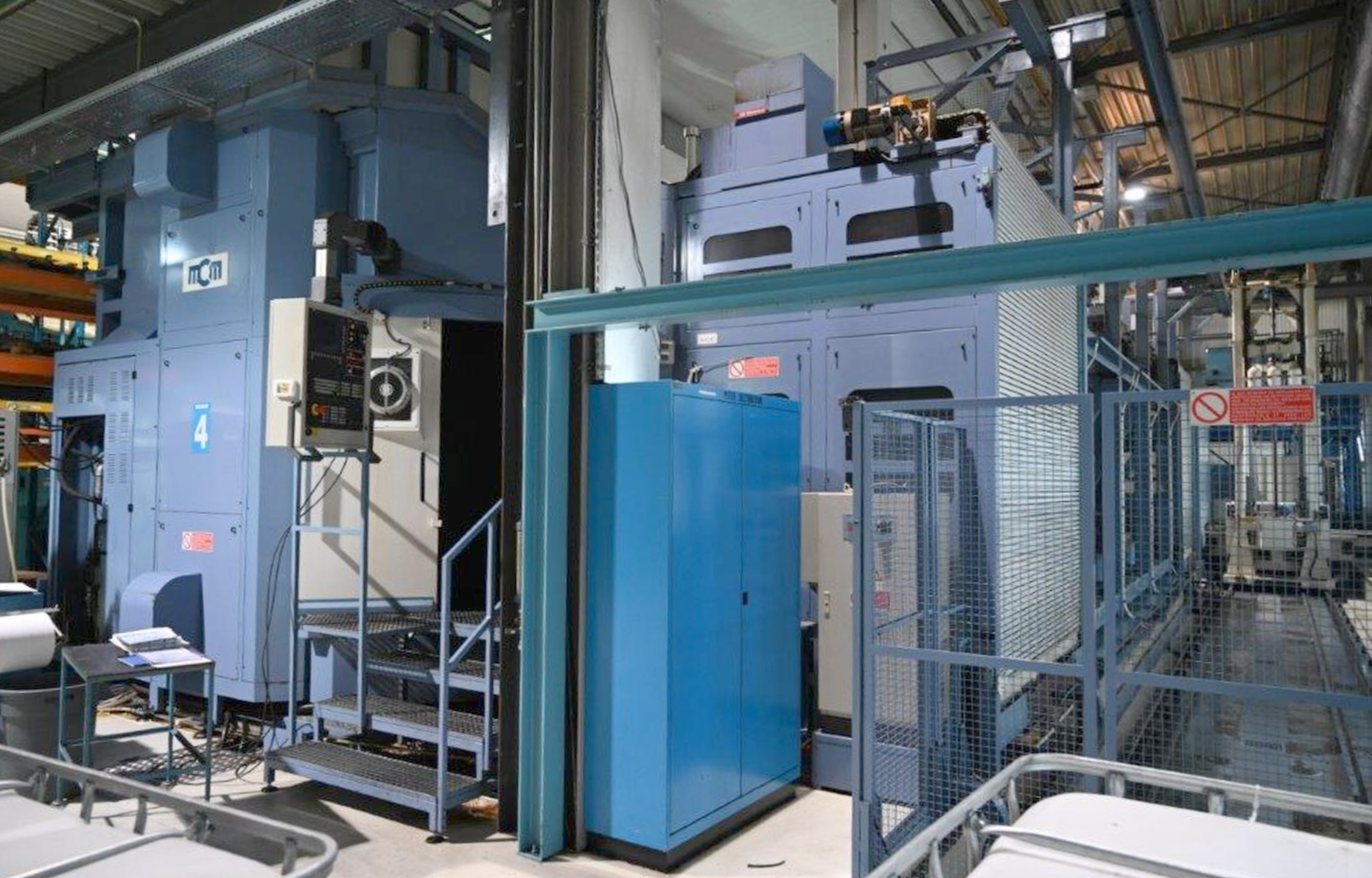

  • 020741 - MCM Jet Five Mirror
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 5.
Longitudinal travel (X-axis): 3000 mm.
Transversal travel (y-axis): 2000 mm.
Vertical travel (z axis): 2000 mm.
vertical travel (Y-axis): 1720 mm.
Table divisions (B): 0.001 °.
Swivel angle (a-axis): 175 °.
numbers: 8.
Length: 1250 mm.
Width: 1250 mm.
Transport weight: 3000 kg.

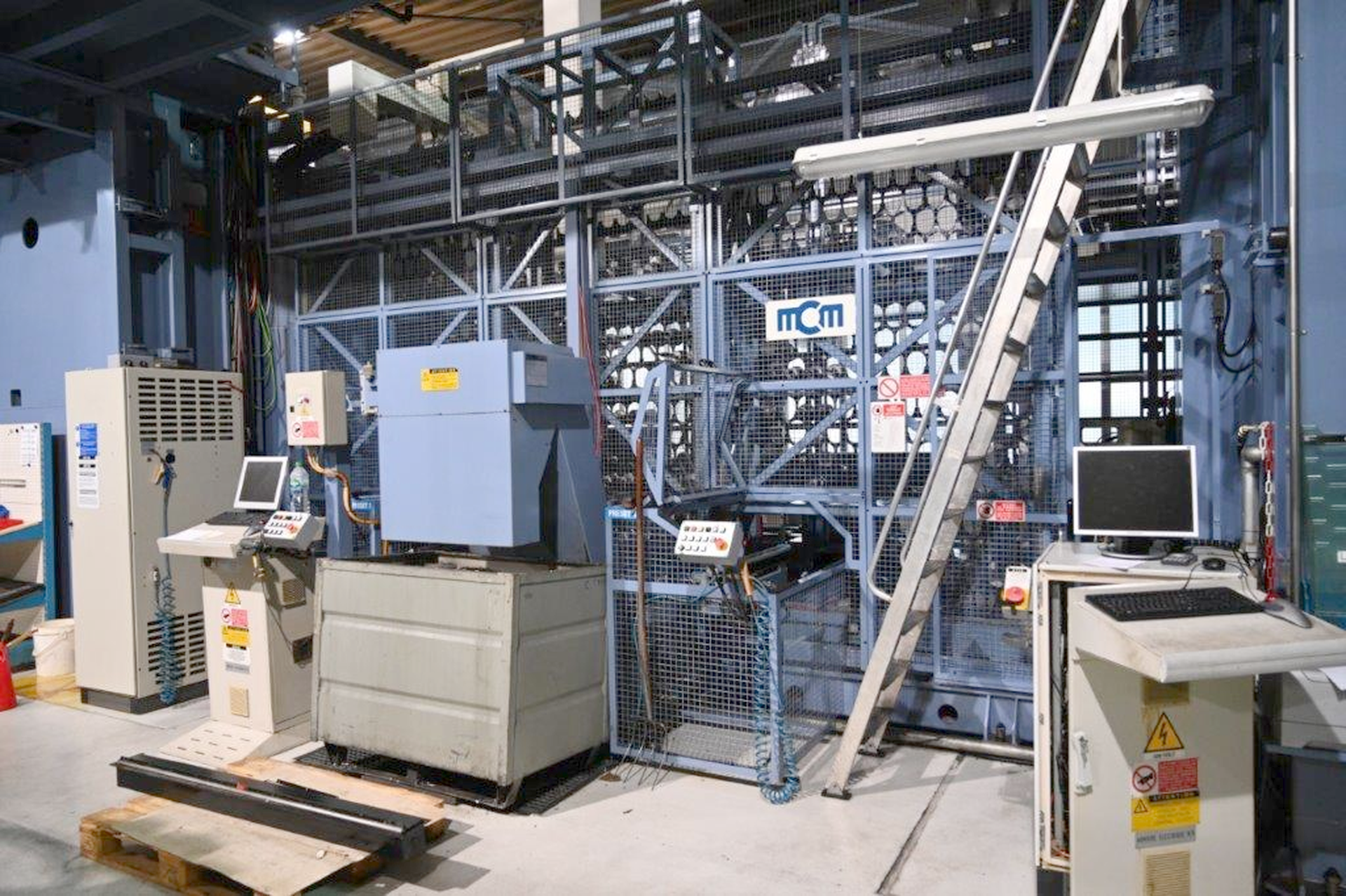

Tool magazine number of tool places: 640.
Spindle nose: HSK-A: 100.
up to: 3000 t/min.
X axis: 40 m/min.
Y axis: 40 m/min.
Z axis: 30 m/min.
Spindle motor: 50 kW.
