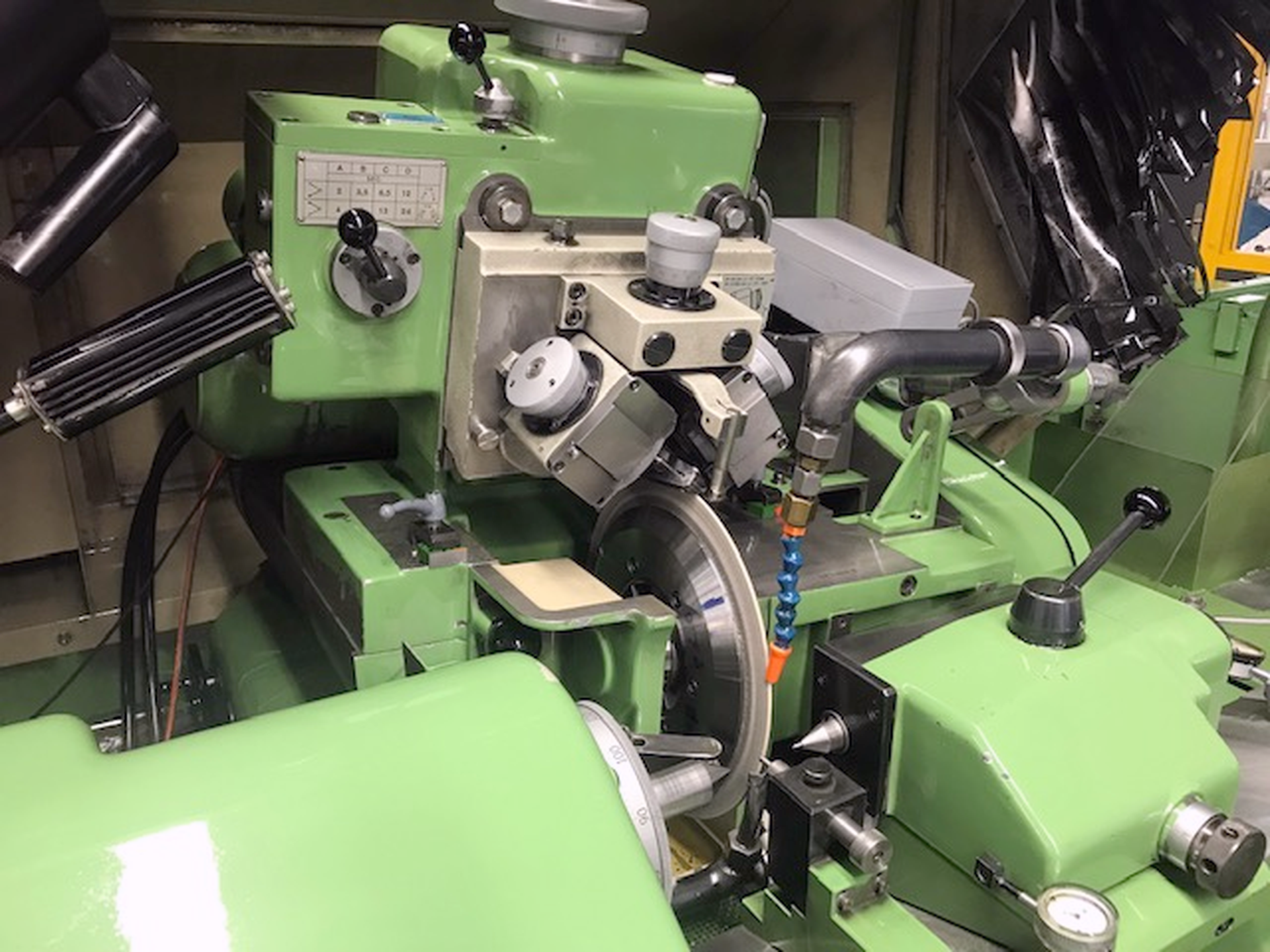

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Reishauer
  • Model:
  • 020643 - REISHAUER US
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Max. grinding length: 450 mm.
Max. clamping length: 1055 mm.
Max. work piece diameter: 250 mm.
min.: 4 mm.
max: 40 mm.
Workpiece spindle bore: 45 mm.
Workpiece weight on centres max.: 200 kg.
Max. angle pitch +: 40 °.
Max. angle pitch -: 40 °.
Max. module: 10.
Bore: 40 mm.
number (steps): 27.
from: t/min.
up to: 160 t/min.
Voltage 50 Hz 3x: 380 Volt.
Grinding spindle motor: 4 kW.
Total power required: 15 kVA.
Machine's weight about: 4700 kg.
Length: 3300 mm.
Width: 1930 mm.
Height: 1800 mm.
