MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Manufacturer:
DMG

Model:

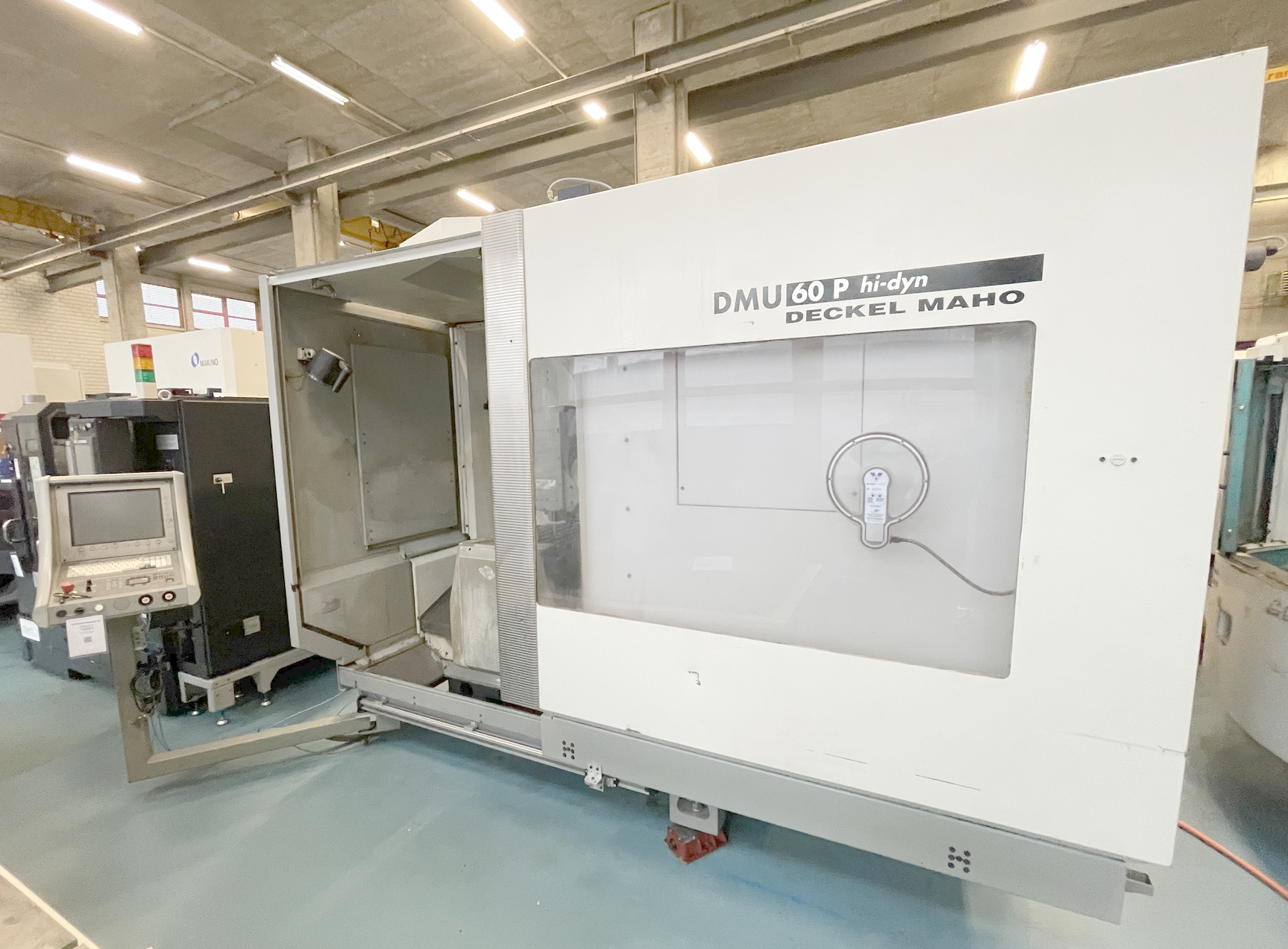

019561 - DMG DMU 60 P hy-din

Condition:
1

YOM:
NA

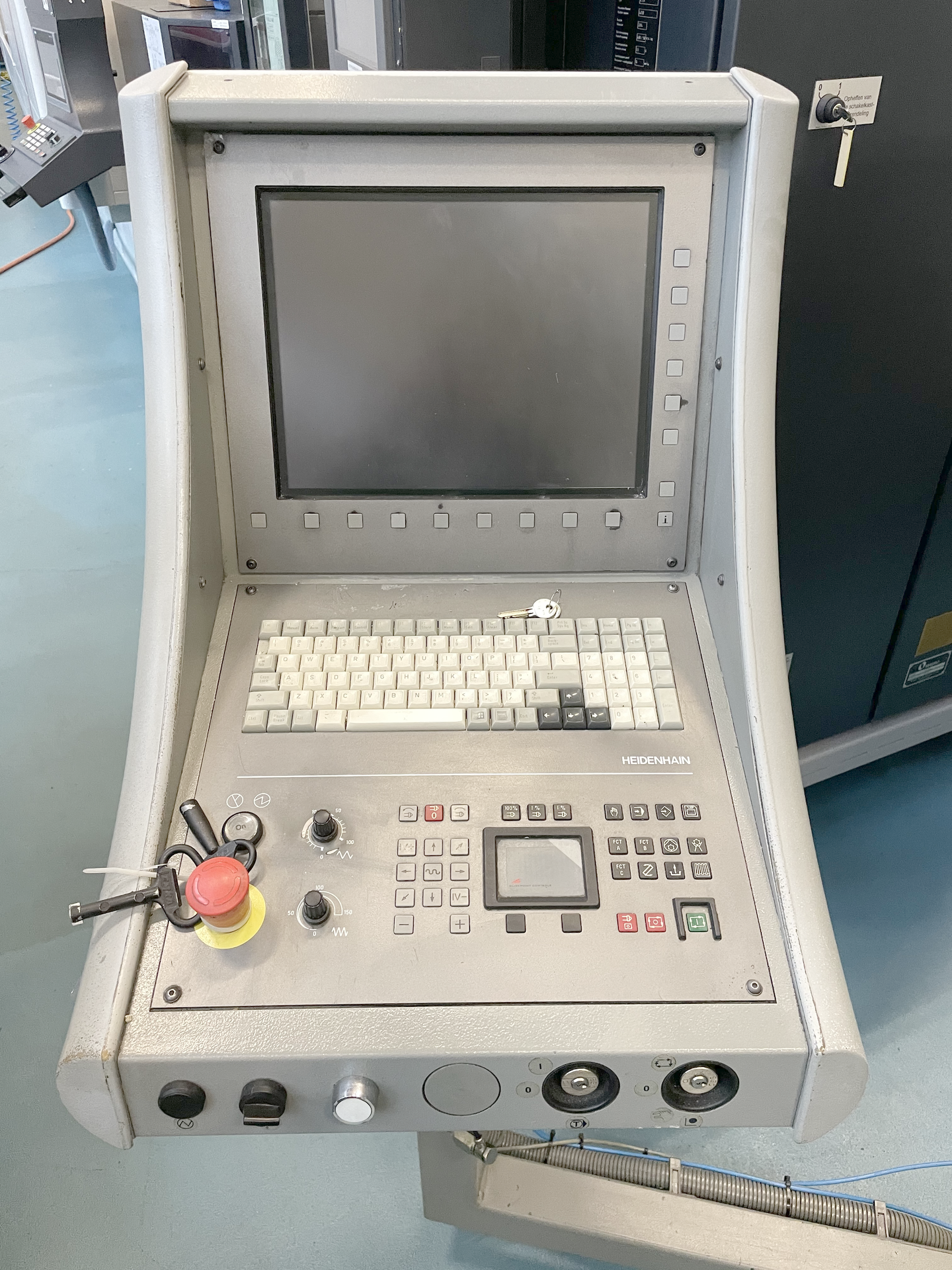

Control:
NA

Price:
POA

Seller:
Muller Machines SA

Country:

DESCRIPTION

Number of axis simultaneous: 5.
Number of spindles: 1.
Number of tables: 1.

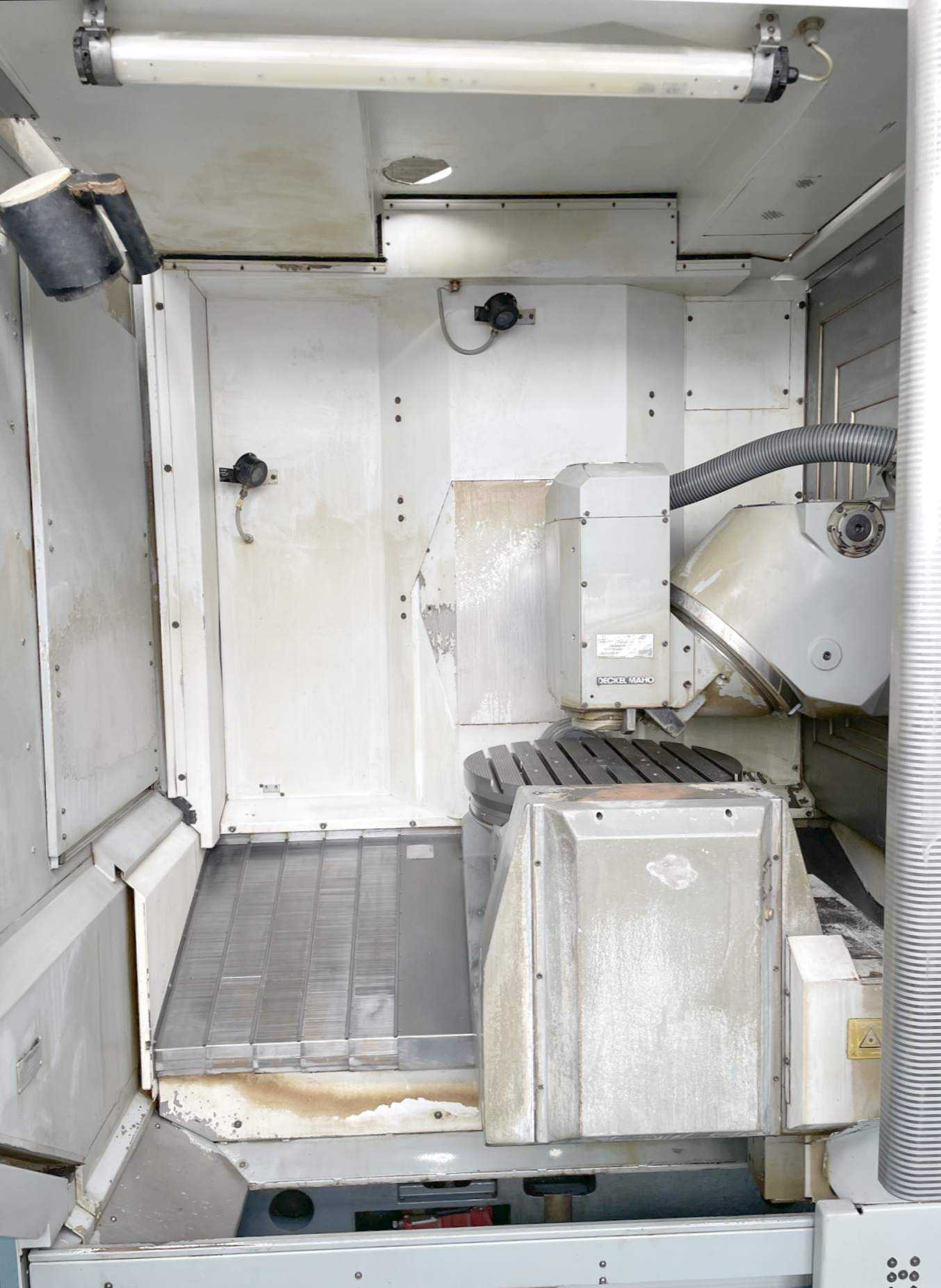

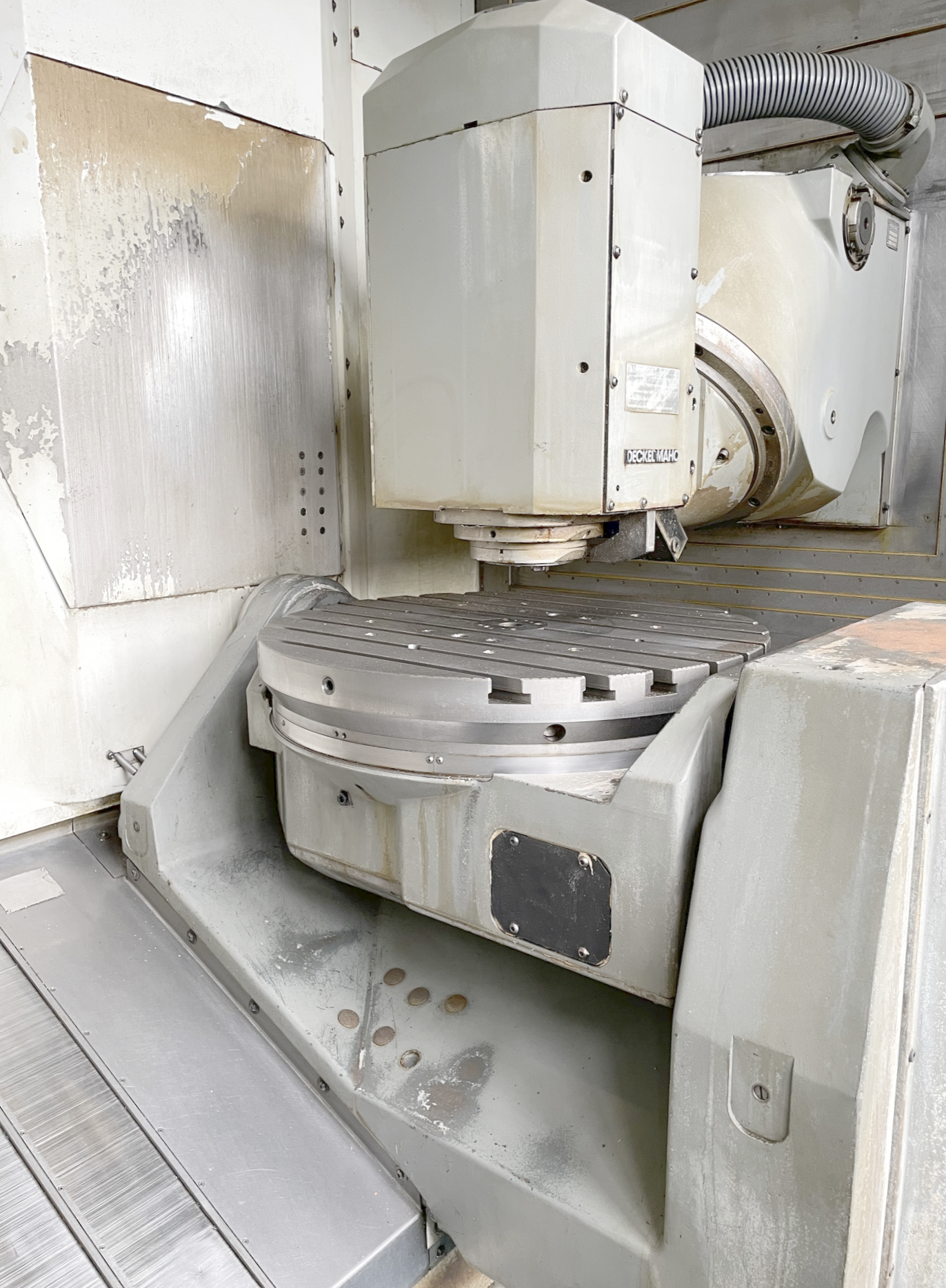

Circulary table diameter: 630 mm.
Number of T-channels: 9.
Distance of the T-slots: 63 mm.
T-channel width: 14H7 mm.
Centering bore diameter: 50H6 mm.
Longitudinal travel (X-axis): 600 mm.
Transversal travel (y-axis): 700 mm.
Vertical travel (z axis): 600 mm.
Height: 2628 mm.
Diameter: 920 mm.
Table load max.: 500 kg.
Table divisions (B): 360 °.

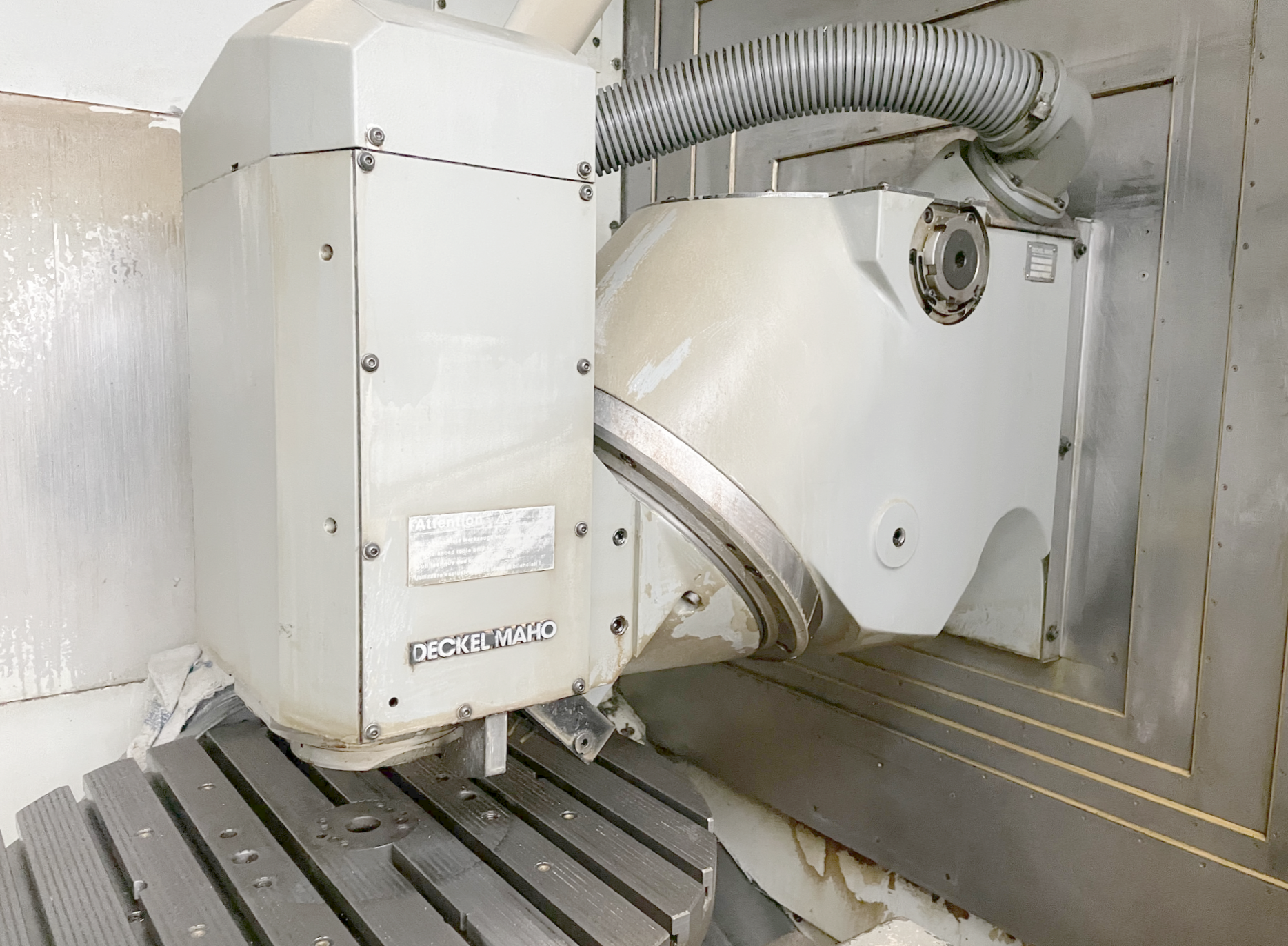

Swivel angle (a-axis): +45/-30 °.
Holding torque A-axis: 3866 Nm.
Clamping torque C-axis: 6008 Nm.
Torque max.: 2650 Nm.

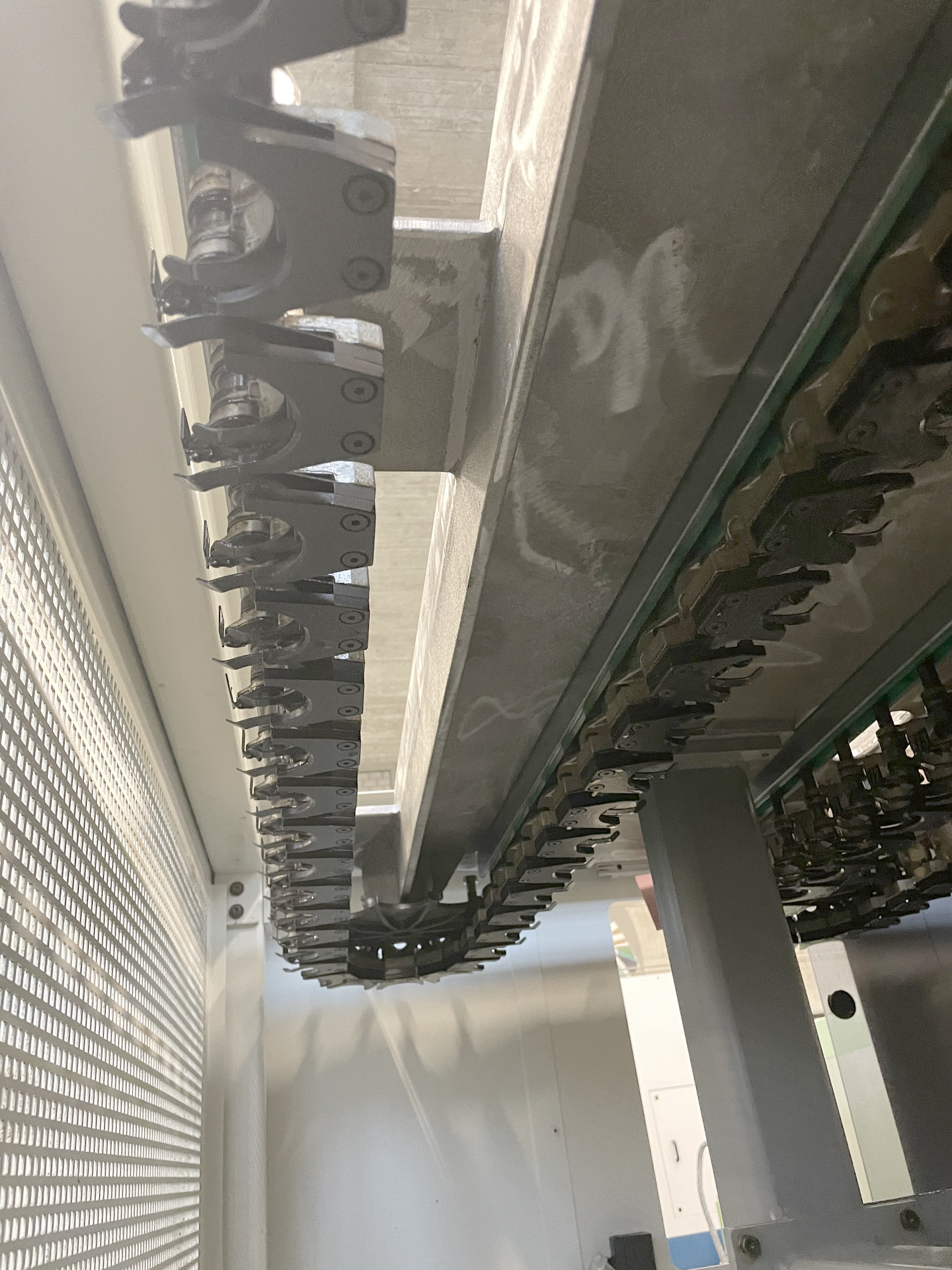

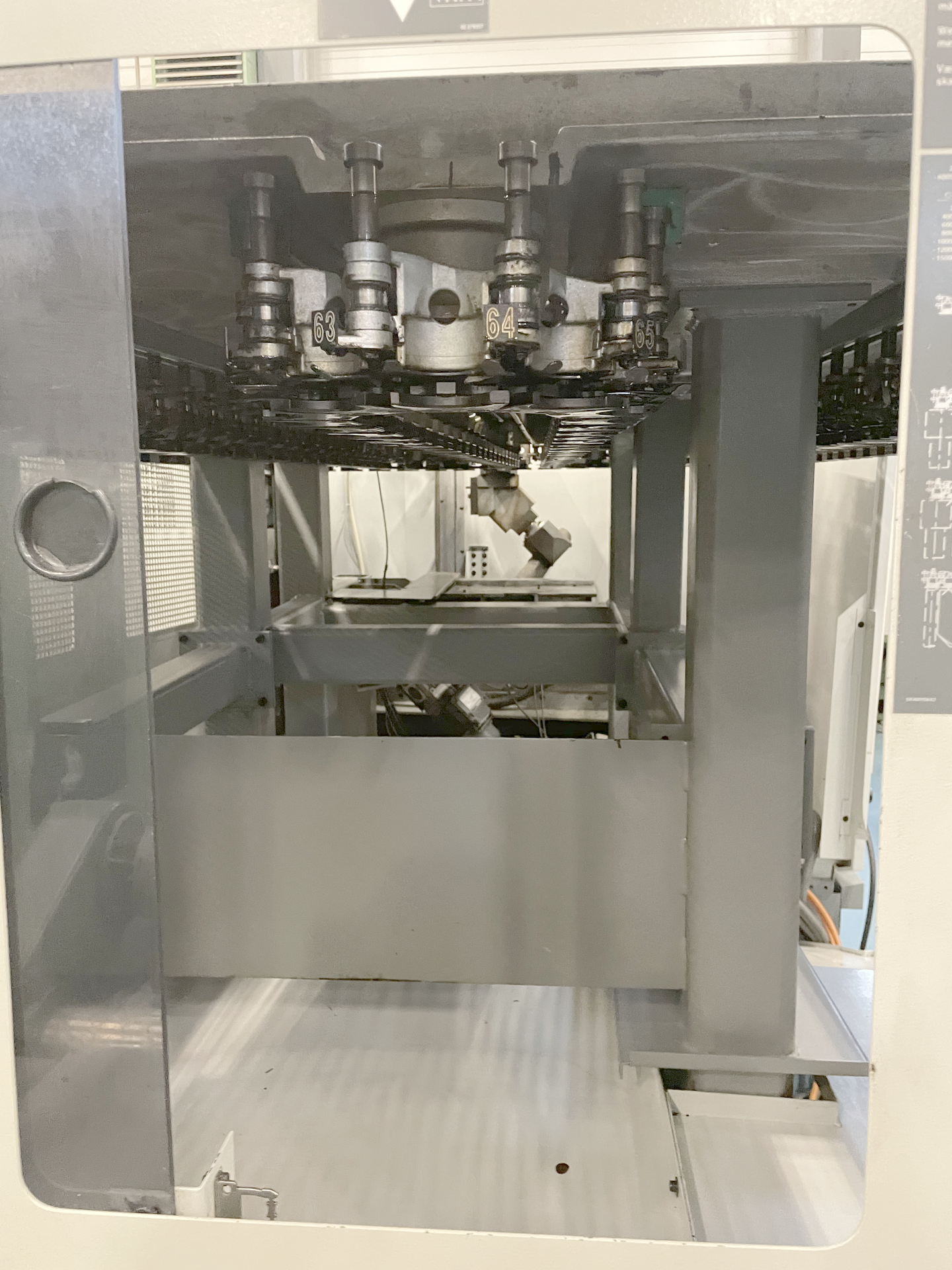

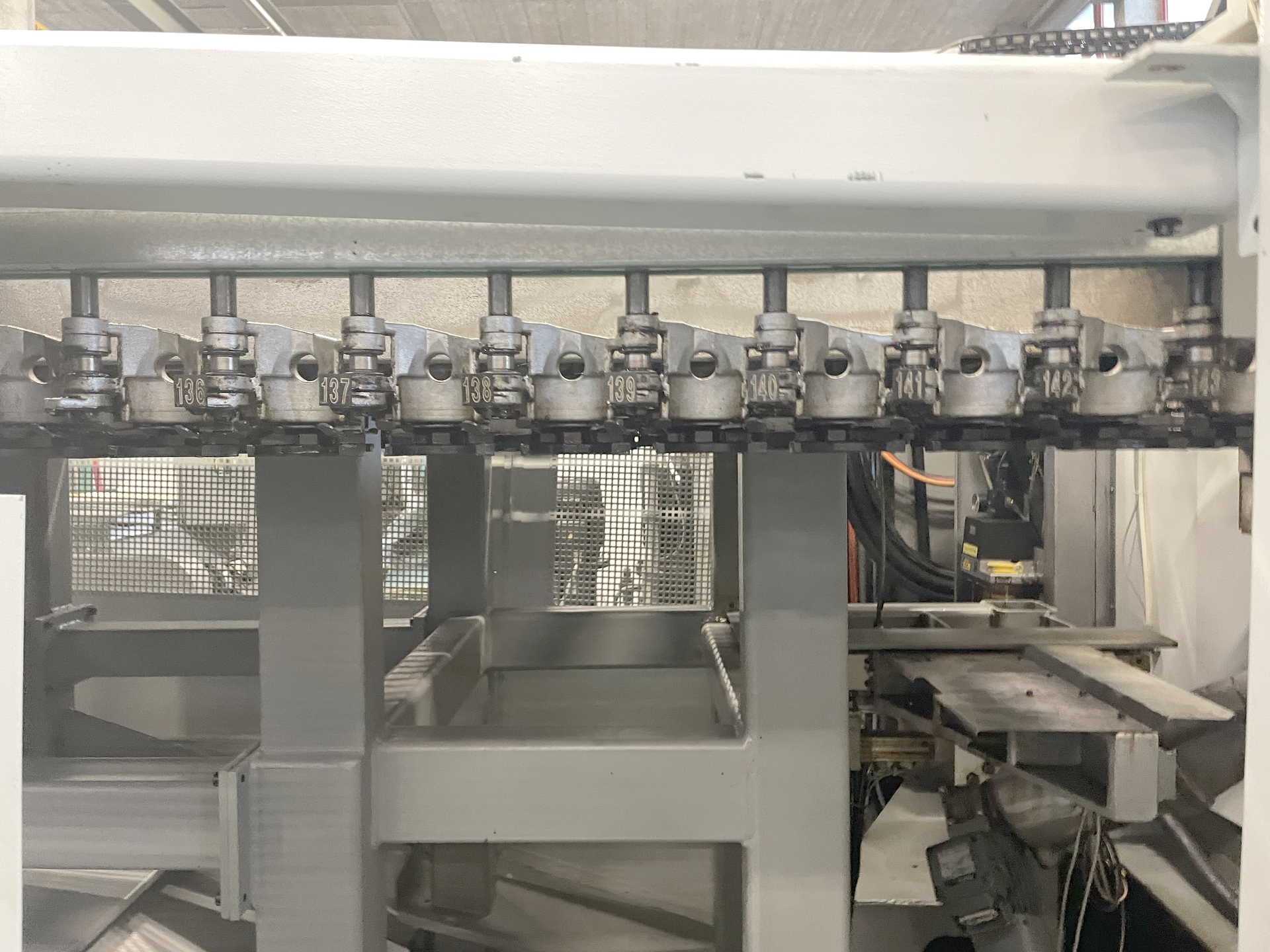

Number of tools: 180.
Tool diameter: 80 mm.
Diameter with free adjacent pockets: 160 mm.
Tool lenght: 350 mm.
Max. tool-weight: 10 kg.
Spindle nose SK: 40 DIN 69871.
up to: 15000 mm/min.
longitudinal from: 20 mm/min.
transversal from: 20 mm/min.
vertical from: 20 mm/min.
Rapid traverse:: 40 m/min.
Resolution: µm.
Air connect: 5 - 8 bar.
Voltage 50 Hz 3x: 400 Volt.
Total power required: 44 kVA.
Noise level: 80 dB (A).
Machine's weight about: 7500 kg.

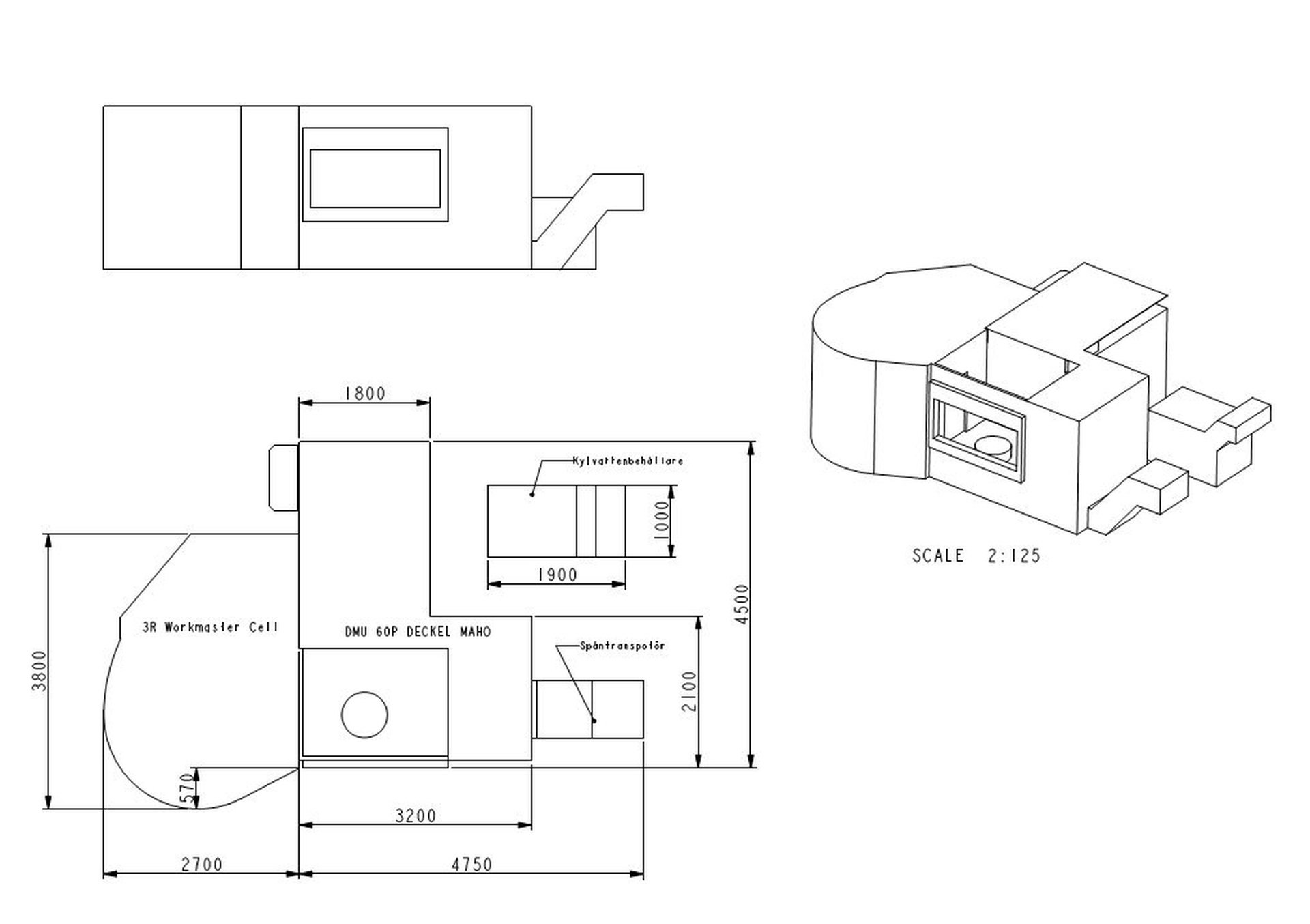

Length: 7500 mm.
Width: 4500 mm.

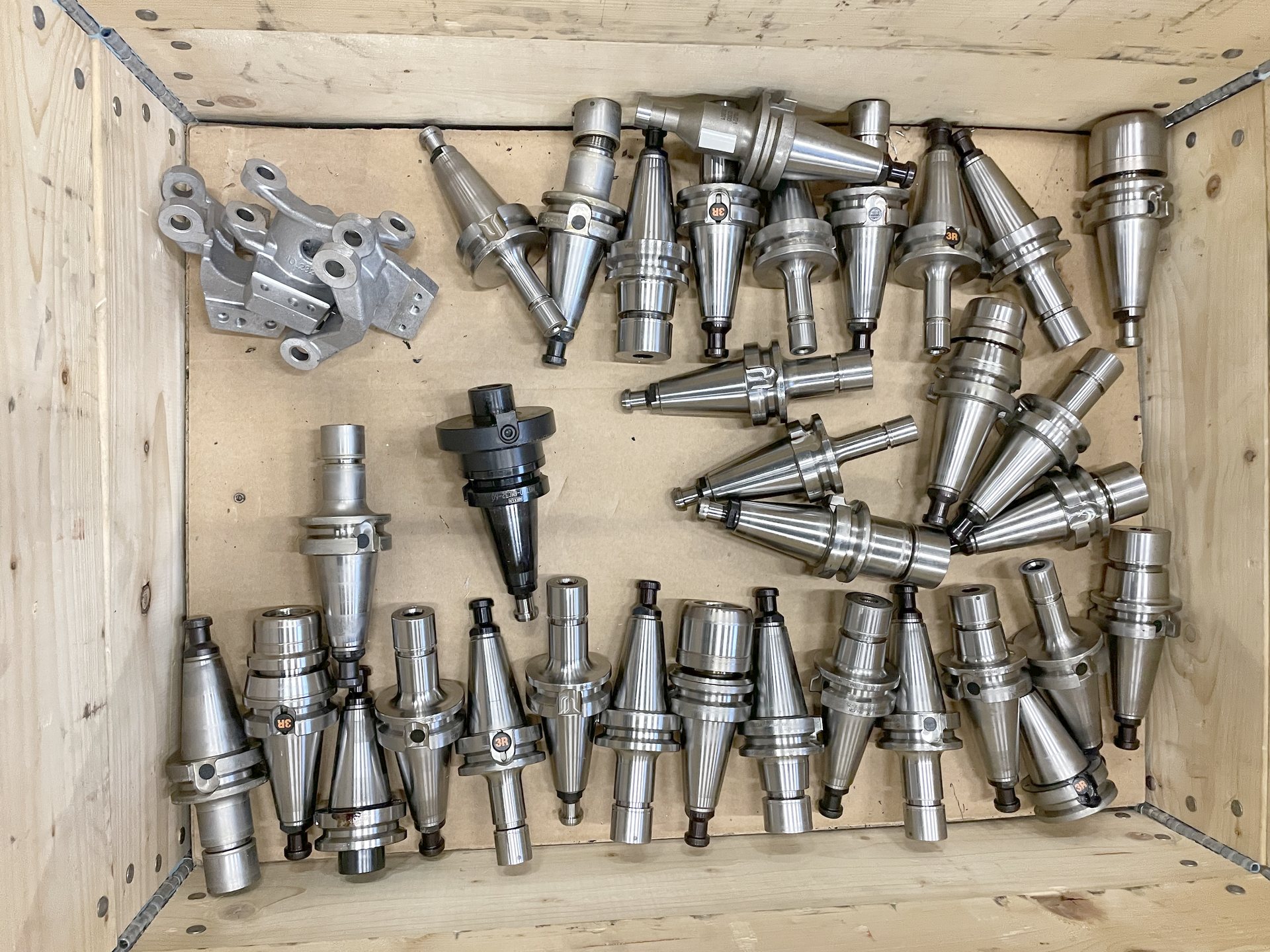

Set of toolholders: SK 40 ca 150x.

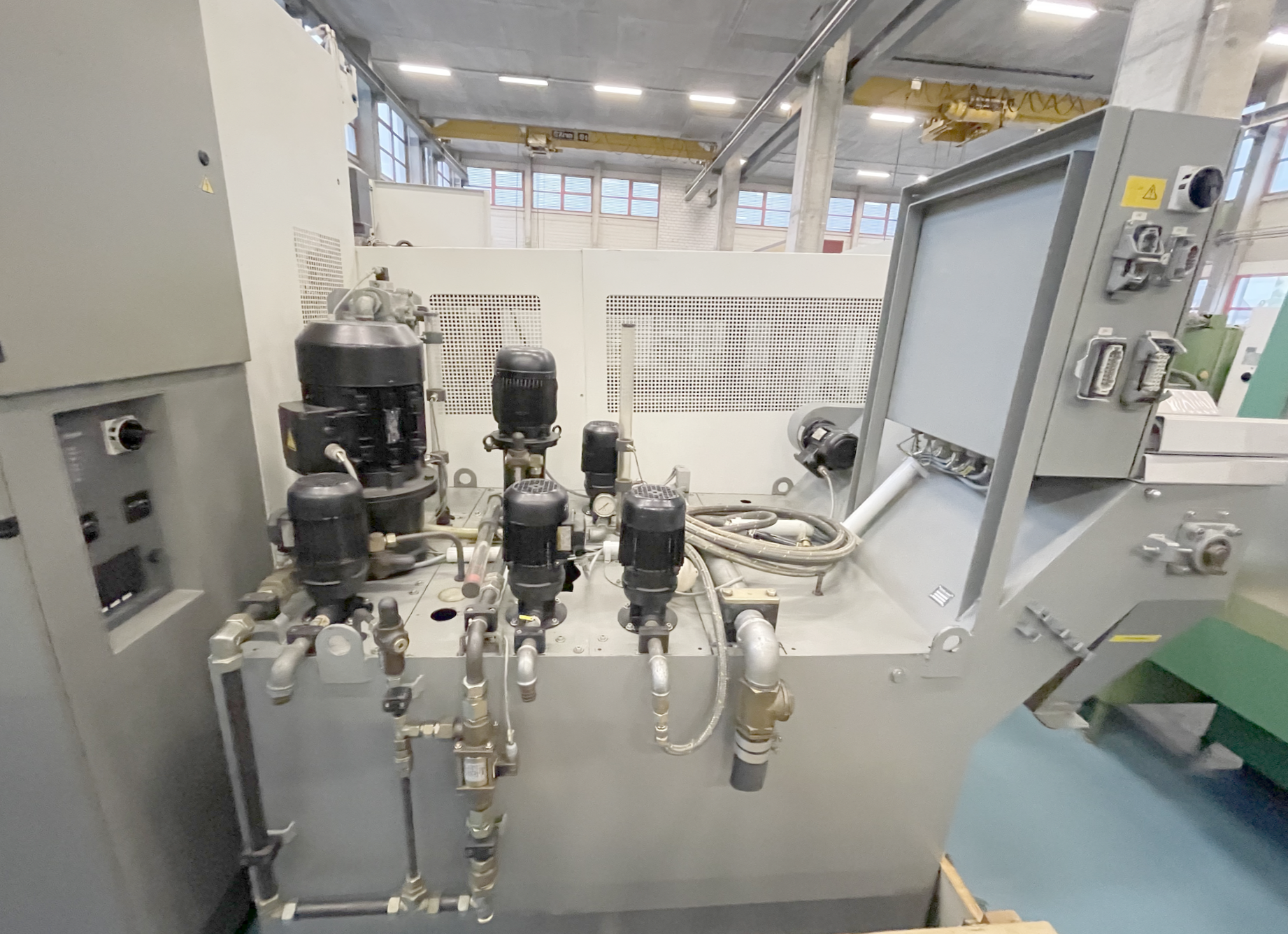

High pression colant device: 40 bar.
