MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Tschudin
  • Model:

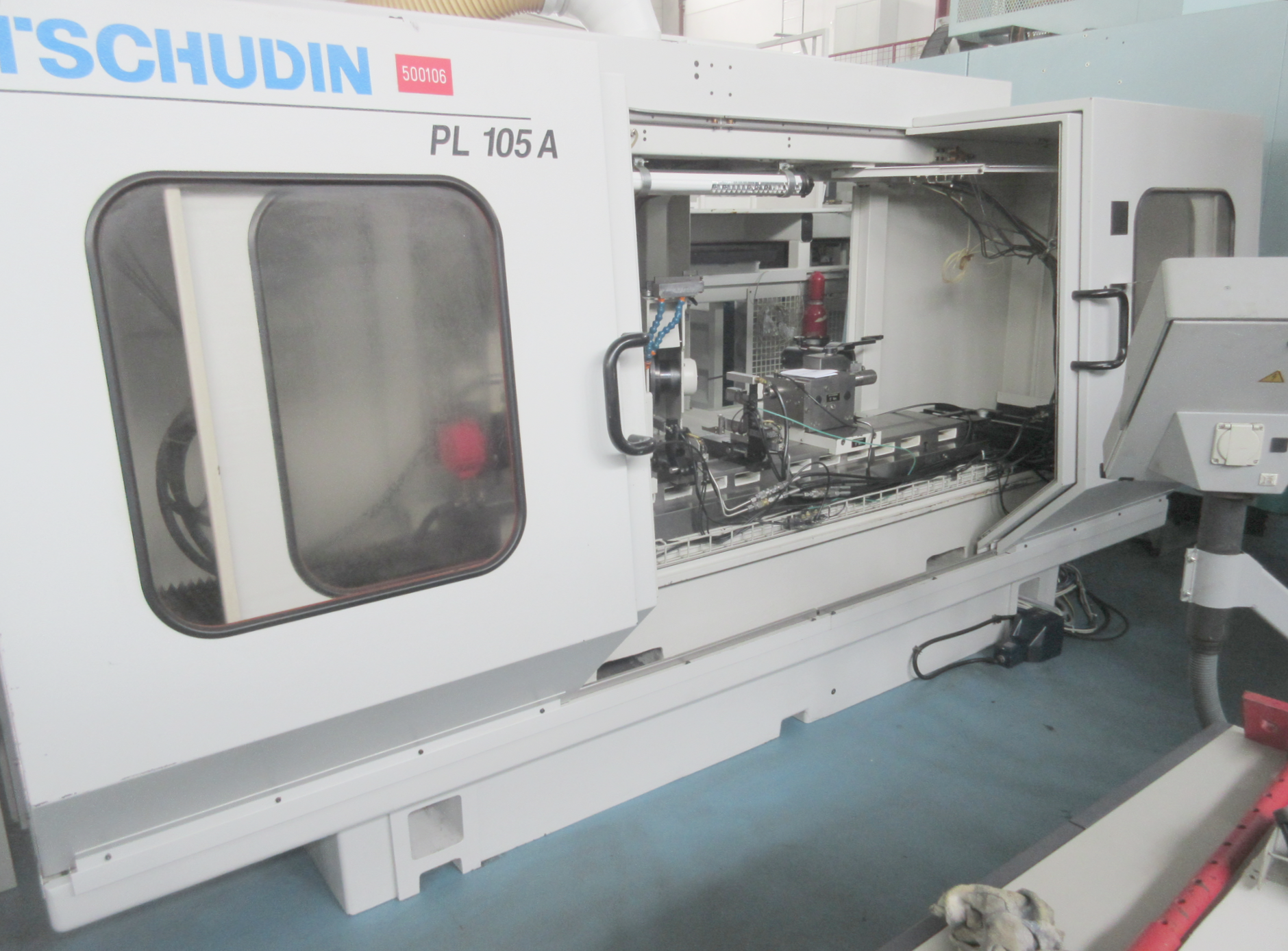

  • 019549 - TSCHUDIN PL 105 A
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 175 mm.
Distance between centres: 1000 mm.
Max. grinding diameter: 348 mm.
Grinding length: 1000 mm.
Workpiece weight on centres max.: 250 kg.
Diameter: 500 mm.
Width: 3550 mm.
Peripheral speed: 45 m/s.
Max. travel: 340 mm.
Resolution: mm.
Feed speed up: 8000 mm/min.
Swivelling range: +9/-9 °.
from: 20 t/min.
up to: 1000 t/min.
rotatable: +30/-45 °.
Précision d'usinage: mm.
taper in spindle: MT: 6.
Taper in tailstock:: 4 CM.
Tailstock travel of barrel: 50 mm.
Voltage 50 Hz 3x: 400 Volt.
Grinding spindle motor: 15 kW.
Total power required: 16 kVA.
Machine's weight about: 5100 kg.
Length: 4410 mm.
Height: 1900 mm.
