MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Manufacturer:
HASEGAWA

Model:

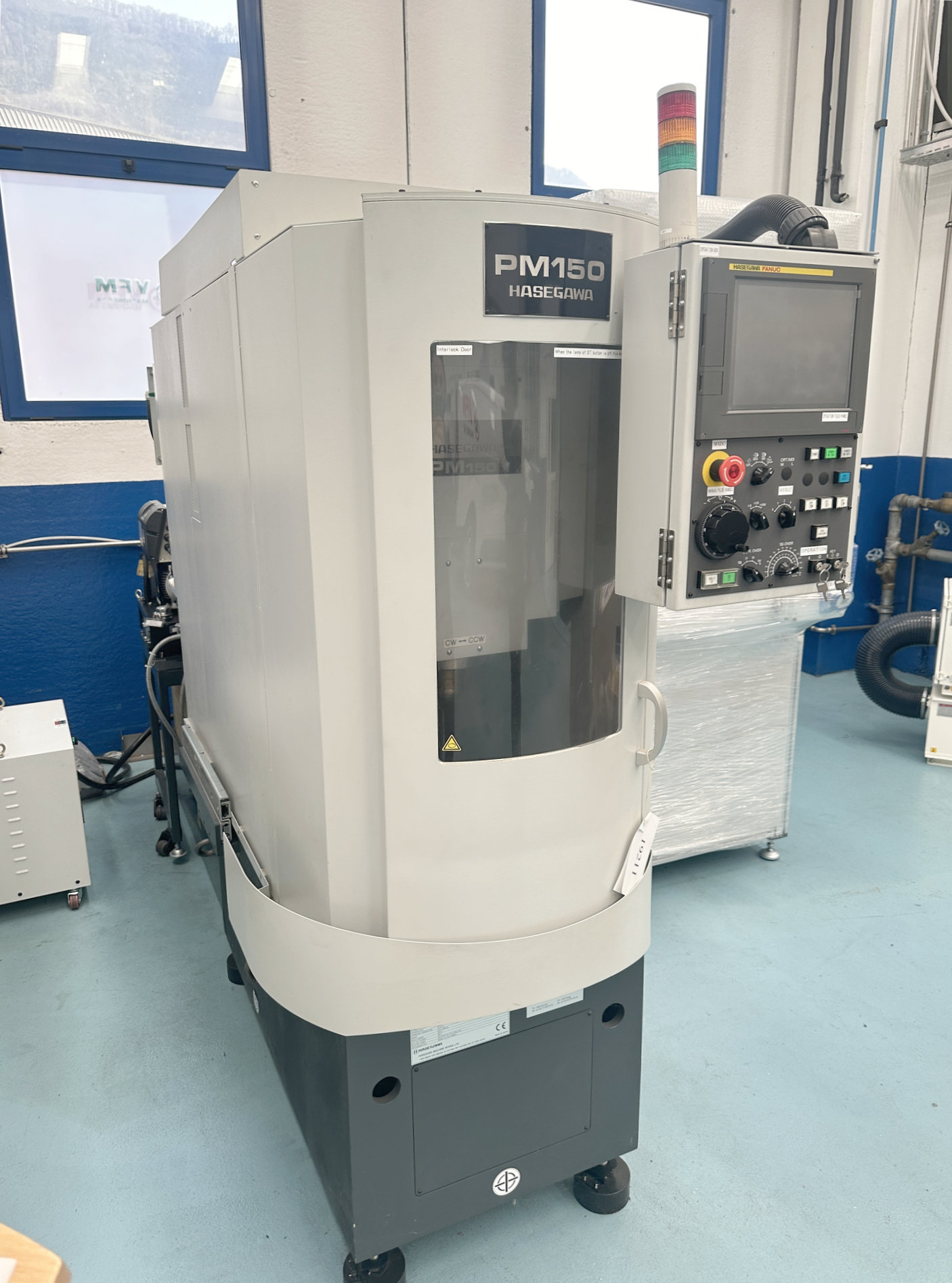

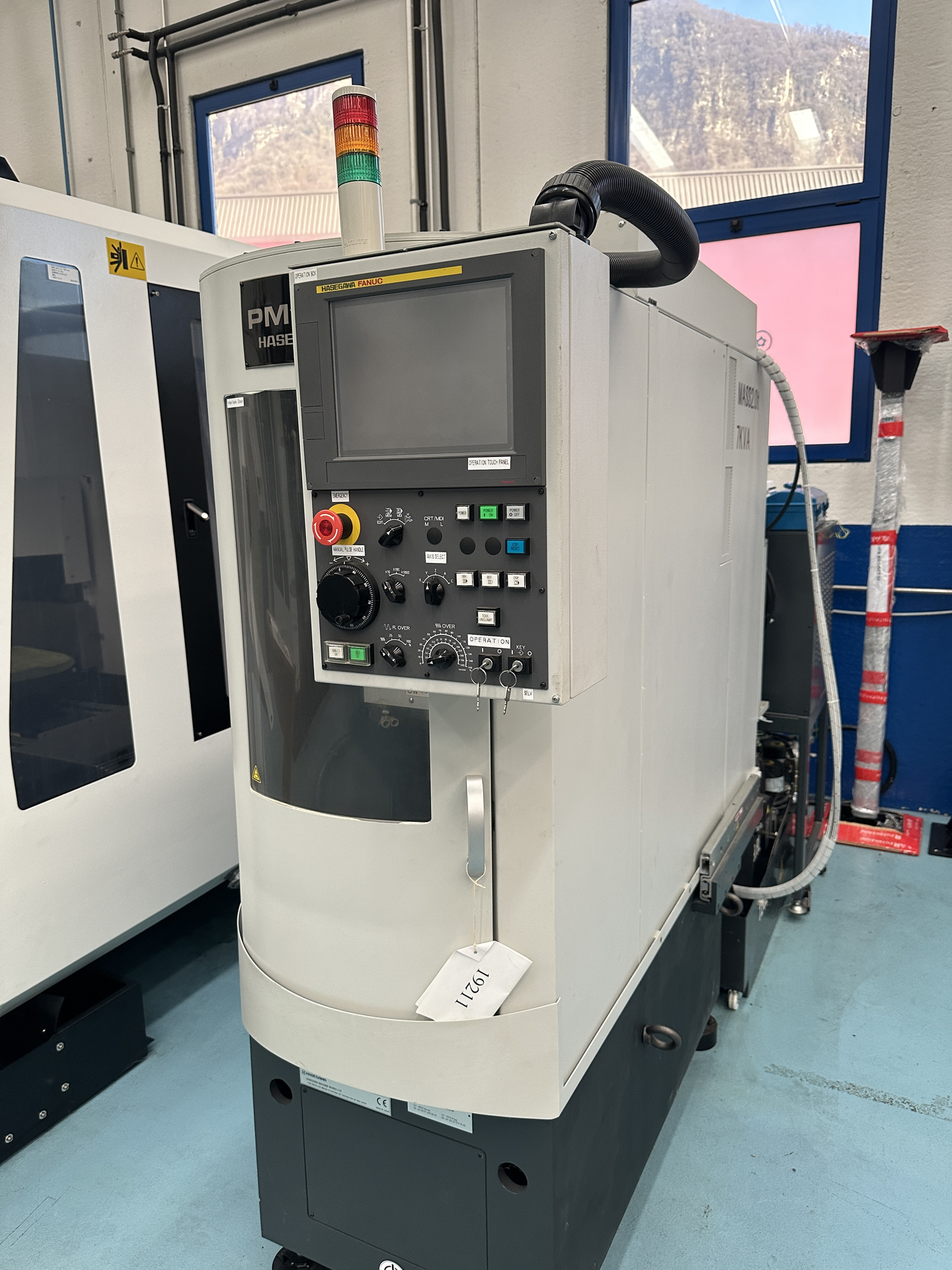

019211 - HASEGAWA PM 150-01

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Muller Machines SA

Country:

DESCRIPTION

Table length: 300 mm.
Table width: 260 mm.
Longitudinal travel (X-axis): 150 mm.
Transversal travel (y axis): 225+50 ATC mm.
Vertical travel (z axis): 200 mm.
Table load max.: 80 kg.
spindle to table: 140 ~ 340 mm.
Taper in spindle: HSK-E32.
vertical from: 100 t/min.
up to: 30000 t/min.
number of tools: 17.
Rapid traverse:: 30 m/min.
Milling spindle motor: 3.0 / 4.5 kW.
Total power required: 12 kVA.
Machine's weight about: 2000 kg.
Length: 1750 mm.
Width: 600 mm.
Height: 1800 mm.

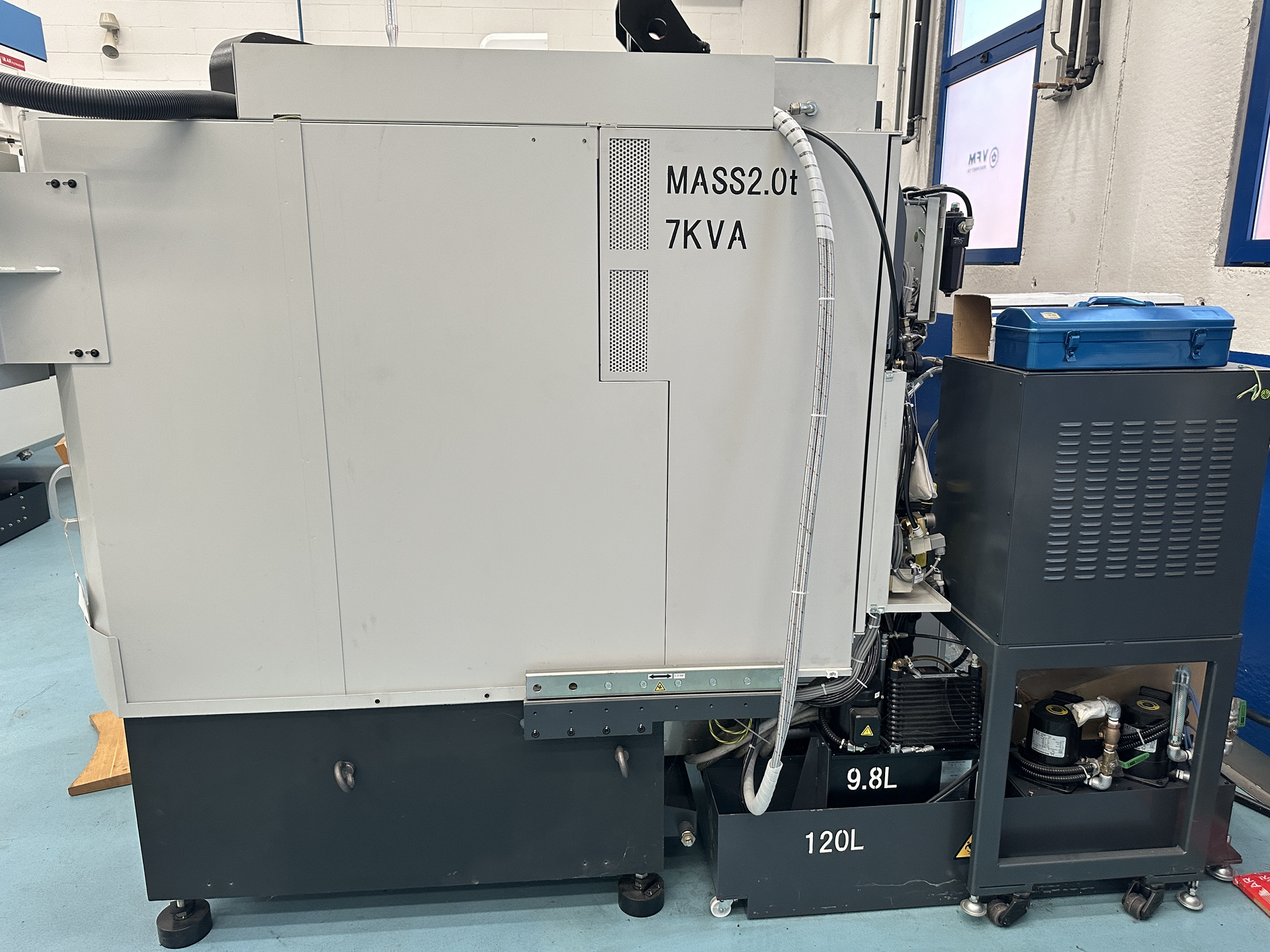

Coolant system: 120 ltr.
Tool changer: (number of tools): 17.
Automatic setting tool: BLUM Z-Pico.

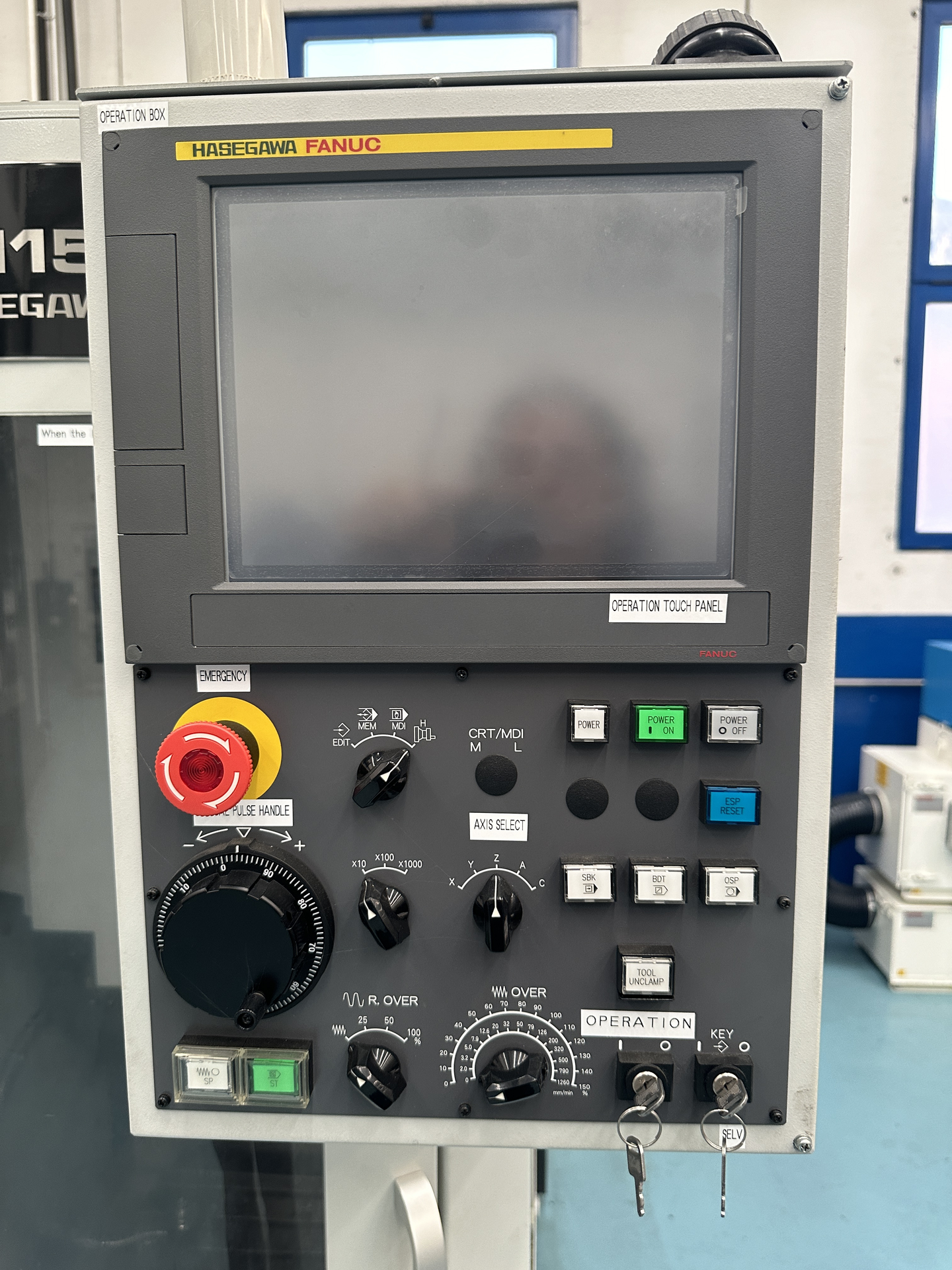

Interface:: Flash/USB/Ethernet.
