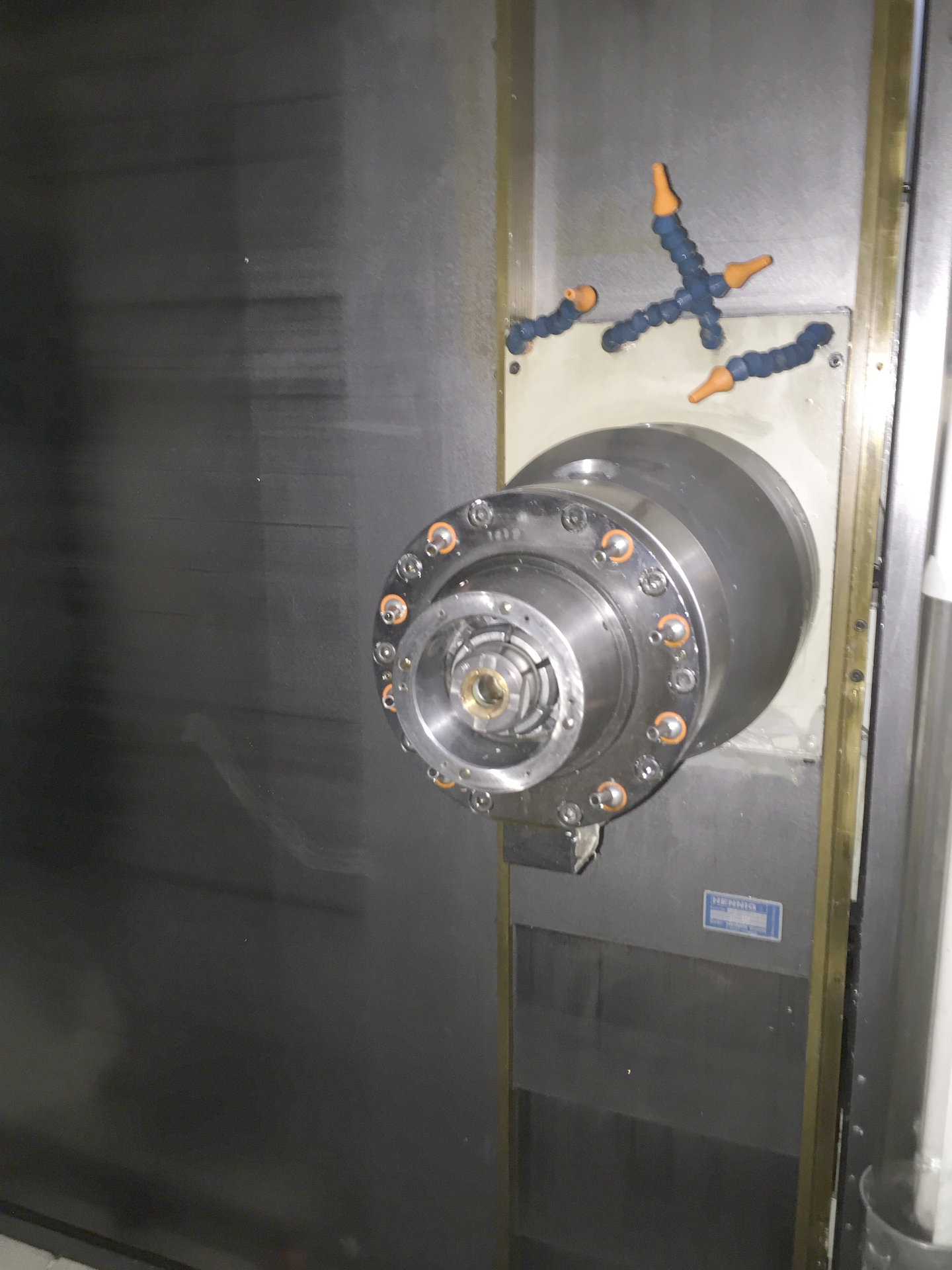

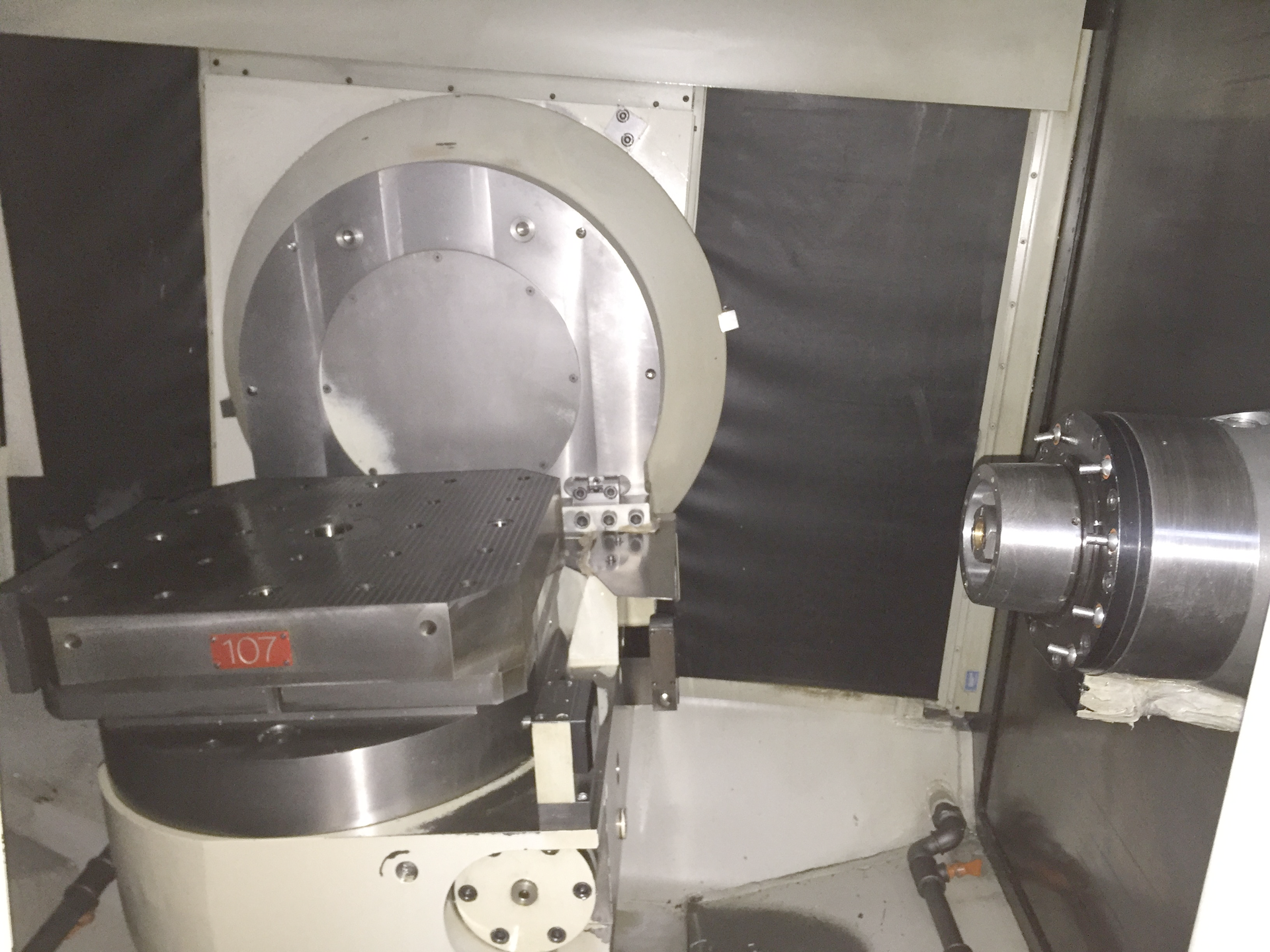

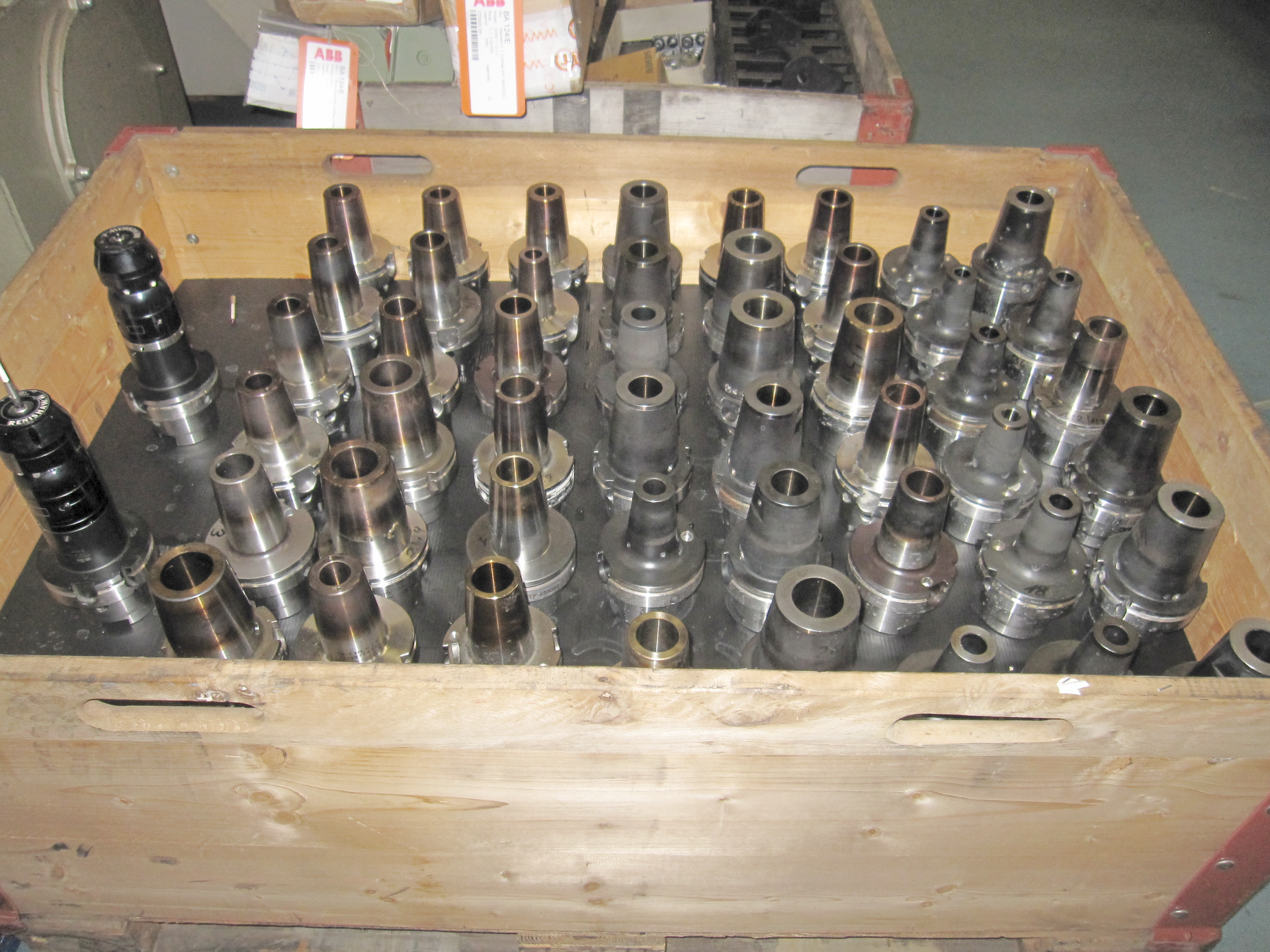

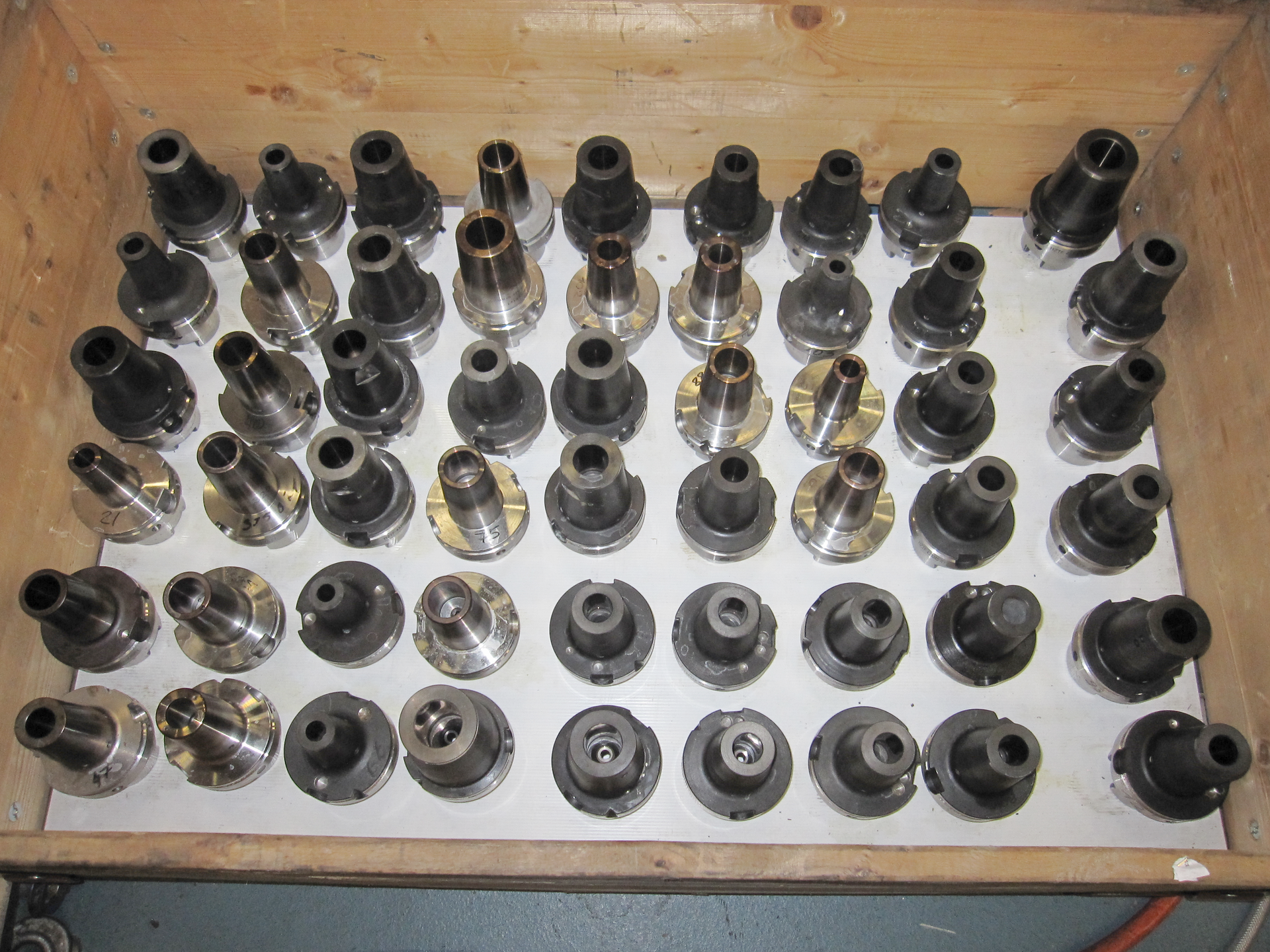

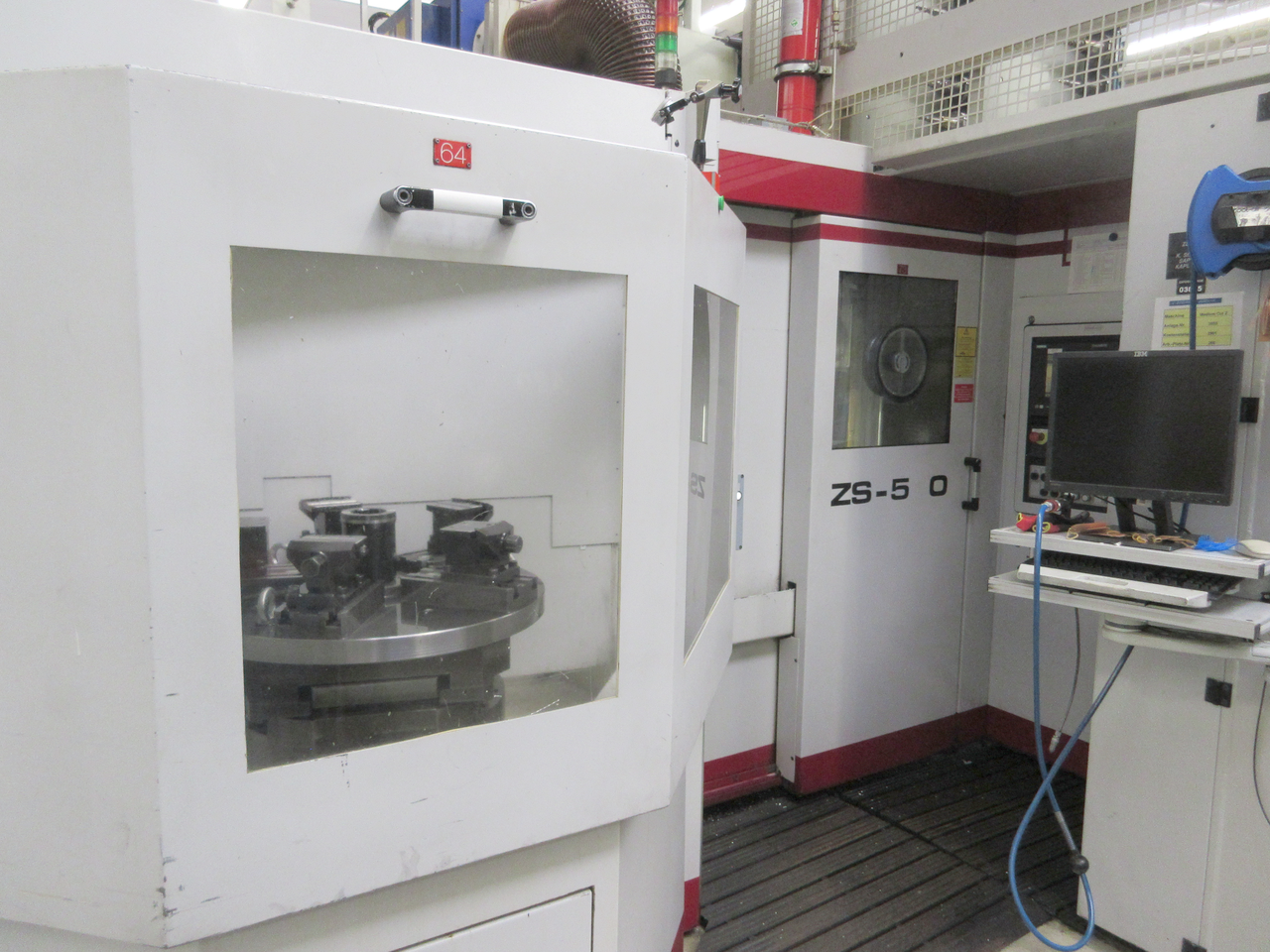

Number of axis simultaneous: 5. Number of spindles: 1. Table load max.: 800 kg. Longitudinal travel (X-axis): 800 mm. Transversal travel (y-axis): 750 mm. Vertical travel (z axis): 620 mm. Height: 4000 mm. Diameter: 500 mm. Table divisions (B): 0,001° °. A axis: 145° (+35/-110°). Table speed: 30 t/min. Pallets:: System Staflex. numbers: 4. Length: 8000 mm. Width: 5000 mm. Transport weight: 200 kg. Number of tools: 60. Tool diameter max.: 120 mm. Diameter with free adjacent pockets: 200 mm. Tool lenght: 400 mm. Max. tool-weight: 15 kg. Spindle nose:: HSK-A 100. Spindle speeds:: STEP TEC. up to: 12000 t/min. Torque max.: 250 Nm. Rapid traverse:: 40 m/min. Air connect: 5 bar. Voltage 50 Hz 3x: 400 Volt. Spindle motor: 40 kW. Total power required: 120 kW. Machine's weight about: 22000 kg.
