MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Cincinnati
  • Model:

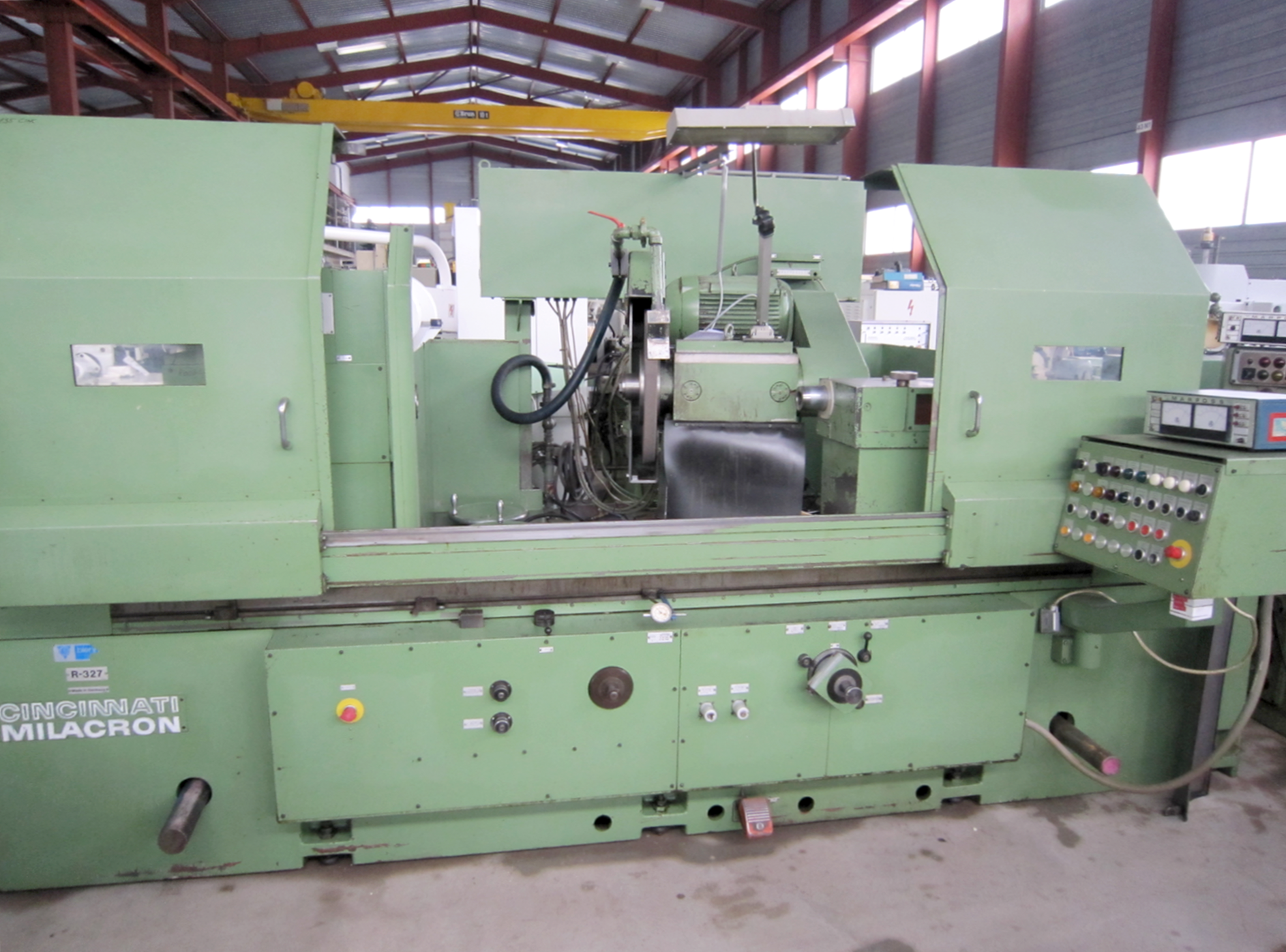

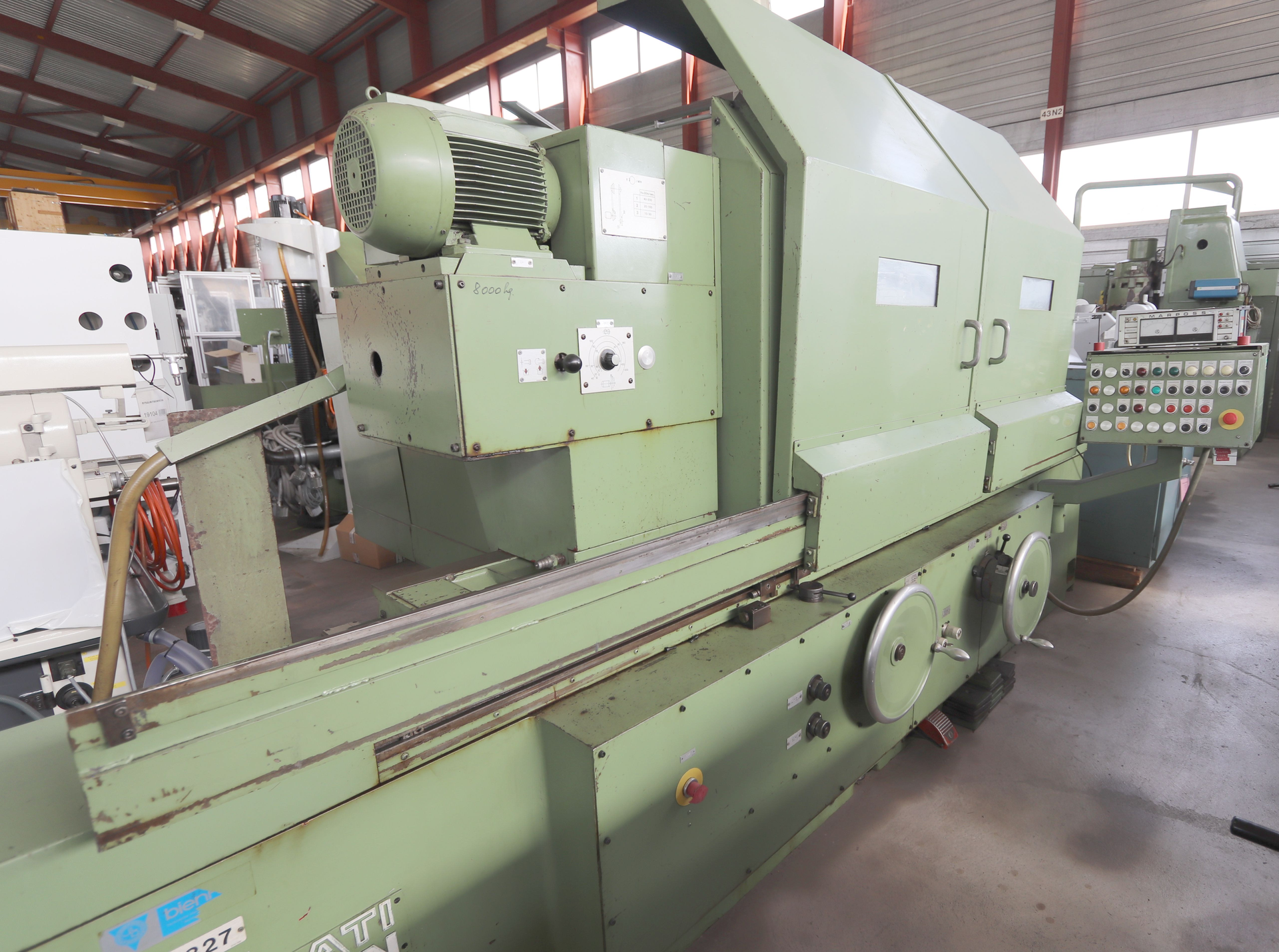

  • 014135 - CINCINNATI R 327
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 390 mm.
Distance between centres: 1600 mm.

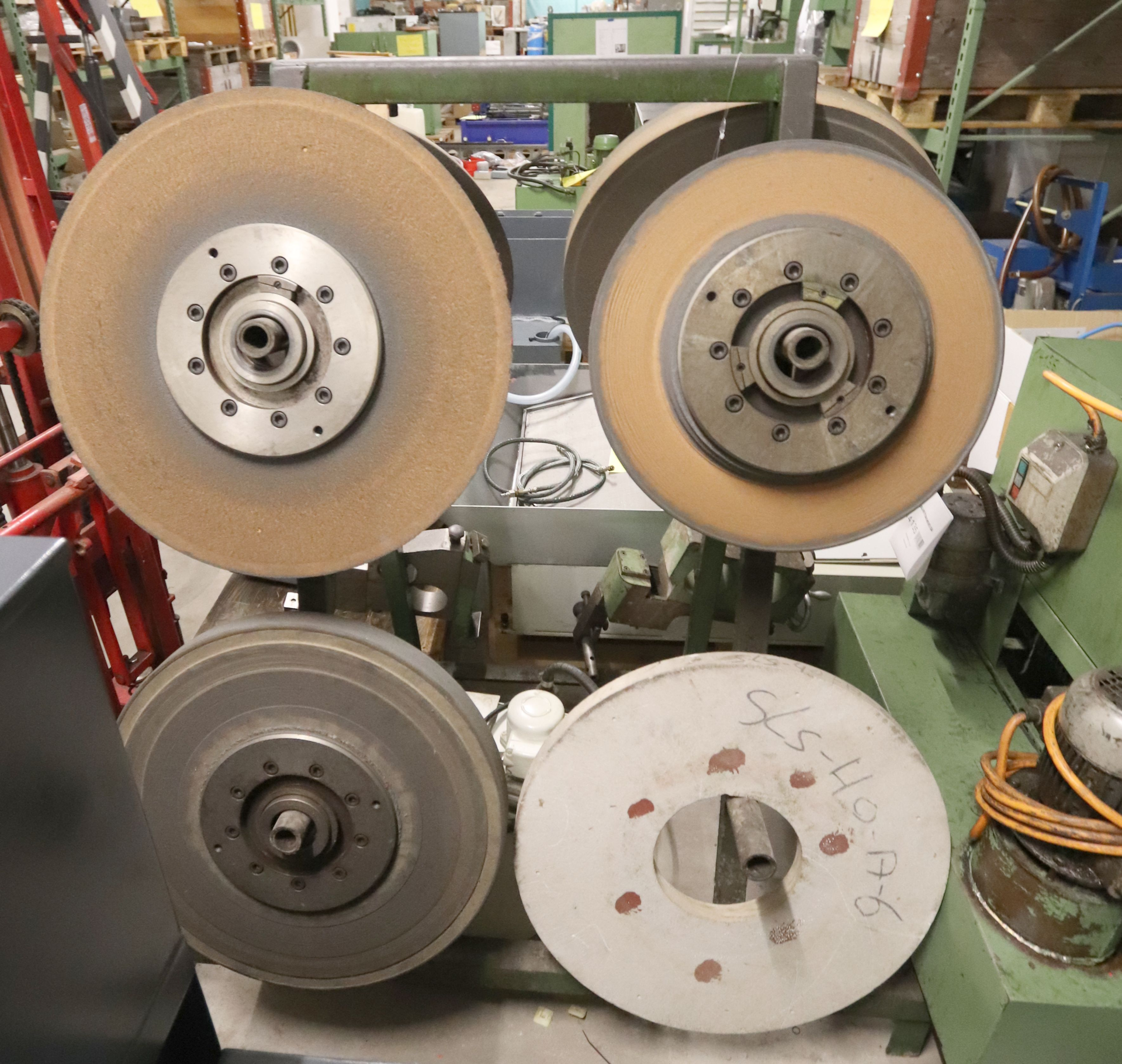

Diameter: 600 mm.
Width: 2300 mm.
Bore: 305 mm.
Max. grinding diameter: 600 mm.
Workpiece weight on centres max.: 400 kg.
Peripheral speed: 30 m/s.
Angular displacement: °.
number (steps): 6.
from: m/min.
up to: 6 m/min.

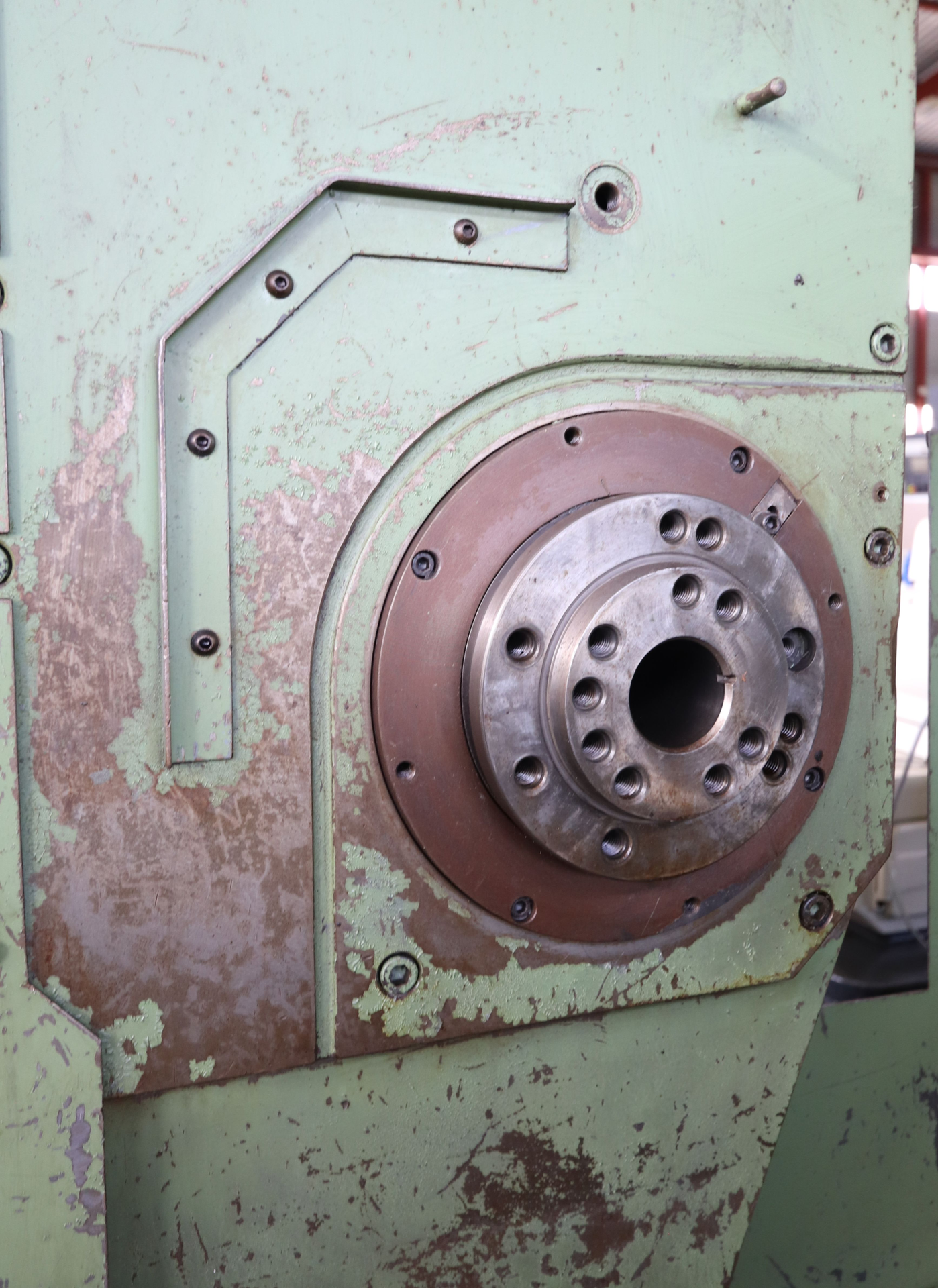

Spindle hole: 38 mm.
Spindle taper: 5 CM.

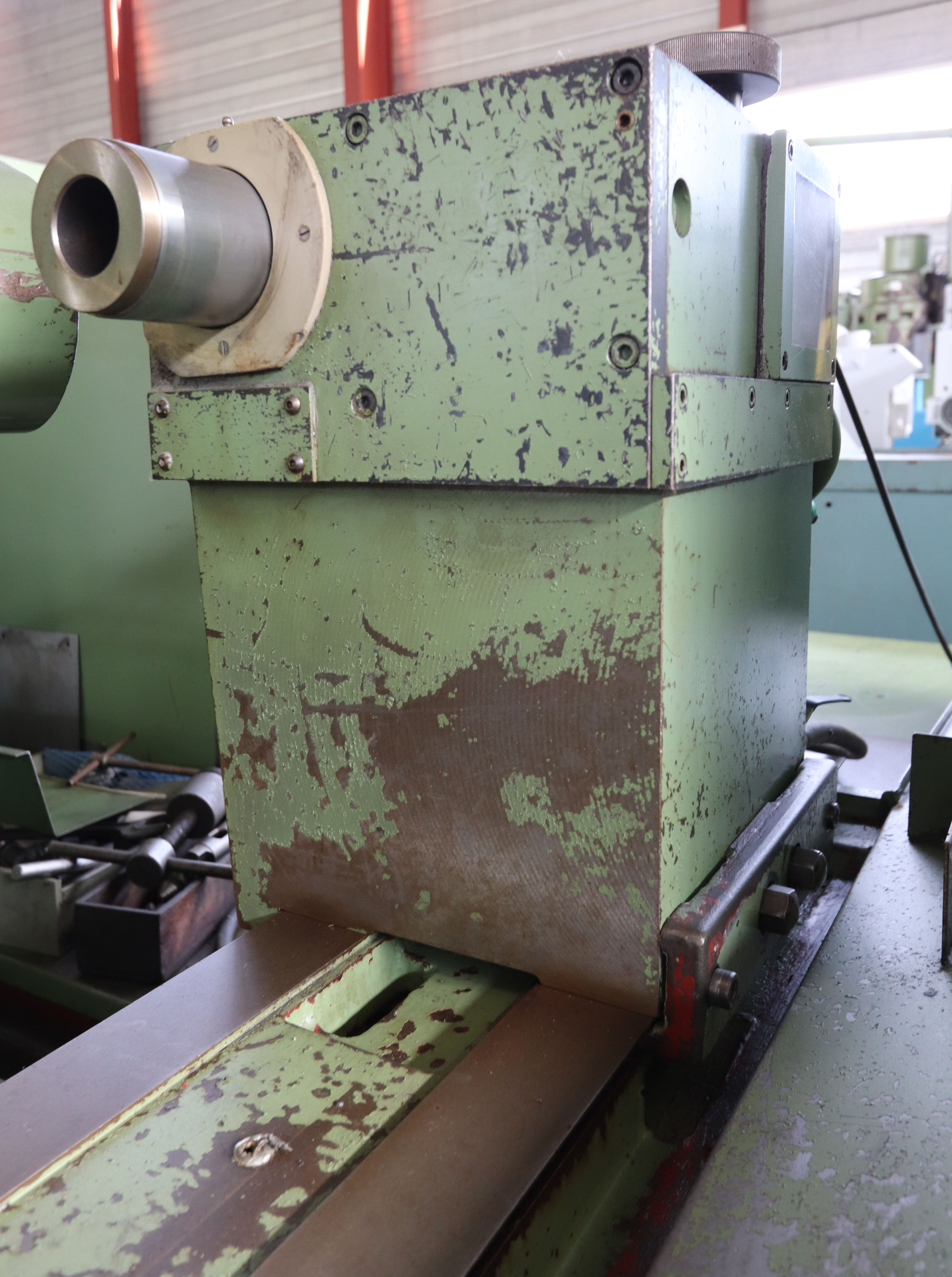

Taper in tailstock:: 5 CM.
Table angular displacement: +/-10 °.
Voltage 50 Hz 3x: 380 Volt.
External Grinding wheel motor: 15 kW.
Workpiece spindle motor: 2 kW.
Machine's weight about: 8000 kg.
Length: 4400 mm.
Height: 2250 mm.
Coolant system: 450 L.
