MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Kira
  • Model:

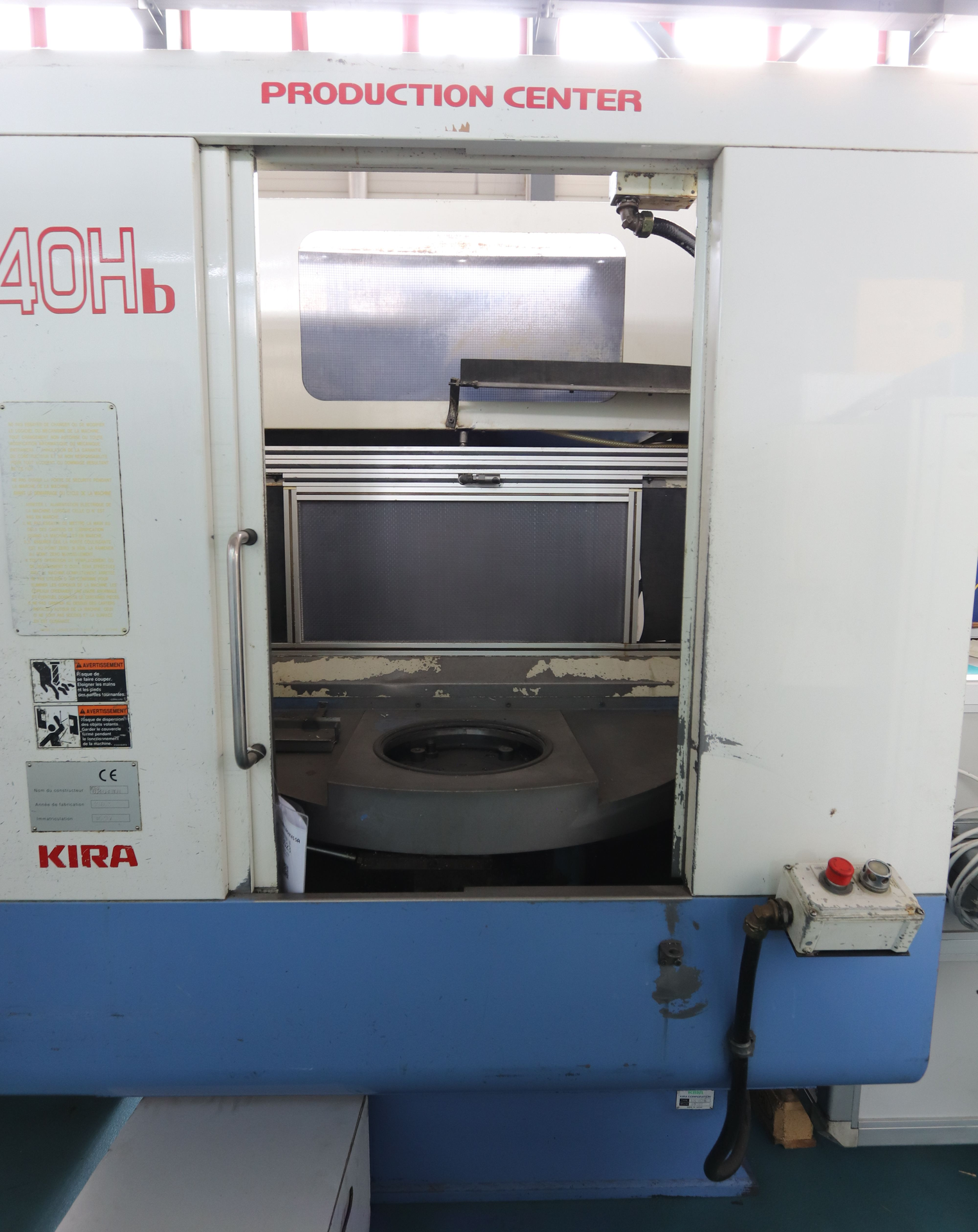

  • 013523 - KIRA KN- 40Hb
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

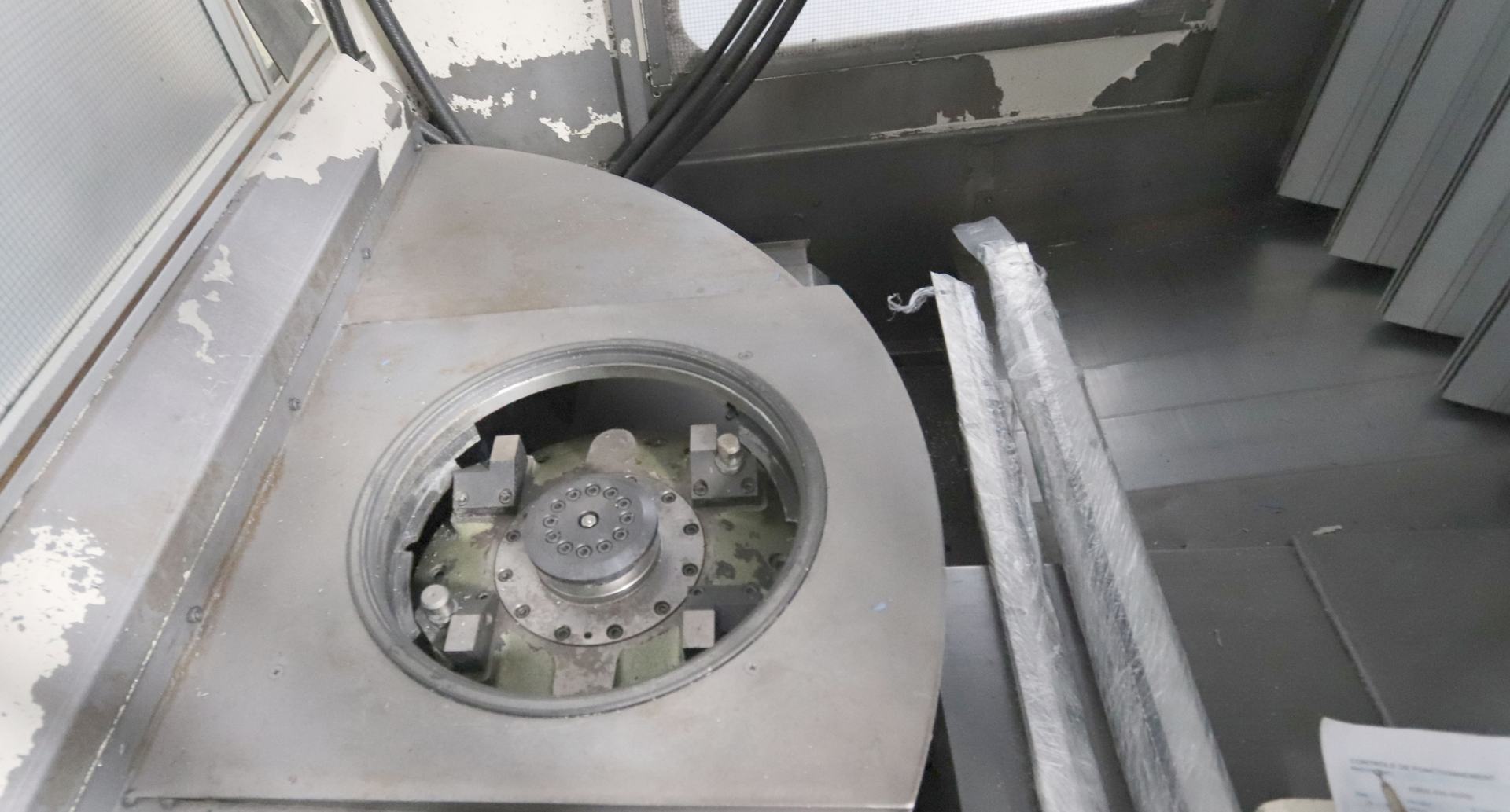

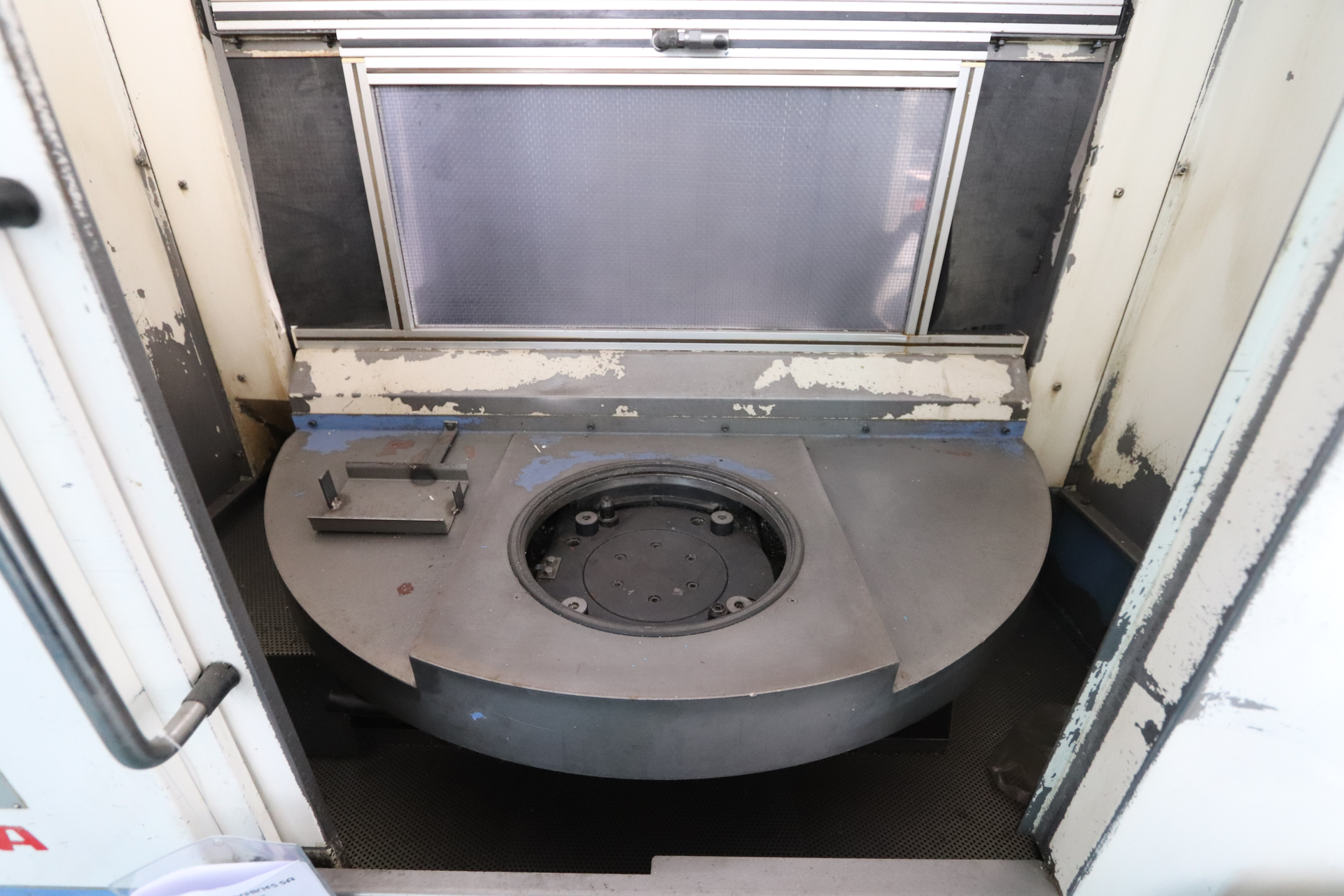

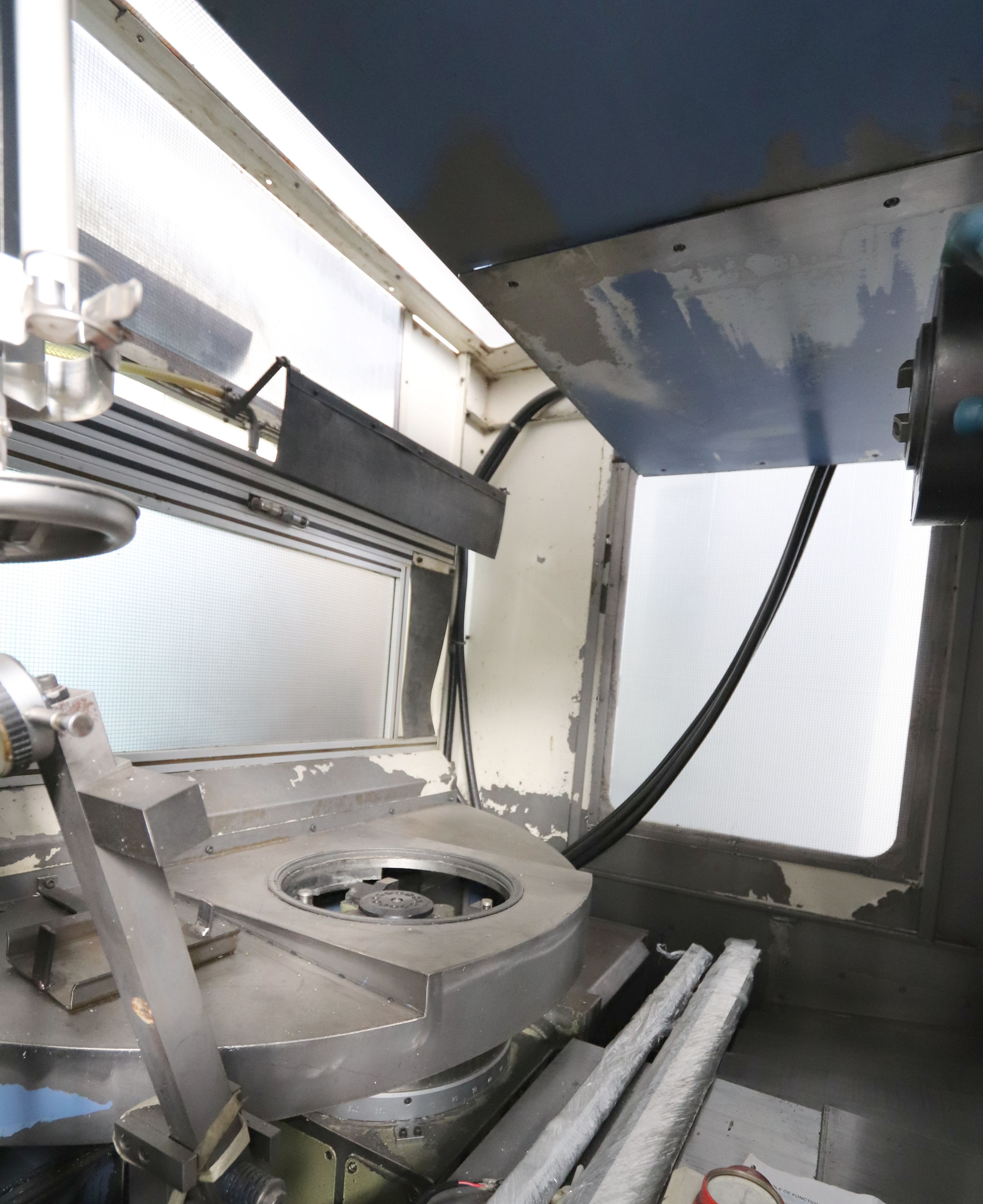

Rotary table:diameter: mm.
Longitudinal travel (X-axis): 500 mm.
Transversal travel (y-axis): 400 mm.
Vertical travel (z axis): 400 mm.
Table divisions (B): 360000 °.
numbers: 2.
Length: 3550 mm.
Width: 1600 mm.
Time of changing palets: 8 s.
Number of tools: 20.
Tool diameter: 100 mm.
Tool lenght: 250 mm.
Max. tool-weight: 5 kg.
Time of tool changing: 1.5 / 3.0 s.

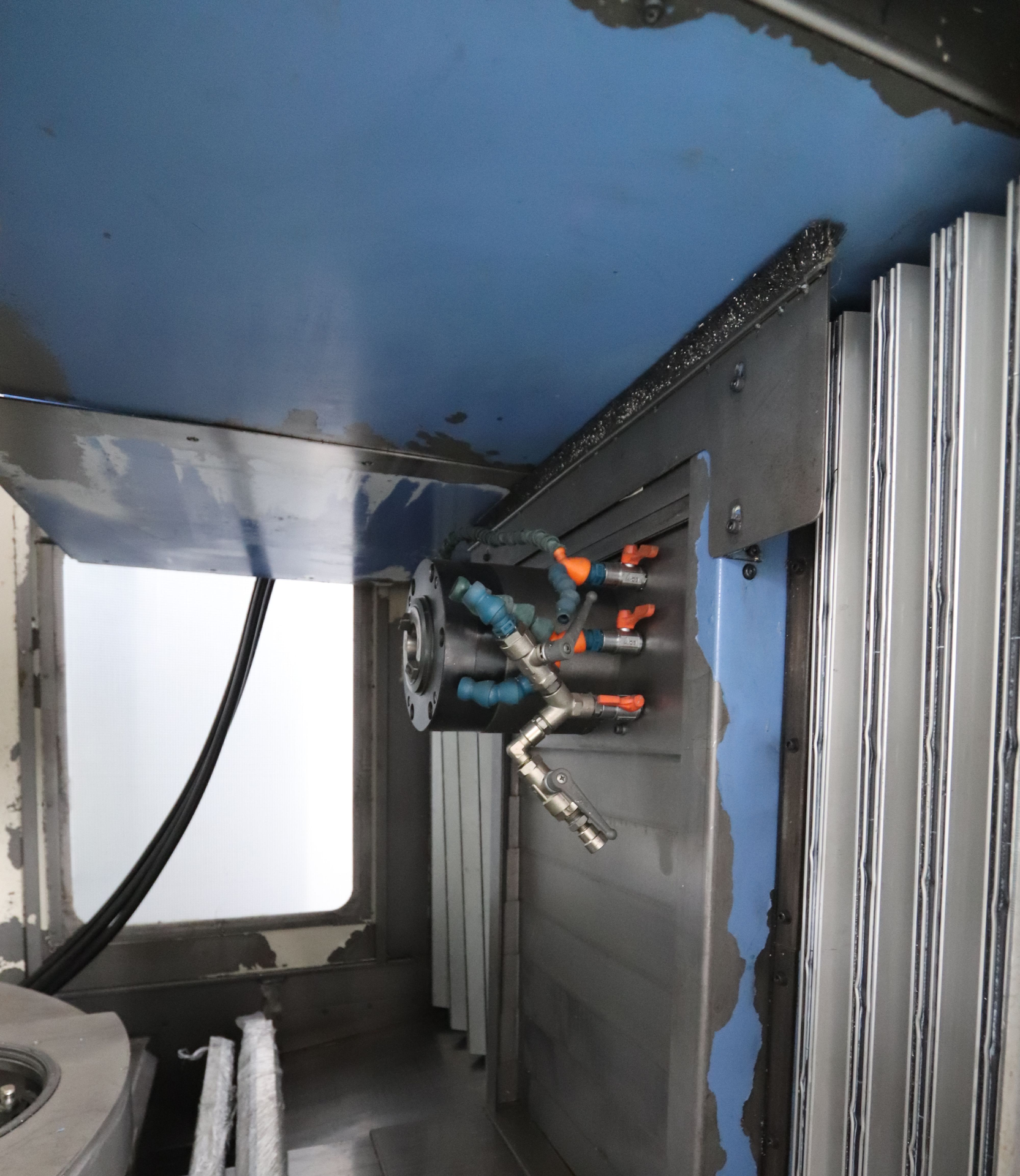

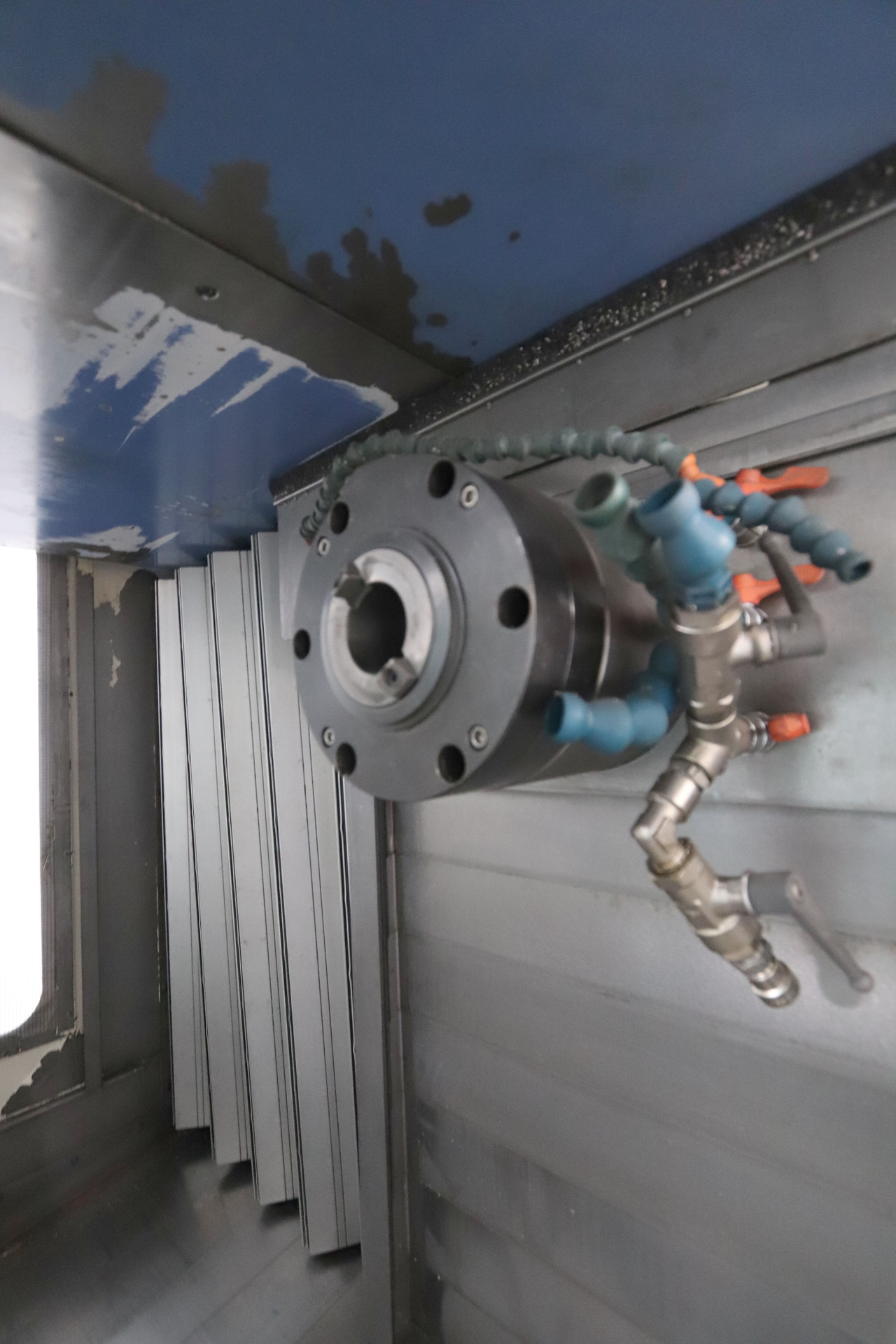

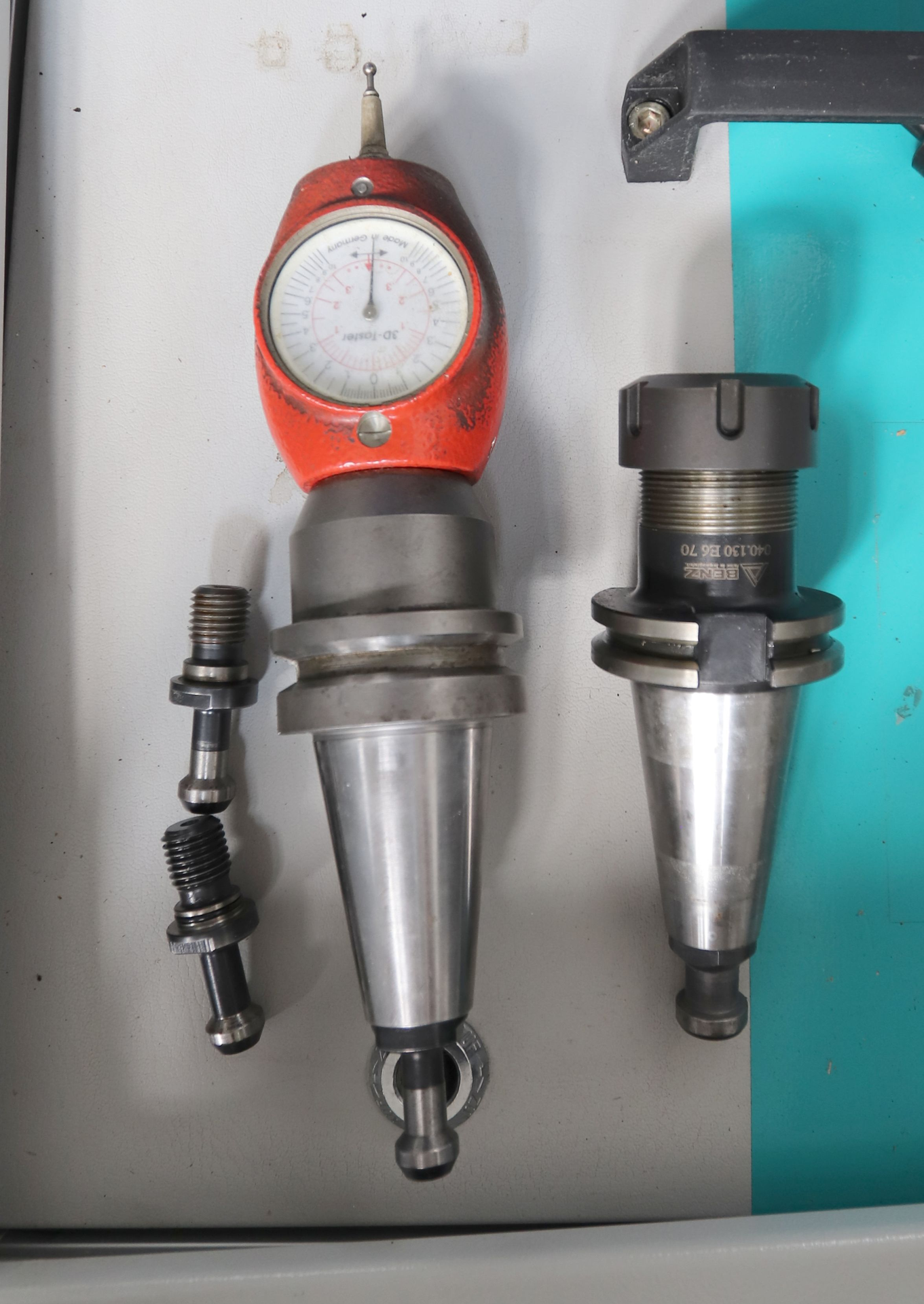

Spindle nose:: BT 40.
from: 160 t/min.
up to: 8000 t/min.
Feed range: 1 - 10000 mm/min.
Rapid traverse:: 48 m/min.
Spindle motor: 5.5 / 3.7 kW.
Machine's weight about: 4000 kg.
Height: 2600 mm.
