MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • DECKEL
  • Model:
  • 013503 - DECKEL DC 50 V
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 4.
Table length: 700 mm.
Table width: 400 mm.
Longitudinal travel (X-axis): 650 mm.
Transversal travel (y-axis): 500 mm.
Vertical travel (z axis): 500 mm.

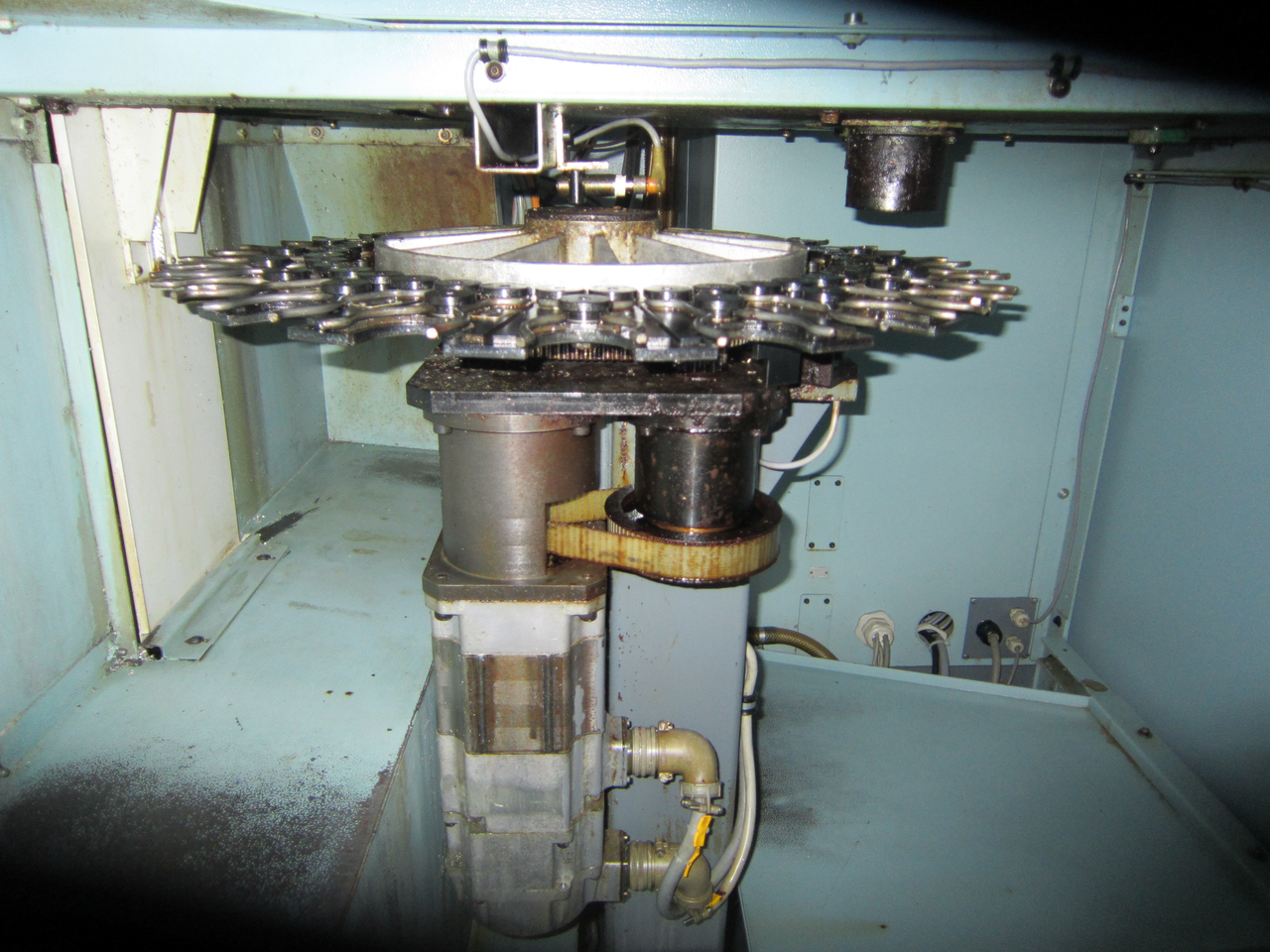

Number of tools: 20.
Spindle nose SK: 40.
from: 20 t/min.
up to: 10000 mm/min.
longitudinal from: mm/min.
transversal from: mm/min.
vertical from: mm/min.
Rapid traverse:: 15 m/min.
Voltage 50 Hz 3x: 380 Volt.
Spindle motor: 15 kW.
Total power required: 35 kW.
Machine's weight about: 6500 kg.
Length: 4000 mm.
Width: 3000 mm.
Height: 3000 mm.
