MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Aciera
  • Model:

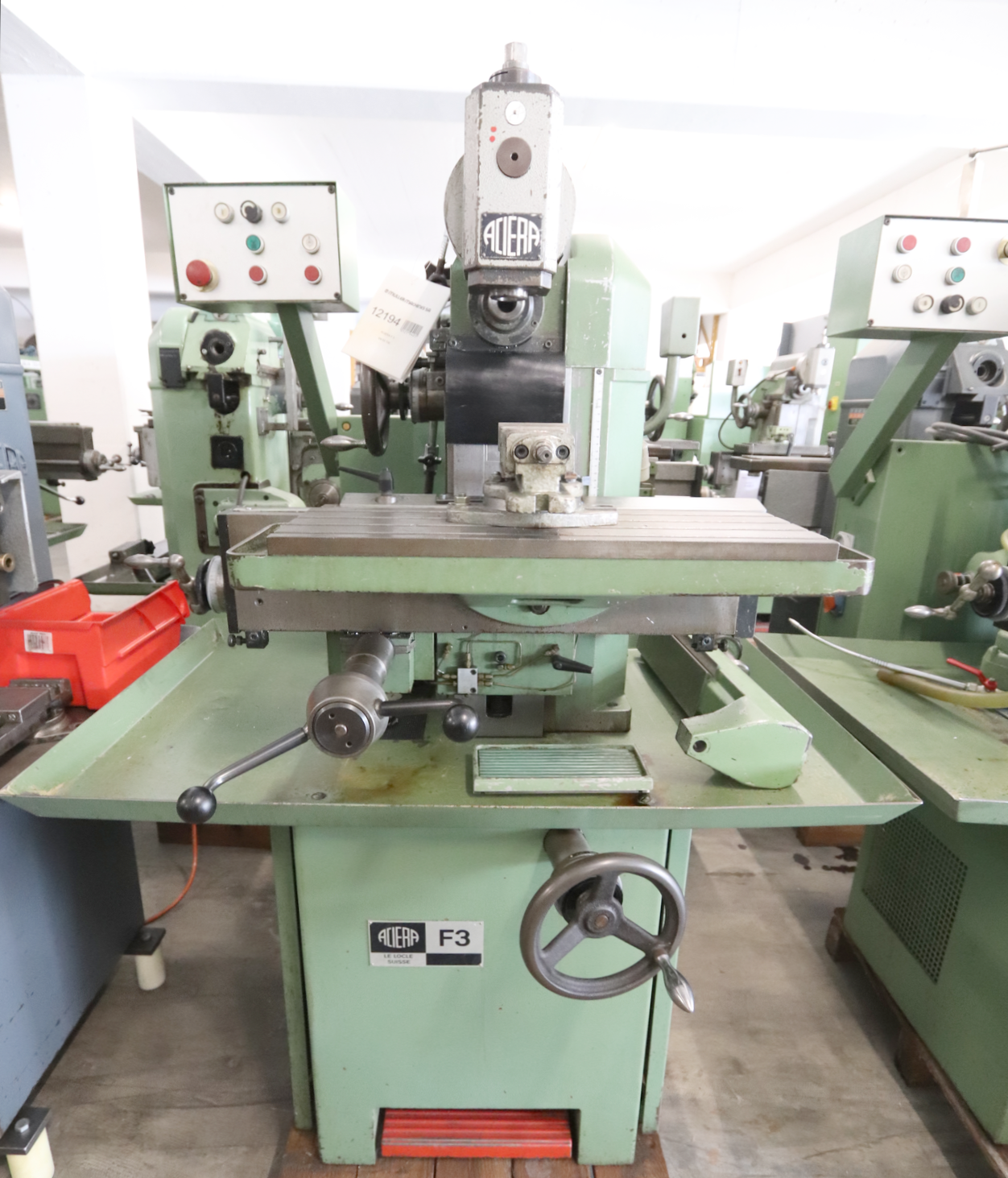

  • 012194 - ACIERA F 3
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

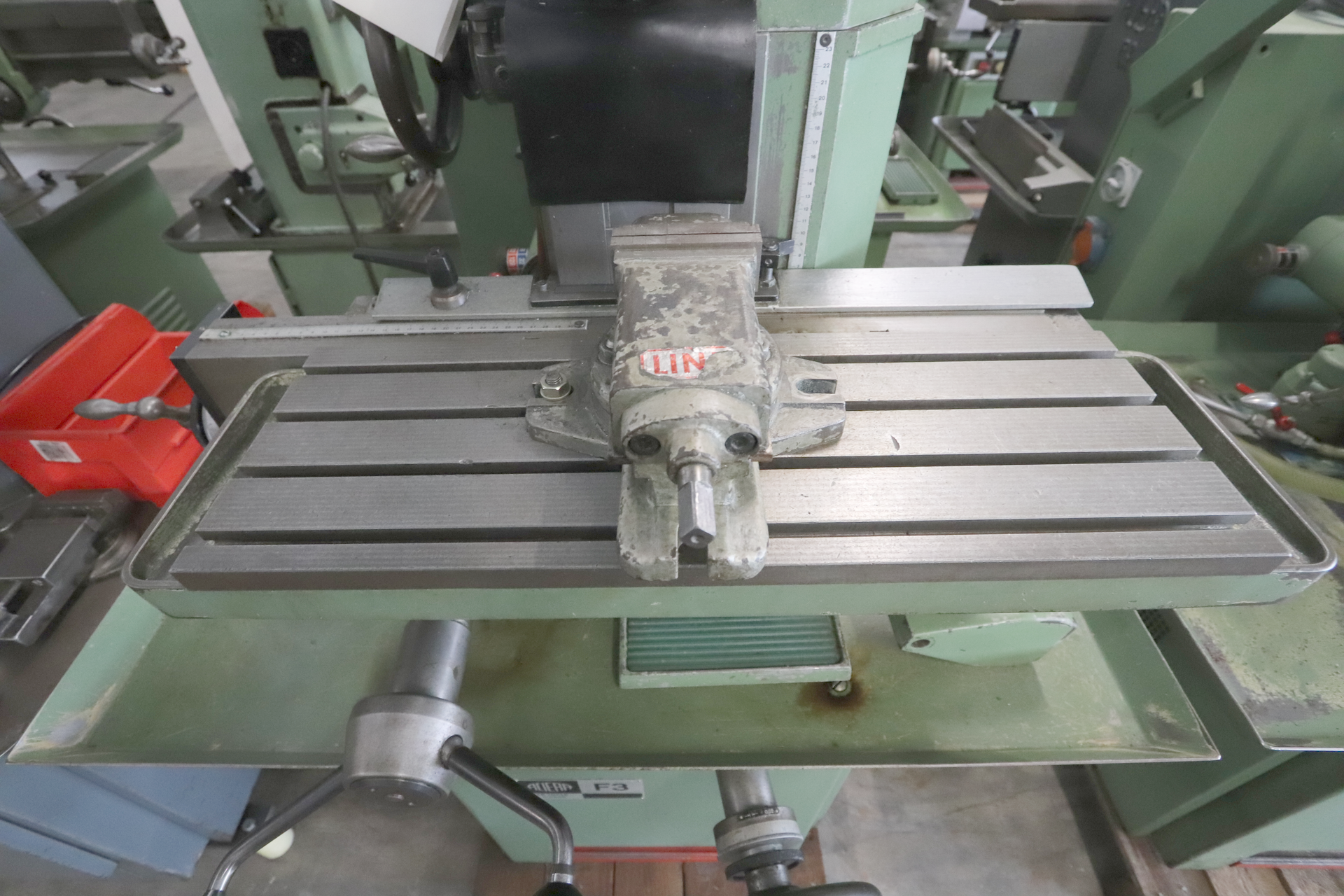

Table length: 600 mm.
Table width: 190 mm.
Longitudinal travel (X-axis): 300 mm.
Transversal travel (y axis): 135 mm.
Vertical travel (z axis): 300 mm.
Distance from vertical spindle to table: 260 mm.
Distance from horizontal spindle to table: 310 mm.
number (steps): 8.
from: 100 t/min.
up to: 116 mm/min.
Taper in spindle:: 20 W.
Feeds steps:: 8.
longitudinal from: 12.0 mm/min.
Voltage 50 Hz 3x: 380 Volt.
Motor output: 2.0 CV.
Total power required: 3 CV.
Machine's weight about: 600 kg.
Length: 1100 mm.
Width: 900 mm.
Height: 1600 mm.
+ request more information
