MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Aciera
  • Model:
  • 012140 - ACIERA 23 TR 50
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

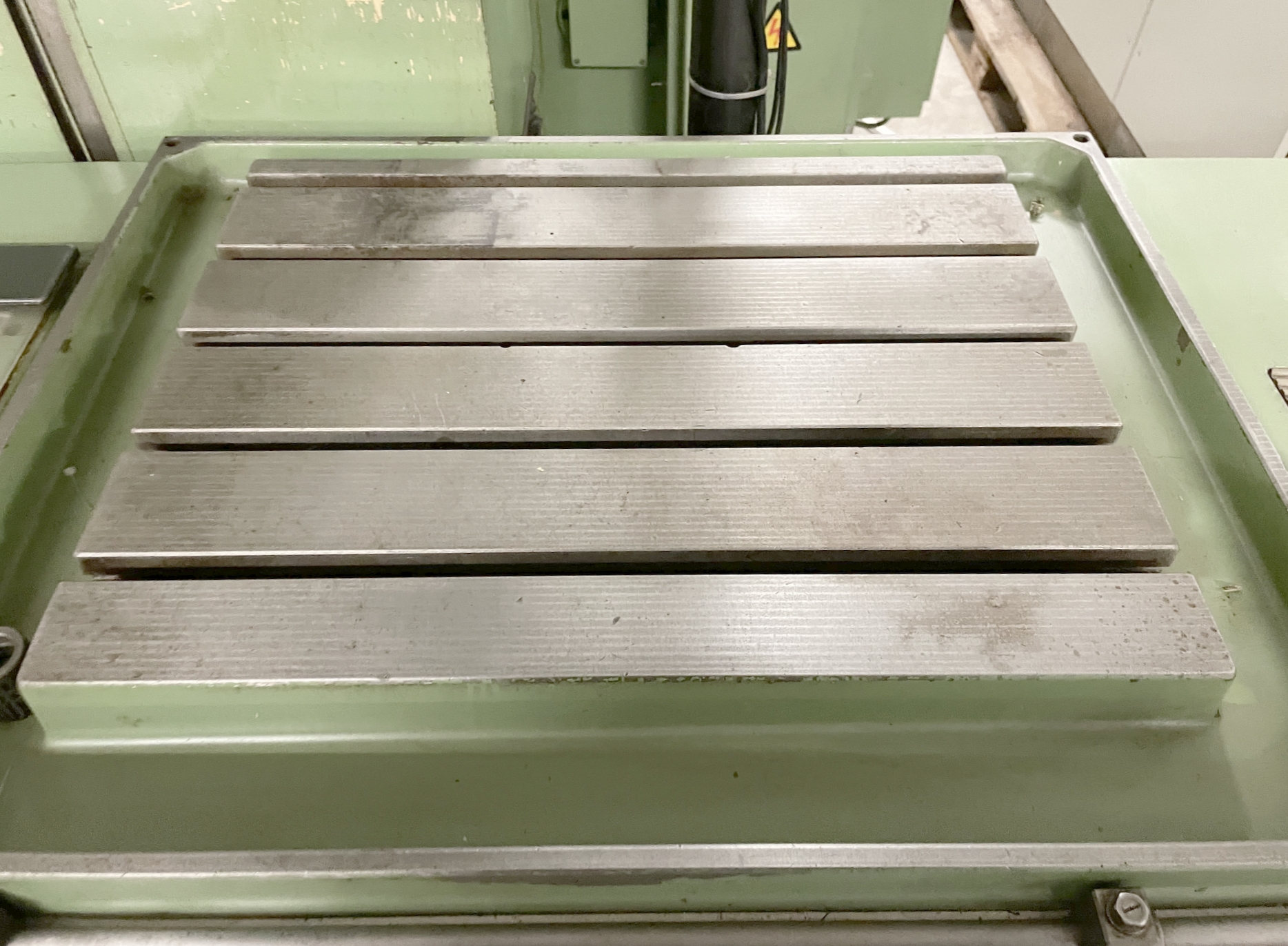

Table length: 660 mm.
Table width: 519 mm.
Length: 1600 mm.
Width: 1200 mm.
T-channel width: 14H8 mm.
Drill capacity in steel: 23 mm.
Depth of throat: 365 mm.
Drill depth (spindle stroke): 120 mm.
Longitudinal travel (X-axis): 400 mm.
Transversal travel (y-axis): 285 mm.
number (steps): 6.
from: 0.06 mm/t.
up to: 1.2 mm/t.
Voltage 50 Hz 3x: 380 Volt.
Total power required: 5 CV.
Machine's weight about: 1500 kg.
Height: 2000 mm.

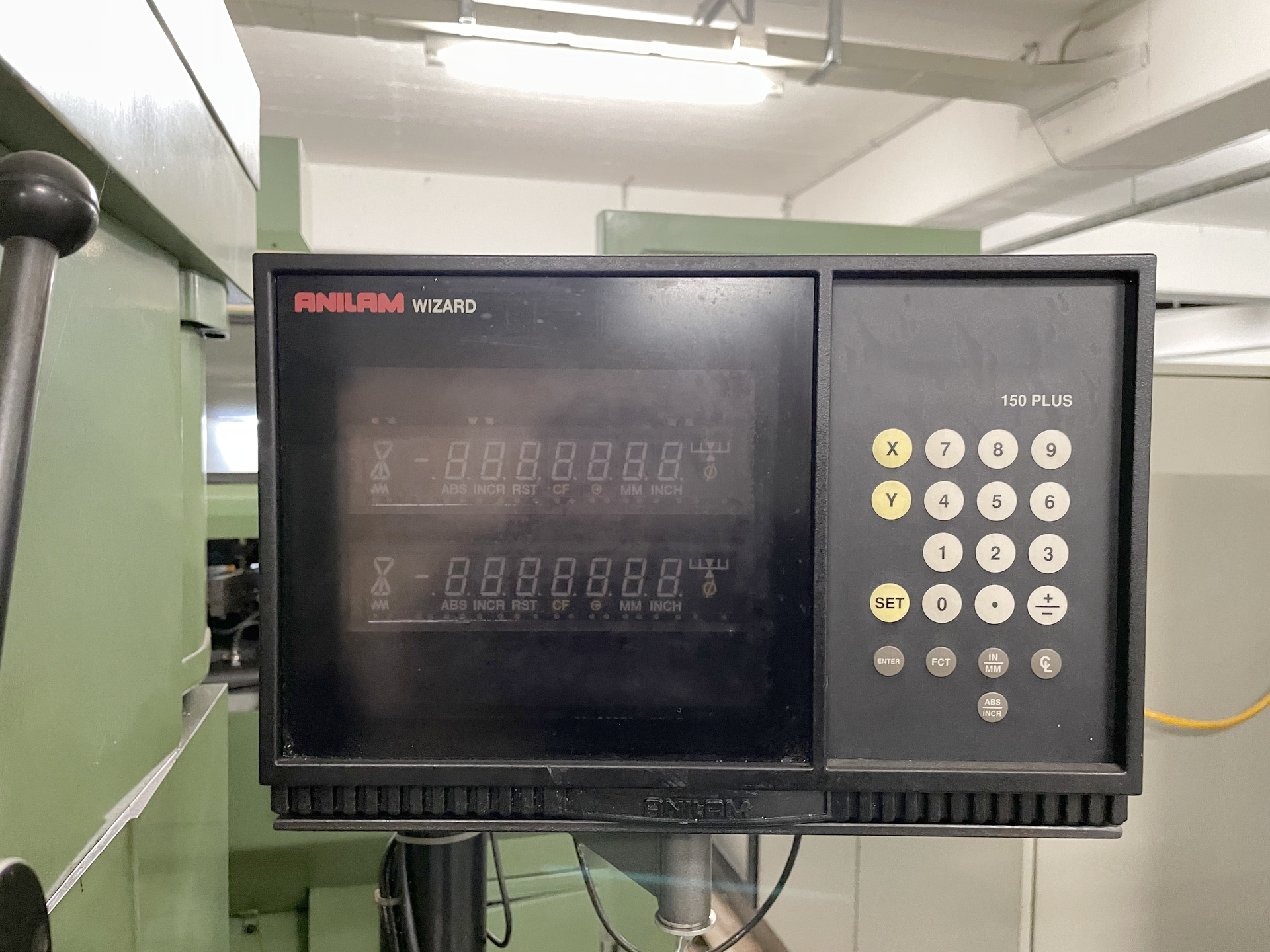

Digital readout number of axis:: 2.
