Manufacturer
Jones & Shipman
Model

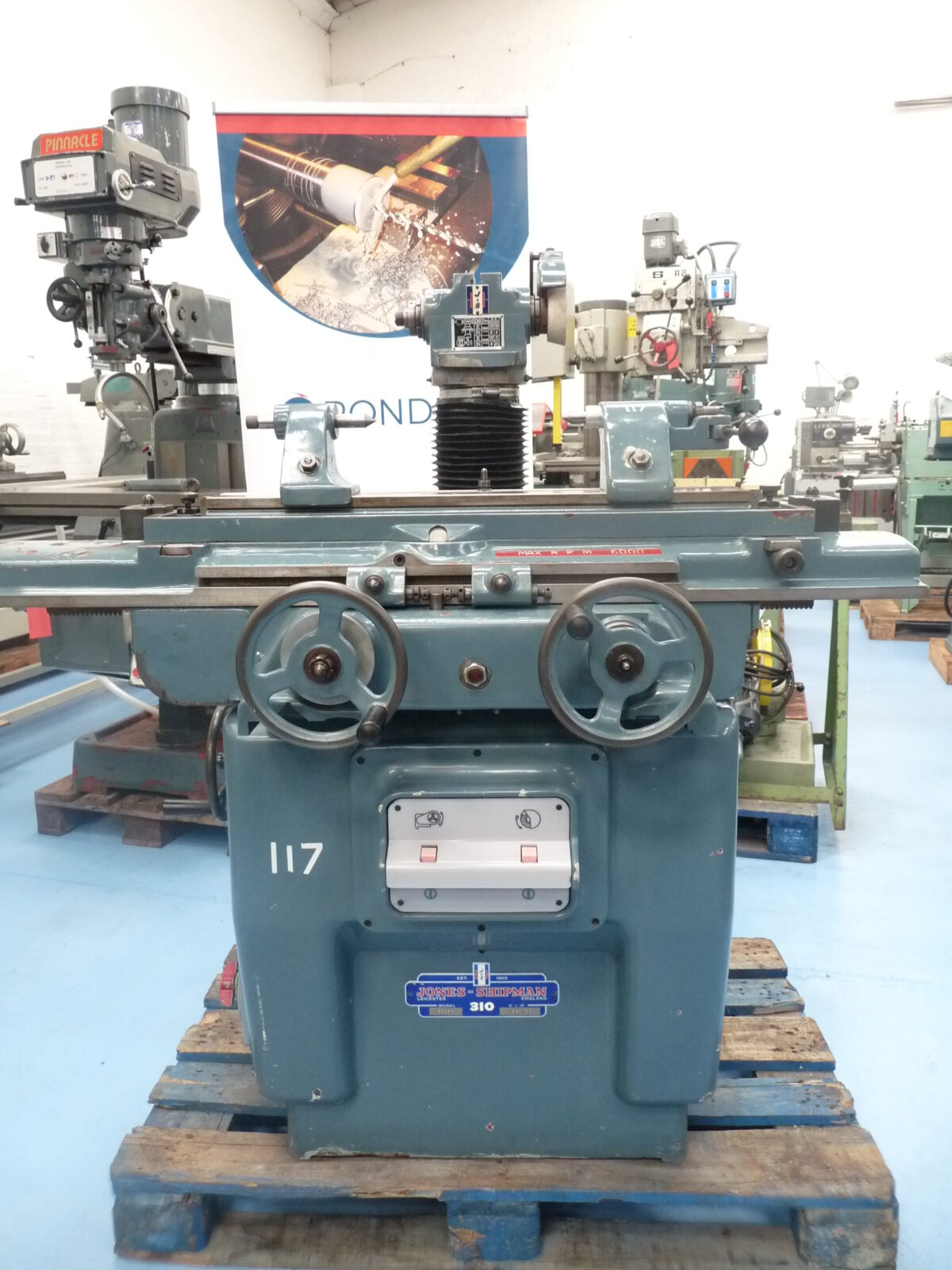

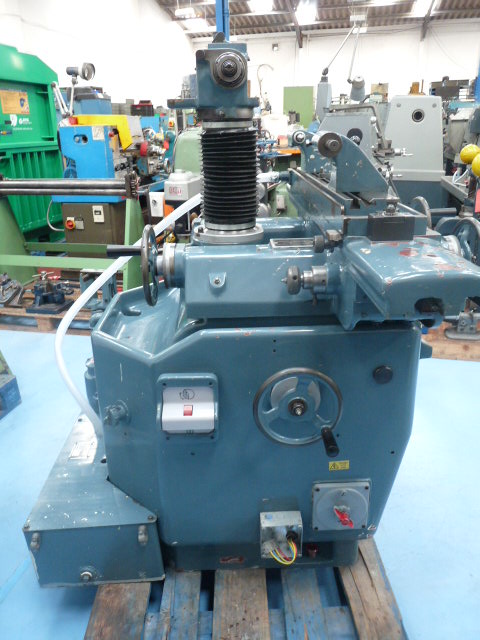

310 tool and cutter grinder
distance between tailstock centres
483mm (19”)
distance between cutter head and right hand tailstock
356mm (14”)
max diameter swing on standard centres
203mm (8”)
max diameter swing on cutter head
305mm (12”)
table working surface
759 x 108mm (29 ½” x 4 ¼”)
Longitudinal Traverse
445mm (17 ½”)
Cross Traverse
187mm (7 3/8”)
Equipment
Coolant
Safe lifting and handling
We supply lifting and moving instructions. We also loan our specialist lifting equipment where required.
Stock number: 130244
Serial number: 1478
Grinding capacity: 1-32 mm
Point angle: 60-180 deg.
Drop angle: 0-15 deg.
Grinding wheel stroke: 50 mm
Grinding wheel: 180/82x40x50 mm
Motor: 0,8 kW
Weight: 250 kg
