Home > Metal Cutting > Boring Go Back
REQUEST PRICE

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • OSBORN
  • Model:

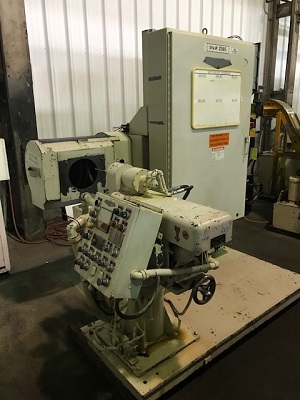

  • OSBORN NO. 3-A BRUSH MACHINE
  • Condition:
  • NA
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

EQUIPPED WITH:

Adjustable Magnetic Brake
Timer
220/440/3/60 Electrics
Brush Hood

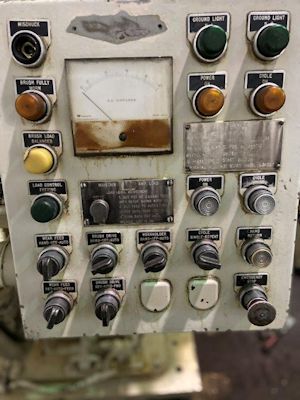

Manual & Auto Push Button Station

SPECIFICATIONS:

Vertical/Horizontal Head Adjustment: 360 Degrees
Crossfeed Adjustment: 6"
Vertical Adjustment: 6"
Infeed Adjustment: 12"

Workholder Height, Minimum: 35-1/2"
Workholder Height, Maximum: 41-1/2"
Height From Floor To Lathe Spindle Centerline: 39"
Spindle Speeds: 1750 RPM
Motor HP: 5
Work Rotation: 34 RPM
Approximate Floor Space Requirements: 6 x 7
Approximate Net Weight: 2,450#
