MACHINE INFORMATION AND SPECIFICATION

Category:
Metal Cutting

Subcategory:
Boring

Manufacturer:

Model:

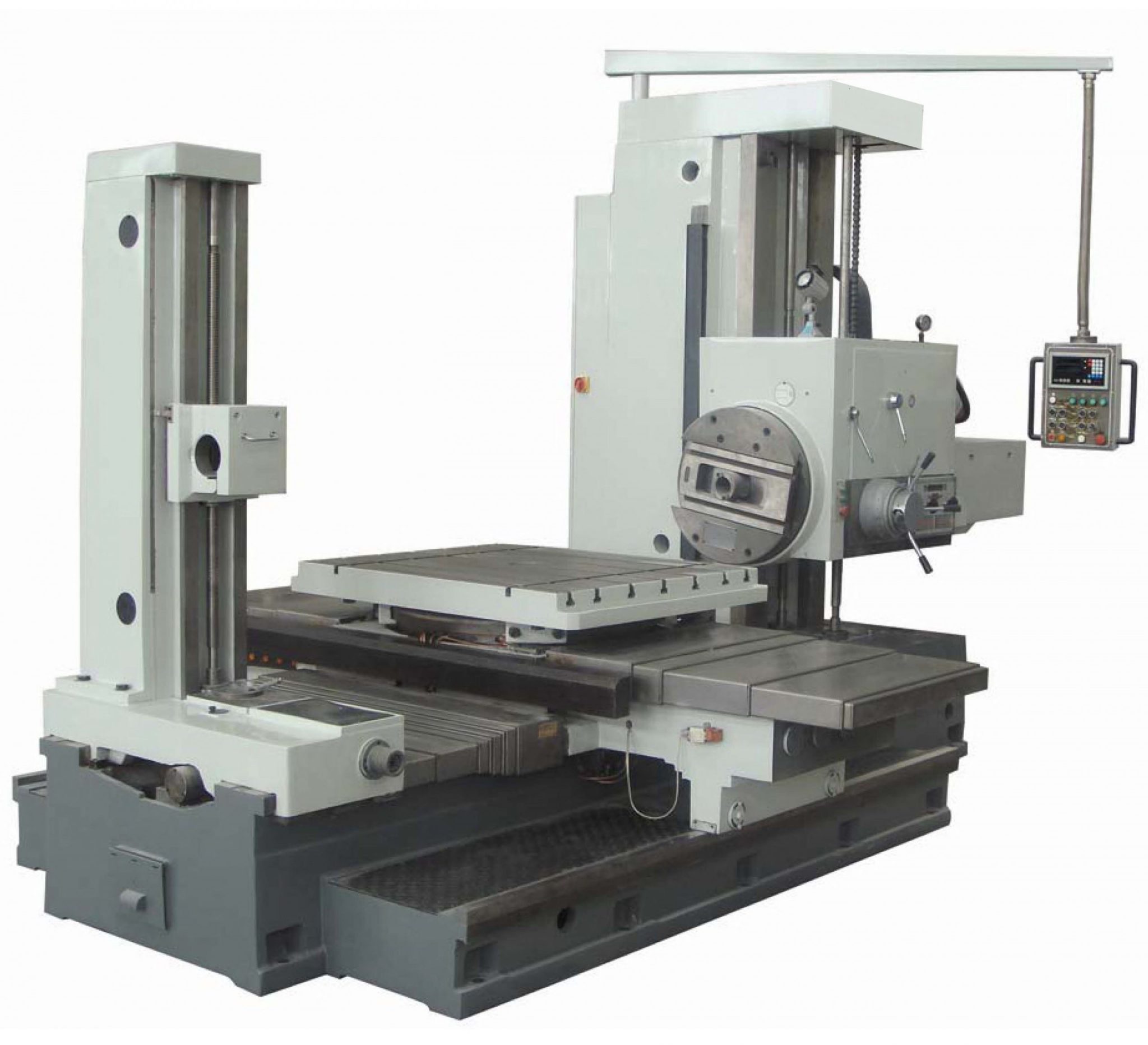

TABLE TYPE BORING MILLS

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Broadbent Stanley

Country:
N/A

DESCRIPTION

Table Data: Capacity | BS6111 | BS6111A | BS6113 | BS6113A | BS6113A/2 Spindle diameter | 110mm | 110mm | 130mm | 130mm | 130mm Spindle taper | Morse No.6 (7:24 No50) | Morse No.6 (7:24 No50) | Morse No.6 (7:24 No50) | Metric 80 (7:24 No50) | Metric 80 (7:24 No50) Spindle speed | 8-1000 | 8-1000 | 4-8000 | 4-8000 | 4-8000 Motor power | 7.5kW | 7.5kW | 15kW | 15kW | 15kW Facing head diameter | 600mm | 600mm | 750mm | 750mm | 750mm Table size (LxW) | 1140x1000mm | 1140x1000mm | 1600x1400mm | 1600x1400mm | 1800x1600mm Max. load of table | 2500kg | 2500kg | 8000kg | 8000kg | 8000kg X-axis travel | 1000mm | 1350mm | 1600mm | 2000mm | 2000mm Y-axis travel | 1000mm | 1000mm | 1500mm | 1800mm | 2000mm Z-axis travel | 1000mm | 1000mm | 1500mm | 1500mm | 1500mm W-axis travel | 600mm | 600mm | 900mm | 900mm | 900mm U-axis travel | 180mm | 180mm | 250mm | 250mm | 250mm B-axis travel | 360Â° | 360Â° | 360Â° | 360Â° | 360Â° Rapid travel | 2500mm | 2500mm | 2500mm | 2500mm | 2500mm B-axis measurement system reading precision | 0.001Â° | 0.001Â° | 0.001Â° | 0.001Â° | 0.001Â°

+ request more information

SEND ENQUIRY

*I AM A

Dealer

End User

Check here if you no longer wish to subscribe to our newsletter.

REQUEST MORE INFORMATION

SEND ENQUIRY

*I AM A

Dealer

End User

Check here if you no longer wish to subscribe to our newsletter.

Sellers

Broadbent Stanley

Contact Name
Graham Thomas

Contact Number
01422 835266
